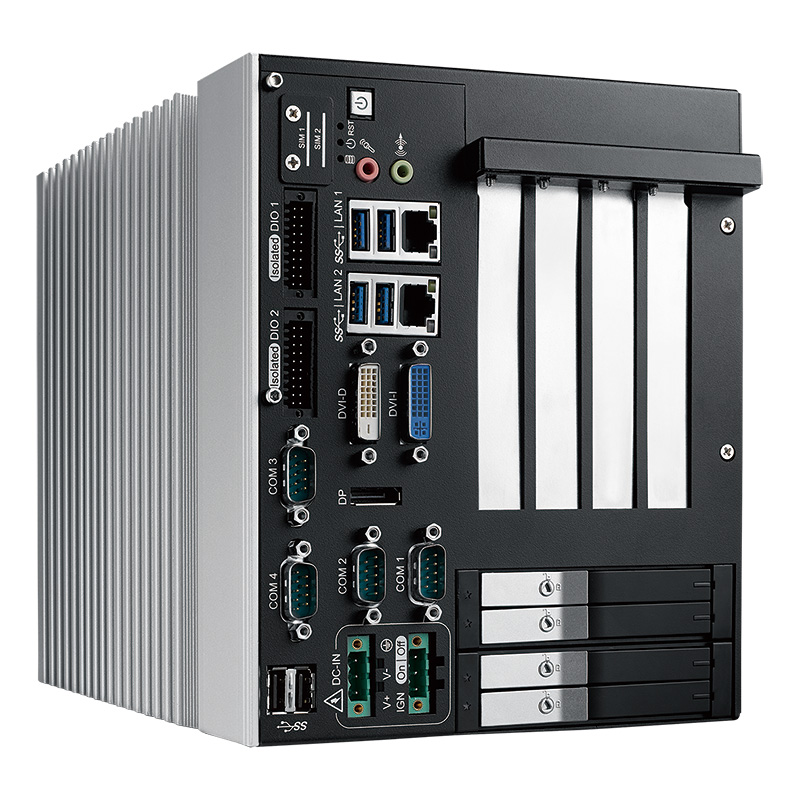

New Taipei City, Taiwan, March 31st, 2016 — Vecow Co., Ltd., a team of embedded experts, launches her first expandable fanless embedded system with 6th Gen Intel® Skylake platform, RCS-9000 Series Fanless Robust Computing System. Powered by Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 processor (Skylake-S), fanless -25°C to 70°C operating temperature, all-in-one integrated features, multiple I/O connection, 3 SIM socket for WiFi/ 3G/ 4G/ LTE/ GPRS/ UMTS, 4 front-access SSD Tray, 4/2 multiple PCI/PCIe expansion, smart manageability, 6V to 36V power input with 80V surge protection, ignition power control, intelligent circus protection and trusted reliability in harsh environments, Vecow RCS-9000 Series Fanless Robust Computing System is your flexible choices for Machine Vision, Factory Automation, Robot Control, Automated optical inspection (AOI), Machine Automation, Industry 4.0 and any high-performance IoT applications.

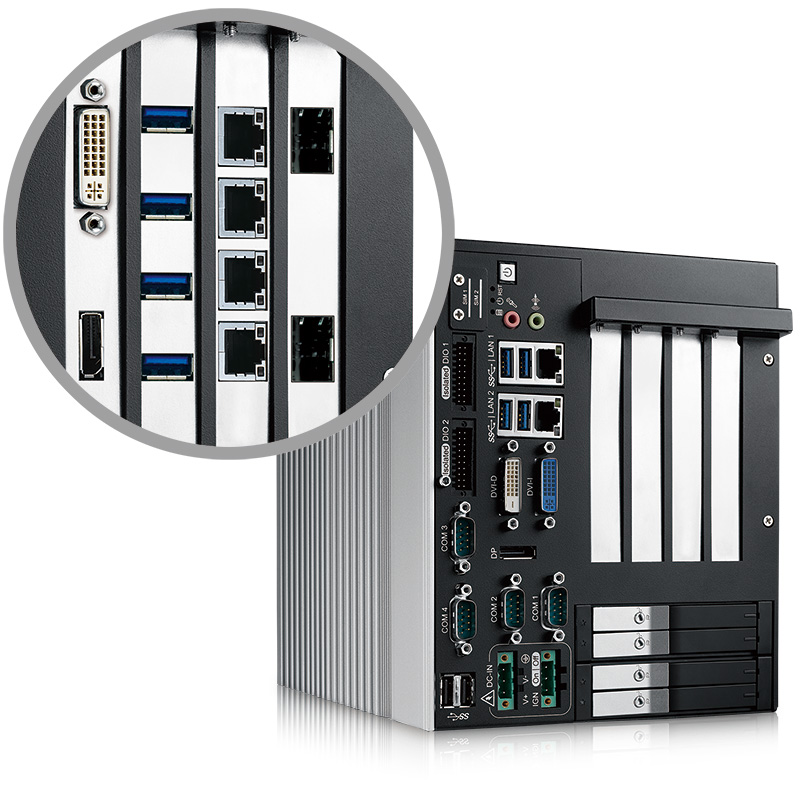

LGA1151 Socket supports Quad Core 6th Gen Intel® Core™ i7/ i5 i3 processor (Skylake-S) running with Intel® Q170 chipset, dual channel DDR4 2133MHz up to 32GB memory, RCS-9000 enables up to 11% CPU performance enhanced, with 22% lower CPU power consumption; advanced Intel® HD Graphics 530 supporting DirectX 12 API, onboard DVI-I, DVI-D and DisplayPort display interface for Ultra HD 4K resolution, RCS-9000 boost up to 28% Graphics Performance enhanced than the former generation; PCIe 3.0 (8GT/s), Multiple SATA III (6Gbps), USB 3.0 (5Gbps), PoE (1Gbps) LAN and wireless connections make high-speed data computing and conveying possible. Vecow RCS-9000 Series Fanless Robust Computing System delivers you new generation Power-Efficient performance in demanding workloads.

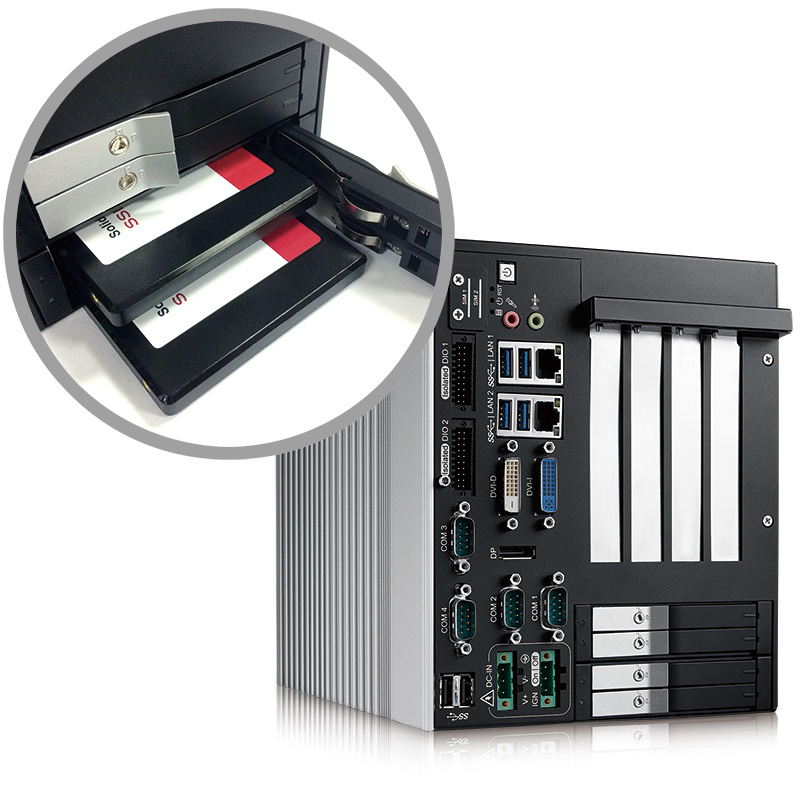

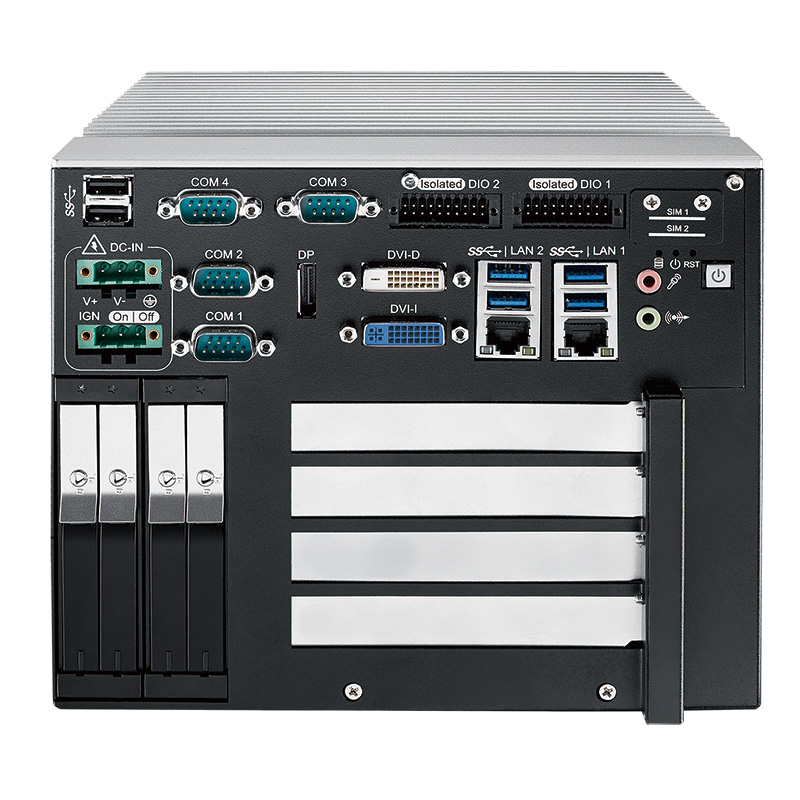

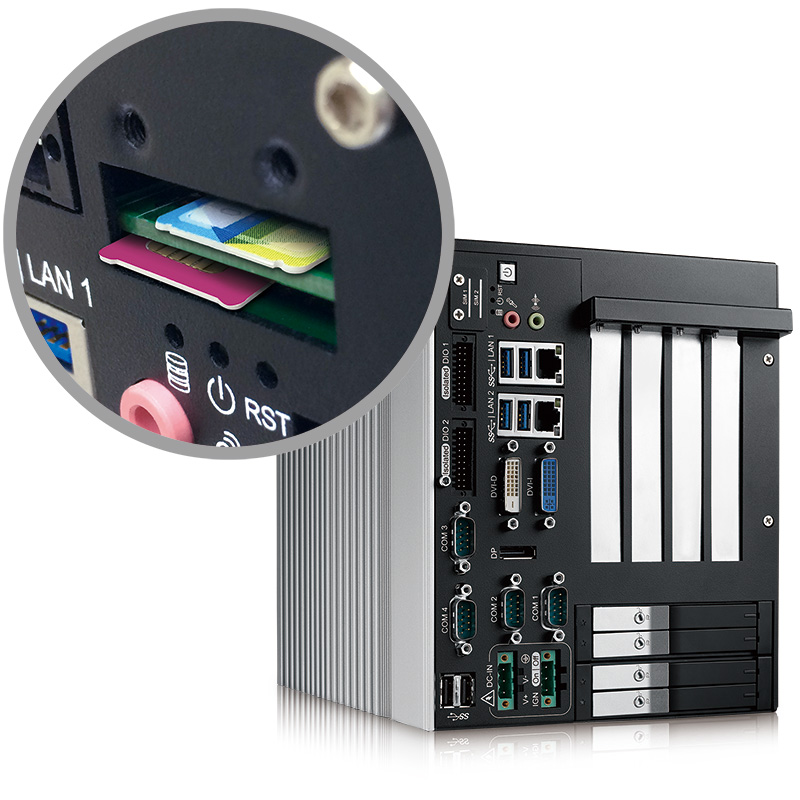

2 independent Intel® GigE LAN supports iAMT 11.0, 4 Front-access 2.5” SSD/ HDD trays, 3 SIM card sockets for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS, 4 PCI/PCIe expansion, 7 USB 3.0, 2 USB 2.0, 1 Front-access CFast socket, 4 COM RS-232/ 422/ 485, 32 Isolated DIO, 3 Mini PCIe sockets, 4 SATA III support software RAID 0, 1, 5, 10 function, all-in-one single-board cable-less designs, 6V to 36V wide range power input with 80V surge protection, 16-mode configurable ignition power control, remote power switch, fanless -25°C to 70°C operating temperature, IEC 60068 compliant, Vecow RCS-9000 Series Fanless Robust Computing System integrates outstanding performance, flexible integration, user-friendly, intelligent power protection functions, smart manageability, mobile availability and trusted reliability for performance driven embedded applications.
“It’s really a meaningful milestone for our RCS series robust computing system family.” said Thomas Su, director, Embedded System & Platform Division, Vecow. “RCS-9000 not only delivers the latest 6th Gen Intel® Skylake platform but also new generation energy-effective performance to our RCS series robust computing system. It features better manageability & mobile availability, more secure power protection and larger storage capacity than ever.”
“I can’t wait to include this all new upgraded expandable embedded engine, RCS-9000 series fanless robust computing system, in my offering list.” said Jay Hsiao, Sales Manager, Sales & Marketing Division, Vecow. “It’s an excellent solution to make multiple expansions possible for performance driven embedded applications in harsh environments. We’ve got many project requirements of RCS-9000 in Europe and American markets.”
With outstanding performance, flexible integrated features, smart manageability, good mobile availability, intelligent power protection and industrial-grade trusted reliability, Vecow RCS-9000 Series Fanless Robust Computing System is your excellent choices for Machine Vision, Factory Automation, Robot Control, Automated optical inspection (AOI), Machine Automation, Industry 4.0 and any Internet of Thing (IoT) high performance embedded computing applications.
To know more about Vecow RCS-9000 Series Fanless Robust Computing System, please visit RCS-9000 product page for more details.
RCS-9440R
RCS-9000 Fanless Robust Computing System, Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 (Skylake-S), 2 GbE LAN, 1 PCIe x8, 3 PCIe x4, 4 Front-access SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO
RCS-9440
RCS-9000 Fanless Robust Computing System, Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 (Skylake-S), 2 GbE LAN, 1 PCIe x8, 3 PCIe x4, 3 SIM, 4 COM, 7 USB 3.0, Isolated DIO
RCS-9422R
RCS-9000 Fanless Robust Computing System, Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 (Skylake-S), 2 GbE LAN, 1 PCIe x16, 1 PCIe x4, 2 PCI, 4 Front-access SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO
RCS-9422
RCS-9000 Fanless Robust Computing System, Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 (Skylake-S), 2 GbE LAN, 1 PCIe x16, 1 PCIe x4, 2 PCI, 3 SIM, 4 COM, 7 USB 3.0, Isolated DIO
RCS-9404R
RCS-9000 Fanless Robust Computing System, Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 (Skylake-S), 2 GbE LAN, 4 PCI, 4 Front-access SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO
RCS-9404
RCS-9000 Fanless Robust Computing System, Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 (Skylake-S), 2 GbE LAN, 4 PCI, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO
RCS-9220A
RCS-9000 Fanless Robust Computing System, Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 (Skylake-S), 2 GbE LAN, 2 PCIe x8, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO
RCS-9220
RCS-9000 Fanless Robust Computing System, Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 (Skylake-S), 2 GbE LAN, 1 PCIe x16, 1 PCIe x4, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO
RCS-9211
RCS-9000 Fanless Robust Computing System, Quad Core 6th Gen Intel® Core™ i7/ i5/ i3 (Skylake-S), 2 GbE LAN, 1 PCIe x16, 1 PCI, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO
About Vecow
Vecow, a team of embedded experts, dedicates to designing, developing, producing and selling industrial grade computer products. Vecow offers Fanless Embedded Systems, Vehicle Computing Systems, Robust Computing Systems, 3.5” Single Board Computers, Multi-Touch Computers, Multi-Touch Displays, Frame Grabbers, Embedded Peripherals and Design & Manufacturing Services for machine vision, vehicle computing, video analytics, intelligent surveillance, smart manufacturing, intelligent transportation, factory automation, intelligent control and any Internet of Things (IoT) applications.
