System |
|
Processor |
Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor |
|
BIOS |
AMI |
|
Chipset |
Intel® Q370 |
|
Memory |
4 DDR4 2666 MHz U-DIMM, up to 128GB |
|
OS |
Windows 10, Linux |
|
Graphics |
|
Processor |
Intel® HD Graphics 630 |
|
Interface |
3 display interfaces :
- 1 VGA : Up to 1920 x 1200 @60Hz
- 1 DVI-D: Up to 1920 x 1200 @60Hz
- 1 DisplayPort : Up to 4096 x 2160 @60Hz
|
|
Ethernet |
|
LAN 1 |
Intel® I219LM GigE LAN supports iAMT 12.0 |
|
LAN 2 |
ntel® I211AT GigE LAN |
|
Audio |
|
Audio Codec |
Realtek ALC662, 5.1 Channel HD Audio |
|
Audio Interface |
1 Line-in, 1 Line-out, 1 Mic-in |
|
I/O Interface |
|

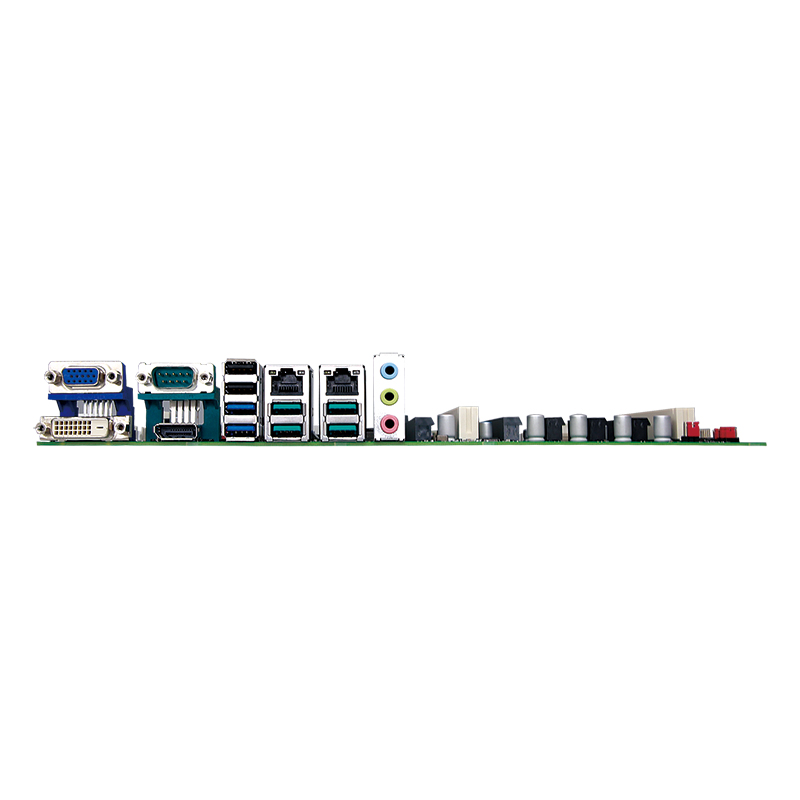

Front I/O |
- 4 USB 3.2 Connector
- 2 USB 3.0 Connector
- 2 USB 2.0 Connector
- 1 COM RS232/422/485 Connector
- 1 VGA Connector
- 1 DVI-D Connector
- 1 DisplayPort Connector
- 2 RJ45 Connector
|
|
Internal I/O |
- 2 USB 2.0 Connector
- 3 USB 2.0 Header
- 1 COM RS232/422/485 Connector
- 2 COM RS232/485 Connector
- 2 COM RS232 Connector
- 1 GPIO Header
- 4 SATA III Connector
- 1 CPU Fan Connector
- 2 System Fan Connector
- 1 LPT Header
- 1 PS/2 Header
|
|
Storage |
|
SATA |
4 SATA III (6Gbps) |
|
mSATA |
1 M.2 Key M Socket (2242/2280, PCIe x4) |
|
Expansion |
|
PCI |
2 PCI Slot |
|
PCIe |
- 2 PCIe x16 Slot with 1 PCIe x16 or 2 PCIe x8 signal (Gen3)
- 3 PCIe x4 Slot
|
|
Mini PCIe |
1 Mini PCIe Socket for SATA/PCIe/USB |
|
Power |
|
Power Input |
+12V +5V +3.3V 5VSB
7.25A 0.58A 0.27A 0.07A
|
|
Power Type |
ATX Input |
|
Power Interface |
24-pin ATX Power Connector |
|
Others |
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats |
|
Mechanical |
|
Dimension |
304.8mm x 244 mm (11.97" x 9.61") |
|
Environment |
|
Operating Temp. |
0°C to 60°C (32°F to 147°F) |
|
Storage Temp. |
-40°C to 85°C (-40°F to 185°F) |
|
Humidity |
5% to 95% Humidity, non-condensing |
|
Relative Humidity |
95% @60°C |
|
EMC |
CE, FCC |
