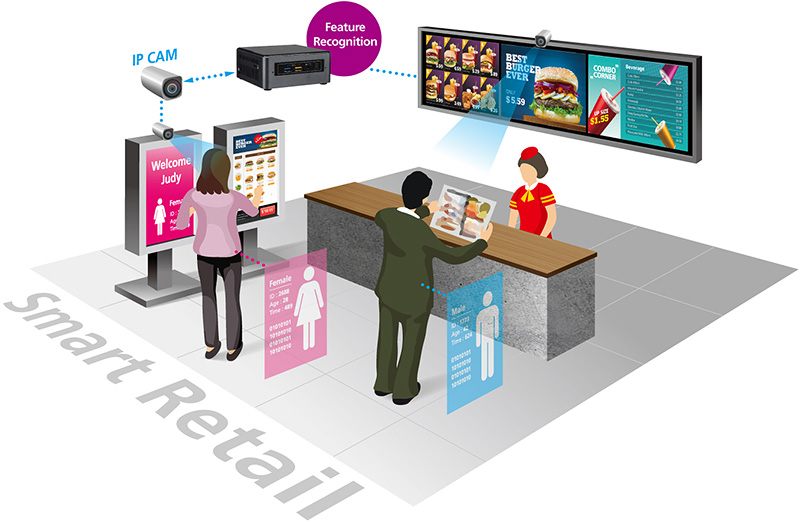

Applications

VHD NUC8i7BEH

Features

    • 8th Generation Intel® Core™ i7 processor with Iris® Plus Graphics 655
    • 2 DDR4 2400MHz Memory, up to 32GB
    • 12V to 19V Power input
    • Storage：1 Micro SDXC, 2.5" HDD/SSD, M.2 SSD
    • HDMI 2.0a, DisplayPort 1.2 or USB 3.1 gen 2
    • 1 Independent GigE LAN
    • 4 USB 3.1, 1 Thunderbolt™ 3 USB Type-C
    • Intel® Optane™ memory ready, up to 32 GB
    • Intel® Dual Band Wireless-AC 9560 and Bluetooth 5.0





Overview

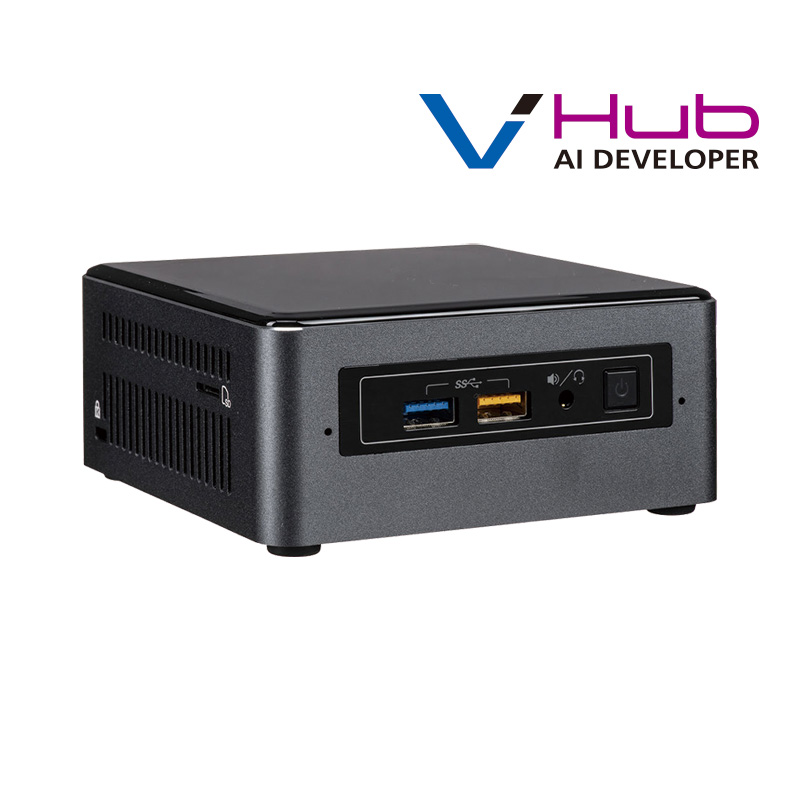

    Equipped with 8th Generation Intel® Core™ i7 processor, VHD NUC8i7BEH is a powerful 4x4 inch Mini PC. It features a 2.5” HDD, Intel® Optane™ memory, 4 USB 3.1 and comes with Thunderbolt™ 3 connector which supports up to 40 Gbps of data transfer, making it ideal for media loading, entertainment, data storage, gaming and serious multitasking.





Specifications

System
Processor Intel® Core™ i7-8559 processor
Memory 2 DDR4 2400MHz SO-DIMM, up to 32GB
Graphics
Graphics Processor  Intel® Iris® Plus Graphics 655
Graphics Interface
- HDMI 2.0a
- USB-C (DP1.2)
Ethernet
LAN 1 Intel® Ethernet Connection I219-V
Audio
Audio Interface 7.1 Digital (DHMI mDP); L+R mic (F)
Storage
Storage Device
- 1 2.5" HDD/SSD
- 1 M.2 2280
- 1 SDXC with UHS-I Support
I/O Interface
USB
- 3 USB 3.1
- 1 USB 3.0
Power
Power Input 12V to 19V, DC-in
Software Support
OS Windows 10
Mechanical
Dimension (WxLxH) 115mm x 111mm x 51mm (4.5" x 4.4" x 2")
Environment
EMC CE, FCC



Resources

Item File Name Format File Update Download

Inquiry

Product Description Qty

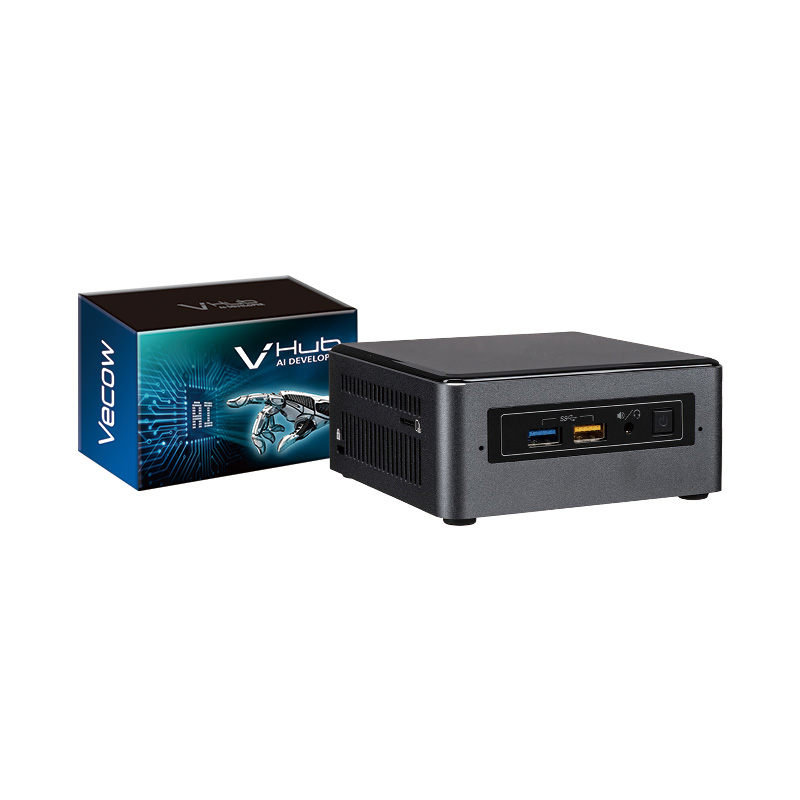

VHD NUC8i7BEH NUC with VHub OpenVINO, Windows 10, Intel Core i7-8559U, 8G DDR4, 240G SSD, 3 USB 3.1
NUC8i7BEH Barebone NUC with pre-installed Intel Core i7-8559U, 2 DDR4 memory, 1 2.5" HDD/SSD, 1 M.2, 3 USB 3.1
