System |
|
Processor |
7th Gen Intel® Core™ i5 U-series Processor (Kaby Lake-U) |
|
BIOS |
AMI |
|
SIO |
NCT6126D |
|
Memory |
1 DDR4 2133MHz SO-DIMM, up to 16GB |
|
OS |
Windows 10, Linux |
|
Graphics |
|
Processor |
Intel® HD Graphics 620 |
|
Interface |
Dual independent display :
- 1 HDMI : Up to 4096 x 2160 @24Hz
- 1 LVDS/eDP : Up to 1920 x 1200/ 4096 x 2304 @60Hz
|
|
Ethernet |
|
LAN 1 |
Intel® I219LM GigE LAN supports iAMT 11.0 |
|
LAN 2 |
Intel® I211 GigE LAN |
|
Audio |
|
Audio Codec |
Realtek® ALC269Q, 2+2 Channel HD Audio |
|
Audio Interface |
1 Mic-in, 1 Line-out |
|
I/O Interface |
|

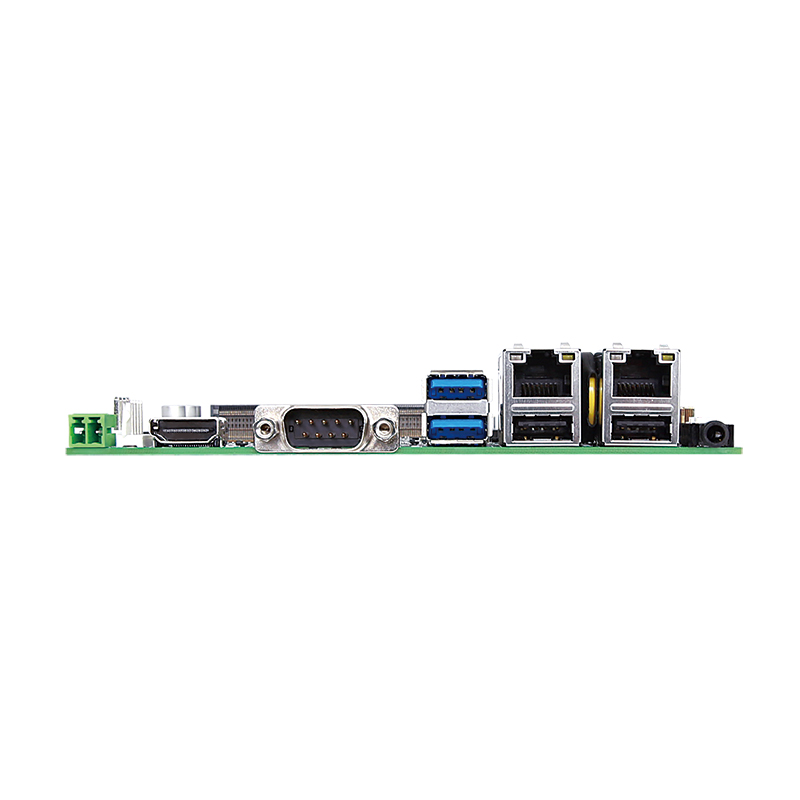

Front I/O |
-1 HDMI Connector
-2 USB 2.0 Connector
-2 USB 3.0 Connector
-2 RJ45 Connector
-1 COM RS-232/422/485 Connector
-1 Power LED
-1 HDD LED
-1 Reset Button
-1 Power Button
-1 Remote Switch
|
|
Internal I/O |
-4 USB 2.0 Connector
-1 LVDS/eDP Connector
-1 GPIO Connector
-1 COM RS-232/422/485 Connector
-3 COM RS-232 Connector
-1 Touch Pin Header
-1 DC Power Input
-1 Speaker Out Connector
-1 Mini PCIe Socket
-1 SIM Socket
-1 M.2 Key B Socket
-1 M.2 Key E Socket
|
|
Storage |
|
SATA |
1 SATA III (6Gbps) |
|
Expansion |
|
Mini PCIe |
1 Full-size for PCIe/USB/SIM/Optional mSATA |
|
M.2 |
- 1 M.2 Key B Socket (2242)
- 1 M.2 Key E Socket (2230)
|
|
Power |
|
Power Input |
9-36V DC-in |
|
Power Interface |
4-pin Header : V+, V+, GND, GND |
|
Others |
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
|
Mechanical |
|
Dimension |
146.0mm x 105.0mm (5.75" x 4.13") |
|
Environment |
|
Operating Temperature |
-20°C to 60°C (-4°F to 147°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Humidity |
5% to 95% Humidity, non-condensing |
|
Relative Humidity |
95% @ 60°C |
|
EMC |
CE, FCC |
