ECX-1000

产品特色

    • 八核心英特尔® 至强®/酷睿™ i7/i5/i3 (Coffee Lake) 处理器，搭载工作站等级英特尔® C246系统芯片组
    • 无风扇 -40°C至75°C工作溫度
    • 9个独立千兆网口，支持4个PoE+
    • SIM插槽支持WiFi、4G、3G、LTE、GPRS、UMTS
    • I/O接口： 4个串口RS-232/422/485、16个光电隔离DIO
    • 前控支持：6个USB 3.1插槽、2个2.5寸硬盘抽取盒、1个CFast卡插槽
    • 扩展支持：SUMIT A, B 插槽 (可选)、2个M.2 插槽、5个Mini PCIe插槽
    • 6V至36V直流輸入、80V浪涌保护
    • 延迟开关机控制 (Configurable Ignition Power Control)
    • 支持10GigE高速网络接口：RJ45接口或SFP+光纤口





    产品亮点

    Workstation-grade Performance

    • 8th Generation Intel® Coffee Lake workstation platform
    • 6 cores Intel® Xeon®/Core i7/i5/i3 processor running with Intel® C246 chipset
    • 10% system performance enhanced
    • Integrated USB 3.1 supports up to 5Gbps data transfer

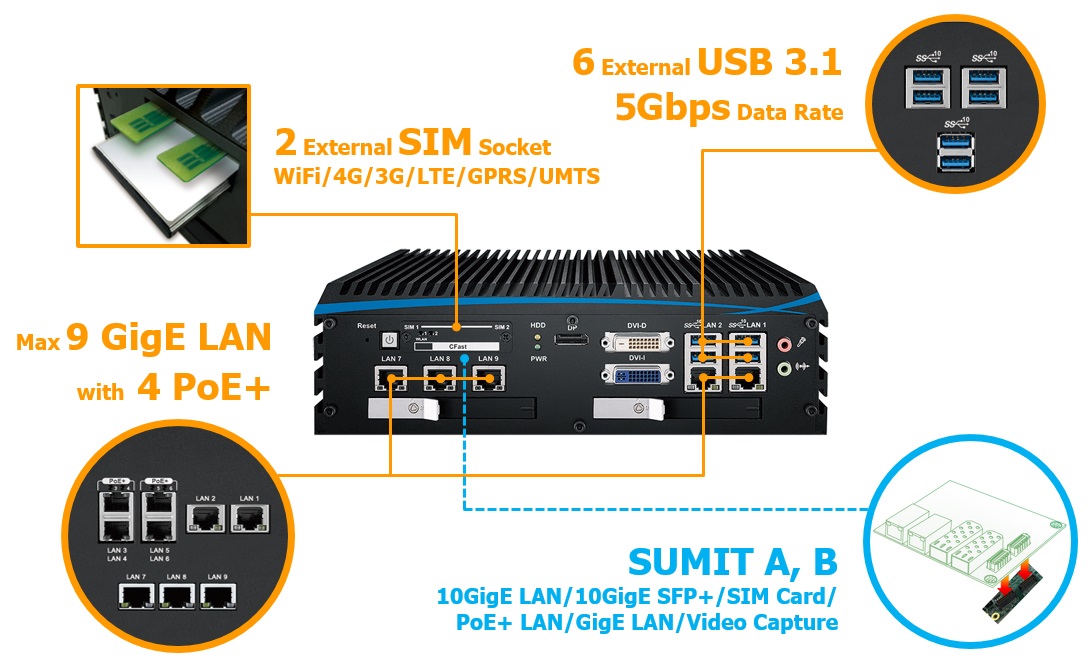

    Leading Integration

    • Max 9 Independent GigE LAN with 4 IEEE 802.3at PoE+, iAMT 12.0 supported
    • 2 SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
    • Full function SUMIT A, B for multiple 10GigE LAN/10GigE SFP+/SIM Card/GigE LAN/GigE Fiber LAN/PoE LAN/Video Capture
    • Max 5 Mini PCI for multiple PCIe/USB/SIM Card/mSATA







    Smart Manageability

    • 6V to 36V DC power input with 80V Surge Protection
    • 16 Isolated DIO
    • Comfigurable Ignition Power Control
    • Smart management
    • TPM 2.0, iAMT 12.0, S/W RAID 0, 1







    Rugged Reliability

    • Fanless Design
    • -40°C to 75°C extended operating temperature
    • Smart Circuit Protection
    • EN50155 & EN50121 compliant
    • Anti-shock, Anti-vibration



产品简介

    第九代/第八代英特尔® 至强®/酷睿™ i7/i5/i3 (Coffee Lake Refresh/Coffee Lake)，工作站等级英特尔® C246 芯片组，无风扇 -40°C至75°C工作温度，支持10GigE高速网络接口，可弹性选择RJ45接口或SFP+光纤口，6个USB 3.1插槽，SIM插槽支援WiFi、4G、3G、LTE、GPRS、UMTS等网络环境，6V至36V宽电压输入并具80V突波保护，支持远端电源切换功能和特殊开关机电源模式切换功能 (Ignition Power Control)，确保恶劣环境下的作业稳定度。最新一代ECX-1000系列无风扇嵌入式系统，是您规划机器视觉、智能车载系统、机器人控制和任何工业级AI人工智能相关嵌入式应用的明智选择。





产品规格

系統
处理器 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)
芯片 Intel® C246 chipset
BIOS AMI
SIO IT8786E
内存 2 DDR4 2666MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
I/O 接口
串口  4 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.1 (External)
- 1 USB 2.0 (Internal)
光电隔离 DIO 16 Isolated DIO : 8 DI, 8 DO (Optional)
LED灯号 Power, HDD, PoE, Wireless
SIM卡 2 External SIM Card Socket
扩充接口
Mini PCIe 2 Full-size Mini PCIe Socket for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Key E Socket (2230, PCIe x2/USB)
SUMIT A, B 2 SUMIT Slot (Optional)
显卡规格
处理器显卡 Intel® UHD Graphics 630
显示接口
- DVI-I : Up to 1920 x 1200 @ 60Hz
- DVI-D : Up to 1920 x 1080 @ 60Hz
- DisplayPort : Up to 4096 x 2304 @ 60Hz
存储
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
存储接口
- 1 CFast Socket, Push-in/Push-out Ejector
- 2 Front-access 2.5" SSD/HDD Tray
- 1 M.2 Key M Socket (2280, PCIe x4/SATA)
音频
处理器 Realtek ALC888S, 7.1 Channel HD Audio
音频接口 1 Mic-in, 1 Line-out
以太网
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
LAN 7 Intel® I210 GigE LAN
LAN 8 Intel® I210 GigE LAN
LAN 9 Intel® I210 GigE LAN
PoE
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
SFP (ECX-1000-6FR/6F)
LAN 5   1000BASE SFP by Intel® I350
LAN 6 1000BASE SFP by Intel® I350
10G千兆网口 (ECX-1055R/1055/1071R/1071)
LAN 7
- Intel® X550-AT2 10GigE LAN
- Intel® X710-BM2 10GigE LAN supports IEEE 802.3 10GBASE-T SFP+
LAN 8
- Intel® X550-AT2 10GigE LAN
- Intel® X710-BM2 10GigE LAN supports IEEE 802.3 10GBASE-T SFP+
电源
电源输入 6V to 36V, DC-in
电源接口 3-pin Terminal Block : V+, V-, Frame Ground
延迟开关机控制 16 Mode (Internal)
远程开关 3-pin Terminal Block
浪涌保护 Up to 80V/1ms Transient Power
軟件支持
OS Windows 10, Linux
尺寸 & 重量
尺寸 (宽*长*高) 260mm x 175mm x 79mm (10.2" x 6.9" x 3.1")
重量 3.8 kg (8.38 lb)
安装方式
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
- 2U Rackmount (Optional)
环境
工作温度
35W TDP CPU :
-40°C to 75°C (-40°F to 167°F)
65W TDP CPU :
-40°C to 55°C (-40°F to 131°F)
80W TDP CPU :
-40°C to 45°C (-40°F to 113°F)
10G Series :
-40°C to 55°C (-40°F to 131°F)
储存温度 -40°C to 85°C (-40°F to 185°F)
湿度 5% to 95% Humidity, non-condensing
相对湿度 95% at 70°C
冲击测试
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
摇摆测试
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
