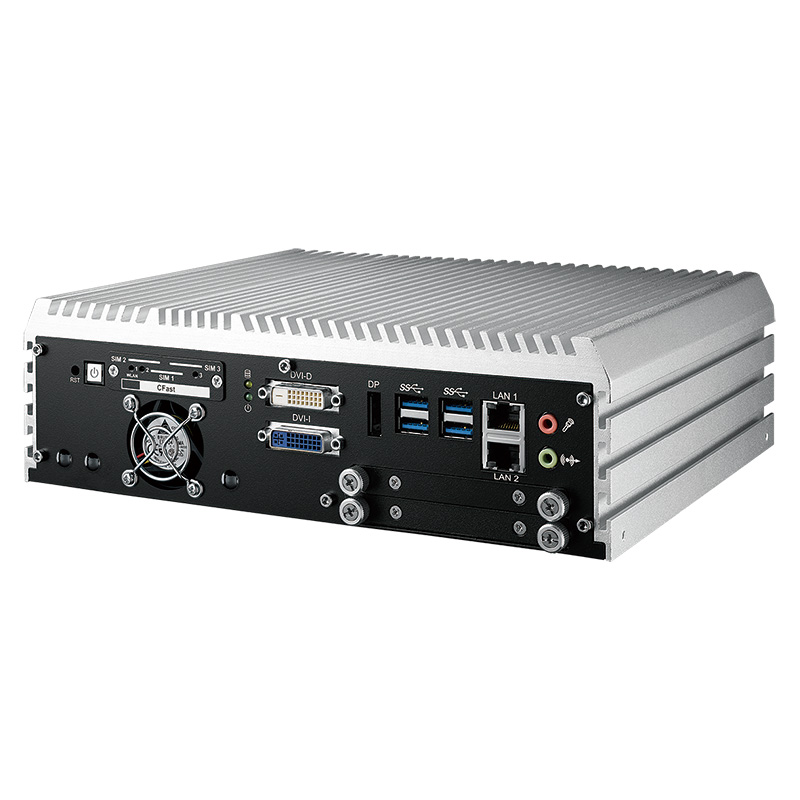

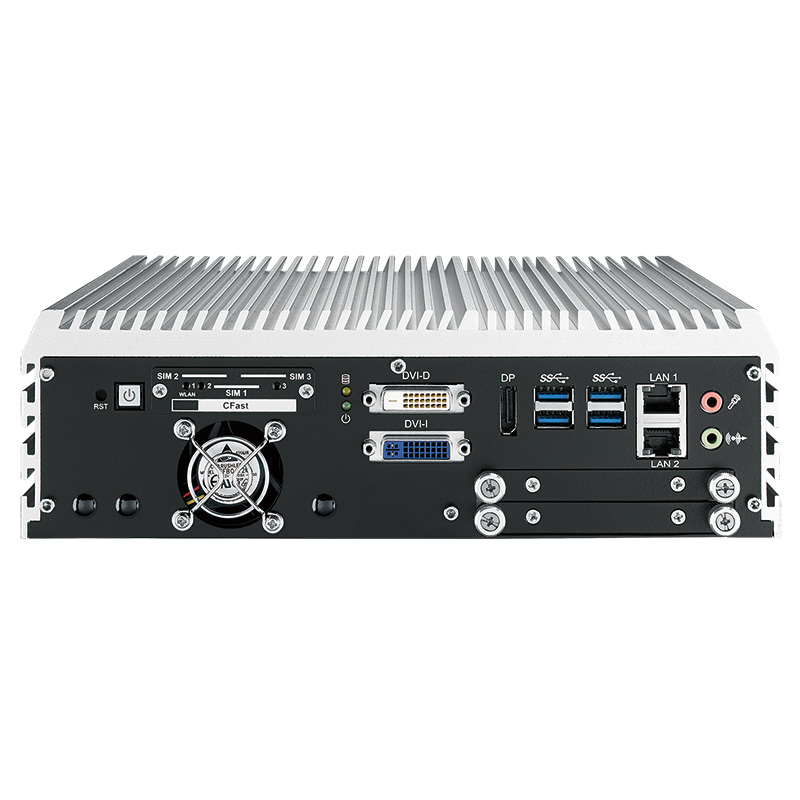

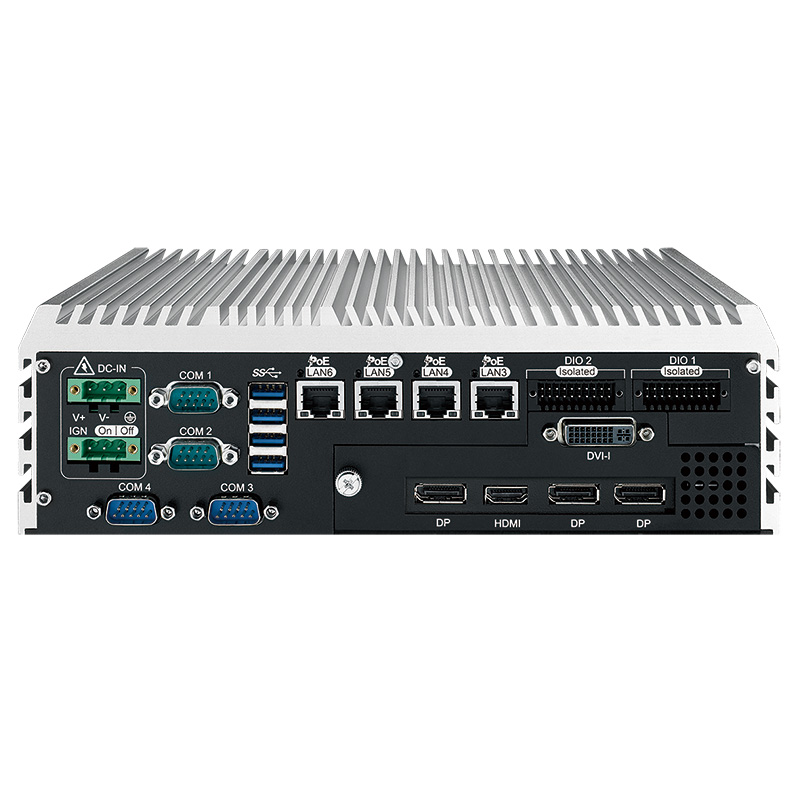

ECS-9200 GTX950

Features

    • LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7 Processor (Kaby Lake) with C236 chipset
    • NVIDIA GeForce® GTX 950 Graphics engine supports NVIDIA Pascal™ GPU architecture
    • Multiple DVI-D, DVI-I, DisplayPort and HDMI display interfaces, up to 7 independent HD displays
    • 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)
    • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+, iAMT 11.0 supported
    • 3 SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
    • Storage : 2 2.5" SSD Tray, 1 CFast, 1 M2DOM, 2 SATA III
    • Expansion : 1 M.2 Socket, 3 Mini PCIe/mSATA
    • 8 External USB 3.0, 4 COM
    • 32 Isolated DIO, 3 Mini PCIe/mSATA
    • 10V to 36V DC power input with 80V Surge Protection
    • Configurable Ignition Power Control
    • -40°C to 60°C Operating Temperature





Overview

    Powered by Intel® Xeon®/Core™ i7 (Kaby Lake-S) processor running with NVIDIA GeForce® GTX 950 graphics engine, supporting advanced CUDA applications & up to 7 independent HD displays, -40°C to 60°C operating temperature, all-in-one integrated features, multiple I/O connection, outstanding system performance, excellent mobile availability, smart manageability, wide range power input, surge protection, ignition power control, isolated DIO, EN50155 and industrial-grade reliability, Vecow ECS-9200/9100 GTX950 Series Embedded Workstation System is your great solution for Machine Vision, Embedded Workstation, Traffic Vision, Mobile DVR/NVR, Intelligent Control, Deep Learning, Artificial Intelligence, Voice Reorganization and any graphics performance driven Industry 4.0/IIoT applications.



Specifications

System
Processor
Quad Core Intel® Xeon®/Core™ i7 Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 8 USB 3.0 (External)
- 1 USB 2.0 (Internal)
Isolated DIO
32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, PoE, Wireless
SIM Card  3 SIM Card Socket (External)
Expansion
Mini PCIe
3 Full-size for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Socket (Key ID : M)
Graphics
Graphics Processor
- Intel® HD Graphics 630/530
- NVIDIA GeForce® GTX 950
Interface
8 Display interfaces :
- 1 DVI-D : Up to 1920 x1200 @ 60Hz
- 2 DVI-I : Up to 1920 x 1200 @ 60Hz
- 1 DisplayPort : Up to 4096 x 2304 @ 60Hz
- 3 DisplayPort : Up to 5120 x 3200 @ 60Hz
- 1 HDMI : Up to 5120 x 3200 @ 60Hz
Storage
SATA 2 SATA III support S/W RAID 0, 1
mSATA
3 SATA III (Mini PCIe Type, 6Gbps)
M2DOM 1 PCIe 3.0 (8GT/s)
Storage Device
- 1 CFast Socket, Push-in/Push-out Ejector
- 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219 GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
PoE
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 with Power On/Off Control
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 with Power On/Off Control
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 with Power On/Off Control
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 with Power On/Off Control
Power
Power Input 10V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H) 260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”)
Weight 4.5 kg (9.92 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
- 2U Rackmount (Optional)
Environment
Operating Temperature
35W TDP CPU :
- Core™ i7 : -40°C to 60°C (-40°F to 140°F)
- Xeon® E3-1268L v5 : -40°C to 60°C (-40°F to 140°F)
65W TDP CPU :
Core™ i7 : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU :
Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2



Resources

Item File Name Format File Update Download
ECS-9200 GTX950 ECS-9200/9100 GTX950 Series DM .PDF 2018/7/12 Download
ECS-9200 GTX950 ECS-9200 Series CE Certification .PDF 2024/2/20 Download
ECS-9200 GTX950 ECS-9200 Series CE Report .PDF 2024/2/20 Download
ECS-9200 GTX950 ECS-9200 Series UKCA Certification .PDF 2024/2/20 Download
ECS-9200 GTX950 ECS-9200 Series EN50155 & EN50121-3-2 CE Certification .PDF 2024/2/20 Download
ECS-9200 GTX950 ECS-9200 Series FCC Certification .ZIP 2017/5/26 Download
ECS-9200 GTX950 ECS-9200 Series FCC Report .ZIP 2017/5/26 Download
ECS-9200 GTX950 ECS-9200/9100 GTX950 User Manual .PDF 2017/7/18 Download
ECS-9200 GTX950 ECS-9200 Series EN50155 & EN50121-3-2 UKCA Certification .PDF 2024/2/20 Download
ECS-9200 GTX950 ECS-9200 Series EN50155 & EN50121-3-2 Test Report .PDF 2024/2/20 Download
ECS-9200 GTX950 ECS-9200/9100 Series Driver .ZIP 2017/2/16 Download
ECS-9200 GTX950 ECS-9200/9100 Series Graphics Driver (64-bit) .ZIP 2017/2/16 Download
ECS-9200 GTX950 ECS-9200/9100 Series Graphics Driver (32-bit) .ZIP 2017/2/16 Download
ECS-9200 GTX950 GeForce GTX 950 Driver for Windows 10 (64-bit) – Part 1 .ZIP 2017/2/9 Download
ECS-9200 GTX950 GeForce GTX 950 Driver for Windows 10 (32-bit) – Part 1 .ZIP 2017/2/9 Download
ECS-9200 GTX950 GeForce GTX 950 Driver for Windows 10 (32-bit) – Part 2 .ZIP 2017/2/9 Download
ECS-9200 GTX950 GeForce GTX 950 Driver for Windows 8 & Windows 7 (32-bit) – Part 1 .ZIP 2017/2/9 Download
ECS-9200 GTX950 GeForce GTX 950 Driver for Windows 8 & Windows 7 (32-bit) – Part 2 .ZIP 2017/2/9 Download
ECS-9200 GTX950 Win10 Graphic driver (Kaby Lake) 01 .ZIP 2017/12/1 Download
ECS-9200 GTX950 ECS-9200/9100 Series ME Driver .ZIP 2017/2/16 Download
ECS-9200 GTX950 Win10 Graphic driver (Kaby Lake) 02 .ZIP 2018/5/22 Download
ECS-9200 GTX950 USB 3.0 Driver for Windows 7 .ZIP 2017/5/8 Download

Inquiry

Product Description Qty
ECS-9204MX-GTX950 ECS-9200, NVIDIA GeForce® GTX 950, 6 GigE LAN w/4 X-coded M12 PoE+, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M2DOM, 3 SIM, 32 Isolated DIO
ECS-9204M-GTX950 ECS-9200, NVIDIA GeForce® GTX 950, 6 GigE LAN w/4 A-coded M12 PoE+, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M2DOM, 3 SIM, 32 Isolated DIO
ECS-9240-GTX950 ECS-9200, NVIDIA GeForce® GTX 950, 6 GigE LAN w/4 PoE+, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M2DOM, 3 SIM, 32 Isolated DIO
ECS-9100-GTX950 ECS-9100, NVIDIA GeForce® GTX 950, 2 GigE LAN, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M2DOM, 3 SIM, 16 GPIO
E3-1275 v6 7th Gen Intel® Xeon® E3-1275 v6 Processor (8M Cache, up to 4.20 GHz, 80W)
E3-1275 v5 6th Gen Intel® Xeon® E3-1275 v5 Processor (8M Cache, up to 4.00 GHz, 80W)
E3-1225 v5 6th Gen Intel® Xeon® E3-1225 v5 Processor (6M Cache, up to 3.70 GHz, 80W)
E3-1268L v5 6th Gen Intel® Xeon® E3-1268L v5 Processor (8M Cache, up to 3.40 GHz, 35W)
i7-7700 7th Gen Intel® Core™ i7-7700 Processor (8M Cache, up to 4.20 GHz, 65W)
i7-7700T 7th Gen Intel® Core™ i7-7700T Processor (8M Cache, up to 3.80 GHz, 35W)
i7-6700 6th Gen Intel® Core™ i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W)
i7-6700TE 6th Gen Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W)
DDR4 16G Certified DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certified DDR4 8GB 2666/2400/2133 MHz RAM
DDR4 4G Certified DDR4 4GB 2666/2400/2133 MHz RAM
PWA-280W-WT 280W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C
PWA-160W-WT 160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C
VESA Mount VESA Mounting Kit
DIN-RAIL DIN Rail Kit
Rack Mount 2U Rackmount Kit
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting
3G Module Mini PCIe 3G/GPS Module with Antenna
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth Module WiFi & Bluetooth Module with Antenna
