Applications

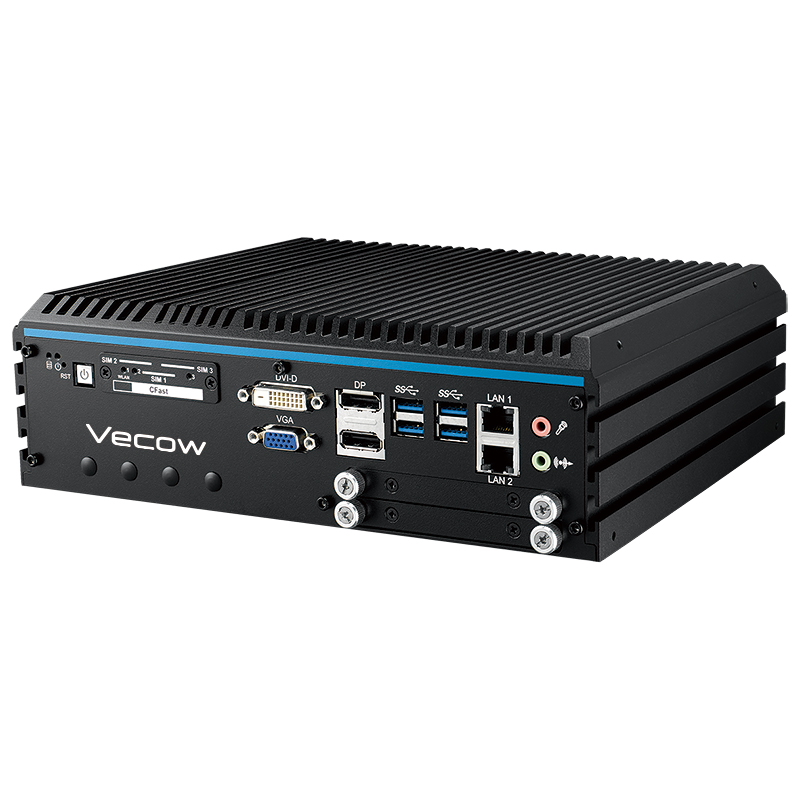

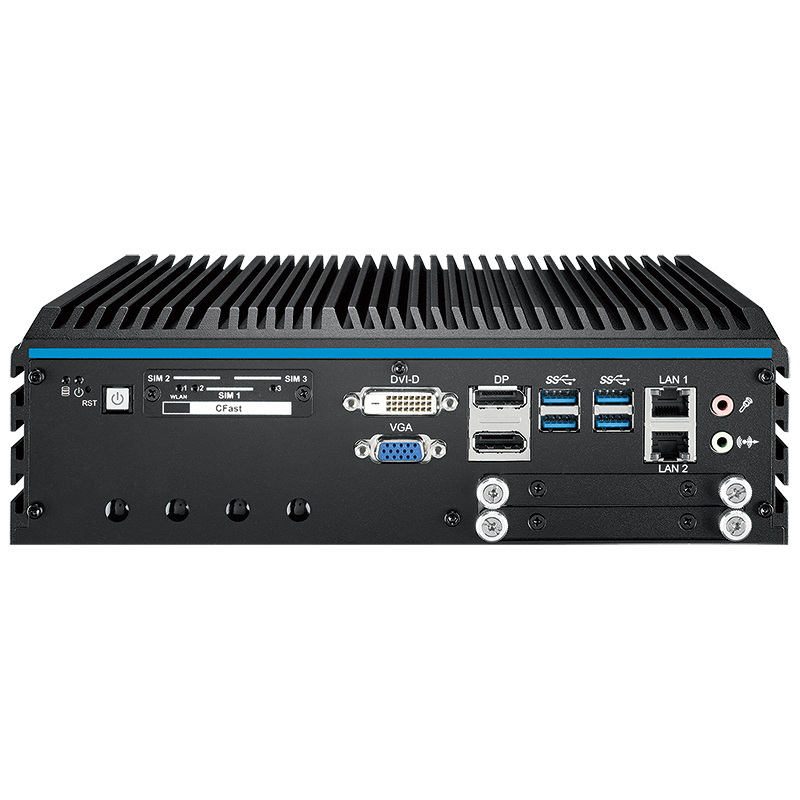

EVS-1000

Features

    • Fanless -25°C to 60°C operating temperature
    • LGA 1151 socket supports workstation-grade 7th generation Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake/Skylake) with C236 chipset
    • Compact NVIDIA® Quadro® MXM graphics engine supports NVIDIA® Turing™ GPU architecture with 8K resolution
    • Display: 1 VGA, 1 DVI, 6 DisplayPort  and 7 independent HD display
    • 2 Front-access 2.5" SSD trays, 1 CFast socket, 2 SATA III, 6 USB 3.0, 4 COM
    • 3 SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
    • Expansion: 1 PCI/PCIe slot, 3 Mini PCIe, 2 optional SUMIT A, B slots
    • 32 Isolated DIO, 10V to 36V DC Power Input with 80V Surge Protection
    • Configurable Ignition Control



    Feature Highlights

    Compact GPU Engine

    • Independent MXM Graphics solution, Compact & Fanless
    • Workstation-grade Plateform : Intel® Xeon®/Core™ i + Intel® C236 chipset
    • NVIDIA® Quadro® MXM GPU, NVIDIA® Turing™ architecture, max 8K Resolution & 7 HD displays
    • Max 1295%↑ GPU Performance, 144%↑ System Performance

    Excellent GPU performance

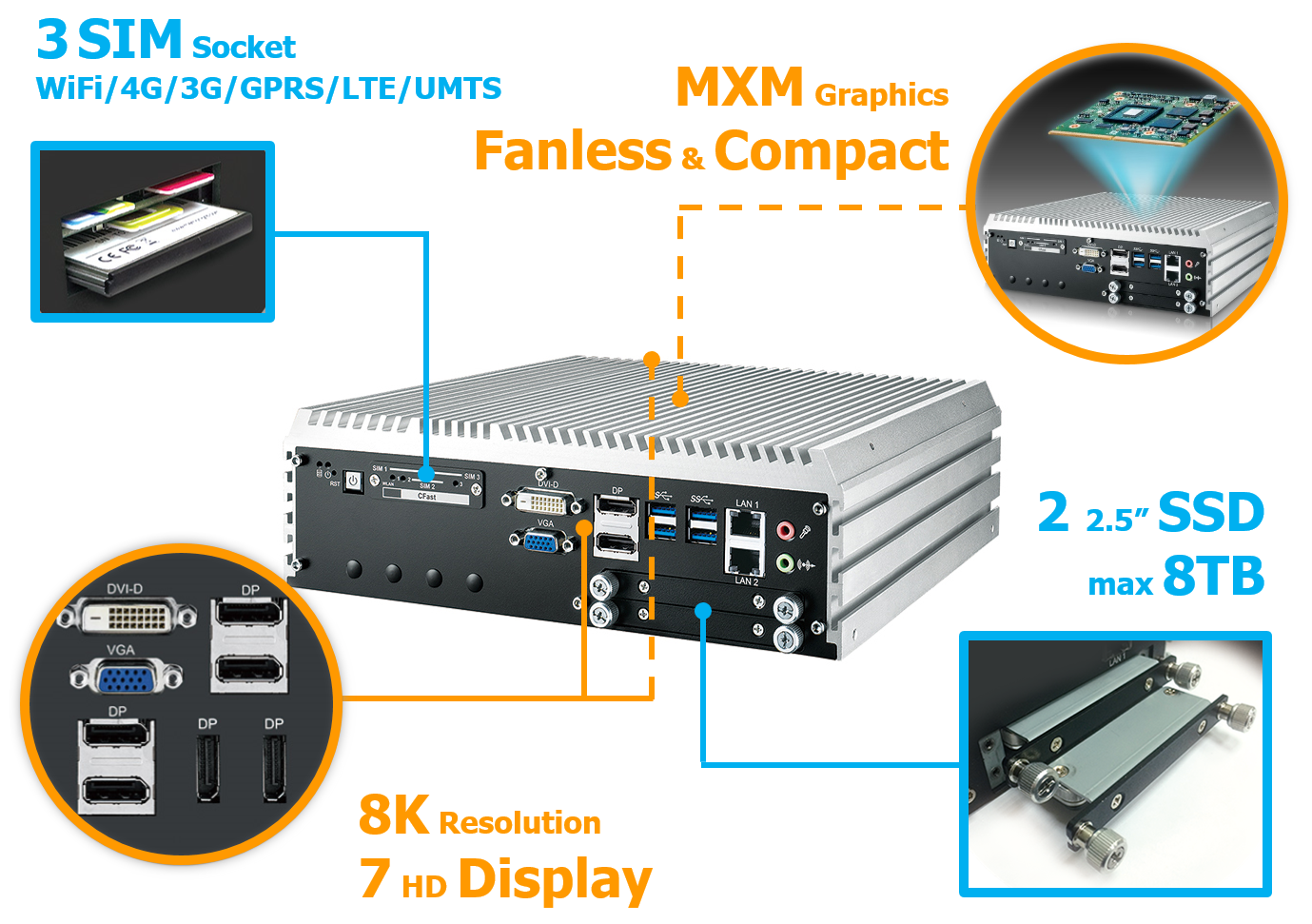

    All-in-one Integration

    • Compact & Fanless : Workstation-grade + independent graphics
    • Display : Multiple VGA, DVI and DisplayPort interface, up to 7 independent HD displays
    • 3 SIM sockets support WiFi, 4G, 3G, LTE, GPRS, or UMTS
    • 2 Front-access 2.5" SSD trays, up to 8TB capacity
    • 32 Isolated DIO, 6 USB 3.0, 4 COM RS-232/422/485
    • Flexible Expansion : PCI/PCIe, Mini PCIe, optional full function SUMIT A, B



    Flexible Expansion

    • PCI/PCIe Expansion for 10 GigE LAN, 10 GigE SFP+, PoE+ LAN, GigE LAN, LAN Bypass, USB 3.0
    • 3 Mini PCIe for PCIe, USB, SIM Socket, or mSATA
    • Optimized full function SUMIT A, B for multiple 10 GigE LAN, 10 GigE SFP+, SIM Socket, GigE LAN, or GigE Fiber LAN

    EVS-1000 Flexible Expansion Functions



    Industrial-grade Reliability

    • 10V to 36V wide range DC power input
    • 80V Surge Protection
    • Configurable Ignition Power Control
    • Fanless -25°C to 60°C operation
    • CE, FCC, EN50155, EN50121-3-2 compliant
    • Anti-shock, Anto-vibration
    • iAMT 11.0, TPM 2.0, vPro



    Vecow EVS-1000 Industrial-grade Reliability



Overview

    Workstation-grade 7th generation Intel® Xeon®/Core™ i7/i5/i3, compact NVIDIA® Quadro® MXM graphics engine, supports NVIDIA® Turing™ GPU architecture, up to 8K resolution, Fanless, all-in-one integrated features, multiple I/O connection, 3 SIM sockets for remarkable mobile availability, PCI/PCIe slot, USB 3.0, Isolated DIO, smart manageability, 10V to 36V power input with 80V surge protection, ignition control. Vecow EVS-1000 Series Fanless GPU Computing System makes versatile function possible for Deep Learning, Robot Control, Autonomous Vehicle, Telemedicine, Machine Vision, Intelligent Surveillance and any AI oriented embedded applications.



Specifications

System
Processor Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2400/2133MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
OS Windows 10, Windows 8.1, Windows 7, Linux

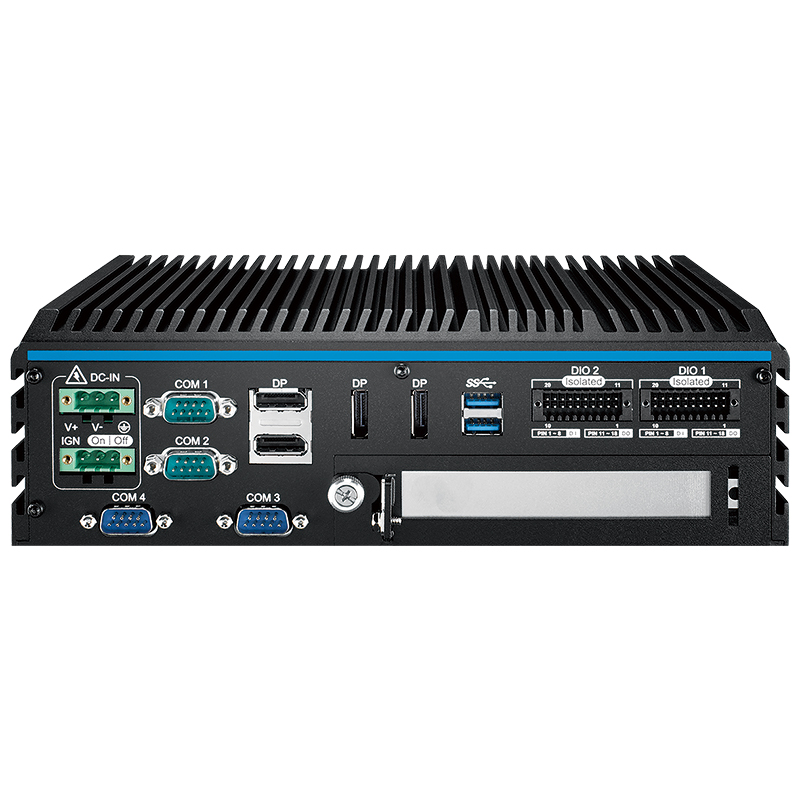

I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.0 (External)
- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD
SIM Card  3 External SIM Card Socket
Expansion
Mini PCIe
3 Mini PCIe Socket :
3 Full-size for PCIe/USB/External SIM Card/mSATA
PCI/PCIe 1 PCI/PCIe x4 Slot
SUMIT A, B 2 SUMIT Slot (Optional)
Graphics
Processor
- Intel® HD Graphics 630/P530/530
- NVIDIA® Independent MXM Graphics : By request
Interface
Up to 8 Display interfaces:
- 1 VGA : Up to 1920 x 1200 @ 60Hz
- 1 DVI : Up to 1920 x 1200 @ 60Hz
- 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
- 4 DisplayPort : Up to 7680 x 4320 @ 60Hz
Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 3 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
- 1 CFast Socket, Push-in/Push-out Ejector
- 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
Power
Power Input 10V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension (W x L x H) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 4.6 kg (10.14 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail Mount
- 2U Rackmount (Optional)
Environment
Operating Temperature -25°C to 60°C (-13°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock IEC 60068-2-27, SSD: 50G @ wallmount, Half-sine, 11ms
Vibration IEC 60068-2-64, SSD: 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2



Resources

Item File Name Format File Update Download
EVS-1000 EVS-1000 DM (English) .PDF 2023/4/7 Download
EVS-1000 EVS-1100/1000 DM (Simplified Chinese) .PDF 2022/8/18 Download
EVS-1000 EVS-1000/1100 User Manual .PDF 2023/6/12 Download
EVS-1000 EVS-1000 Series CE Certification .ZIP 2018/5/23 Download
EVS-1000 EVS-1000 Series CE Report .ZIP 2018/5/23 Download
EVS-1000 EVS-1000 Series FCC Certification .ZIP 2018/5/23 Download
EVS-1000 EVS-1000 Series FCC Report .ZIP 2018/5/23 Download
EVS-1000 EVS-1000 Series EN50155 & EN50121-3-2 Certificate .ZIP 2018/5/23 Download
EVS-1000 EVS-1000 Series EN50155 & EN50121-3-2 Test Report .ZIP 2018/5/23 Download
EVS-1000 EVS-1000 Series Vibration and Shock Test Report .PDF 2018/10/23 Download
EVS-1000 EVS-1000 Series High and Low Temperature Test Report .PDF 2019/4/29 Download
EVS-1000 EVS-1000 Driver .ZIP 2018/3/20 Download
EVS-1000 EVS-1000 Graphic 64bit Driver .ZIP 2018/3/20 Download
EVS-1000 EVS-1000 Graphic 32bit Driver .ZIP 2018/3/20 Download
EVS-1000 EVS-1000 MXM Graphic Win10 Driver_01 .ZIP 2018/3/20 Download
EVS-1000 EVS-1000 MXM Graphic Win10 Driver_02 .ZIP 2018/3/20 Download
EVS-1000 EVS-1000 MXM Graphic Win10 Driver_03 .ZIP 2018/3/20 Download
EVS-1000 EVS-1000 MXM Graphic Win7_Win8 64bit Driver_01 .ZIP 2018/3/20 Download
EVS-1000 EVS-1000 MXM Graphic Win7_Win8 64bit Driver_02 .ZIP 2018/3/20 Download
EVS-1000 EVS-1000 MXM Graphic Win7_Win8 64bit Driver_03 .ZIP 2018/3/20 Download
EVS-1000 EVS-1000 ME Driver .ZIP 2018/3/20 Download
EVS-1000 Win10 Graphic driver (Kaby Lake) 01 .ZIP 2017/12/1 Download
EVS-1000 Win10 Graphic driver (Kaby Lake) 02 .ZIP 2018/5/22 Download

Inquiry

Product Description Qty
EVS-1010 EVS-1010, 2 GigE LAN, 6 USB 3.0, 4 COM, 3 SIM, 1 PCIe x4 Slot, 32 Isolated DIO
EVS-1001 EVS-1001, 2 GigE LAN, 6 USB 3.0, 4 COM, 3 SIM, 1 PCIe Slot, 32 Isolated DIO
E3-1268L v5 6th Gen Intel® Xeon® E3-1268L v5 Processor (8M Cache, up to 3.40 GHz, 35W)
i7-7700T 7th Gen Intel® Core™ i7-7700T Processor (8M Cache, up to 3.80 GHz, 35W)
i7-6700TE 6th Gen Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W)
i5-7500T 7th Gen Intel® Core™ i5-7500T Processor (6M Cache, up to 3.30 GHz, 35W)
i5-6500TE 6th Gen Intel® Core™ i5-6500TE Processor (6M Cache, up to 3.30 GHz, 35W)
i3-7101TE 7th Gen Intel® Core™ i3-7101TE Processor (3M Cache, up to 3.40 GHz, 35W)
i3-6100TE 6th Gen Intel® Core™ i3-6100TE Processor (4M Cache, 2.70 GHz, 35W)
DDR4 32G Certified DDR4 32GB 2666MHz RAM
DDR4 16G Certified DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certified DDR4 8GB 2666/2400/2133 MHz RAM
DDR4 4G Certified DDR4 4GB 2666/2400/2133 MHz RAM
PWA-120W1 120W, 24V, 90V AC to 264V AC Power Adapter with 3-pin Terminal Block
PWA-160W-WT 160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C
PWA-180W 180W, 24V, 90V AC to 264V AC Power Adapter with 3-pin Terminal Block
PWA-280W-WT 280W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C
PWS-480W-WT 480W, 24V, 90V AC to 305V AC Power Supply, Wide-Temp, IP65
PWS-600W1 600W, 24V, 90V AC to 264V AC Power Supply
VESA Mount VESA Mounting Kit
DIN-RAIL DIN Rail Kit
Rack Mount 2U Rackmount Kit
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
