• 120 fps in real-time D1 resolution
    • 4-CH Video/Audio input
    • High-quality 10-bit A/Ds for video decoders
    • Interface to Maxim H.264 CODECs for bridging of compressed data to PCIe
    • Programmable motion detection

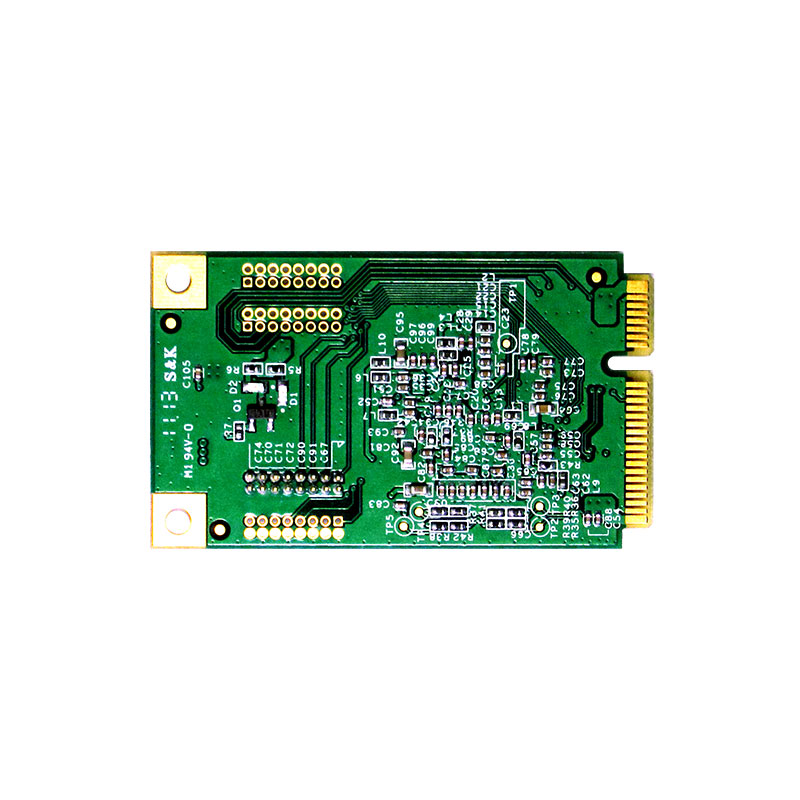

    The Vecow VMX-200 Multi-channel high quality Video/Audio card is especially designed for surveillance applications. Integrated with Mini PCIe interface, VMX-200 series provides outstanding digital to video transferring rate, intensive integration with wide-ranging systems, and flexibility for Build-to-Order. Containing eight high quality NTSC/PAL video decoders with 10-bit A/Ds and 5-line comb filtering, VMX-200 series produces high definition digital Video output. Digital Video/Audio output supports the bridging of up to four channels of digital video and audio from PCIe. In addition, low power consumption and low heat design of VMX-200 series can save more system power and use most PC system resources. The complete SDK supports and mini PCIe form factor, the Vecow VMX-200 series can be easily integrated into various machine, such like as BOX Computer, Mounted PC, Panel PC, POS/ATM system or Embedded board.


Bus Type/Form Factor Mini PCI Express
Dimensions (L x H) 51mm x 30mm
I/O Connector 1 x 16-pin header to D-Sub 15 cable
1 x D-Sub 15 to BNC cable
Certifications FCC, CE, RoHS Compliance
Storage Temperature -40°C to 85°C
Operate Temperature 0°C to 60°C
Maximum Channel Number 4
Input Connector 4 input BNC to D-Sub 15
Resolution D1 (NTSC: 720 x 480/ PAL: 720 x 576)
CIF (NTSC: 360 x 240/ PAL: 360 x 288)
4CIF (NTSC: 704 x 480/ PAL: 704 x 576)
DCIF (NTSC: 528 x 320/ PAL: 528 x 384)
QCIF (NTSC: 180 x 120/ PAL: 180 x 144)
Recording Rate 4-CH with full D1 resolution
120 fps on NTSC system, 100 fps on PAL system
Maximum Channel Number 4 mono or 2 stereo
Audio Input Connector 4 input RCA to D-Sub 15
OS Support Windows XP/VISTA/Windows 7 (32-bit or 64-bit)
Standard Linux kernel 2.6.32 and all above
Recommend System
CPU Intel Core2 Duo E4500 2.2GHz
Memory 1GB
Graphics Unit DirectX 9.0c compatible display card
Storage Size 500GB



Item File Name Format File Update Download
VMX-200-4 VMX-200 series DM V1.0.1 | 1.52MB .PDF 2013/12/31 Download
VMX-200-4 VMX Series CE Certificate .PDF 2016/1/19 Download
VMX-200-4 VMX Series CE Test Report .PDF 2016/1/19 Download
VMX-200-4 VMX Series FCC Certificate .PDF 2016/1/19 Download
VMX-200-4 VMX Series FCC Test Report .PDF 2016/1/19 Download
VMX-200-4 Linux driver Package for Kernel 2.6.38 | 14.8 MB .ZIP 2014/7/11 Download
VMX-200-4 VMX-200 Series Linux Driver 12.7MB .ZIP 2014/3/10 Download
VMX-200-4 Windows for WinXP and Win7 32bit/64bit version. | 2.07 MB .ZIP 2014/7/11 Download
VMX-200-4 Linux driver Package for Kernel 3.0 or above. | 12.7 MB .ZIP 2014/7/11 Download


Product Description Qty
VMX-200-4 4-CH, D1, Real-time, Mini PCI Express, Video Capture/Software Compression card
