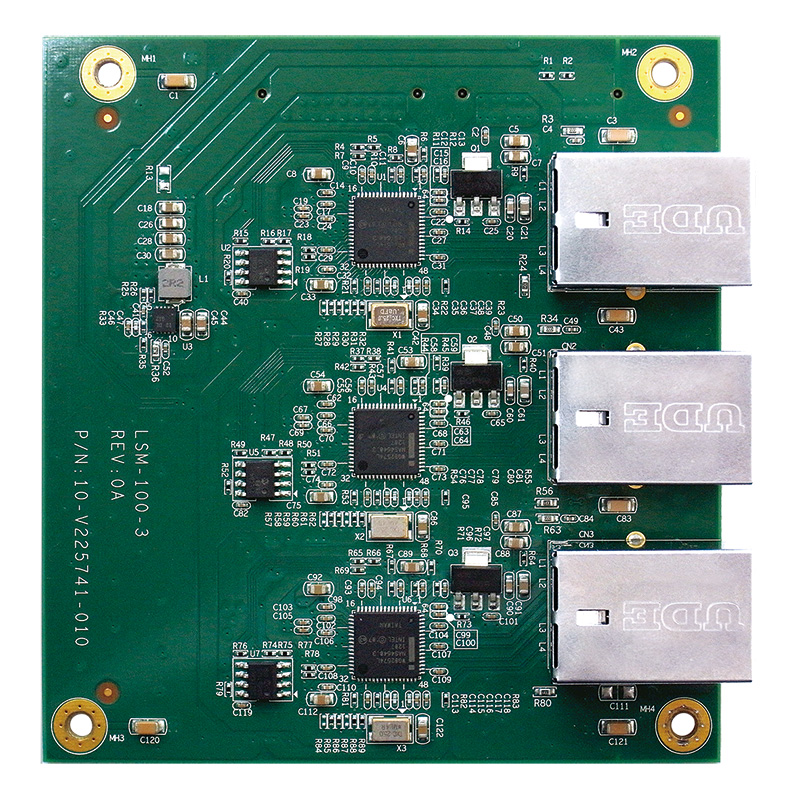

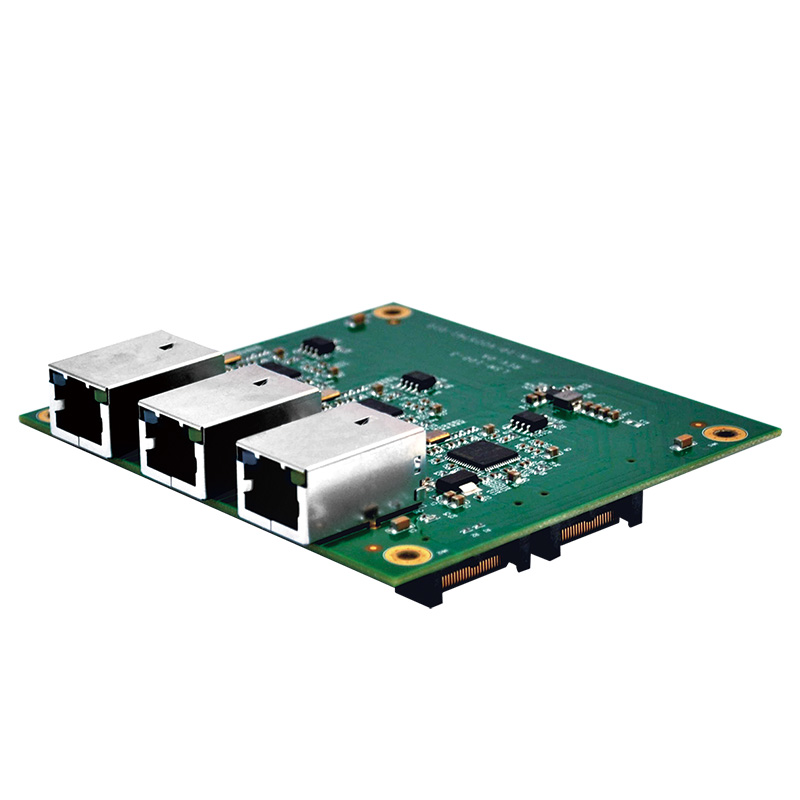

LSM-100-3

Features

    • SUMIT and PCI Express Compatible
    • Triple Gigabit Ethernet Ports
    • Intel I210 Gigabit LAN
    • High-speed, Small form Factor Cards

Overview

    Designed for high-bandwidth network applications, LSM-100-3 based upon the Intel I210 controller connects to 10/100/1000 Mbps networks featuring the SUMIT expansion interface. LSM-100-3 provides 3 Gigabit Ethernet channels, enables high precision time synchronization over Ethernet, system expansion, and communications flexibility.

Specifications

General
Bus Type /Form Factor SUMIT (PCI Express)
Dimensions( L x H ) 90mm x 96mm (3.5" x 3.8")
Environment Certifications FCC, CE, RoHS Compliance
Storage Temperature -40°C to 125°C (-40 °F to 257 °F)
Operate Temperature -25°C to 85°C (-13 °F to 185 °F)
Network Interface
Ethernet 3 Intel I210 Gigabit LAN
Network Boot Option Preboot eXecution Environment (PXE) Flash Interface Support



Resources

Item File Name Format File Update Download
LSM-100-3 LSM-100 series DM V1.0.0 | 1.37MB .PDF 2013/12/31 Download
LSM-100-3 LSM-100 Datasheet .PDF 2021/6/24 Download

Inquiry

Product Description Qty
LSM-100-3 SUMIT Card with 3 Gigabit LAN Port
