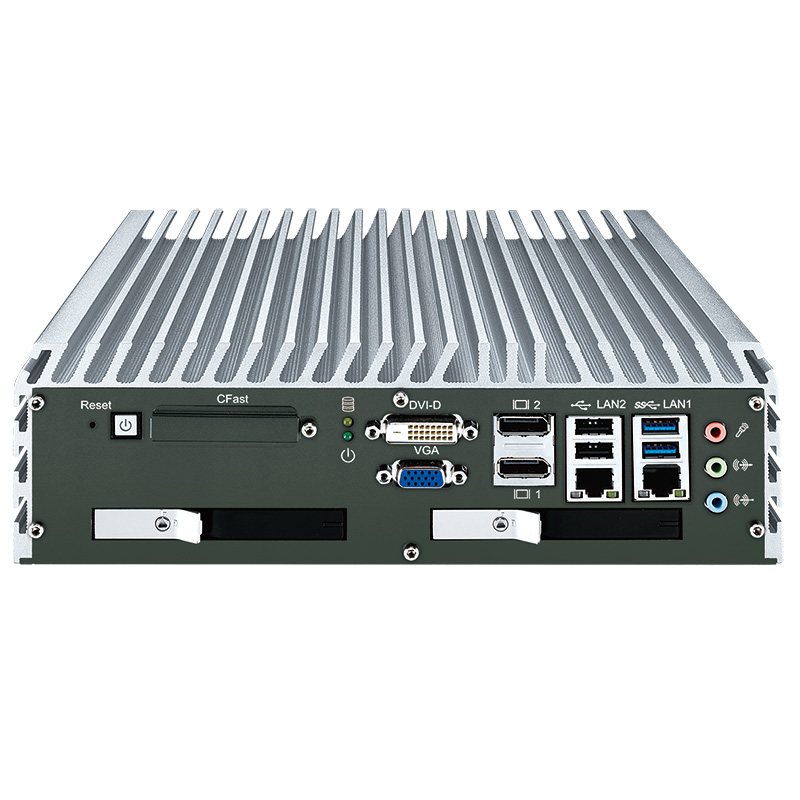

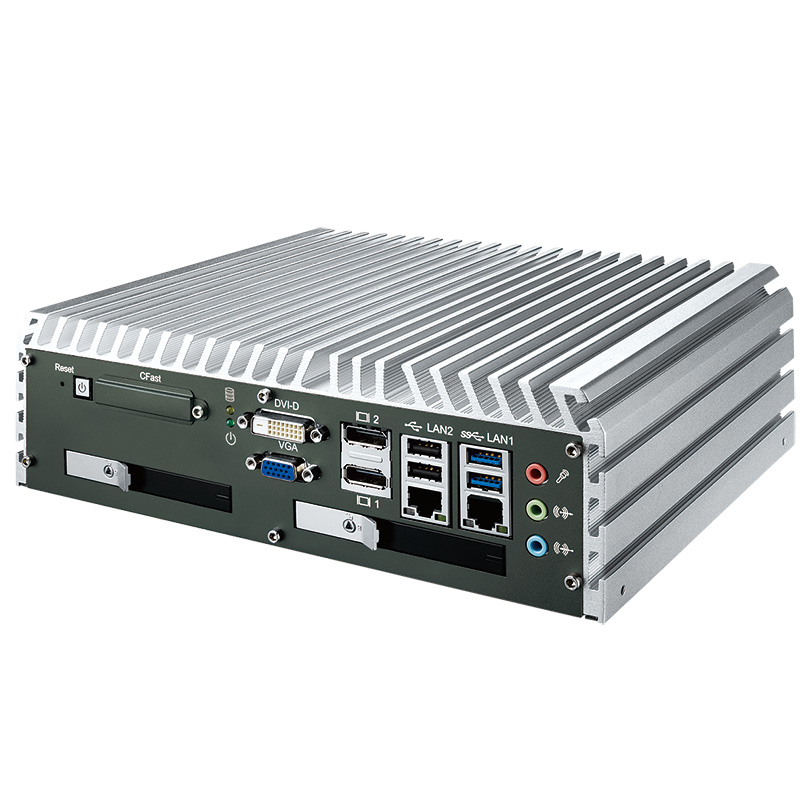

ECS-7800 (PoE+)

Features

    • Quad Core Intel® Core™ i7/i5/i3 Processor (Ivy Bridge)
    • Supports VGA/DVI-D/Dual DisplayPort/LVDS interface, up to 3 independent displays
    • Fanless, -25°C to 70°C Operating Temperature
    • 6 Gigabit LAN with 4 IEEE 802.3at PoE+

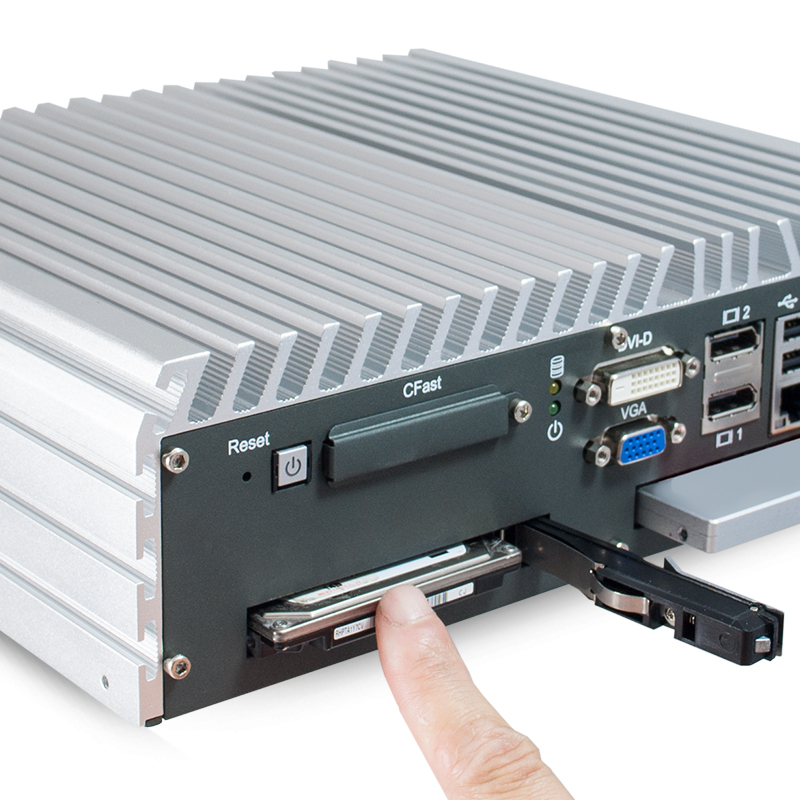

    • 2 Front-access 2.5" SSD/HDD Tray
    • 16 Isolated DIO, 16 GPIO
    • SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
    • 6V to 36V DC-in with 80V Surge Protection
    • 4 COM, 4 USB 3.0, 4 USB 2.0, 1 Front-access CFast
    • 2 Mini PCIe, 2 SATA III, 1 SATA II, 2 SUMIT (Optional)
    • Intel® AMT 8.0 supported
    • E13, EN50155, EN50121-3-2, VMware Ready





Overview

    ECS-7800 supports Quad Core 3rd Gen Intel® Core™ i7/i5/i3 series processor (6M Cache, up to 3.30 GHz), DDR3L and DDR3 maximum dual channel 16GB memory, 4-port IEEE 802.3at PoE+, 5 display (2 DisplayPort, DVI-D, VGA, LVDS), Isolated DIO, 2 GbE LAN, CFast, two front panel accessible 2.5” SATA 6Gp/s SSD/HDD Tray, 4 COM, 4 USB 3.0, JST connector, and 2 Mini PCIe, plus with overvoltage protection and Trusted Platform Module. Using only one Ethernet cable to supply power and transmit and sync data simultaneously, ECS-7800 applys IEEE 802.3at power sourcing equipment enable to supply 50 to 57 VDC, 600 mA, and 25.5W at the powered device, for example, HD LCDs, touchscreens, cameras and motion sensors. Design for wider compatibility, higher power supply but less total cost and wiring, Vecow ECS-7800 series fanless emebdded system is one-of-a-kind dream fanless embedded system for machine Vision, outdoor imaging, 3D imaging, ITS (Intelligent Traffic Solutions), quality control, and medical imaging applications.






Specifications

System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory 2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 1 COM RS-232/ 422/ 485
- 3 COM RS-232
USB
- 4 USB 3.0 (External)
- 4 USB 2.0 (2 External, 2 Internal by JST Connector)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
GPIO 16 GPIO (Internal)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 1 Mini PCIe for PCIe/ USB/ Optional mSATA
SUMIT A, B 2 SUMIT Slot (Optional)
Graphics
Chipset Intel® HD 4000
Display Memory Shared Memory, Up to 1.7GB
Interface
- VGA : DB-15, up to 1920 x 1200
- DVI-D : Up to 1920 x 1200
- DisplayPort 1 : Up to 2560 x 1600
- DisplayPort 2 : Up to 1920 x 1200
- LVDS : Dual channel 24-bit, up to 1920 x 1200
Storage
SATA
- 2 SATA III (6Gbps)
- 1 SATA II (3Gbps), supports horizontal type SATA DOM
mSATA 2 SATA II (Mini PCIe Type, 3Gbps)
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-in, 1 Line-out, 1 Mic-in

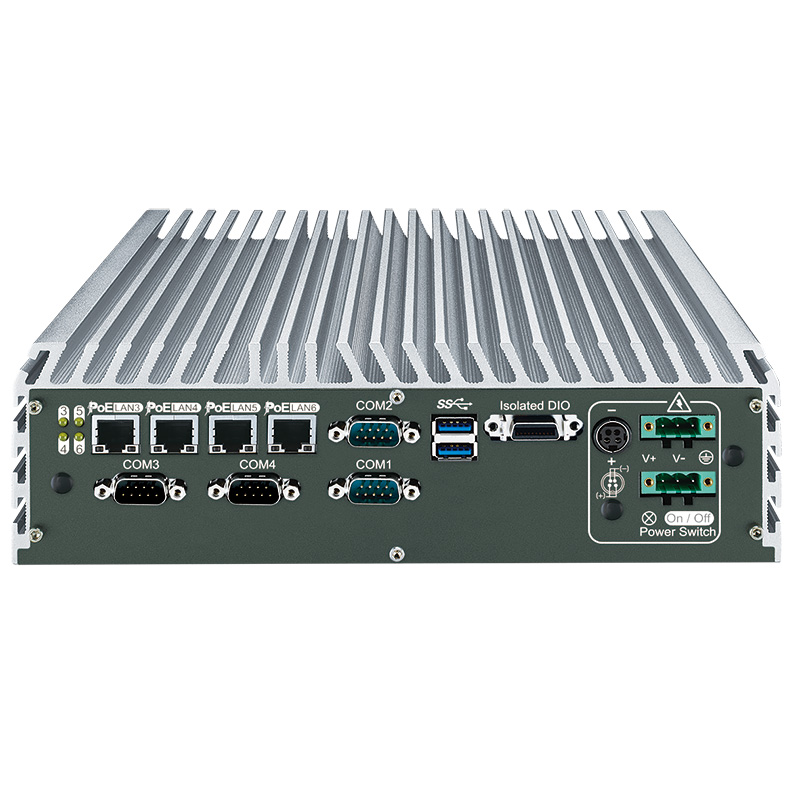

Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® 82574L Gigabit LAN
PoE (Power-over-Ethernet)
LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
Power
Power Input 6V to 36V, DC-in
Power Interface
 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM) Optional Infineon SLB9635 supports TPM 1.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimensions (W x L x H) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 3.0 kg (6.6 lb)
Mounting
- Wallmount by mounting bracket
- 2U Rackmount (Optional)
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Certification E13, CE, FCC, EN50155, EN50121-3-2, VMware Ready
