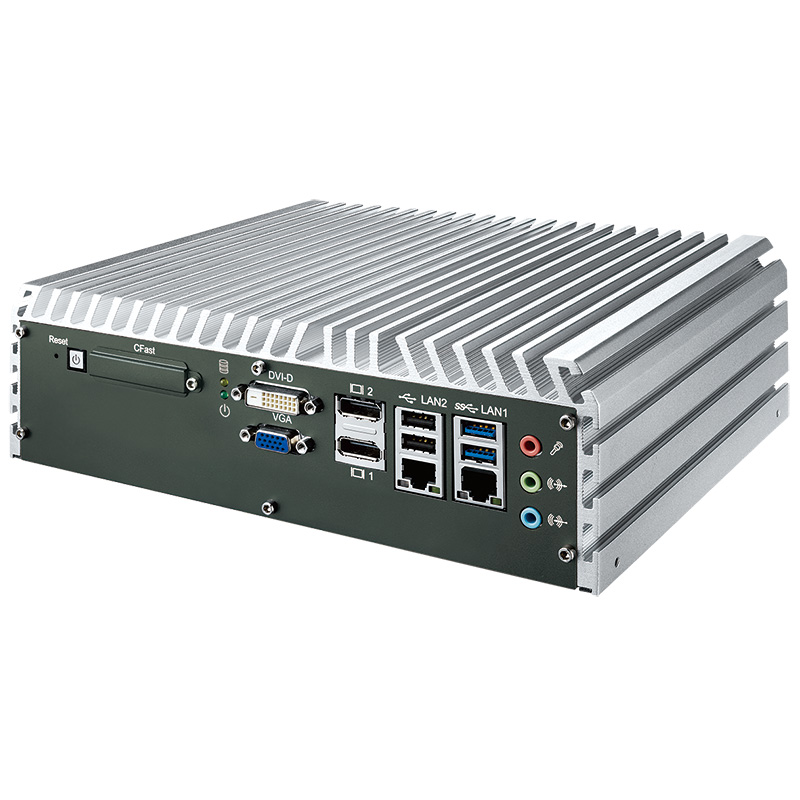

ECS-7710

Features

    • 3rd Gen Intel® Core™ i7/ i5/ i3 Ivy Bridge Mobile Processor
    • Fanless, -25°C to 70°C Operation Temperature
    • 6 Gigabit LAN with 4 IEEE 802.3at PoE+
    • Intel® QM77 Chipset
    • 1 PCIe x16 Expansion Slot
    • E13, EN50155, EN50121-3-2, VMware Ready
    • Rich I/O : 4 COM, 4 USB 3.0, 2 USB 2.0, 2 Mini PCIe (1 with SIM Card Socket)
    • Supports 2 DisplayPort, DVI-D, VGA, LVDS, up to 3 Independent Displays
    • 2 SATA III (6Gbps) 2.5” SSD/ HDD, mSATA





Overview

    Powered by Quad Core 3rd Gen Intel® Core™ i7 Processor (6M Cache, up to 3.30 GHz), ECS-7710 integrates 2 GbE LAN, 4 GigE PoE+ ports, and one PCIe x16 expandable slot. With maximum dual channel 16GB memory, DVI-D/ LVDS/ VGA/ DisplayPort up to triple display, two 2.5” SATA 6Gp/s HDD/ SSD, one SATA 3Gp/s SSD/ HDD supports SATA DOM, one of 2 Mini PCIe supports SIM card for WiFi, 3G/GPRS, and still keep outstanding thermal design for -25 degree to +70 degree Celsius industrial operating temperature range. ECS-7710 provides 2 fully integrated Gigabit Ethernet interfaces for either 1000 Mb/s or 10/100 Mb/s operation rates by each and jumbo frames up to 9018 bytes.

    Enabling accurate time synchronization, wake-up function, and boot up through the extensible firmware interface (PXE), ECS-7710 integrates fully power management function to optimize voltage efficiency. Empowering 4 GigE IEEE 802.3at PoE+ ports, ECS-7710 is the ideal option for GigE cameras required efficient power supply and distances connection. Improving network traffic load-balancing by optimized parallel and pipelined architectures, the 2 gigabit Ethernet controllers of ECS-7710 enables to smooth the network traffic loading for most demanding occasions. ECS-7710 is designed for machine vision, intelligent automation, intelligent manufacturing system, automation networking communication, IOT (Internet of Things), and process control applications.



Specifications

System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory 2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB

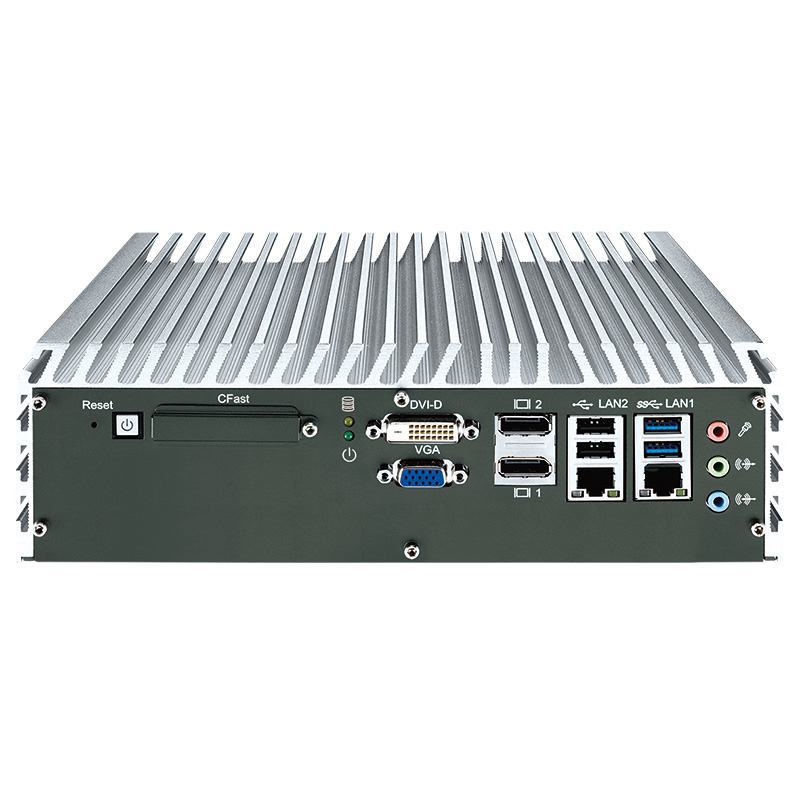

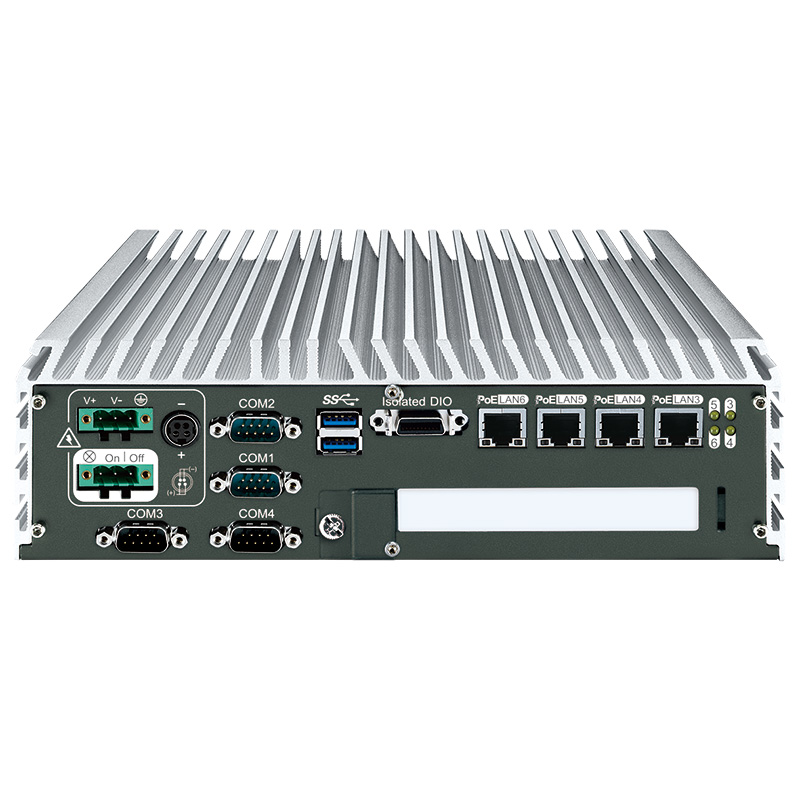

I/O Interface
Serial
- 1 COM RS-232/ 422/ 485
- 3 COM RS-232
USB
- 4 USB 3.0 (External)
- 4 USB 2.0 (2 External, 2 Internal by JST Connector)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
GPIO 16 GPIO (Internal)
LED Power, HDD, PoE
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 1 Mini PCIe for PCIe/ USB/ Optional mSATA
PCIe 1 PCIe x16 Slot
Graphics
Chipset Intel® HD 4000
Display Memory Shared Memory, Up to 1.7GB
Interface
- VGA : DB-15, up to 1920 x 1200
- DVI-D : Up to 1920 x 1200
- DisplayPort 1 : Up to 2560 x 1600
- DisplayPort 2 : Up to 1920 x 1200
- LVDS : Dual channel 24-bit, up to 1920 x 1200
Storage
SATA
- 2 SATA III (6Gbps)
- 1 SATA II (3Gbps), supports horizontal type SATA DOM
mSATA 2 SATA II (Mini PCIe Type, 3Gbps)
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-in, 1 Line-out, 1 Mic-in
Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® 82574L Gigabit LAN
PoE
LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
Power
Power Input 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM) Optional Infineon SLB9635 supports TPM 1.2, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

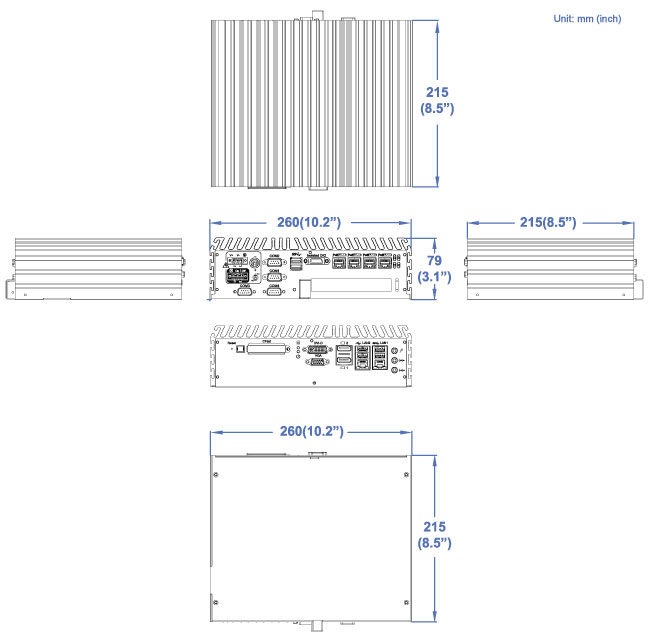

Dimensions (W x L x H) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 2.8 kg (6.2 lb)
Mounting
- Wallmount by mounting bracket
- 2U Rackmount (Optional)
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Certification  E13, CE, FCC, EN50155, EN50121-3-2, VMware Ready



Resources

Item File Name Format File Update Download
ECS-7710 ECS-7700/7100 _DM .PDF 2017/9/22 Download
ECS-7710 ECS-7710/7701 Datasheet .PDF 2016/11/14 Download
ECS-7710 ECS-7710 Datasheet .PDF 2016/2/15 Download
ECS-7710 ECS-7700 Series User Manual V1.0.0 | 4.21MB .PDF 2014/3/20 Download
ECS-7710 ECS-7700/7100 Series User Manual V1.0.0 | 6.87MB .PDF 2014/12/23 Download
ECS-7710 ECS-7000 Series Shock & Vibration Test Report .PDF 2016/8/4 Download
ECS-7710 ECS-7000 Series Driver for Windows 8 & Windows 7 (64bit) .ZIP 2015/8/11 Download
ECS-7710 ECS-7000 Series Driver for Windows 8 & Windows 7 (32bit) .ZIP 2015/8/11 Download
ECS-7710 ECS-7000 Series Graphics Driver for Windows 8 & Windows 7 (64bit) .ZIP 2015/8/11 Download
ECS-7710 ECS-7000 Series Graphics Driver for Windows 8 & Windows 7 (32bit) .ZIP 2015/8/11 Download
ECS-7710 ECS-7000 Series Driver for Windows XP .ZIP 2016/12/19 Download

Inquiry

Product Description Qty
ECS-7710 Intel® Core™ i7/ i5/ i3 Fanless Embedded System with Intel® QM77 Chipset, 6 Gigabit LAN with 4 PoE+, 1 PCIe x16, 2 2.5" SSD, Isolated DIO, High Performance, Rugged, Extended Temperature
i7-3610QE Ivy Bridge 3rd Gen Intel® Mobile Quad-Core™ i7 Processor
i5-3610ME Ivy Bridge 3rd Gen Intel® Mobile Core™ i5 Processor
i3-3120ME Ivy Bridge 3rd Gen Intel® Mobile Core™ i3 Processor
M340S-W28M1 Vecow DDR3 4GB 1333/1066MHz RAM, Wide Temperature -40°C to +85°C
Certified DDR3 4GB RAM Certified DDR3 4GB 1333/1600MHz RAM
Certified DDR3 8GB RAM Certified DDR3 8GB 1333/1600MHz RAM
PWA-120WM4P 120W, 24V, 90V AC to 264VAC Power Adapter with 4-pin Mini-DIN Connector
SCSI-20P-100 20-pin SCSI Cable, 1M
TMB-SCSI-20P Terminal Board with One 20-pin SCSI Connector and DIN-Rail Mounting
