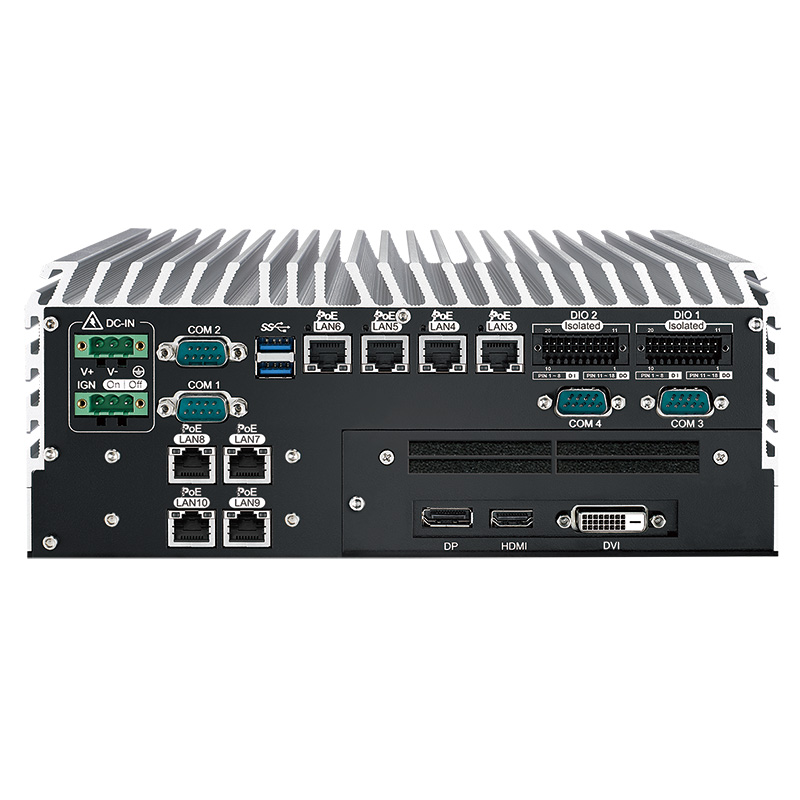

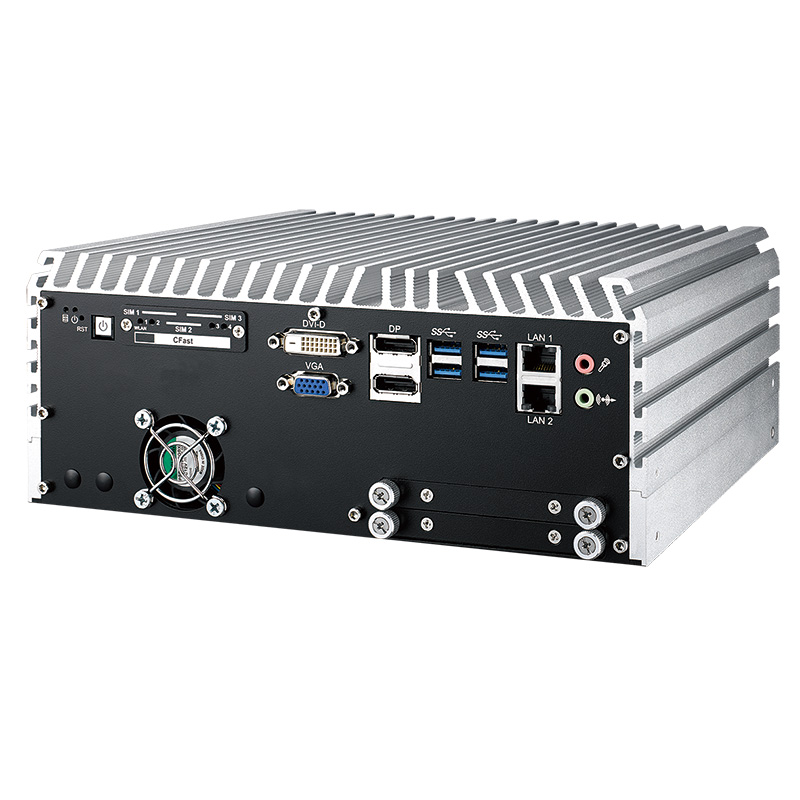

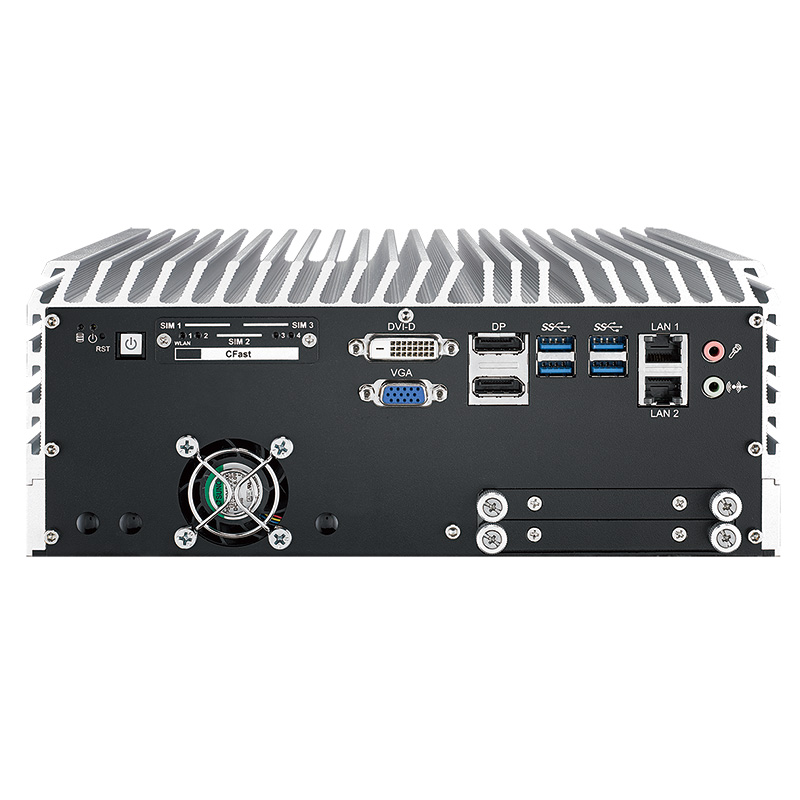

ECS-9780 GTX1050 (8 PoE)

Features

    • Workstation-grade Intel® Xeon®/Core™ i7 Processor (Skylake-H) with CM236 Chipset supports up to 6 independent displays
    • NVIDIA GeForce® GTX 10 Series graphics engine supports NVIDIA Pascal™ GPU architecture, up to 8K resolution
    • Multiple VGA, DVI, DisplayPort and HDMI display interfaces, up to 6 independent HD displays
    • 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)
    • 10-port Independent GigE LAN with 4 IEEE 802.3at PoE+ & 4 IEEE 802.3af PoE, iAMT 11.0 supported
    • 4 SIM Card Socket for WiFi/3G/4G/LTE/GPRS/UMTS
    • 2 Front-access 2.5" SSD Tray, 6 USB 3.0, 4 COM, 1 CFast Socket
    • 32 Isolated DIO, 2 Mini PCIe/mSATA
    • 10V to 36V DC power input with 80V Surge Protection
    • Configurable Ignition Power Control, Smart Battery Protection
    • Optional supports full function SUMIT A, B





Overview

    Powered by Intel® Xeon®/Core™ i7 (Skylake-H) processor running with NVIDIA GeForce® GTX 1050 graphics engine, advanced NVIDIA Pascal™ GPU architecture supporting CUDA applications & 8K resolution, up to 6 independent HD displays, -20°C to 60°C operating temperature, all-in-one integrated features, multiple I/O connection, outstanding system performance, excellent mobile availability, smart manageability, wide range power input, surge protection, ignition power control, isolated DIO, EN50155 and industrial-grade reliability, Vecow ECS-9700/9600 GTX1050 Series GPU Computing System is your great solution for Machine Vision, Embedded Workstation, Vehicle Computing, Telemedicine, Intelligent Control, Deep Learning, Artificial Intelligence, Voice Reorganization and any graphics performance driven Industry 4.0 embedded applications.



Specifications

System
Processor
Intel® Xeon® E3-1505M v5/Core™ i7-6820EQ Processor (Skylake-H)
Chipset Intel® CM236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.0 (External)
- 1 USB 2.0 (Internal)
Isolated DIO
32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, PoE, Wireless
SIM Card  4 SIM Card Socket (3 External, 1 Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Full-size for PCIe/USB/External SIM Card/mSATA
- 1 Full-size for PCIe/Internal SIM Card/mSATA
SUMIT A, B 2 SUMIT Slot (Optional)
Graphics
Graphics Processor
- Intel® HD Graphics P530/530
- NVIDIA GeForce® GTX 1050
Interface
7 Display interfaces :
- 2 DVI : Up to 1920 x 1200 @ 60Hz
- 1 DisplayPort : Up to 7680 x 3840 @ 60Hz
- 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
- 1 VGA : Up to 1920 x 1200 @ 60Hz
- 1 HDMI : Up to 4096 x 2160 @ 60Hz
Storage
SATA 4 SATA III support S/W RAID 0, 1, 5, 10 :
- 3 SATA III (6Gbps)
- 1 SATA III co-lay with Mini PCIe (6Gbps)
mSATA
4 mSATA connections :
- 3 SATA III (Mini PCIe Type, 6Gbps)
- 1 SATA III co-lay with SATA (Mini PCIe Type, 6Gbps)
Storage Device
- 1 CFast Socket, Push-in/Push-out Ejector
- 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219 GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
PoE+
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
PoE
LAN 7 GigE IEEE 802.3af (15.4W/48V) PoE+ by Intel® I350
LAN 8 GigE IEEE 802.3af (15.4W/48V) PoE+ by Intel® I350
LAN 9 GigE IEEE 802.3af (15.4W/48V) PoE+ by Intel® I350
LAN 10 GigE IEEE 802.3af (15.4W/48V) PoE+ by Intel® I350
Power
Power Input 10V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H) 260mm x 215mm x 104mm (10.2” x 8.5” x 4.1”)
Weight 4.7 kg (10.36 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
Environment
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC E13, CE, FCC, EN50155, EN50121-3-2
