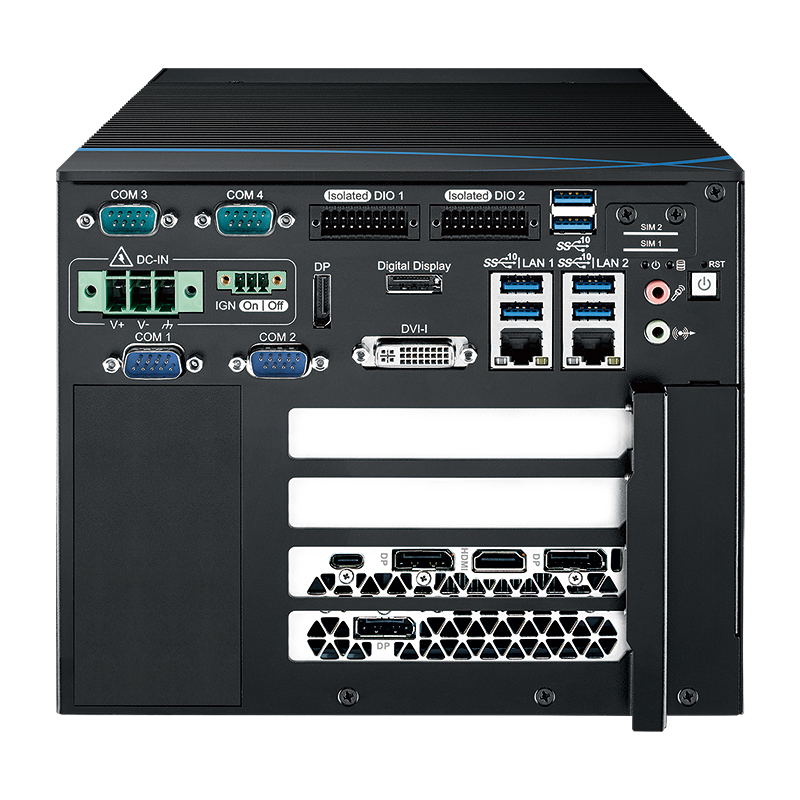

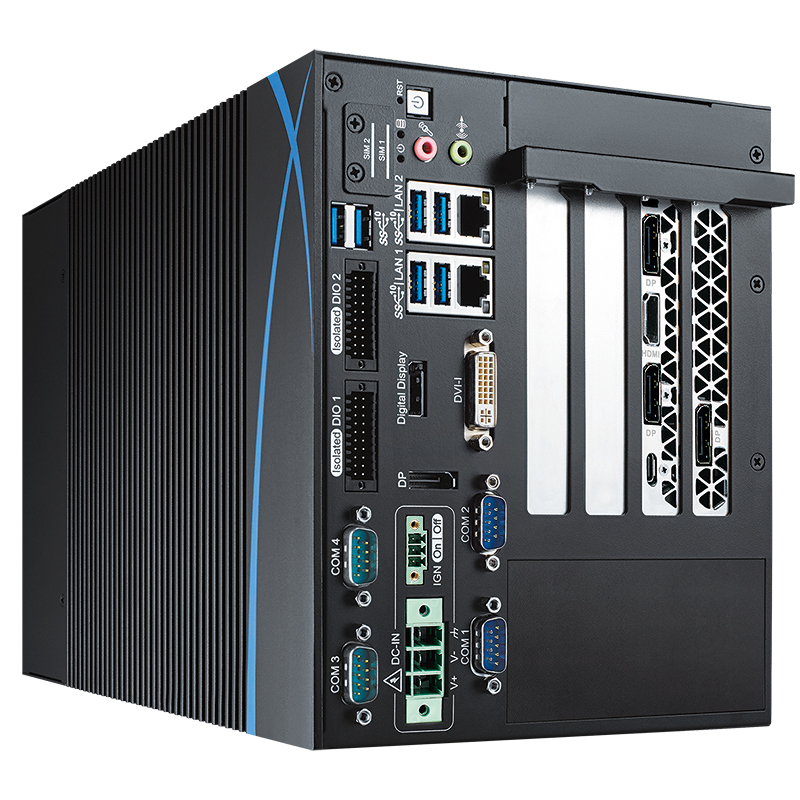

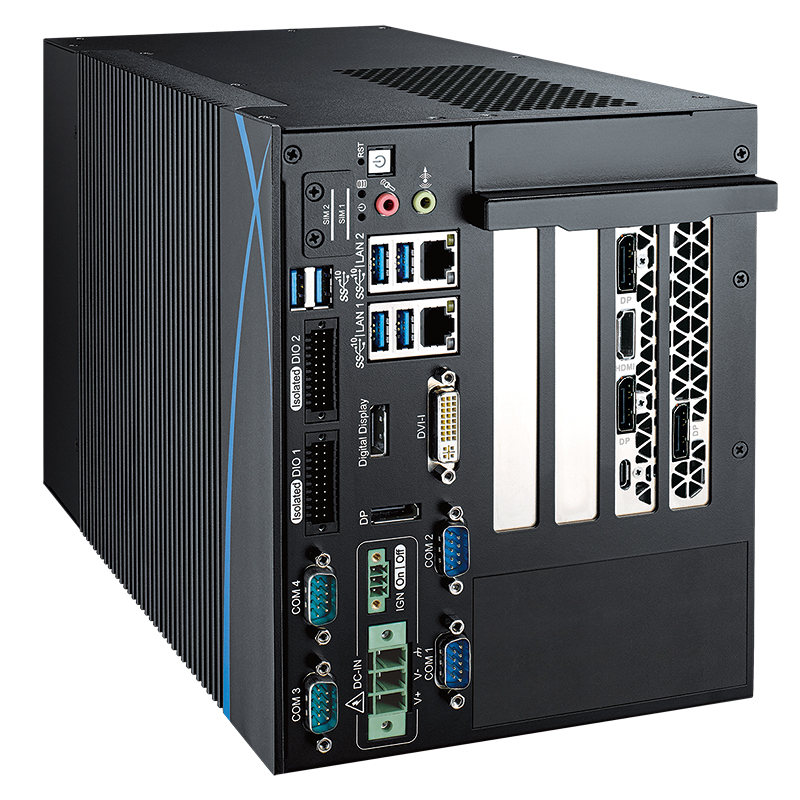

RCX-1400F PEG

Features

    • 8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset
    • 4 DDR4 2666MHz memory, up tp 128GB (ECC/Non-ECC)
    • 6 External USB 3.1 Gen 2 support up to 10Gbps data transfer
    • NVIDIA® Tesla®/Quadro®/GeForce® graphics card, powered by advanced NVIDIA Turing/Pascal architecture, delivers leading AI computing productivity
    • Multiple DVI, HDMI and DisplayPort display interfaces support max 7 independent displays, up to 8K resolution
    • 2 Independent GigE LAN iAMT 12.0 supported
    • 2 External SIM socket for WiFi/4G/3G/LTE/GPRS/UMTS
    • 32 Isolated DIO, 4 COM RS-232/422/485
    • 2 PCI/PCIe Slot, 2 M.2 Socket：1 M.2 Key M, 1 M.2 Key E
    • System-oriented power consumption, up to 300W independent graphics card
    • Supports wide range power input with 80V Surge Protection
    • Configurable Ignition Power Control






Overview

    Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel® C246 chipset, advanced CUDA® cores, NVIDIA® Tesla®/Quadro®/GeForce® graphics engine supports new generation NVIDIA Turing/Pascal GPU architecture, max 7 independent displays, up to 8K resolution, featuring leading performance, system-oriented integration, multiple 10G USB 3.1 Gen 2 connections, 2 SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS, 2 M.2 expansion, Isolated DIO, smart manageability, 24V to 36V power input with 80V surge protection, ignition power control. Vecow RCX-1000 PEG Series Expandable GPU Computing System is your new generation solution for AI Computing applications.




Specifications

System
Processor 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)
Chipset Intel® C246 Chipset
BIOS AMI
SIO IT8786E
Memory 4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.1 Gen 2 (External)
- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card  2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Key E Socket (2230, PCIe x2/USB)
PCI/PCIe Up to 2 PCI/PCIe Slot, by request
Graphics
Graphics Processor - Intel® UHD graphics 630
- Independent Graphics：By request
Interface
Up to 7 independent displays :
- 1 DVI : Up to 1920 x 1200 @60Hz
- 1 DisplayPort : Up to 4096 x 2304 @60Hz
- 1 Digital Display (HDMI) : Up to 1920 ×1080 @60Hz
- By requested Graphics Card
Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
- 4 2.5" SSD/HDD Bracket (Internal)
- 1 M.2 Key M Socket (2280, PCIe x4/SATA)
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
Power
Power Input
- 24V to 36V DC-in
- 12V DC-in (Optional)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x L x H) 330mm x 210mm x 172mm (12.99" x 8.27" x 6.77")
Weight 5.4 kg (11.87 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 45°C
Shock/Vibration
- IEC 61373 : 2010
- Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests
EMC CE, FCC, EN50155, EN50121-3-2







Resources

Item File Name Format File Update Download
RCX-1400F PEG RCX-1000 PEG DM (English) .PDF 2023/1/17 Download
RCX-1400F PEG RCX-1000 PEG DM (簡體中文) .PDF 2023/12/19 Download
RCX-1400F PEG RCX-1000 PEGカタログ (日本語) .PDF 2023/1/17 Download
RCX-1400F PEG RCX-1000 PEG User Manual .PDF 2023/1/4 Download
RCX-1400F PEG RCX-1000 Series CE Report .PDF 2019/6/26 Download
RCX-1400F PEG RCX-1000 Series FCC Certification .PDF 2019/6/26 Download
RCX-1400F PEG RCX-1000 Series FCC Report .PDF 2019/6/26 Download
RCX-1400F PEG RCX-1000 Series CE and EN50155 & EN50121-3-2 Certification .PDF 2019/6/26 Download
RCX-1400F PEG RCX-1000 Series EN50155 & EN50121-3-2 Test Report .PDF 2019/6/26 Download
RCX-1400F PEG RCX-1000 PEG Vibration and Shock Test Report .PDF 2019/7/22 Download
RCX-1400F PEG RCX-1000 PEG Graphics Driver_001 .ZIP 2019/10/8 Download
RCX-1400F PEG RCX-1000 PEG IEC 61373 Test Report .PDF 2019/8/23 Download
RCX-1400F PEG RCX-1000 PEG High and Low Temperature Test Report .PDF 2019/7/22 Download
RCX-1400F PEG RCX-1000 PEG MIL-STD-810G Test Report .PDF 2020/7/20 Download
RCX-1400F PEG RCX-1000 PEG Graphics Driver_002 .ZIP 2019/10/8 Download
RCX-1400F PEG RCX-1000 PEG ME Driver_001 .ZIP 2019/10/8 Download
RCX-1400F PEG RCX-1000 PEG ME Driver_002 .ZIP 2019/10/8 Download
RCX-1400F PEG RCX-1000 PEG chipset Driver .ZIP 2019/10/8 Download
RCX-1400F PEG RCX-1000 PEG LAN Driver .ZIP 2019/10/8 Download
RCX-1400F PEG RCX-1000 PEG Hardware Monitor UI UM .PDF 2019/12/13 Download
RCX-1400F PEG RCX-1000 PEG Hardware Monitor UI Beta .ZIP 2019/12/16 Download
