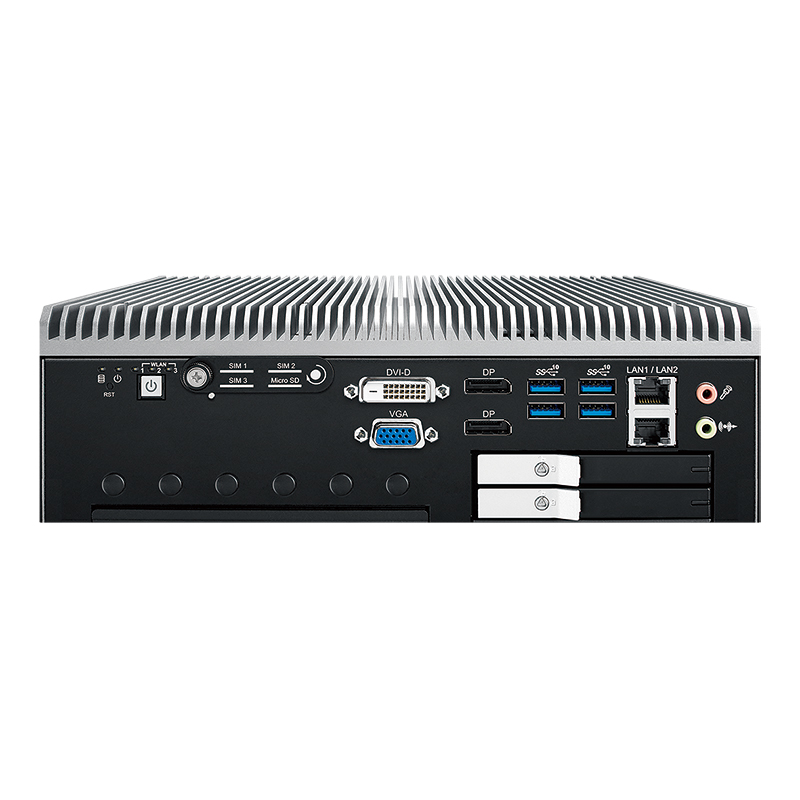

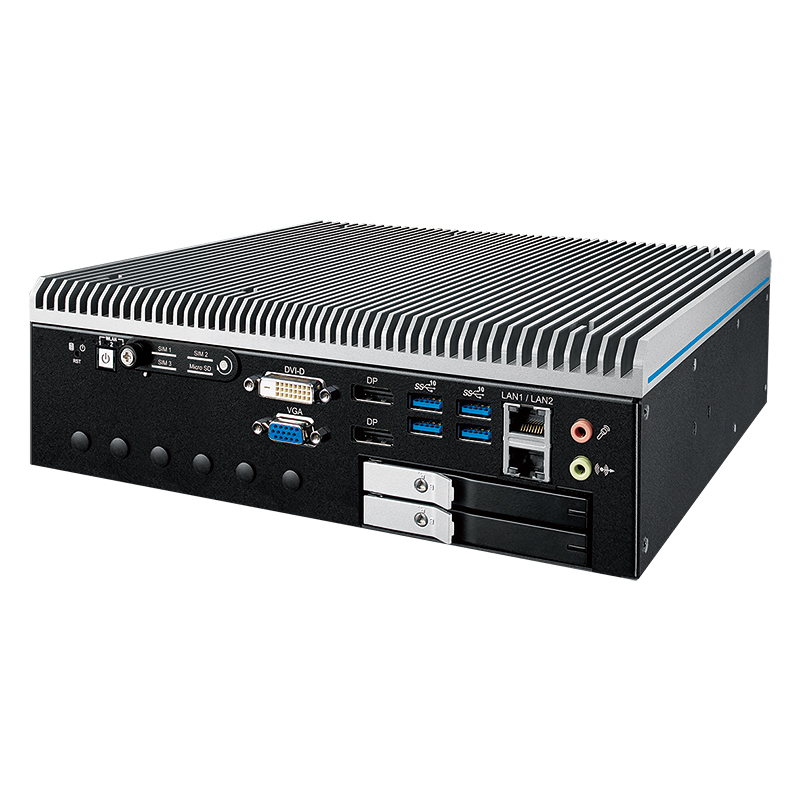

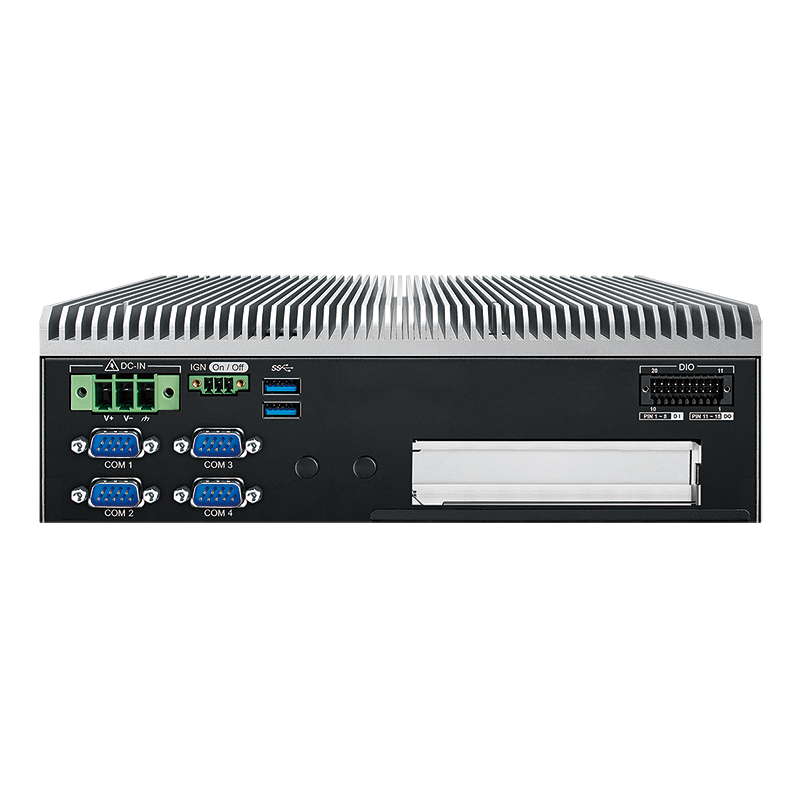

ECX-2110A (I210)

Features

    • Workstation-grade Platform : 10-core 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (CML-S) running with Intel® W480E chipset supports max 95W TDP CPU
    • 2 DDR4 2933MHz Memory support up to 64GB, optional with ECC
    • 9V to 50V wide range DC Power Input with 80V Surge Protection
    • Fanless, -40°C to 75°C Operating Temperature
    • PCIe x16 expansion supports up to 250W Power Budget
    • Expansion : 1 PCIe x16, 1 M.2 Key B, 1 M.2 Key E, 2 Mini PCIe
    • Storage : 2 2.5" SSD Tray, 1 Micro SD Card, 1 M.2 Key M, 2 SATA III
    • Display : VGA, DVI-D & 2 DisplayPort interfaces, up to 4K resolution
    • 6-port USB 3.2 support up to 10Gbps data transfer
    • 16 GPIO, 4 COM RS-232/422/485
    • 3 External Nano SIM Sockets for 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS
    • Supports Configurable Software Ignition Power Control and TPM 2.0
    • Optimized user-friendly design for easier system maintenance
    • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications




    Feature Highlights

    New Generation Workstation-grade Platform

    • The latest 10th Gen Intel Workstation-grade platform : 10-core Intel Xeon/Core i9/i7/i5/i3 processor running with Intel W480E (CML-S), max 95W TDP CPU supported
    • Max 45% CPU performance improved and 87% graphics performance enhanced than the former generation Intel Coffee Lake platform
    • Intel UHD 630 graphics engine supports DirectX 12.0, OpenGL 4.5, and OpenCL 2.1
    • High-speed data transfer : USB 3.2 Gen 2 (10G), 10GigE LAN (10G), 10G SFP+ (10G), PCIe 3.0 (8GT/s), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G)
    Vecow ECX-2200/2100 serves superb performance improvement than the former generation



    System-oriented Integration

    • Wide range power input with Smart Power Protection features
    • User-friendly designs : SIM/SD Socket Cover, Software Ignition Power Control, Front-access SSD/HDD Tray
    • RAID Data Protection
    • Max 250W power budget for PCIe x16 expansion
    • Smart system management : vPro, TPM 2.0, iAMT 14.0, Wake on LAN, PXE, Watchdog Timer, Remote Power Switch
    • Optional supports OpenVINO tool kit for AI Computing
    Vecow ECX-2200/2100 features system-oriented integration



    Flexible Configuration

    • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+ (25.5W/48V)
    • 3 Nano SIM sockets for 5G/WiFi/4G/3G/LTE/GPRS/UMTS
    • 6 external USB 3.2 support up to 10Gbps data delivery
    • 4 external COM RS-232/422/485
    • Storage : 2 2.5” SSD/HDD trays, 1 Micro SD socket, 1 M.2 socket
    • Expansion : 1 PCI/PCIe slot, 2 M.2 sockets, 2 Mini PCIe

    Vecow ECX-2200/2100 makes flexible expansion functions possible



    Rugged Reliability

    • Multiple Rugged X-coded M12 connections
    • Power Over Ethernet benefits for less project TCO (Total Cost of Ownership)
    • Fanless design, max -40°C to 75°C wide range operating temperature
    • 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS supports non-stop wireless data transfer
    • Power Protection : 9V to 50V DC-in, 80V Surge Protection, Ignition Power Control
    • Lockable front-access SSD trays, RAID 0, 1 Data Protection
    • EN50155 & EN50121-3-2
    • Anti-shock, Anti-vibration

    Vecow ECX-2200/2100 features rugged reliability

Overview

    Armed with workstation-grade 10 cores 10th generation Intel® Xeon®/Core™ i9/i7/i5/i3 processor (Comet Lake) and Intel® W480E chipset, Fanless, -40°C to 75°C operating temperature, 6 GigE LAN with 4 X-coded M12 PoE+, 6 USB 3.2 connections supporting up to 10Gbps data rate, SIM sockets supporting 5G/WiFi/4G/3G/LTE/GPRS/UMTS mobile availability, M.2, Mini PCIe and PCI/PCIe expansions for versatile configurations, smart manageability, 9V to 50V power input with 80V surge protection, software ignition power control, smart circuit protection and trusted reliability, Vecow ECX-2200/2100A Series Workstation-grade Expandable Fanless Embedded System is your ideal choice for Machine Vision, Rolling Stock, Smart Retail, Vehicle Computing, AMR/AGV, and any AIoT-oriented real-time embedded applications.





Specifications

System
Processor 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake-S)
Chipset Intel® W480E
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2933MHz Memory, up to 64GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB 6 USB 3.2 (External)
Isolated DIO 16 GPIO
LED Power, HDD, Wireless
SIM Card  3 External Nano SIM Card Sockets
Expansion
Mini PCIe 2 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA
PCI/PCIe 1 PCIe x16 slot
M.2
- 1 M.2 Key B Socket (2280/3042/3052, PCIe x2/USB3/USB 2)
- 1 M.2 Key E Socket (2230, PCIe/USB)
Graphics
Graphics Processor Intel® UHD Graphics 630
Interface
- 1 VGA : Up to 1920 x 1200 @60Hz
- 1 DVI-D : Up to 1920 x 1080 @60Hz
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 2 SATA III (Mini PCIe type, 6Gbps)
M.2 - 1 M.2 Key M Socket (2280, PCIe x4/SATA)
Storage Device
- 1 Micro SD Card, Push-in/Push-out ejector
- 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 14.0
LAN 2 Intel® I210 GigE LAN
Power
Power Input 9V to 50V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension  260mm x 240mm x 79mm (10.24" x 9.45" x 3.11")
Weight 4.5 kg (9.92 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail mount (Optional)
- 2U Rackmount (Optional)
Environment
Operating Temperature
35W TDP CPU : -40°C to 75°C (-40°F to 167°F), Fanless
65W TDP CPU : -40°C to 55°C (-40°F to 131°F), Fanless
80W & 95W TDP CPU : -40°C to 55°C (-40°F to 131°F), with Fan Sink
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative humidity 95% at 75°C
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
