LSM-550-AT2

Features

    • Intel® X550-AT2 10GBASE-T controller supports up to 10Gbps data rate
    • IEEE 802.3an Fast Ethernet standard compliant
    • IEEE 1588 Precision Time Protocol (PTP)
    • Up to 9728 bytes Jumbo Frame, Link Aggregation
    • Supports Wake-on-LAN (WoL) & PXE
    • Intel® Ethernet Power Management
    • Intel® Data Direct I/O Technology
    • Intel® Virtualization Technology for Connectivity (VT-c)
    • SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
    • -25°C to 55°C Operating Temperature

Overview

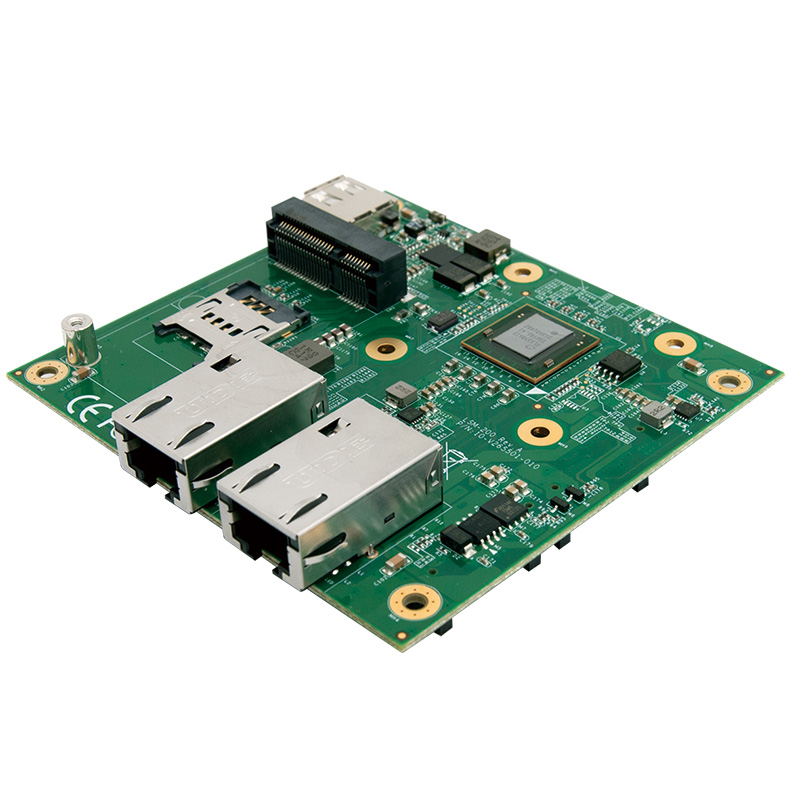

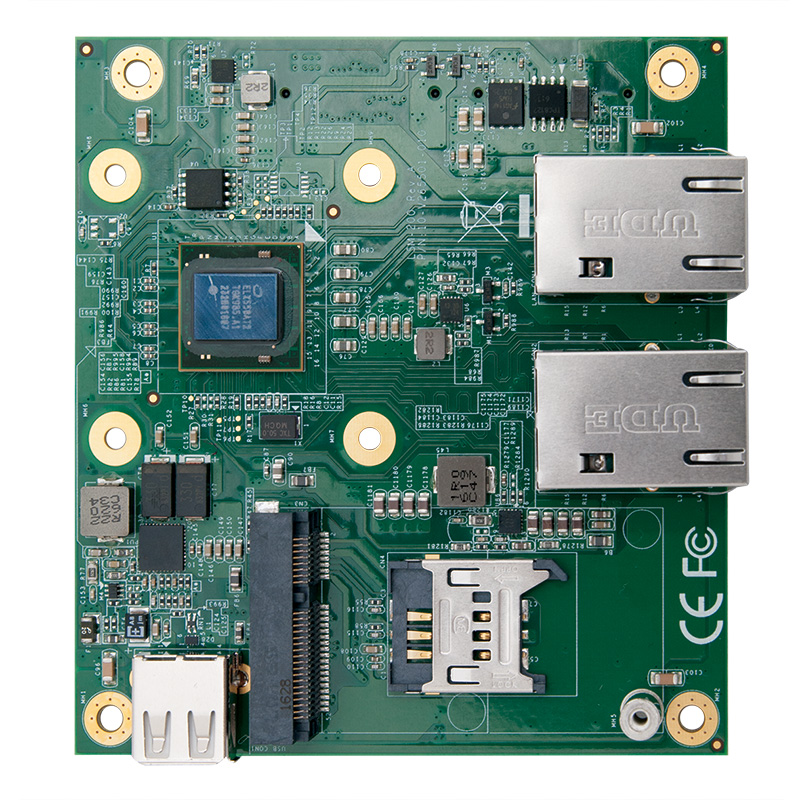

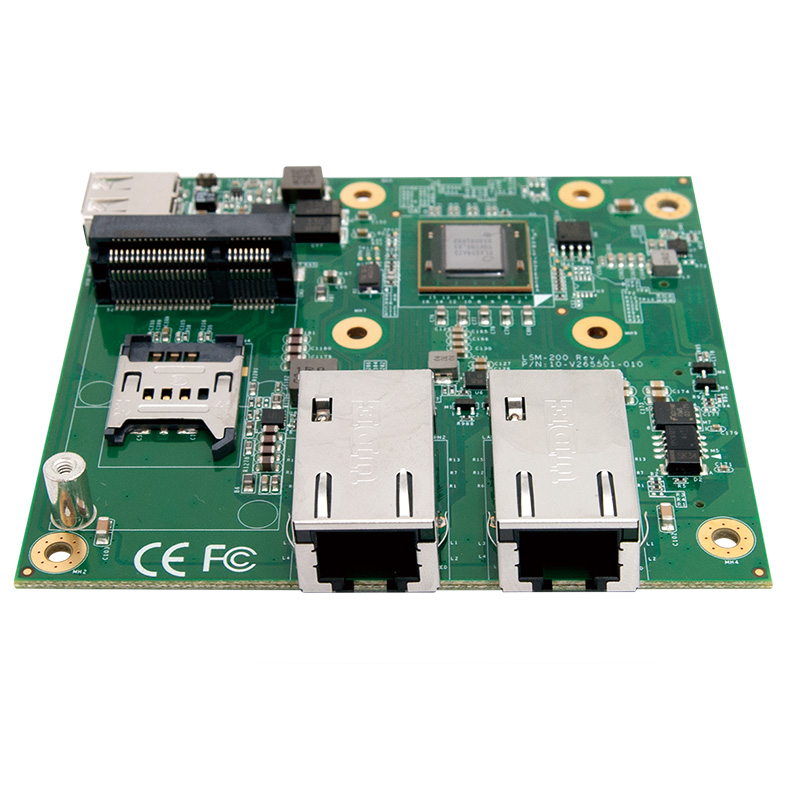

    SUMIT Expansion Card with 2 10GigE LAN, 1 Mini PCIe Slot, 1 SIM Socket, 1 USB 2.0, -25°C to 55°C

Specifications

Ethernet
Controller Intel® Ethernet Controller X550-AT2
Controller Qty 1
Data Rate 10Gbps/ 5Gbps/ 2.5Gbps/ 1Gbps/100Mbps
Jumbe Frame Up to 9728 byte
Link Aggregation Present
I/O Interface
Bus Type
LSM-550-AT2 : SUMIT B
LSM-550-AT2-E : SUMIT A, B
LAN 2 RJ45 Connector
Mini PCIe 1 Full Size Mini PCIe Socket
SIM Card 1 SIM Card Socket (Internal, optional supports External I/O Type)
USB 1 USB 2.0 Connector
Mechanical
Dimensions (W x L) 90mm x 96mm (3.5" x 3.8")
Weight 150 g
Environment
Operating Temperature -25°C to 55°C (-13°F to 131°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 55°C
EMC CE, FCC



Resources

Item File Name Format File Update Download
LSM-550-AT2 LSM-550-AT2 DM .PDF 2017/2/8 Download
LSM-550-AT2 10 GigE LAN Driver Part 1 .ZIP 2017/2/9 Download
LSM-550-AT2 10 GigE LAN Driver Part 2 .ZIP 2017/2/9 Download

Inquiry

Product Description Qty
LSM-550-AT2 SUMIT (PCIe) Expansion Card with 2 10GigE LAN
LSM-550-AT2-E SUMIT (PCIe) Expansion Card with 2 10GigE LAN, 1 Mini PCIe, 1 SIM Socket, 1 USB 2.0
