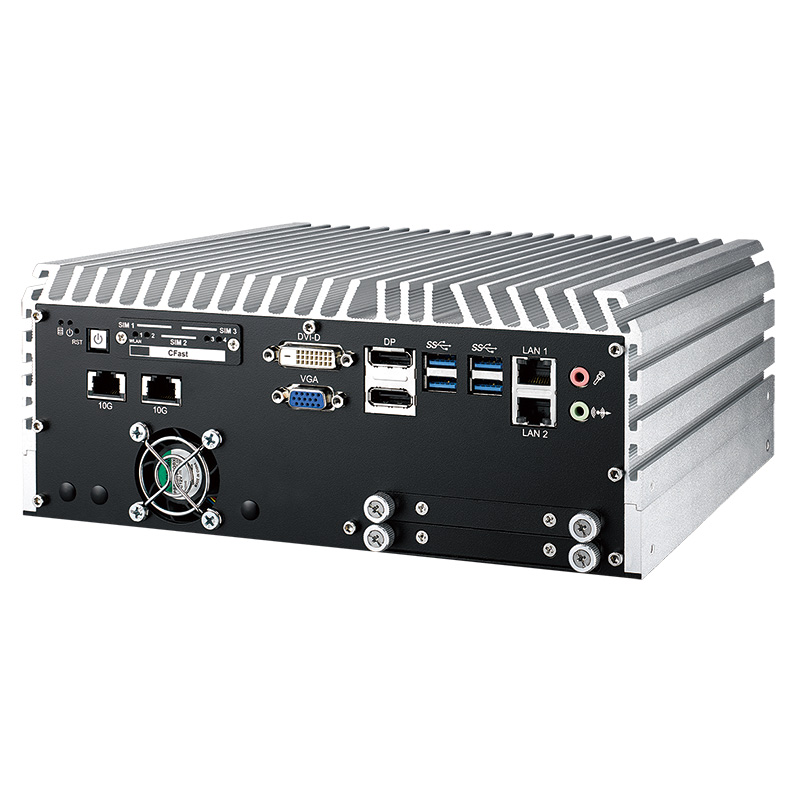

System |
|
Processor |
Intel® Xeon® E3-1505M v5/Core™ i7-6820EQ Processor (Skylake-H)
|
|
Chipset |
Intel® CM236 |
|
BIOS |
AMI |
|
SIO |
IT8786E |
|
Memory |
2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC) |
|

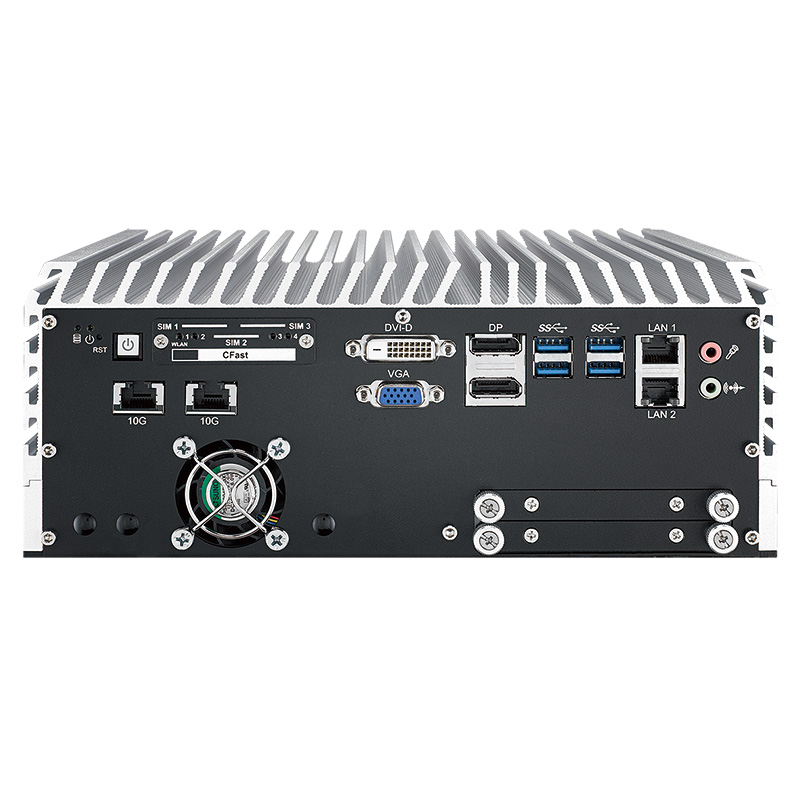

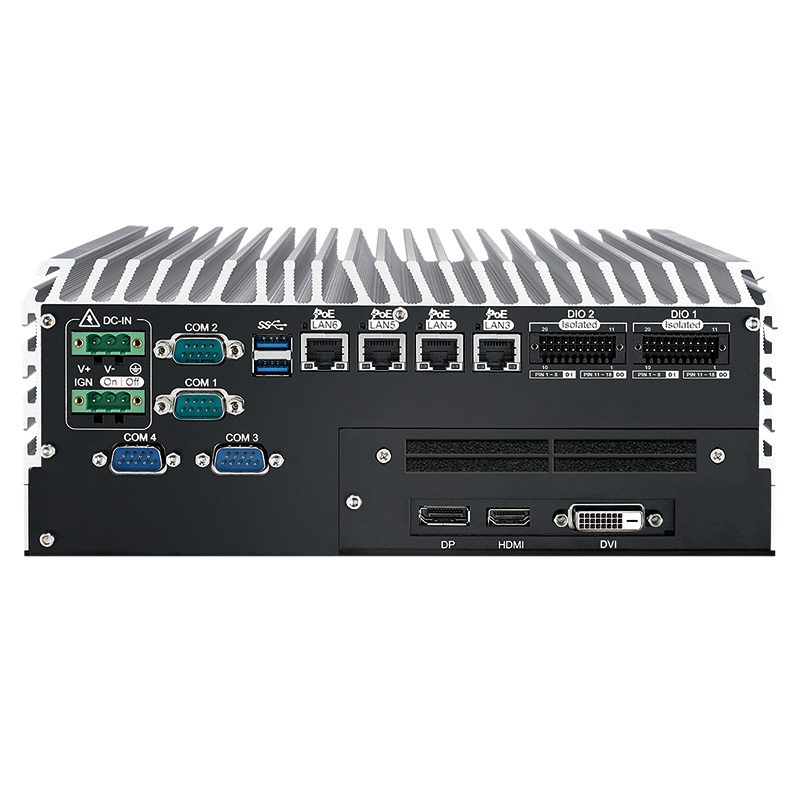

I/O Interface |
|
Serial |
4 COM RS-232/422/485 (ESD 8KV) |
|
USB |
- 6 USB 3.0 (External)
- 1 USB 2.0 (Internal) |
|
Isolated DIO |
32 Isolated DIO : 16 DI, 16 DO
|
|
LED |
Power, HDD, PoE, Wireless |
|
SIM Card |
4 SIM Card Socket (3 External, 1 Internal) |
|
Expansion |
|
Mini PCIe |
4 Mini PCIe Socket :
- 3 Full-size for PCIe/USB/External SIM Card/mSATA
- 1 Full-size for PCIe/Internal SIM Card/mSATA
|
|
Graphics |
|
Graphics Processor |
- Intel® HD Graphics P530/530
- NVIDIA GeForce® GTX 1050
|
|
Interface |
7 Display interfaces :
- 1 VGA : Up to 1920 x 1200 @ 60Hz
- 2 DVI : Up to 1920 x1200 @ 60Hz
- 1 DisplayPort : Up to 7680 x 3840 @ 60Hz
- 2 DisplayPort : Up to 4096 x 2304 @ 60Hz
- 1 HDMI : Up to 4096 x 2160 @ 60Hz
|
|
Storage |
|
SATA |
4 SATA III support S/W RAID 0, 1, 5, 10:
- 3 SATA III (6Gbps)
- 1 SATA III co-lay with Mini PCIe (6Gbps) |
|
mSATA |
4 mSATA connection :
- 3 SATA III (Mini PCIe Type, 6Gbps)
- 1 SATA III co-lay with SATA (Mini PCIe Type, 6Gbps) |
|
Storage Device |
- 1 CFast Socket, Push-in/Push-out Ejector
- 2 Front-access 2.5" SSD/HDD Tray
|
|
Audio |
|
Audio Codec |
Realtek ALC888S, 7.1 Channel HD Audio |
|
Audio Interface |
1 Mic-in, 1 Line-out |
|
Ethernet |
|
LAN 1 |
Intel® I219 Gigabit LAN supports iAMT 11.0 |
|
LAN 2 |
Intel® I210 Gigabit LAN |
|
PoE |
|
LAN 3 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
|
LAN 4 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
|
LAN 5 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
|
LAN 6 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
|
10G Ethernet |
|
LAN 7 |
Intel® X550-AT2 10 GigE LAN |
|
LAN 8 |
Intel® X550-AT2 10 GigE LAN |
|
Power |
|
Power Input |
10V to 36V, DC-in |
|
Power Interface |
3-pin Terminal Block : V+, V-, Frame Ground |
|
Ignition Control |
16 Mode (Internal) |
|
Remote Switch |
3-pin Terminal Block |
|
Surge Protection |
Up to 80V/1ms Transient Power |
|
Others |
|
TPM |
Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
|
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
|
Smart Management |
Wake on LAN, PXE supported |
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
|
Software Support |
|
OS |
Windows 10, Windows 8.1, Windows 7, Linux |
|
Mechanical |
|
Dimension (W x L x H) |
260mm x 215mm x 104mm (10.2” x 8.5” x 4.1”) |
|
Weight |
4.7 kg (10.36 lb) |
|
Mounting |
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
|
|
Environment |
|
Operating Temperature |
-20°C to 55°C (-4°F to 131°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Humidity |
5% to 95% Humidity, non-condensing |
|
Relative Humidity |
95% at 55°C |
|
Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
|
Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
|
EMC |
E13, CE, FCC, EN50155, EN50121-3-2 |
