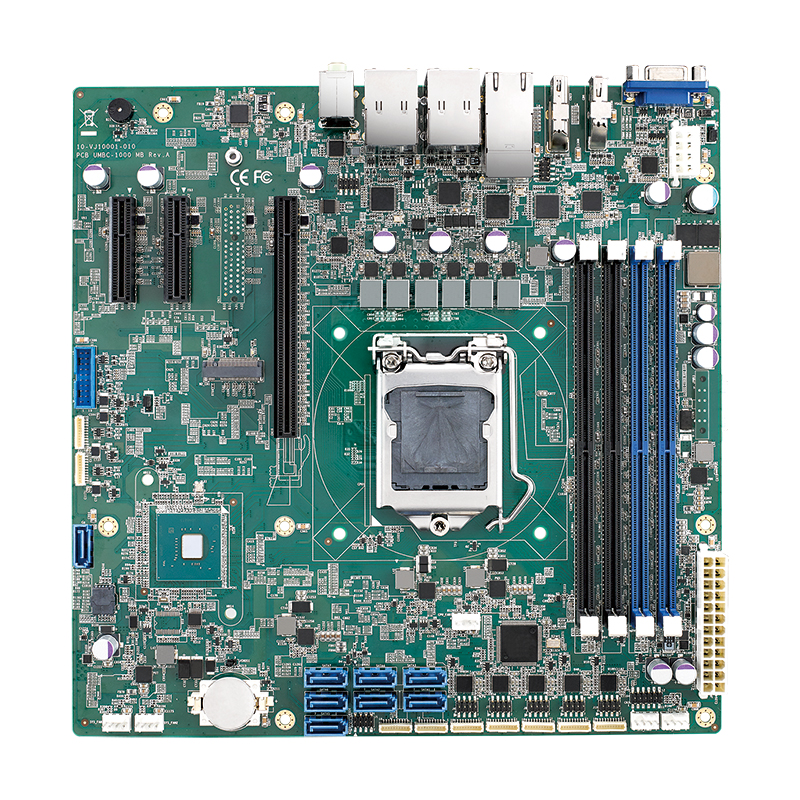

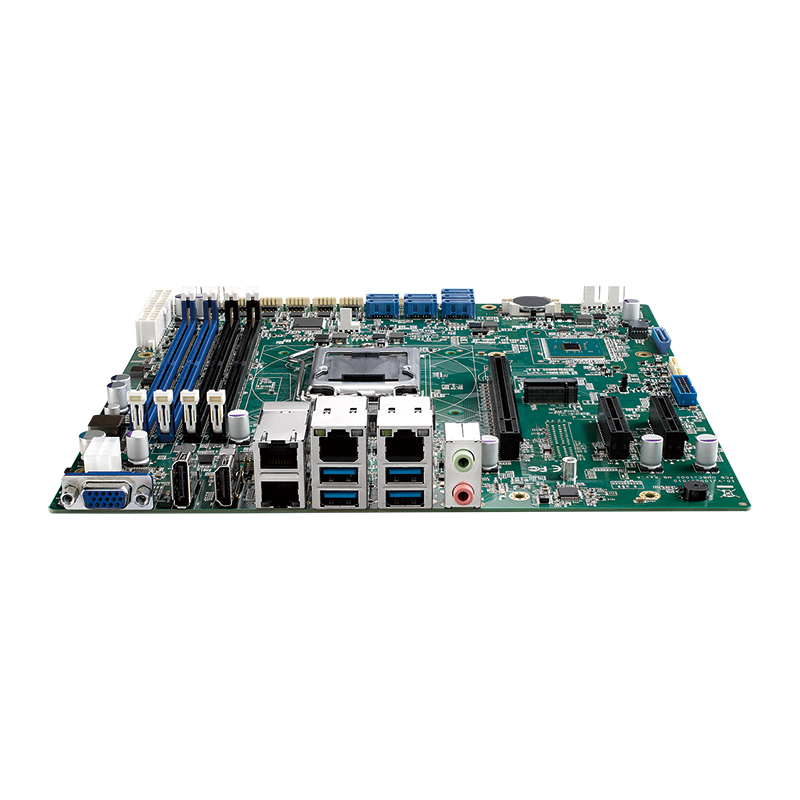

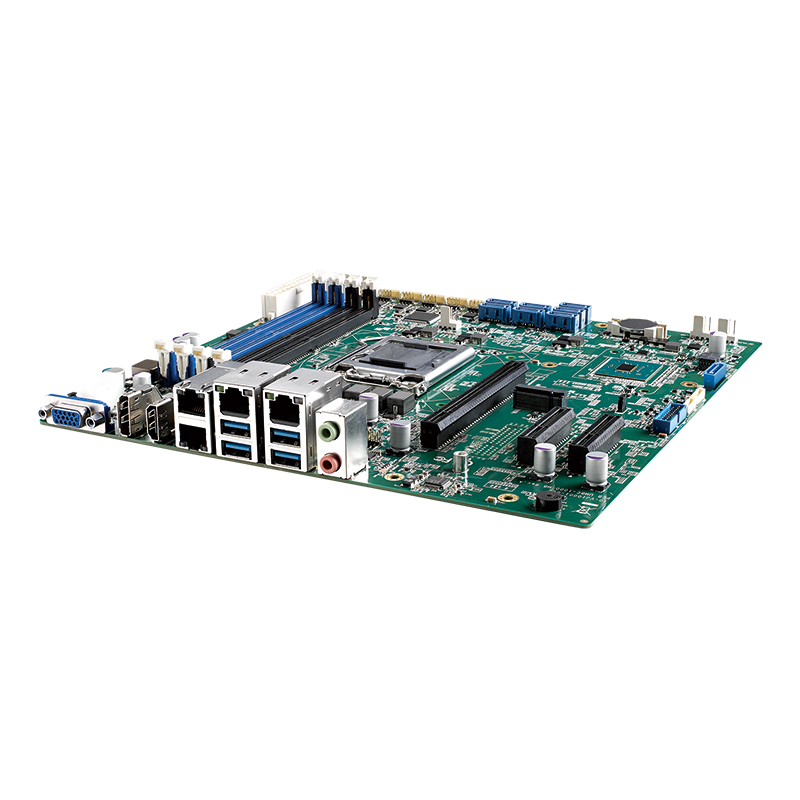

UMBC-1100

Features

    • LGA1151 socket supports 9th Gen Intel® Xeon®/Core™ i7/i5/i3 Processor (Coffee Lake Refresh) with Intel®C246 chipset
    • Supports DDR4 2666/2400MHz U-DIMM memory, up to 128GB (ECC/Non-ECC)
    • Display: VGA, DisplayPort and HDMI display interfaces, up to 4K resolution
    • 4 Independent GigE LAN, iAMT 12.0 supported
    • Storage: 8 SATA III support RAID 0, 1, 5, 10 data protection
    • 6 USB 3.1, 4 USB 2.0, 5 COM RS-232/422/485, 16 GPIO
    • Expansion: 1 PCIe x16, 2 PCIe x4, 1 M.2
    • Supports case open detection
    • Optional supports TPM 2.0/1.2




Overview

    Workstation-grade 9th Gen Intel®Core™ i7/i5/i3 processor (Coffee Lake Refresh) with Intel® C246 chipset, support U-DIMM DDR4 memory up to 128GB, multiple DisplayPort supporting up to 4K resolution, 4 independent GigE LAN, iAMT 12.0 supported, 6 USB 3.1, 4 USB 2.0, 5 COM RS-232/422/485, high-performance and, industrial-grade reliability, smart manageability, mobile availability and easy customization with versatile expansion, UMBC-1000 Series Intel Coffee Lake industrial MicroATX Motherboard is your excellent choice for Smart Manufacturing, Public Surveillance, Gaming, Self-service System, Traffic Control and any performance-demanding embedded applications.



Specifications

System
Processor 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (CFL-R S), up to 12M Cache, 3.7GHz
Chipset Intel® C246
BIOS AMI
SIO IT8786E
Memory 4 DDR4 2666/2400/2133 MHz U-DIMM, up to 128GB (ECC/Non-ECC)
OS Windows 10, Linux
Graphics
Processor  Intel® UHD Graphics 630
Interface
- VGA : Up to 1920 x 1200 @60Hz
- DisplayPort : Up to 4096 x 2160 @60Hz
- HDMI : Up to 4096 x 2160 @24Hz
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I211AT GigE LAN
LAN 3 Intel® I211AT GigE LAN
LAN 4 Intel® I211AT GigE LAN
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
I/O Interface

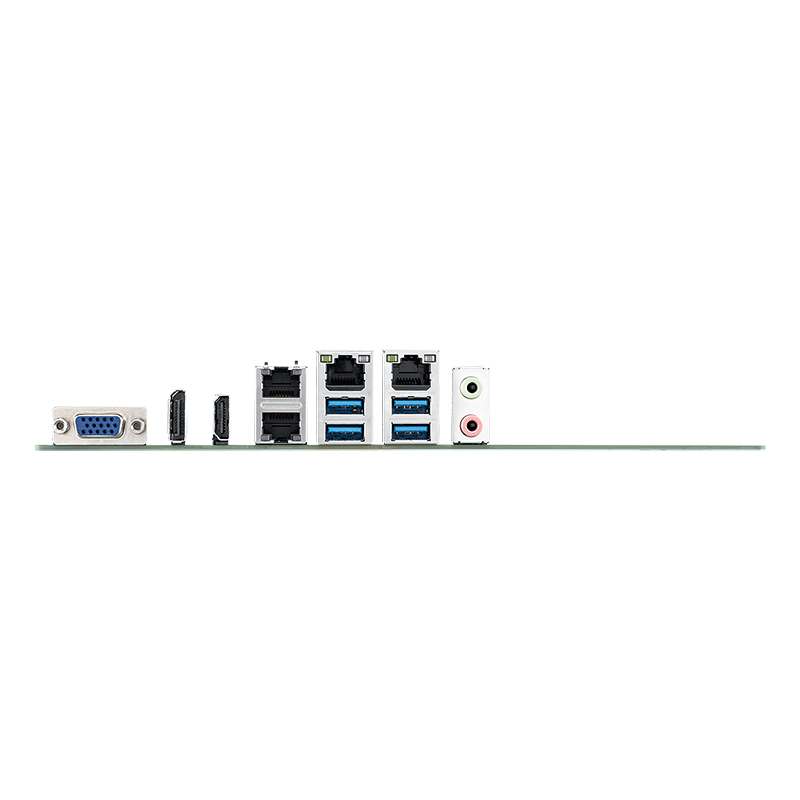

Rear I/O
- 1 HDMI Connector
- 1 DisplayPort Connector
- 1 VGA Connector
- 4 RJ45 Connector
- 4 USB 3.1 Tape A Connector
Internal I/O
- 5 COM RS-232/422/485 Header
- 8 SATA Connector
- 4 USB 2.0 Header
- 2 USB 3.1 Header
- 1 GPIO Header
- 1 CPU Fan Header
- 4 System Fan Header
Storage
SATA 8 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
Expansion
PCIe x16 1 PCIe x16 Slot (Gen 3)
PCIe x4 2 PCIe x4 Slot (Gen 3)
M.2 1 M.2 Key M Socket (2280, PCIe x4)
Power
Power Input
+12V   +5V   +3.3V   5VSB
7.25A   0.58A  0.27A  0.07A
Power Type ATX Input
Power Interface
- 1 24-pin ATX Power Connector
- 1 8-pin 12V ATX Power Connector
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart
Management
 Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Mechanical
Dimension  244mm x 244mm (9.6" x 9.6")
Environment
Operating Temperature 0°C to 60°C (-32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
EMC CE, FCC
