RMS-3000A

Features

    • AMD EPYC™ 7003 Series Processor supports up to 64 Cores (Code name: Milan) support max 225W TDP CPU
    • 2 PCIe 4.0 x16, 2 PCIe 4.0 x8 for Full-Length/Full-Height PCIe Cards

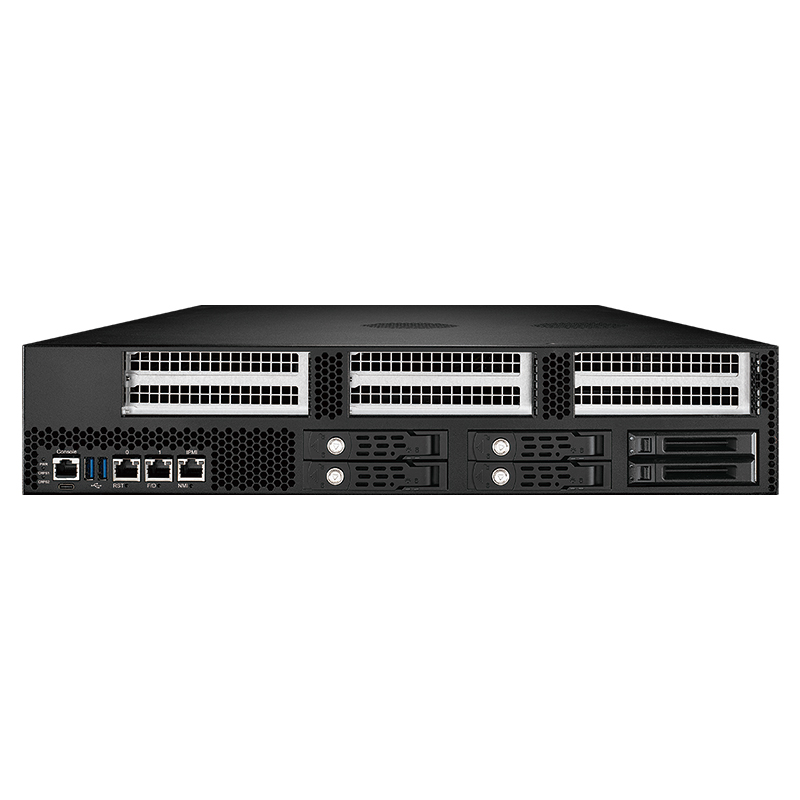

    • Front-access 4 2.5" hot swappable SSD/HDD and 2 U.2 support RAID 0, 1, 5, 10
    • Standard 19" 2U Rackmount Server with AC input Redundant Power Supply Unit (CRPS, up to 2000W)
    • Optional supports TPM 2.0 or BMC module for system management

Overview

    The Vecow RMS-3000 is based on AMD EPYC™ 7003 Series Processor, with up to 64 Cores and 225W TDP CPU supported

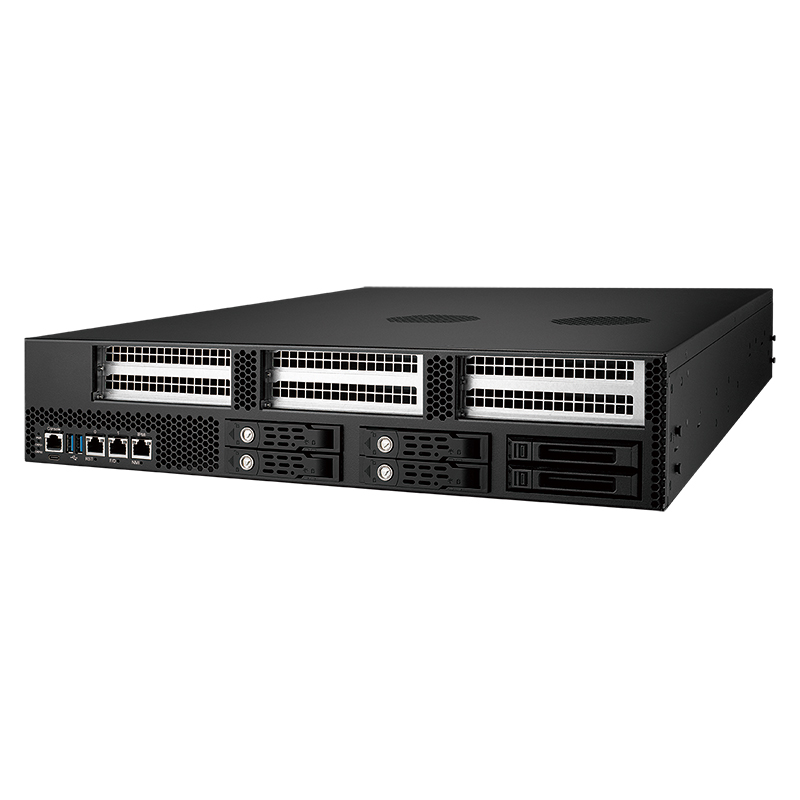

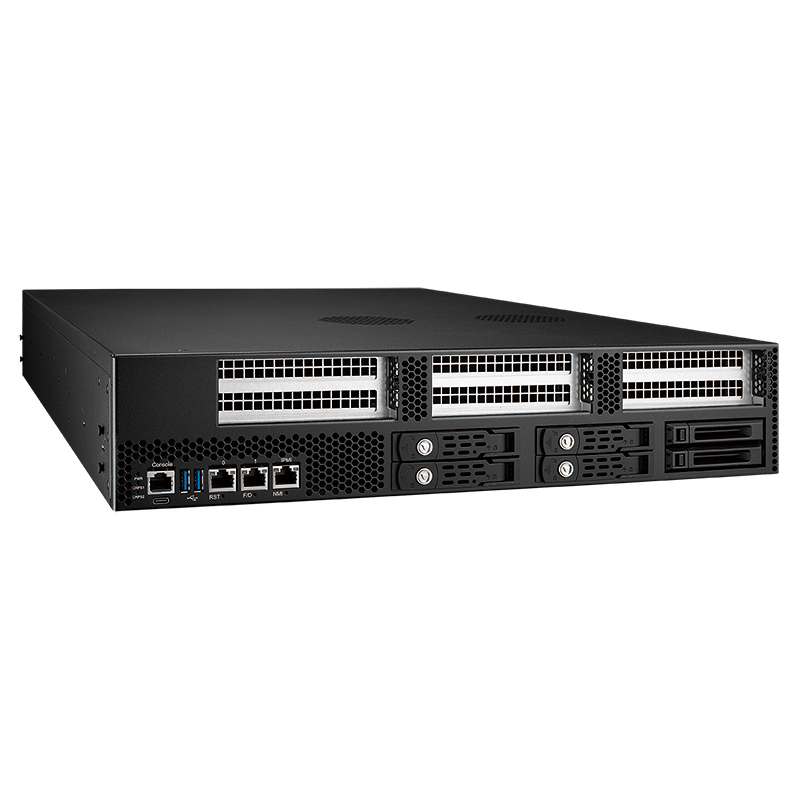

    Featuring a 19” 2U rackmount, the RMS-3000 is equipped with 2 PCIe 4.0 x16 and 2 PCIe 4.0 x8 expansion slots for Full-length or Full-height graphics card accommodation. It supports 4 2.5” SSD/HDD, 2 U.2 storage and provides flexible power options of AC and DC power input. The RMS-3000 2U Rackmount Server offers high performance and scalability, making it ideal for server rooms, data management, and data storage.



Specifications

System
Processor AMD EPYC™ 7543P Processor (Milan, "Zen 3" Microarchitecture)
BIOS AMI
Memory 8 DDR4 3200MHz RDIMM, up to 256GB
OS Windows Server, Linux
I/O Interface
Serial
- 1 RJ45 Console
- 1 USB Type-C Console
USB 2 USB3.2 Type-A
LAN
- 2 1G LAN by Intel® I210
- 1 1G LAN supports OOB (by optional BMC Module)
LED Power, HDD
Expansion
PCIe
- 2 PCIe x16 Slot with 2 PCIe 4.0 x16 signal
- 2 PCIe x16 Slot with 2 PCIe 4.0 x8 Signal
Storage
SATA 4 Front-access 2.5" SSD/HDD Tray (SATA III (6Gbps)), hot swappable,
support S/W RAID 0, 1, 5, 10
U.2 2 Front-access U.2 SSD Tray (PCIe x4/each)
M.2 2 Internal M.2 Key M Socket (2280, PCIe x4)
Power

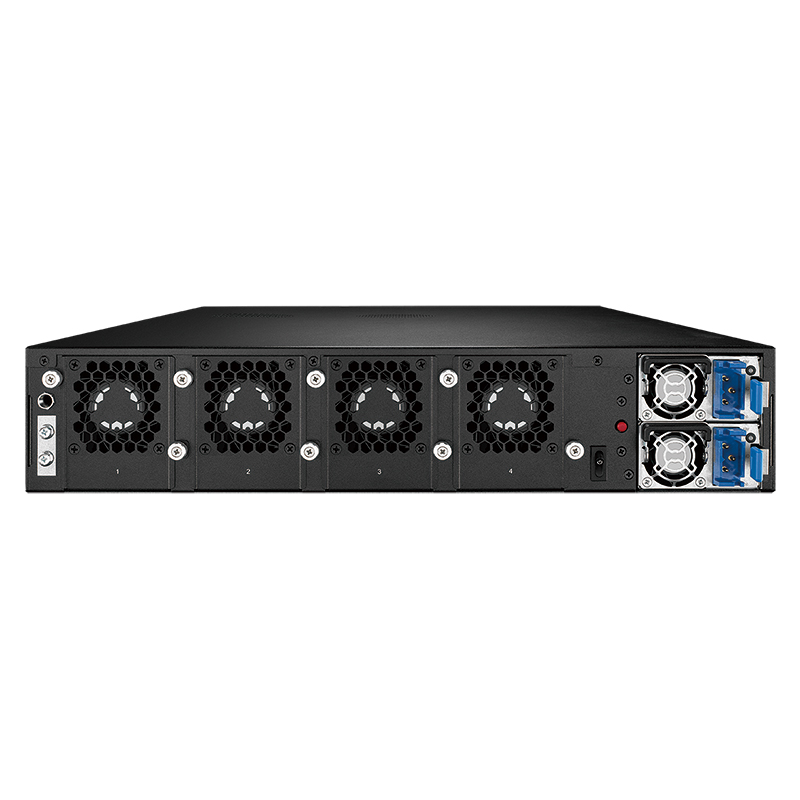

Power Input AC 90V to 264V, CRPS Redundant Power Supply, supports 2000W
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
BMC Optional by BMC Module (LOM-2600)
Watchdog Timer Reset: 1 to 255 sec./min. per step
Smart Management PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension  443mm x 600mm x 88mm (17.44" x 23.62" x 3.46")
Weight 13 kg (28.66 lb)
Mounting
- Wallmount
- 2U Rackmount (Optional)
Environment
Operating Temperature 0°C to 40°C (-32°F to 104°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 40°C
EMC CE, FCC



Resources

Item File Name Format File Update Download
RMS-3000A RMS-3000 Datasheet .PDF 2024/5/29 Download

Inquiry

Product Description Qty
RMS-3000A AMD EPYC™ 7003 Series Processor 2U Rackmount Server, 4 PCIe 4.0, 2 USB 3.2, 2 GigE LAN, 1 GigE LAN supports OOB, 2 COM, 4 2.5" SSD/HDD Tray, 2 U.2 SSD Tray, AC 90V to 264V, TPM 2.0, 0°C to 40°C
DDR4 32G Certified DDR4 32GB 2666MHz RAM
DDR4 16G Certified DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certified DDR4 8GB 2666/2400/2133 MHz RAM
DDR4 4G Certified DDR4 4GB 2666/2400/2133 MHz RAM
Rackmount 2U Rackmount Handle Kit
BMC Module BMC Module
M.2 Storage Module M.2 Key M/Key B PCIe Storage Module
U.2 Storage Module U.2 Storage Module
