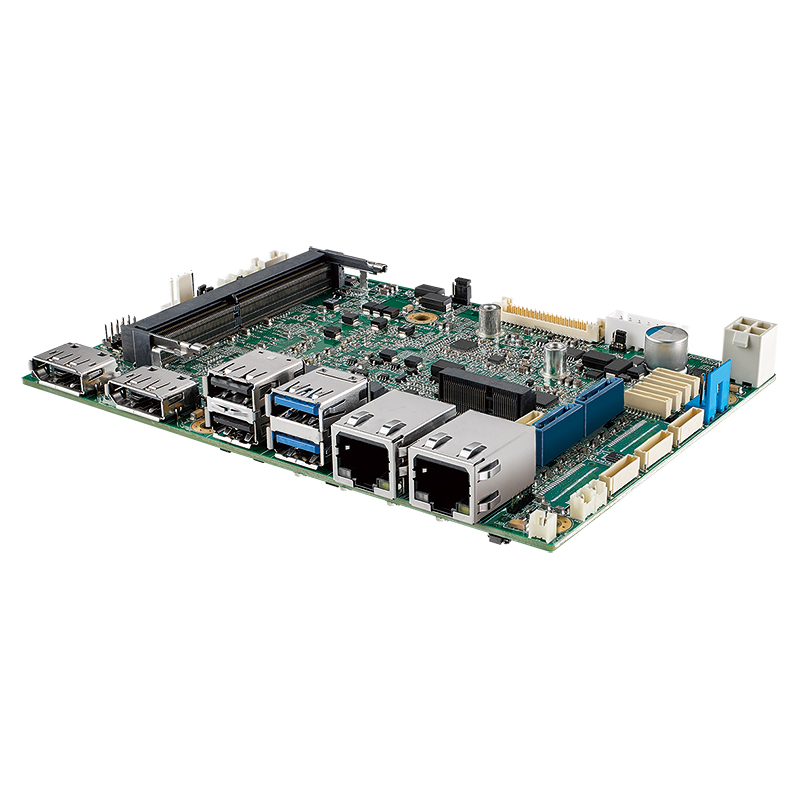

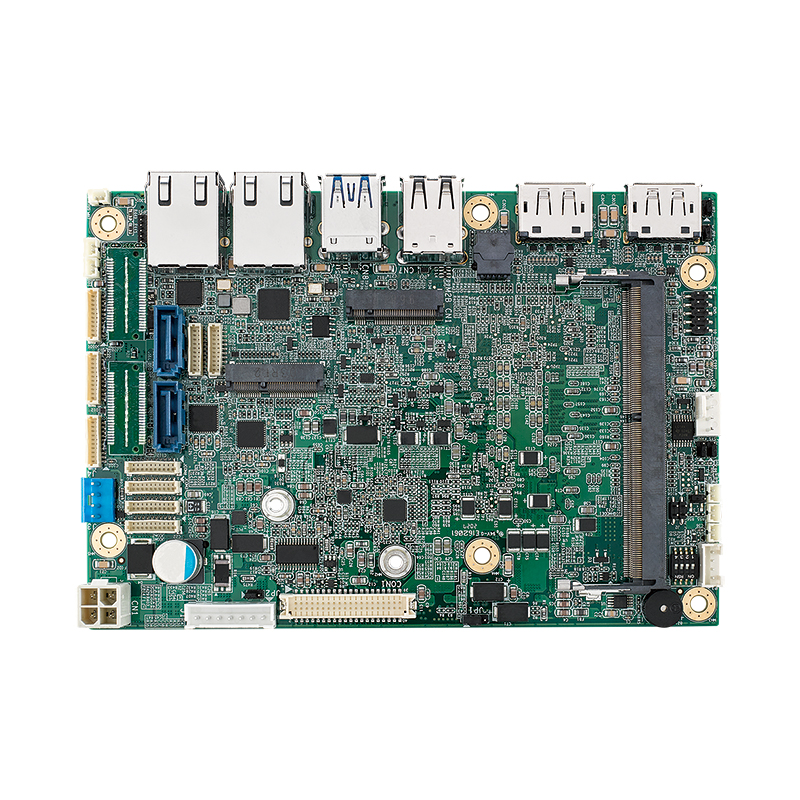

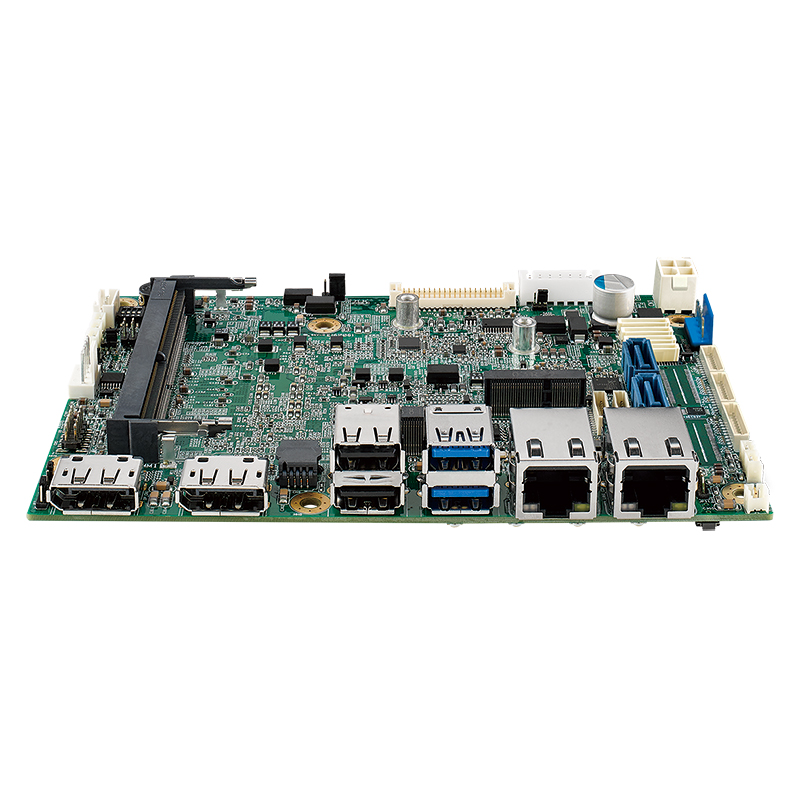

System |
|
Processor |
Quad Core Intel® Core™ i7/i5/i3 Processor (Tiger Lake UP3) |
|
Chipset |
Intel® SoC (Tiger Lake) |
|
BIOS |
AMI |
|
SIO |
IT8786E |
|
Memory |
1 DDR4 3200MHz SO-DIMM, up to 32GB |
|
Graphics |
|
Graphics Processor |
Intel® Iris® Xe Graphics |
|
Graphics Interface |
- DisplayPort 1 : Up to 4096 x 2304 @60Hz
- DisplayPort 2 : Up to 4096 x 2304 @60Hz
- LVDS : Dual channel 16-bit, up to 1920 x 1200
|
|
Ethernet |
|
LAN 1 |
Intel® Ethernet Controller I219LM Gigabit LAN supports iAMT 12.0 |
|
LAN 2 |
Intel® Ethernet Controller I225-IT supports 2.5 GigE LAN |
|
Audio |
|
Audio Codec |
Realtek ALC888S, 7.1 Channel HD Audio |
|
Audio Interface |
1 Mic-in, 1 Line-out |
|
I/O Interface |
|

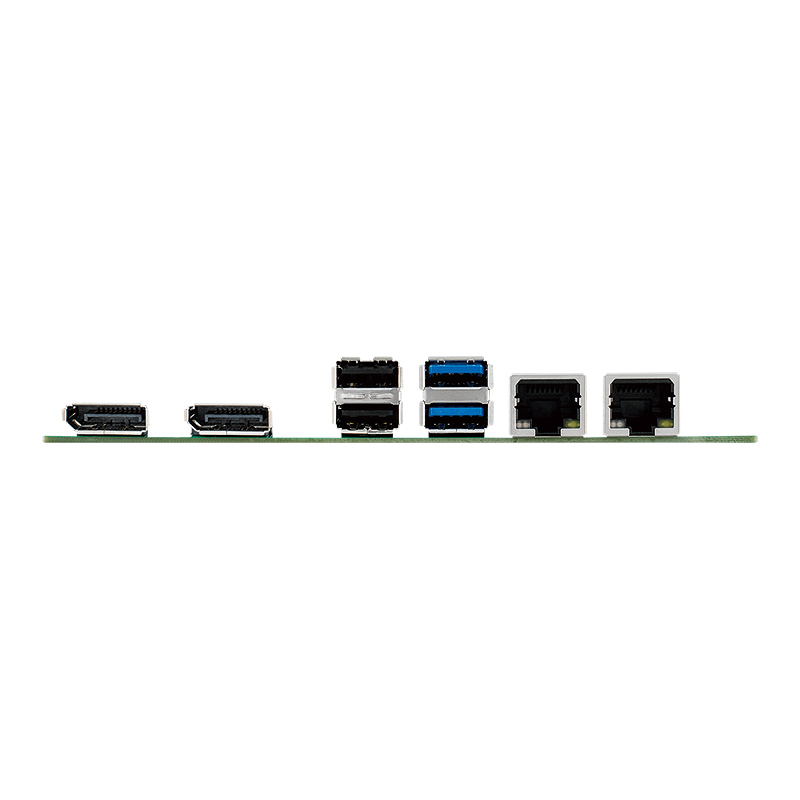

Front I/O |
- 2 DisplayPort Connector
- 4 USB Connector
- 2 RJ45 Connector
- 1 Reset Button
- 1 Power LED
- 1 Wireless LED
- 1 HDD LED
- 1 WiFi LED
|
|
Internal I/O |
- 4 COM RS-232/422/485 Connector
- 1 ATX 4-Pin Power Connector
- 1 M.2 Key B Socket (2260/3042/3052,PCIex2/USB3(Default)/USB2)
- 1 M.2 Key E Socket (2230, PCIe/USB)
- 1 SIM Card Socket
- 1 DDR4 SO-DIMM Socket
- 1 LVDS Connector
- 1 LVDS Backlight Connector
- 2 USB 2.0 Wafer with 4 ports (Optional)
- 2 SATA Data Connector
- 1 4-pin Fan Connector
- 1 GPIO Header
- 1 Power On/Off Header
- 1 Audio Header
|
|
Storage |
|
SATA |
2 SATA III (6Gbps) |
|
M.2 |
1 M.2 Key B 2260 Socket |
|
Expansion |
|
M.2 |
- 1 M.2 Key B Socket (2260/3042/3052,PCIex2/USB3(Default)/USB2)
- 1 M.2 Key E Socket (2230, PCIe/USB)
|
|
Power |
|
Power Input |
9V to 55V, DC-in |
|
Power Interface |
ATX Power Connector |
|
Ignition Control |
16 Mode (Internal) |
|
Others |
|
TPM |
Infineon SLB9670 supports TPM 2.0, SPI Interface |
|
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
|
Smart Management |
Wake on LAN, PXE supported |
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
|
Software Support |
|
OS |
Windows 10, Linux |
|
Mechanical |
|
Dimension |
146.0mm x 102.0mm (5.75" x 4.02") |
|
Environment |
|
Operating Temperature |
-40°C to 75°C (-40°F to 167°F), @15W TDP CPU |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Humidity |
5% to 95% Humidity, non-condensing |
|
Relative Humidity |
95% at 75°C |
|
EMC |
CE, FCC |
