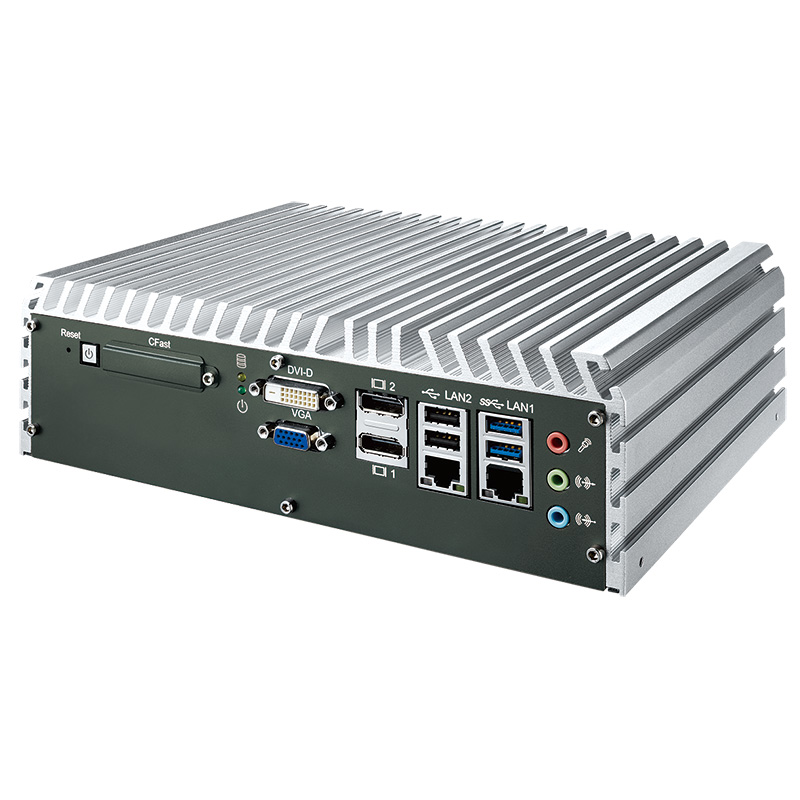

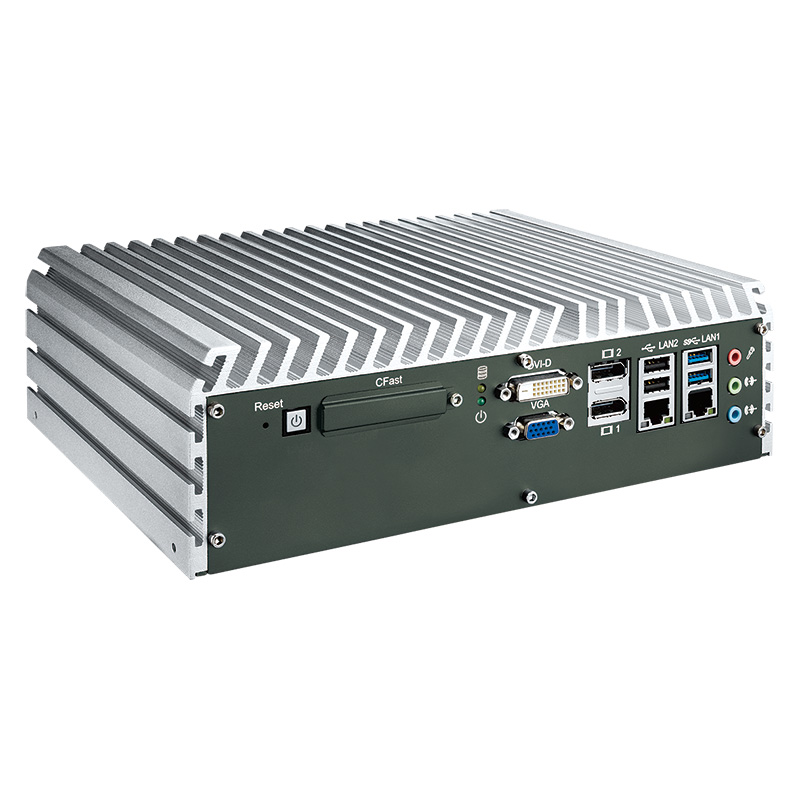

ECS-7000M

Features

    • Intel® Quad Core™ i7/ i5/ i3 Processor (Ivy Bridge)
    • Supports VGA/ DVI-D/ Dual DisplayPort/ LVDS interface, up to 3 independent displays
    • Fanless, -25°C to 70°C Operating Temperature
    • Intel® QM77 System Chipset

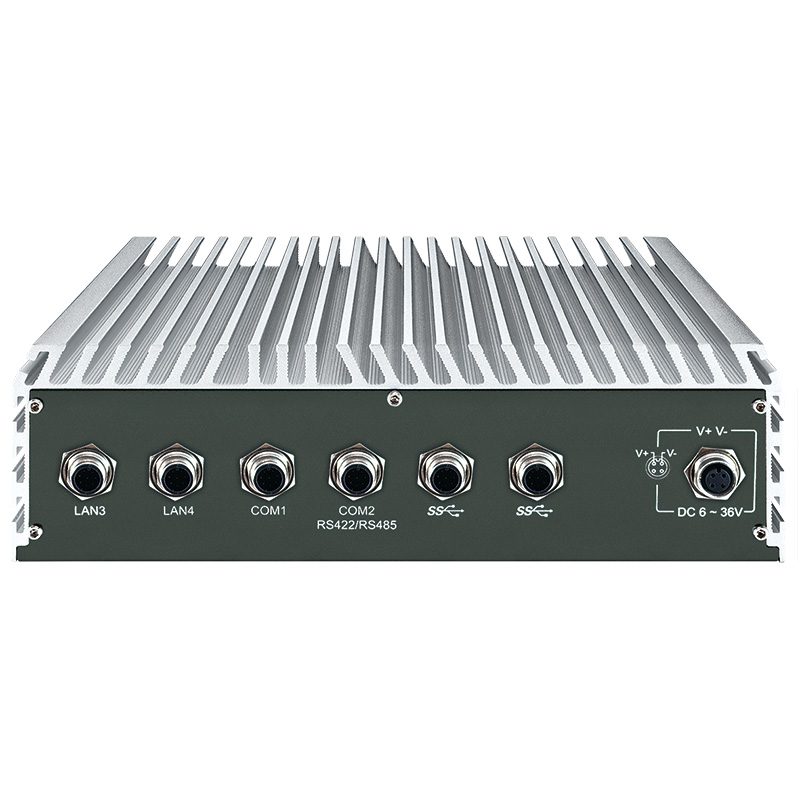

    • 6 Gigabit LAN with up to 4 M12 connections, iAMT 8.0 supported
    • Up to 4 M12 COM, 4 M12 USB 3.0, 4 USB 2.0
    • M12 6V to 36V DC-in with 80V Surge Protection, M12 Remote Power Switch
    • 16 Isolated DIO, 16 GPIO
    • SIM Card Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS
    • 2 2.5" SSD/ HDD, 1 Front-access CFast Socket
    • 2 Mini PCIe, 2 SATA III, 1 SATA II
    • E13, EN50155, EN50121-3-2, VMware Ready



Overview

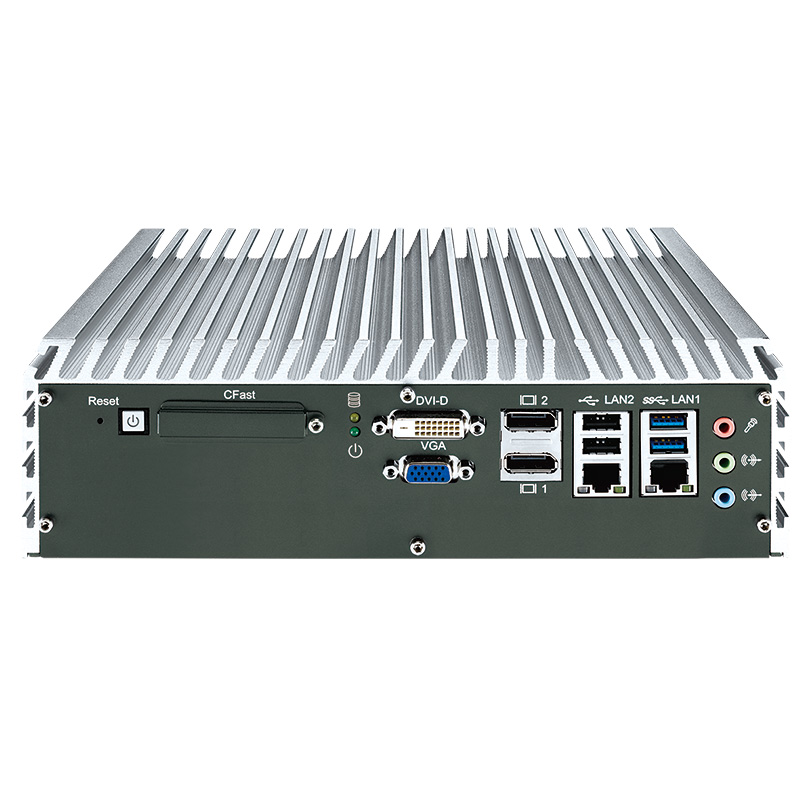

    VECOW ECS-7000M is perfectly designed for controlling, monitoring machinery for Power, Energy, Mining, Agriculture, Gas, Oil, Water, Factory Automation as well as Railway (EN50155-certified). By enhancing the continual connectivity with multiple rugged IP67 rated M12 connectors, max. three RS-232, one RS-232/422/485, max. four USB 2.0/3.0 and max. four GbE LANs, separately. Moreover, one M12 6V to 36V DC input power with surge protection also guarantee a stable operation in harsh environments.  It can also operate in critical environments with temperature ranging from -25°C to 70°C. The robust connector enhancement truly allows complete protection for data transmission during heavy shock and constant vibration. Additionally, ECS-7000M inherits the exceptional architecture of the ECS- 7000 series, featuring the latest 3rd Generation Intel® Quad Core™ i7/i5/i3 Ivy Bridge processor with the capability up to 16GB from dual channel DDR3L/DDR3 and most of the remarkable features, including front accessible one DVI-D, one VGA, two Display Ports, two GbE LANs, four USB 3.0/2.0 ports and wide temperature at-25°C to +70°C. With these perfect combinations, ECS-7000M is the best solution that can thoroughly fit your application.

Specifications

System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory 2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 1 COM RS-232/ 422/ 485, M12 Connector
- 1 COM RS-232, M12 Connector
- 2 COM RS-232, M12 Connector (By request)
USB
- 2 External USB 3.0, M12 Connector
- 2 USB 3.0 (External)
- 2 USB 2.0 (External)
- 2 External USB 2.0, M12 Connector (From Internal JST Connector, by request)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO (by request)
GPIO 16 GPIO (Internal)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 1 Mini PCIe for PCIe/ USB/ Optional mSATA
Graphics
Chipset Intel® HD 4000
Display Memory Shared Memory, Up to 1.7GB
Interface
- VGA : DB-15, up to 1920 x 1200
- DVI-D : Up to 1920 x 1200
- DisplayPort 1 : Up to 2560 x 1600
- DisplayPort 2 : Up to 1920 x 1200
- LVDS : Dual channel 24-bit, up to 1920 x 1200
Storage
SATA - 2 SATA III (6Gbps)
- 1 SATA II (3Gbps), supports horizontal type SATA DOM
mSATA 2 SATA II (Mini PCIe Type, 3Gbps)
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-in, 1 Line-out, 1 Mic-in
Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® 82574L Gigabit LAN
LAN 3 Intel® 82574L Gigabit LAN, M12 Connector
LAN 4 Intel® 82574L Gigabit LAN, M12 Connector
LAN 5 Intel® 82574L Gigabit LAN, M12 Connector (By request)
LAN 6 Intel® 82574L Gigabit LAN, M12 Connector (By request)
Power
Power Input
- 6V to 36V, DC-in
- DC-in M12 Connector (By request)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Remote Power Switch
- 3-pin Terminal Block
- M12 Connector (By request)
Surge Protection Up to 80V/1ms Transient Power
Other
Trusted Platform Module (TPM) Optional Infineon SLB9635 supports TPM 1.2, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

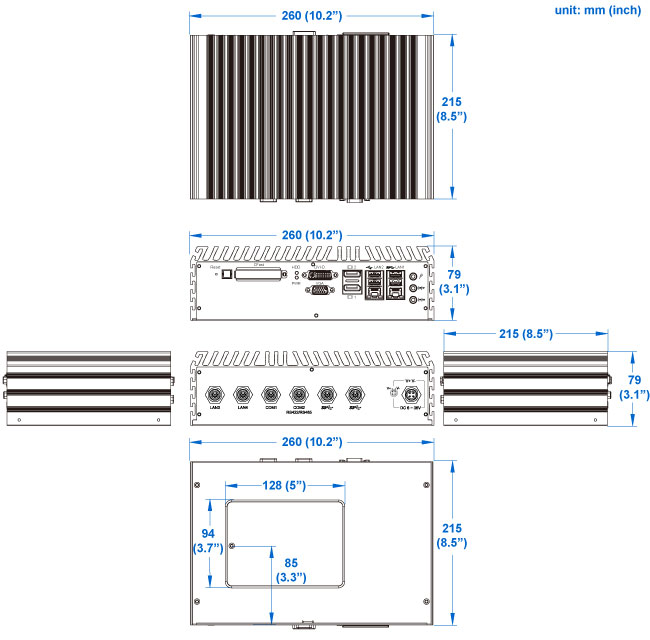

Dimensions (W x L x H) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 3.5 kg (7.72 lb)
Mounting
- Wallmount by mounting bracket
- 2U Rackmount (Optional)
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Certification E13, CE, FCC, EN50155, EN50121-3-2, VMware Ready
