System |
|
Processor |
Quad Core 3rd Gen Intel® Core™ i7/ i5/ i3 Processor |
|
Chipset |
Intel® QM77 |
|
BIOS |
AMI |
|
SIO |
IT8783 |
|
Memory |
- DDR3 1066/1333/1600 MHz or DDR3L 1066/ 1333MHz
- Up to 16GB
- 2 204-pin SO-DIMM Socket |
|
I/O Interface |
|
Serial |
2 COM RS-232, 2 COM RS-232/422/485 |
|
USB |
- Front : 4 USB 3.0
- Rear : 4 USB 3.0 (4 Independent Controller)
- 1 Internal USB 2.0 (Right Angle USB Connector)
- 2 Internal USB 2.0 (6-pin JST) |
|
Isolated DIO |
16 Isolated DIO (8 DI, 8 DO, up to 78V Input) |
|
LED |
Power, HDD, Wireless, PoE |
|
SIM Card |
4 SIM Card Socket (3 External, 1 Internal) |
|
GPIO |
16 GPIO |
|
Expansion |
|
Mini PCIe |
- 1 Mini PCIe Socket for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 3 Mini PCIe Socket for PCIe/ USB/ External SIM Card |
|
Graphics |
|
Chipset |
Intel® HD 4000 |
|
Display Memory |
Shared Memory, up to 1.7GB |
|
Interface |
- DVI-I : Up to 1920 x 1200
- DisplayPort : Up to 2560 x 1600
- LVDS : Dual channel 24-bit, up to 1920 x 1200 |
|
Storage |
|
SATA |
- 2 SATA III (6Gbps)
- 2 SATA II (3Gbps) |
|
mSATA |
1 SATA II (3Gbps) |
|
Expansion |
- CFast Slot, Push-in/ Push-out Ejector

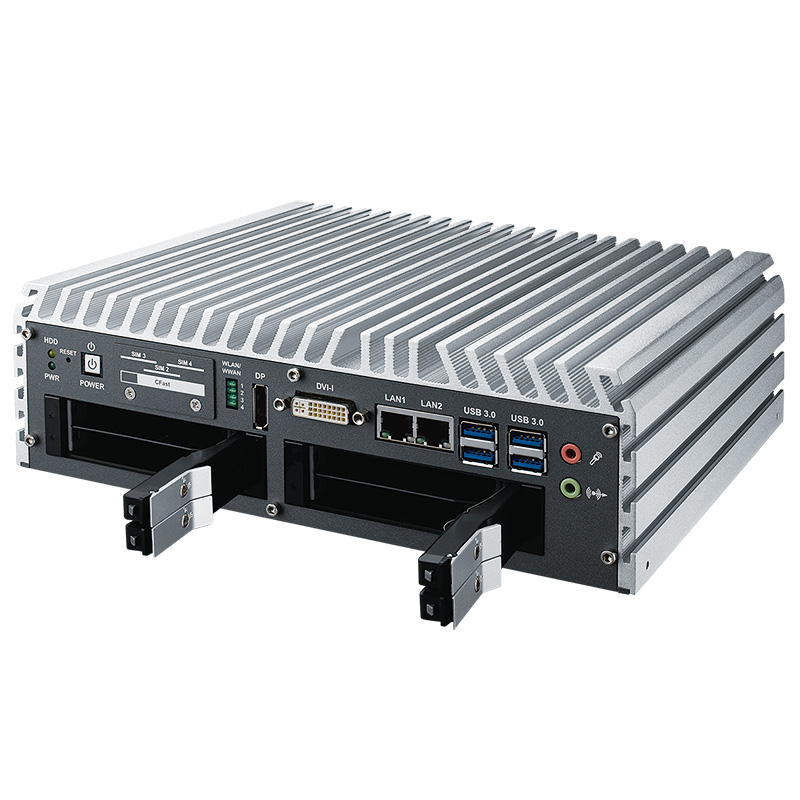

- 4 Front-access SSD/HDD Tray |
|
Audio |
|
Audio Codec |
Realtek ALC892, 5.1 Channel HD Audio |
|
Audio Interface |
1 Mic-in, 1 Line-out |
|
Ethernet |
|
LAN 1 |
Intel® 82579LM GigE LAN supports iAMT 8.0 |
|
LAN 2 |
Intel® I210 GigE LAN |
|
PoE (M12) |
|
LAN 3 |
GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, M12 Connector |
|
LAN 4 |
GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, M12 Connector |
|
LAN 5 |
GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, M12 Connector |
|
LAN 6 |
GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, M12 Connector |
|
Power |
|
Input Voltage |
DC-in 6V to 78V |
|
Power Input |
- 3-pin Terminal Block : V+, V-, IGN
- DC-in M12 Connector (Optional) |
|
Ignition Control |
16 Mode |
|
Remote Switch |
2-pin Terminal Block |
|
Surge Protection |
Up to 200V/1ms Transient Power |
|
UPS |
Supported (Optional) |
|
Others |
|
TPM |
Trusted Platform Module, Infineon SLB9635, LPC interface (Optional)
|
|
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
|
Smart Management |
Wake on LAN, PXE supported |
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats
|
|
GPS |
Onboard GPS Module (Optional) |
|
Software Support |
|
Microsoft |
Windows 8, Windows 7, Windows XP |
|
Linux |
Fedora 13, Ubuntu 10.04 LTS, or Linux Kernel 3.0 above |
|
Mechanical |
|
Dimension (W x L x H) |
260mm x 215mm x 79mm (10.2" x 8.5" x 3.1") |
|
Weight |
4.2 kg (9.26 lb) |
|
Mounting |
- Wallmount by mounting bracket
- 2U Rackmount (Optional)
|
|
Environment |
|
Operating Temperature |
-25°C to 70°C (-13°F to 158°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Humidity |
5% to 95% humidity, non-condensing |
|
Relative Humidity |
95% at 70°C |
|
Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
|
Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
|
EMC |
CE, FCC, EN50155, EN50121-3-2 |
