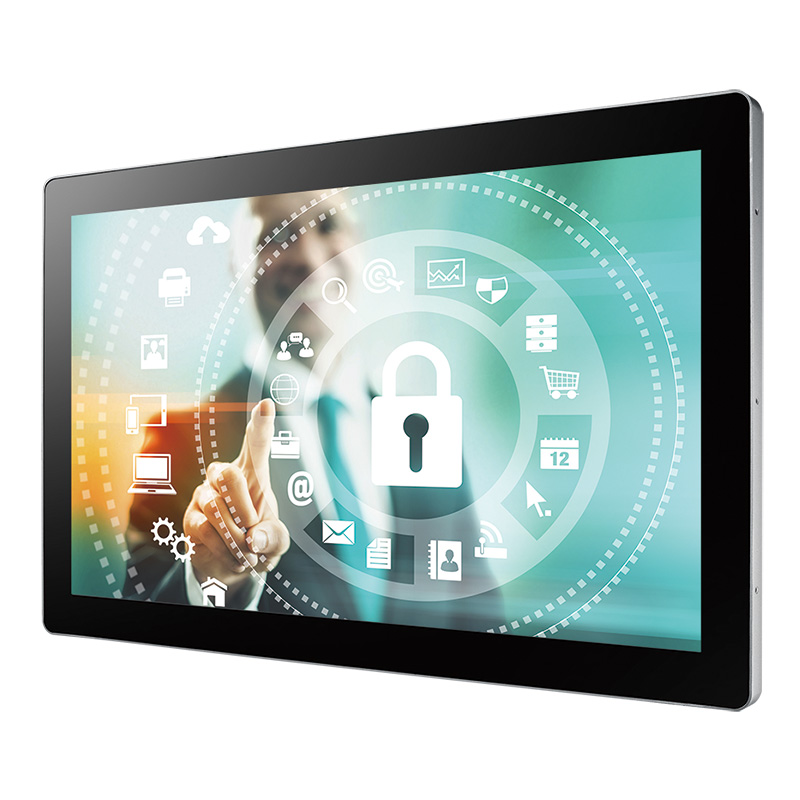

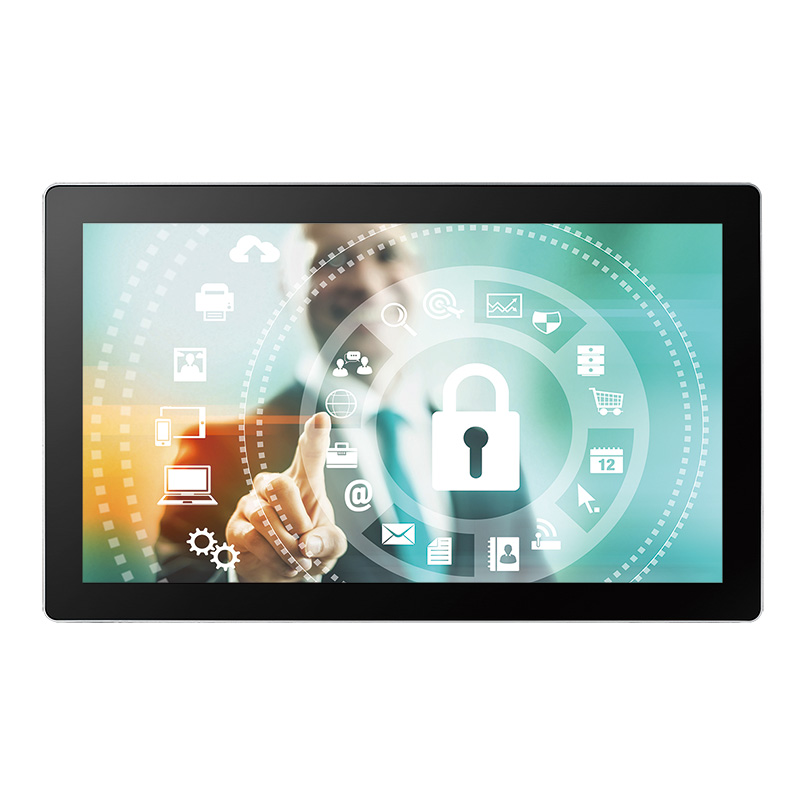

Panel |
|
Type |
a-Si TFT-LCD |
|
Viewable Size |
21.5" (16:9) |
|
Resolution |
1920 x 1080 (Full HD) |
|
Display Color |
16.7 M (RGB 8-bit) |
|
Backlight |
LED |
|
Brightness (cd/m2) |
250 (Optional, Up to 1200) |
|
Viewing Angles |
89/89/89/89 (L/R/U/D) |
|
Contrast Ratio |
3000:1 |
|
Touch Screen |
|
Type |
10-point Projected Capacitive |
|
Transparency |
≧ 85% |
|
Surface Hardness |
7H |
|
Control Interface |
USB |
|
System |
|
Processor |
5th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor (Broadwell-U) |
|
SIO |
IT8786E |
|
Memory |
2 DDR3L 1333/ 1600 MHz SO-DIMMs, up to 16GB |
|
Display |
- DVI-D : Up to 1920 x 1080 @ 60Hz
- DisplayPort : Up to 3840 x 2160 @ 60Hz |
|
Audio |
1 Mic-in, 1 Line-out |
|
Software Support |
Windows 8, Windows 7, Linux |
|

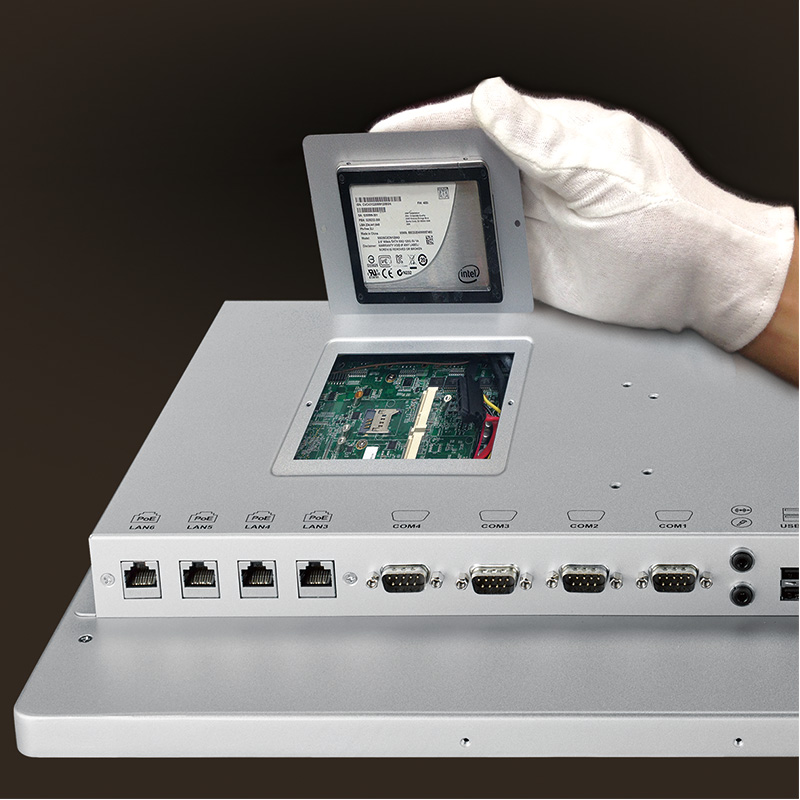

Storage |
|
SATA HDD |
1 SATA III (6Gbps) |
|
mSATA |
1 SATA III (Mini PCIe Type, 6Gbps) |
|
Expansion |
1 CFast Slot, Push-in/ Push-out Ejector |
|

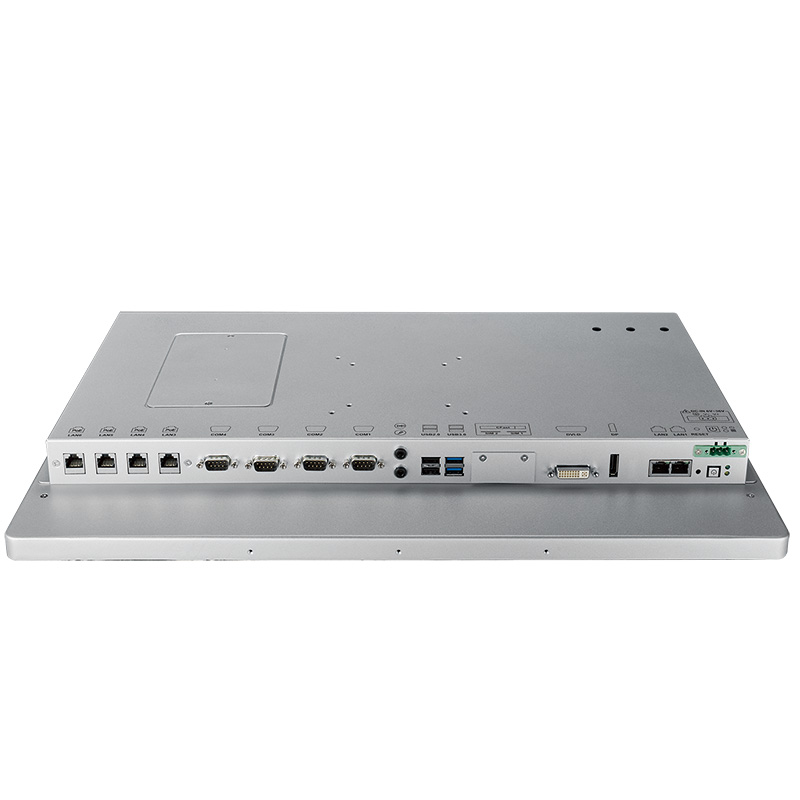

I/O Interface |
|
Serial |
4 COM RS-232/ 422/ 485 |
|
USB |
- 2 USB 3.0
- 2 USB 2.0 |
|
SIM Card |
2 SIM Card sockets (External) |
|
Mini PCIe Slot |
- 2 Mini PCIe sockets :
• 1 supports PCIe/ USB/ External SIM
• 1 supports PCIe/ USB/ External SIM/ mSATA
- 3 Pre-cast holes for Antenna |
|
LAN |
|
LAN 1 |
Intel® I218 Gigabit LAN |
|
LAN 2 |
Intel® I210 Gigabit LAN |
|
LAN 3 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4021-PoE Only)
|
|
LAN 4 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4021-PoE Only)
|
|
LAN 5 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4021-PoE Only)
|
|
LAN 6 |
Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 (MTC-4021-PoE Only)
|
|
Power |
|
Input Voltage |
DC-in 6V to 36V |
|
Power Input |
3-pin Terminal Block
|
|
Power Adapter |
AC to DC 120W power adaptor (Optional) |
|
Surge Protection |
Up to 80V/1ms Transient Power |
|
Others |
|
TPM |
Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
|
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
|
Smart Management |
Wake on LAN, PXE supported |
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats |
|
Mechanical |
|
Dimensions (W x H x L) |
537.6 x 329.06 x 53.1mm (21.2" x 13" x 2.1")
|
|
Gross Weight |
5.8 KG (12.8 lb) |
|
IP Protection |
Front Panel IP65 compliant |
|
Mounting |
- VESA mount (75 x 75mm, 100 x 100mm)
- Panel mount
|
|
Environment |
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
|
Humidity |
10% to 90%, non-condensing |
|
Vibration |
- IEC 60068-2-64
- Non-operation : 10Hz to 200Hz, 1.5 Grms, X, Y, Z, 30 mins each Axis
|
|
Shock |
- IEC 60068-2-27
- 20G, Half-sine, 11ms
|
|
EMC |
CE, FCC |
