ESM-100

Features

    • SUMIT A, B function compliant
    • 3 Mini PCIe support up to 3 SIM Socket
    • Onboard 1 USB 2.0 Connector
    • -25°C to 70°C Operating Temperature
    • PCI Express compliant
    • Optional supports External SIM Socket

Overview

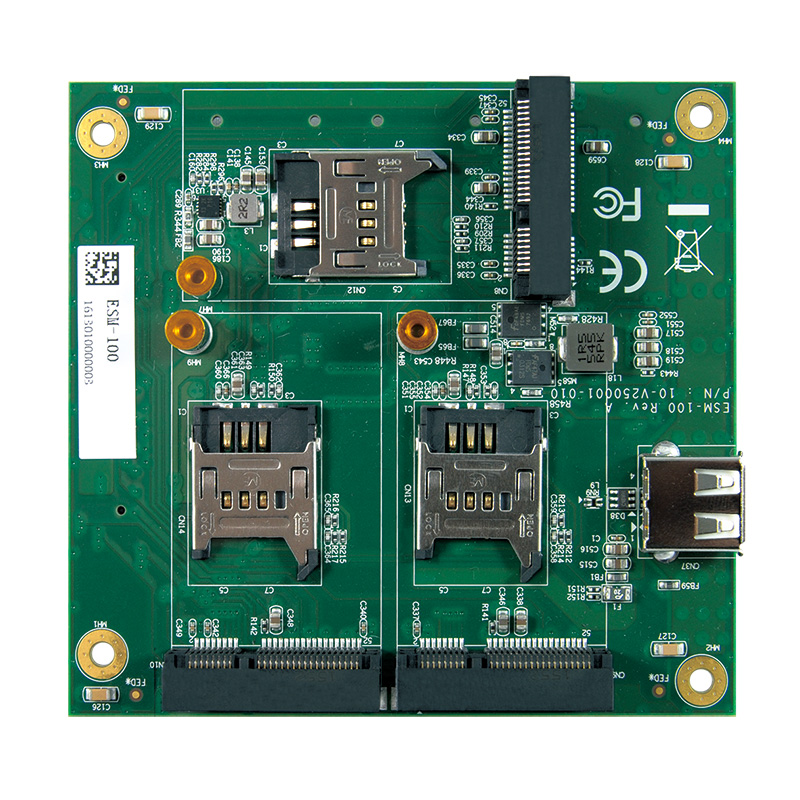

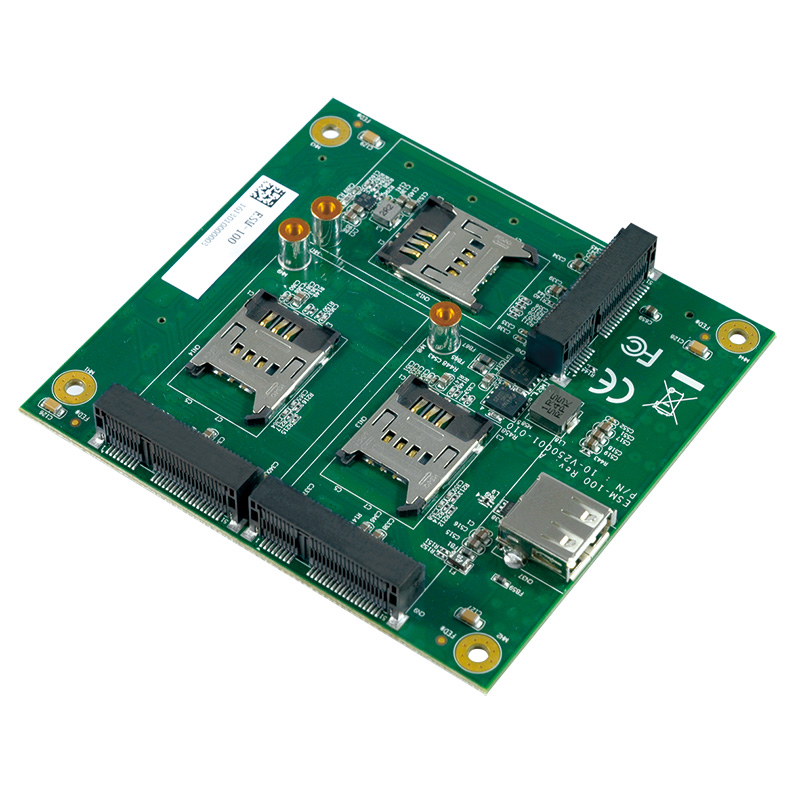

    SUMIT Expansion Card with 3 Mini PCIe, 3 SIM Socket, 1 USB 2.0, -25°C to 70°C

Specifications

I/O Interface
Mini PCIe 3 Full Size Mini PCIe Socket
SIM Card 3 SIM Card Socket (Internal, optional supports External I/O Type)
USB 1 USB 2.0 Connector
Mechanical
Dimensions (W x L) 90mm x 96mm (3.5" x 3.8")
Weight 145 g
Environment
Operating Temperature -25°C to 70°C (-13°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 70°C
EMC CE, FCC



Resources

Item File Name Format File Update Download
ESM-100 ESM-100 DM .PDF 2017/9/27 Download
ESM-100 ESM-100 Datasheet .PDF 2016/11/15 Download
ESM-100 ESM-100 Datasheet .PDF 2016/5/9 Download

Inquiry

Product Description Qty
ESM-100 SUMIT Expansion Card with 3 Mini PCIe, 3 SIM Socket, 1 USB 2.0, -25°C to 70°C
ESM-101 SUMIT Expansion Card with 3 Mini PCIe, 3 SIM Socket, 1 USB 2.0, -25°C to 70°C, External SIM
