System |
|
Processor |

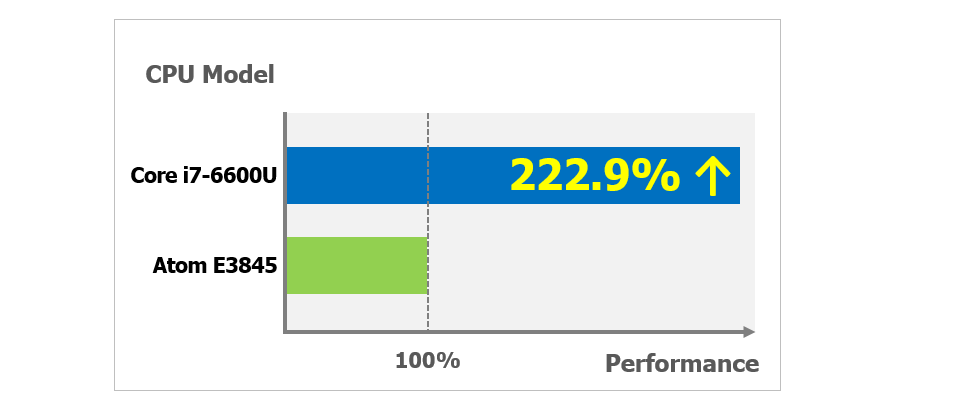

Intel® Core™ i7/i5/i3/Celeron® U-series Processor (Skylake-U) |
|
Chipset |
Intel® SoC (Skylake) |
|
BIOS |
AMI |
|
SIO |
IT8786E |
|
Memory |
1 DDR4 2133MHz SO-DIMM, up to 16GB |
|
OS |
Windows 10, Windows 8.1, Windows 7, Linux
|
|

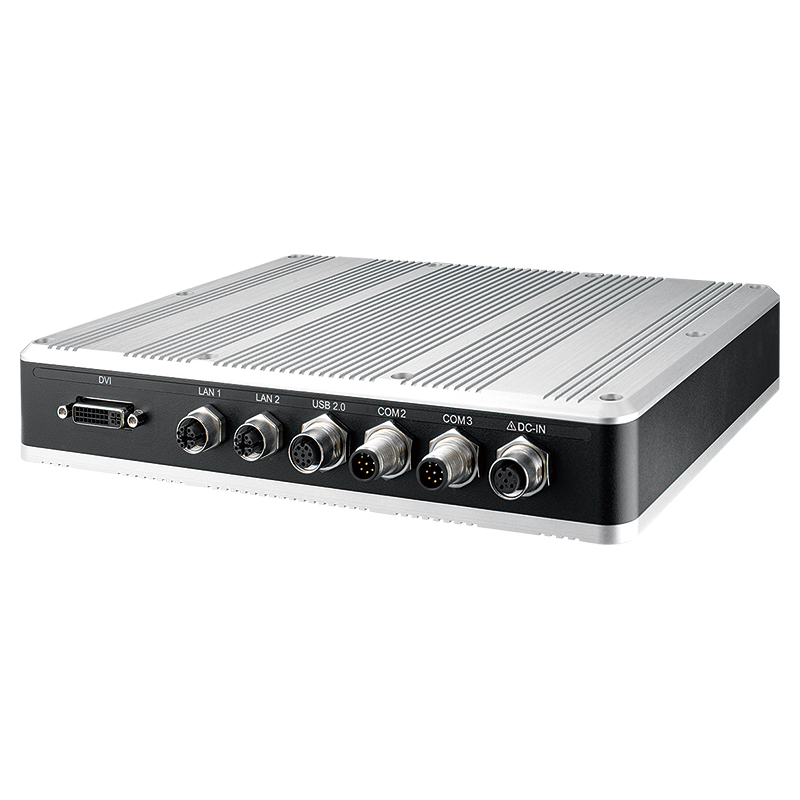

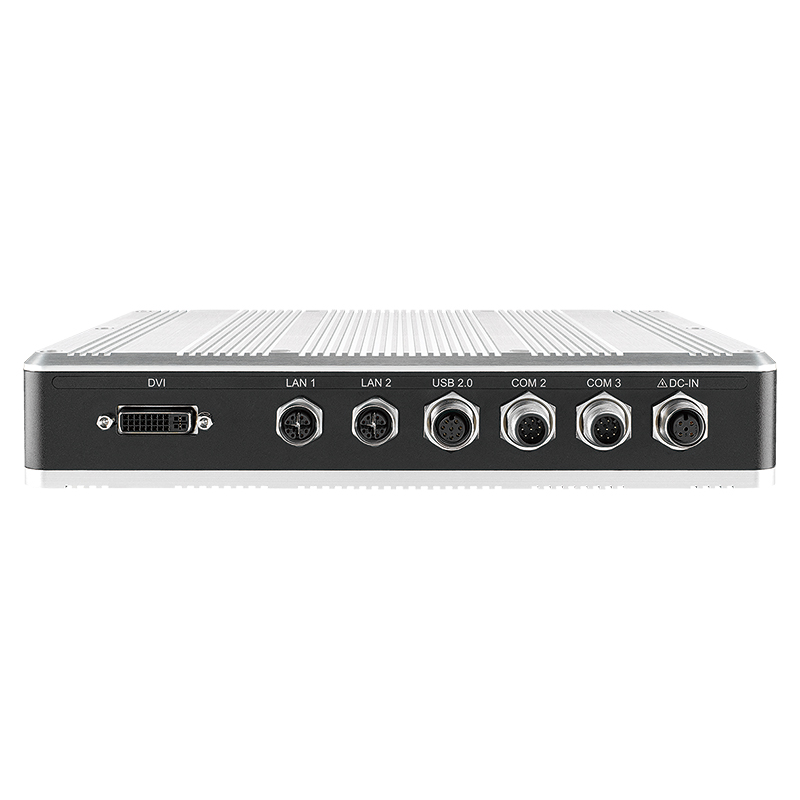

I/O Interface |
|
Serial |

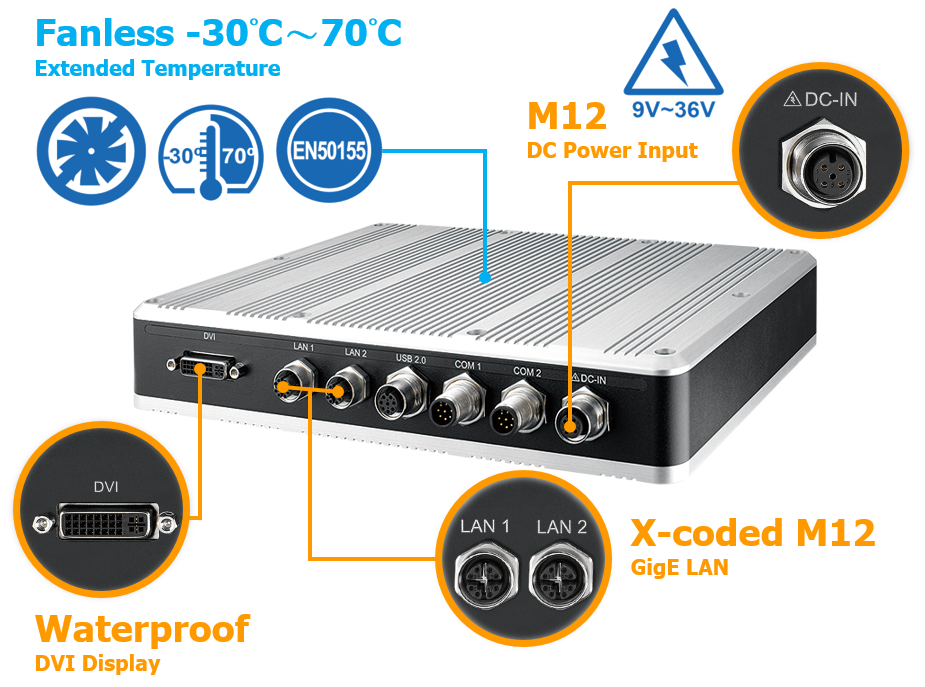

2 COM RS-232/422/485, A-coded M12 Connector |
|
USB |
1 supports 2-port USB 2.0, A-coded M12 Connector |
|

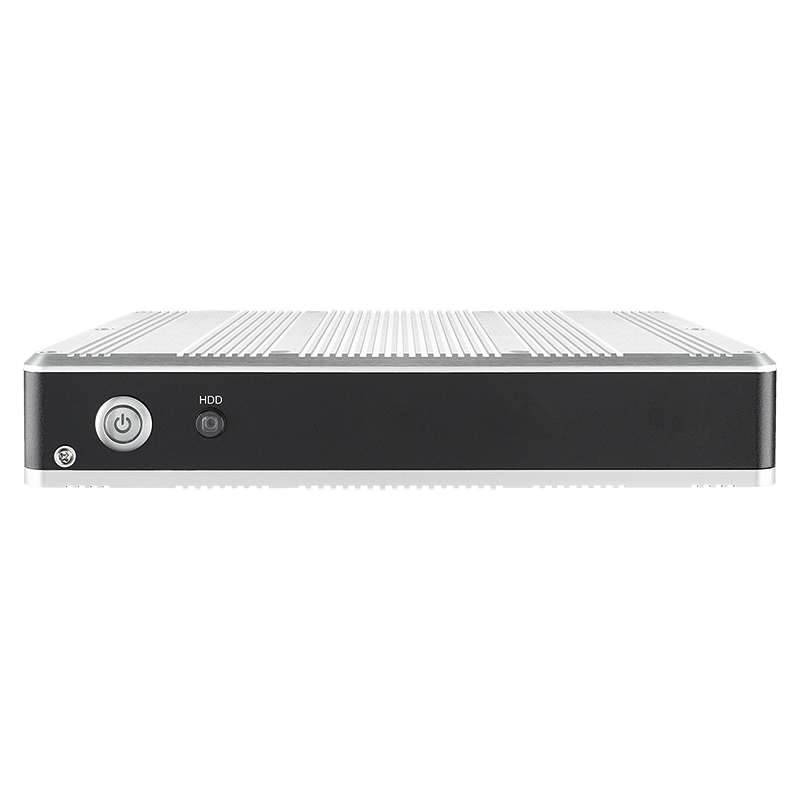

LED |
Power, HDD |
|
Graphics |
|
Processor |
Intel® HD Graphics 520 |
|
Interface |
IP67 Waterproof DVI-D Connector, up to 1920 x 1200 @60Hz |
|
Storage |
|
SATA |
1 SATA III (6Gbps) |
|
mSATA |
1 SATA III (Mini PCIe Type, 6Gbps) |
|
Storage Device |
- 1 mSATA Socket
- 1 Internal 2.5" SSD/HDD Bracket
|
|
Ethernet |
|
LAN 1 |
Intel® I219LM GigE LAN supports iAMT 11.0, X-coded M12 Connector |
|
LAN 2 |
Intel® I210 GigE LAN, X-coded M12 Connector |
|
Power |
|
Power Input |
9V to 36V, DC-in |
|
Power Interface |
A-coded M12 Connector |
|
Power Switch |
IP67 Waterproof Power Button |
|
Others |
|
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
|
Smart Management |
Wake on LAN, PXE supported |
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
|
Mechanical |
|
Dimension (W x L x H) |
250mm x 180mm x 44mm (9.8" x 7.1" x 1.7") |
|
Weight |
2.3 kg (5.07 lb) |
|
Mounting |
- Wallmount by mounting bracket
- VESA Mount
|
|
Environment |
|
Operating Temperature |
-30°C to 70°C (-22°F to 158°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Humidity |
5% to 95% Humidity, non-condensing |
|
Relative Humidity |
95% @ 70°C |
|
Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
|
Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
|
EMC |
CE, FCC, EN50155, EN50121-3-2 |
