Applications

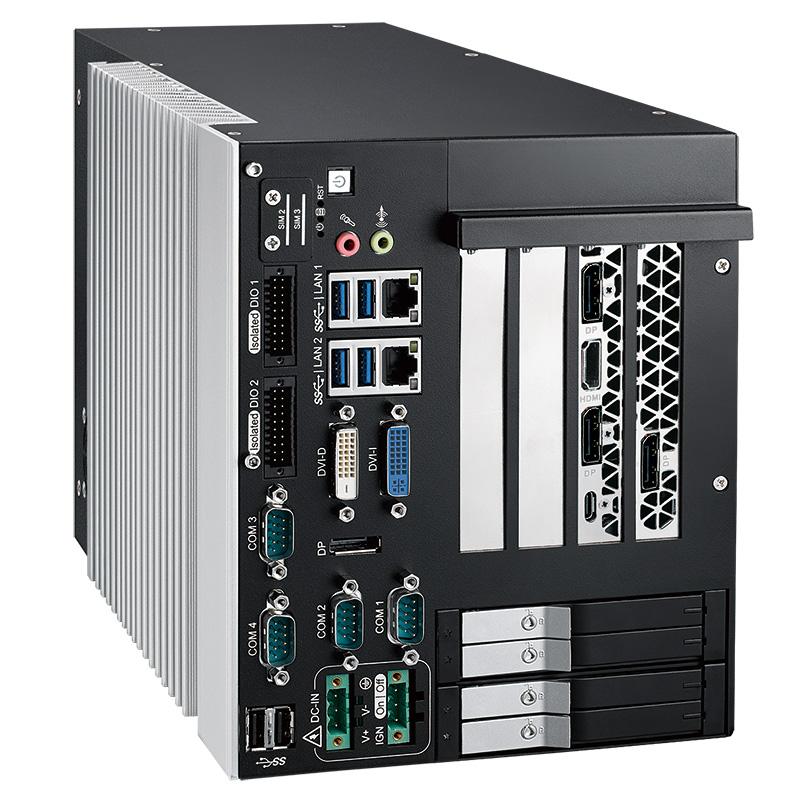

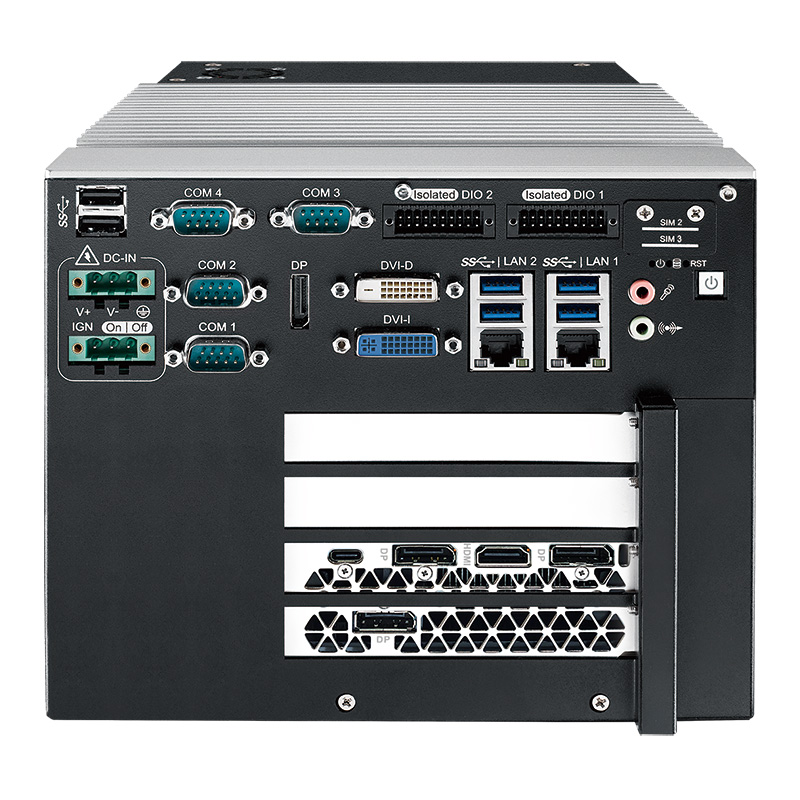

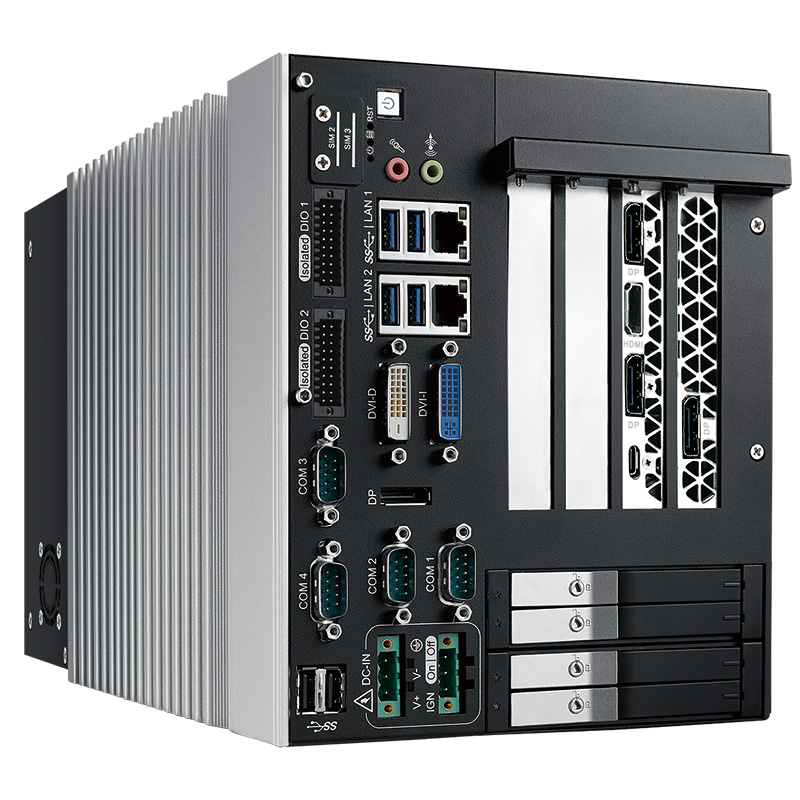

RCS-9400FR RTX2080

Features

    • LGA 1151 Socket supports Intel® Xeon®/Core™ i7 Processor (Kaby Lake/Skylake) with workstation-grade Intel® C236 Chipset
    • Powered by advanced NVIDIA Turing™ GPU architecture and all-new RTX platform, NVIDIA® GeForce RTX™ series graphic engine, up to 6X the performance of previous
      generation graphics cards for real-time AI computing
    • Display : 2 DVI, 1 HDMI and 4 DisplayPort, up to 7 independent HD displays
    • 2 independent GigE LAN, iAMT 11.0 supported
    • 3 SIM Card Socket for WiFi/3G/4G/LTE/GPRS/UMTS
    • 4 Front-access 2.5" SSD/HDD Tray, 1 CFast Socket
    • 7 USB 3.0, 32 Isolated DIO
    • 2 PCI/PCIe Slot, 3 Mini PCIe, 4 COM RS-232/422/485
    • 24V to 36V DC-in, 80V Surge Protection
    • Configurable Ignition Power Control




Overview

    Workstation-grade 7th Generation Intel® Xeon®/Core™ i7, NVIDIA® GeForce RTX™  2080 supports NVIDIA Turing™ GPU architecture, up to 7 independent HD resolution, all-in-one integrated features, multiple I/O connection, 3 SIM sockets for remarkable mobile availability, multiple PCI/PCIe expansion, USB 3.0, Isolated DIO, smart manageability, 24V to 36V power input with 80V surge protection, ignition power control. Vecow RCS-9000 RTX2080 GPU Computing System makes versatile expansions possible in Deep Learning, Robot Control, Vehicle Computing, Public Surveillance applications.



Specifications

System
Processor Quad Core Intel® Xeon®/Core™ i7 Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2400MHz SO-DIMM, up to 64GB
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 7 USB 3.0 (6 External, 1 Internal)
- 2 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD
SIM Card  3 SIM Card Socket (2 External, 1 Internal)
Expansion
Mini PCIe
3 Mini PCIe Socket :
- 2 Full-size for PCIe/USB/External SIM Card
- 1 Full-size for PCIe/USB/Internal SIM Card/mSATA
PCI/PCIe Up to 2 PCIe/PCI Slot, by request
Graphics
Graphics Processor
- Intel® UHD graphics P630/630
- NVIDIA® GeForce RTX™ 2080
Interface
7 Display interfaces:
- 2 DVI : Up to 1920 x 1200 @ 60Hz
- 3 DisplayPort : Up to 7680 x 3840 @60Hz
- 1 DisplayPort : Up to 4096 x 2304 @60Hz
- 1 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
- 1 CFast Socket (Internal)
-4 2.5" SSD/HDD Tray (External)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2 Intel® I210 Gigabit LAN
Power
Power Input 24V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H) 172mm x 330mm x 210mm (6.8" x 13" x 8.3")
Weight
RCS-9400F RTX2080 : 4.4 kg (9.7 lb)
RCS-9400FH RTX2080 : 5.1 kg (11.2 lb)
RCS-9400FR RTX2080 : 5.6 kg (12.3 lb)
RCS-9400FHR RTX2080 : 6.3 kg (13.9 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 45°C
Shock/Vibration
- IEC 61373：2010
- Railway Applications：Rolling Stock Equipment, Shock and Vibration Test
EMC CE, FCC, EN50155, EN50121-3-2



Resources

Item File Name Format File Update Download

Inquiry

Product Description Qty
RCS-9430FR RTX2080 RCS-9400FR,w/35W CPU, NVIDIA® GeForce RTX™ 2080, 2 GigE LAN, 1 PCIe x4, 1 PCIe x1, 4 SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, 32 Isolated DIO
RCS-9430FHR RTX2080 RCS-9400FR w/80/65W CPU, NVIDIA® GeForce RTX™ 2080, 2 GigE LAN, 1 PCIe x4, 1 PCIe x1, 4 SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, 32 Isolated DIO
RCS-9421FR RTX2080 RCS-9400FR, w/35W CPU, NVIDIA® GeForce RTX™ 2080, 2 GigE LAN, 1 PCIe x4, 1 PCI, 4 SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, 32 Isolated DIO
RCS-9421FHR RTX2080 RCS-9400FR, w/80/65W CPU, NVIDIA® GeForce RTX™ 2080, 2 GigE LAN, 1 PCIe x4, 1 PCI, 4 SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, 32 Isolated DIO
RCS-9412FR RTX2080 RCS-9400FR, w/35W, CPU, NVIDIA® GeForce RTX™ 2080, 2 GigE LAN, 1 PCI, 4 SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, 32 Isolated DIO
RCS-9412FHR RTX2080 RCS-9400FR w/80/65W CPU, NVIDIA® GeForce RTX™ 2080, 2 GigE LAN, 1 PCI, 4 SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, 32 Isolated DIO
E3-1275 v6 7th Gen Intel® Xeon® E3-1275 v6 Processor (8M Cache, up to 4.20 GHz, 80W)
E3-1275 v5 6th Gen Intel® Xeon® E3-1275 v5 Processor (8M Cache, up to 4.00 GHz, 80W)
E3-1225 v5 6th Gen Intel® Xeon® E3-1225 v5 Processor (6M Cache, up to 3.70 GHz, 80W)
E3-1268L v5 6th Gen Intel® Xeon® E3-1268L v5 Processor (8M Cache, up to 3.40 GHz, 35W)
i7-7700 7th Gen Intel® Core™ i7-7700 Processor (8M Cache, up to 4.20 GHz, 65W)
i7-7700T 7th Gen Intel® Core™ i7-7700T Processor (8M Cache, up to 3.80 GHz, 35W)
i7-6700 6th Gen Intel® Core™ i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W)
i7-6700TE 6th Gen Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W)
DDR4 32G Certified DDR4 32GB 2666MHz RAM
DDR4 16G Certified DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certified DDR4 8GB 2666/2400/2133 MHz RAM
DDR4 4G Certified DDR4 4GB 2666/2400/2133 MHz RAM
PWS-480W-WT 480W, 24V, 90V AC to 305V AC Power Supply, Wide-Temp, IP65
PWS-600W 600W, 24V, 90V AC to 305V AC Power Supply
PWS-600W-WT 600W, 28.8V, 90 to 305V AC Power Supply, Wide Temperature -40°C to +70°C
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
