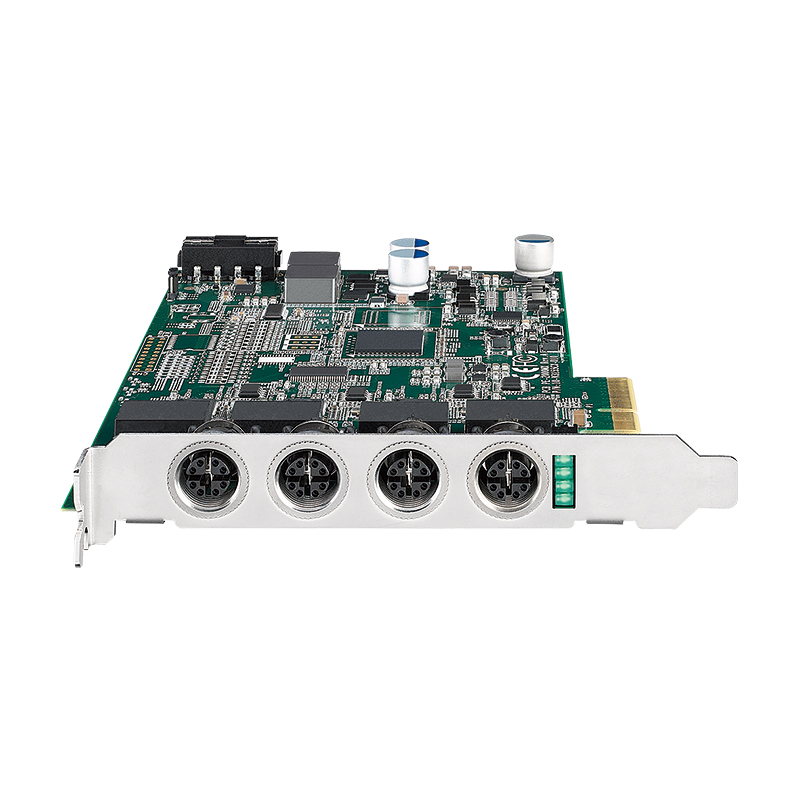

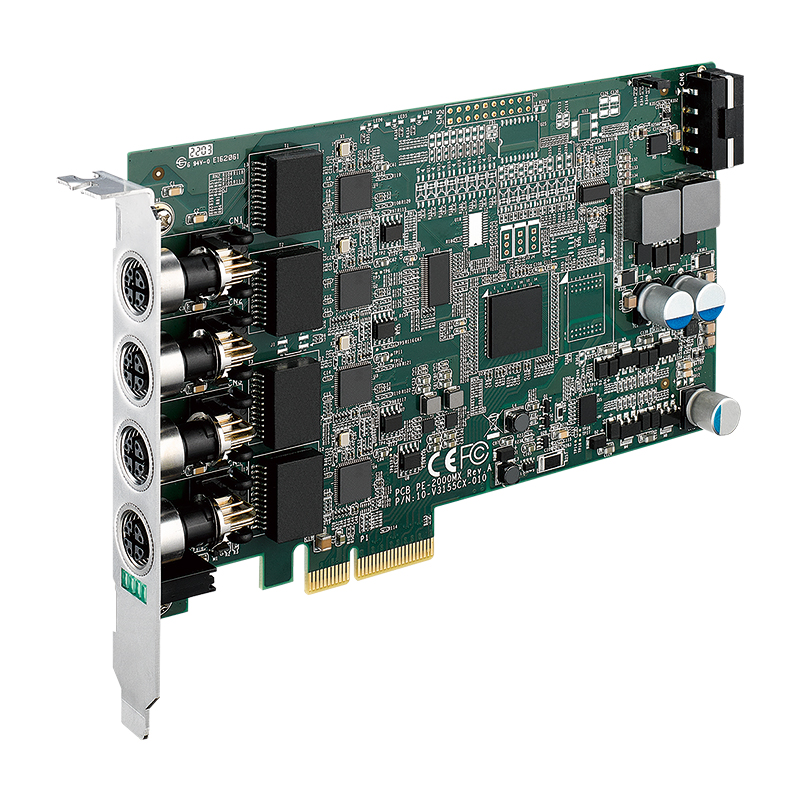

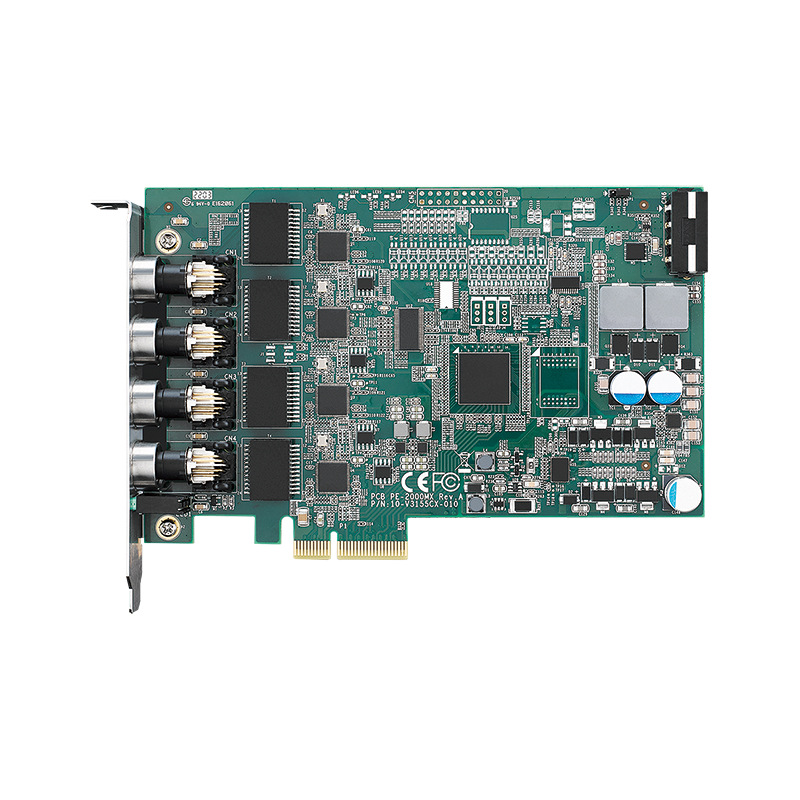

PE-2004MX (M12)

Features

    • Meets the standard PCIe card width (14.5mm)
    • Intel® I210 1GBASE-T Ethernet Controller support 4 independent GigE LAN, up to 1Gbps data rate
    • PCI Express x4 interface
    • IEEE 802.3at Power over Ethernet (PoE+), rugged X-coded M12 connectors, up to 25.5W Power Output at 48V DC per port, with PoE+ On/Off Control
    • Enhanced Transmission Selection (draft IEEE 802.1Qaz) Priority Flow Control (draft IEEE 802.1Qbb)
    • Up to 9728 bytes Jumbo Frame, Supports PXE
    • Support Intel® Virtualization Technology (VT)
    • -25°C to 70°C Operating Temperature

Overview

    Vecow PE-2004MX is a 4-port GigE LAN Expansion Card and compliable with IEE 802.3at PoE+. It supports jumbo frame with up to 9728 bytes and X-coded M12 connectors. Features high-speed I/O, up to 25.5W power output at 48V DC power for each port and an extended operating temperature range -25°C to 70°C, Vecow PE-2004MX is ideal for Intelligent Security, Machine Vision, Intelligent Transportation System (ITS), Industrial Automation, Logistic System and any real-time video analytics applications.

Specifications

Ethernet
Interface PCI Express x4
Controller  Intel® Ethernet Controller I210
Controller Q'ty 4
Data Rate  1Gbps/ 100 /10 Mbps
Number of Port 4
Jumbo Frame Up to 9728 bytes
Connector 8-pin X-coded M12 Connector
PoE Standard IEEE 802.3at compliant
Power Requirement
Output
- Up to 25.5W Power Output @48V DC per port
- 4 LED for PoE On/Off Mode
Power Connector 1 4-pin 12V Power Connector
Software Support
OS Windows 11, Windows 10, Linux
Mechanical
Dimension (W x L) 168mm x 105mm (6.6" x 4.1")
Bracket Full height
Environment
Operating Temperature -25°C to 70°C with air flow (-13°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 70°C
EMC CE, FCC



Resources

Item File Name Format File Update Download
PE-2004MX (M12) PE-2004MX Datasheet .PDF 2024/5/30 Download
PE-2004MX (M12) PE-2004MX Series EN50155 & EN50121-3-2 CE Certification .PDF 2022/9/23 Download
PE-2004MX (M12) PE-2004MX Series EN50155 & EN50121-3-2 UKCA Certification .PDF 2022/9/23 Download
PE-2004MX (M12) PE-2004MX Series EN50155 & EN50121-3-2 Test Report .PDF 2022/9/23 Download
PE-2004MX (M12) PE-2004MX Series EN55032 CE Certification .PDF 2022/9/23 Download
PE-2004MX (M12) PE-2004MX Series EN55032 Test Report .PDF 2022/9/23 Download
PE-2004MX (M12) PE-2004MX Series EN55032 UKCA Certification .PDF 2022/9/23 Download
PE-2004MX (M12) PE-2004MX (M12) Driver .ZIP 2022/5/11 Download

Inquiry

Product Description Qty
PE-2004MX 4-port GigE PoE+ M12 X-coded LAN Card with Intel® I210 Controllers
