Panel |
|

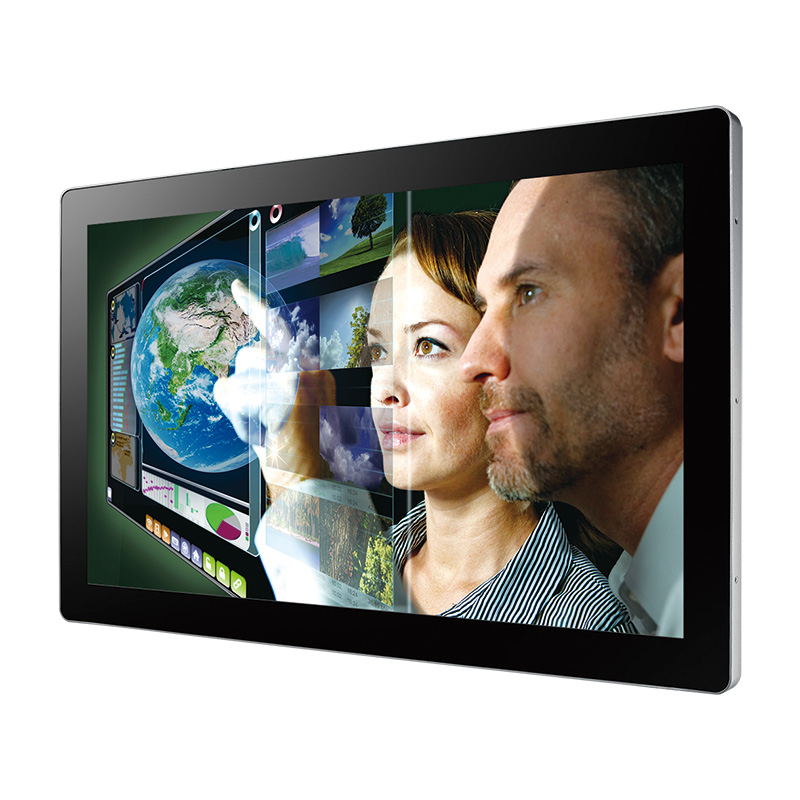

Panel Type |
TFT LCD |
|
Active Area |
24" (16 : 9) |
|
Max. Resolution |
1920 x 1080 (Full HD) |
|
Display Color |
16.7M (RGB 8-bit) |
|
Brightness (cd/m2) |
LED |
|
Contrast Ratio |
300 cd/m2 |
|
Viewing Angle (H/V) |
178°/178° (H/V) |
|
Backlight |
LED Backlight |
|
Backlight Life (hrs) |
50,000hrs |
|
Touch Screen |
|
Touch Screen Type |
10-point Projected Capacitive |
|
Transparency |
≧ 85% |
|
Surface Hardness |
7H Surface Hardness |
|
Control Interface |
USB Interface |
|
System |
|
Power Input |
DC-in 12V |
|
Power Interface |
DC Jack |
|
Power Adaptor |
AC to DC 60W Power Adaptor |
|
Video Interface |
1 VGA, 1 DVI-D, 1 HDMI |
|
OSD Control |
5 OSD Keypad for Function Management |
|
OSD Language |
Multi Language |
|
Mechanical |
|
Dimensions (W x H x D) |
576.5mm x 369.7mm x 51.6mm (22.7" x 14.6" x 2.0") |
|
Gross Weight |
9.0 kg (19.84 lb) |
|
Front Panel Protection |
IP65 Compliant |
|
Mounting |
- VESA Mount (75 x 75mm, 100 x 100mm)
- Panel Mount
|
|
Environment |
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
|
Humidity |
5% to 90% Humidity, non-condensing |
|
Shock |
- IEC 60068-2-27
- 20G, Half-sine, 11ms
|
|
Vibration |
- IEC 60068-2-64
- Non-operation : 10Hz to 200Hz, 1.5Grms, X, Y, Z, 30 mins each Axis
|
|
EMC |
CE, FCC |
|
Packing List |
|
VGA Cable x 1 |
|
USB-A Cable (M) x 1 |
