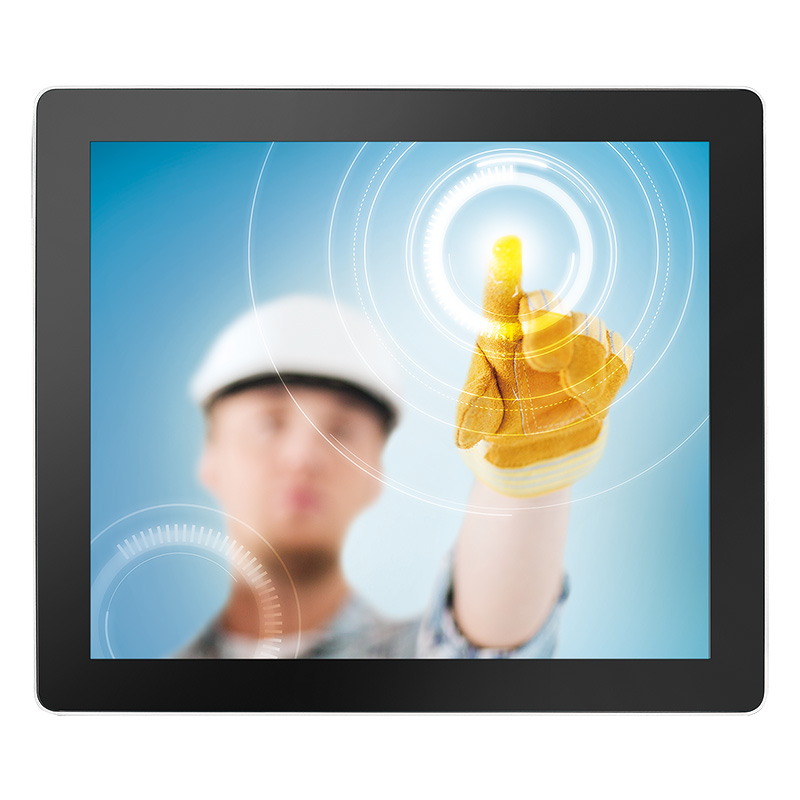

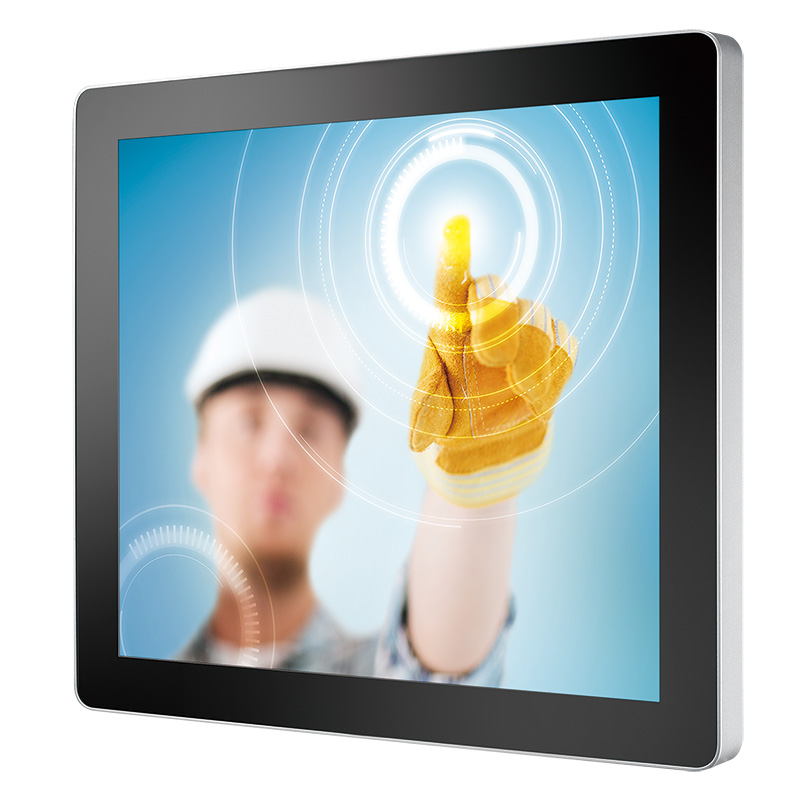

MTC-6017

Features

    • 17" TFT LCD panel with LED backlight
    • Projected Capacitive Multi-touch Screen with 7H anti-scratch surface, up to 10-point Multi-touch
    • Fanless, 6th generation Intel® Core™ i7/i5/Celeron® Processor (Skylake-U)
    • 2 Independent GigE LAN support IEEE 802.3at Powered Device (PD) and iAMT 11.0
    • 4 Independent GigE LAN with IEEE 802.3at PoE+, Power on/off enabled
    • 2 Mini PCIe for WiFi/4G/3G/LTE/GPRS/UMTS
    • 16 Isolated DIO, 2 SSD Tray, 5 USB 3.0, 4 COM
    • 6V to 36V DC-in, 80V Surge Protection, Ignition Power Control
    • Gloves workable with touchscreen
    • IP65 Front Panel Protection



Overview

    MTC-6000 series, High-Performance Multi-Touch Computers ranging from 21.5", 19", 17", 15" of panel displays, Powered by 6th generation Intel® Core™ i7/i5/Celeron® Processor (Skylake-U), leading performance and innovative power management functions, 1080p Full HD TFT LCD panel with 7H surface hardness against scratches, projected capacitive multi-touch screen which is gloves workable, optionally supports sunlight readable, Fanless, 0°C to 50°C operating temperature, IP-65 certified panel protection, 6V to 36V DC-in with 80V Surge Protection all enable trusted industrial-grade reliability; Equipped with 2 Powered Device (PD) GigE LAN and 4 LAN PoE+, 2 external SIM Socket for 3G/4G/WiFi/GPRS/UMTS, CFast Socket, 5 USB 3.0 and 4 COM, MTC-6000 series is an powerful engine for Smart Manufacturing, Self-Service, Factory Automation, Intelligent Surveillance, Health Care and any IIoT/industrial 4.0 ready applications.





Specifications

Panel
Type TFT LCD
Active Area 17" (4:3)
Max. Resolution 1280 x 1024
Display Color 16.7 M (RGB 8-bit)
Backlight LED Backlight
Brightness (cd/m2)  250
Viewing Angles  85/85/80/80 (Typ., CR≥10)
Contrast Ratio 1000:1
Touch Screen
Type 10-point Projected Capacitive
Transparency ≧ 91%
Surface Hardness 7H Surface Hardness
Control Interface USB Interface
System
Processor Intel® Core™ i7/i5/Celeron® Processor (Skylake-U)
Chipset Intel® SoC
Memory 2 DDR4 2133MHz SO-DIMMs, up to 32GB
Graphics Intel® HD Graphics 520
Ethernet
- Intel® I219 Gigabit LAN
- Intel® I210 Gigabit LAN
Audio  Realtek ALC888S, 7.1 Channel HD Audio
OS Windows 10, Windows 8.1, Windows 7, Linux
Storage
SATA  2 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
- 1 External CFast Socket
- 2 2.5" SSD/HDD Tray

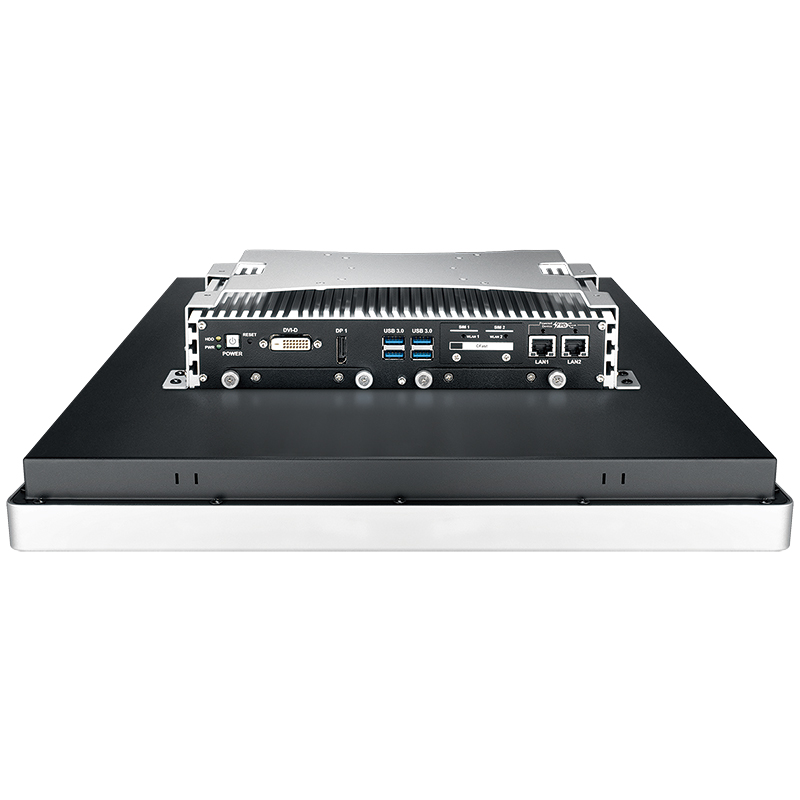

I/O Interface
Serial  4 COM RS-232/422/485
USB 5 USB 3.0
DIO 16 Isolated DIO : 8 DI, 8 DO
LAN
PoER : 6 GigE LAN with 4 IEEE 802.3at PoE+
PDR : 2 GigE LAN support IEEE 802.3at Powered Device (PD)
2R : 2 GigE LAN
Audio 1 Mic-in, 1 Line-out
Display
- DVI-D : Up to 1920 x 1200 @ 60Hz
- DisplayPort : Up to 4096 x 2304 @ 60Hz
LED Power, HDD, PoE, PD
CFast 1 CFast Socket, Push-in/Push-out Ejector
SIM Card 2 SIM Card Socket
Power
Power Input 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Power Adapter AC to DC 120W Power Adapter (Optional)
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats
Mechanical
Dimensions (W x H x L) 392.4mm x 324.7mm x 115.2mm (15.45" x 12.78" x 4.53")
Weight 8.6 kg (18.95 lb)
Front Panel Protection IP65 compliant
Mounting
- VESA mount (75 x 75mm, 100 x 100mm)
- Panel mount
Environment
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 10% to 90%, non-condensing
Relative Humidity 95% @ 50°C
Vibration
- IEC 60068-2-64
- Non-operation : 10Hz to 200Hz, 1.5 Grms, X, Y, Z, 30 mins each Axis
Shock
- IEC 60068-2-27
- 20G, Half-sine, 11ms
EMC CE, FCC



Resources

Item File Name Format File Update Download
MTC-6017 MTC-6000 Series DM .PDF 2022/1/13 Download
MTC-6017 MTC-6017-PoER Datasheet .PDF 2019/1/3 Download
MTC-6017 MTC-6017-PDR Datasheet .PDF 2018/6/25 Download
MTC-6017 MTC-6017-2R Datasheet .PDF 2018/6/25 Download
MTC-6017 MTC-6000 Series User Manual .PDF 2021/5/10 Download

Inquiry

Product Description Qty
MTC-6017-POER600U MTC-6017 17" Fanless Multi-Touch Computer, Intel® Core™ i7-6600U Processor (Skylake-U), 6 GigE LAN with 4 PoE+, 2 SSD Tray, 5 USB 3.0, 3 USB 2.0, Isolated DIO
MTC-6017-PDR600U MTC-6017 17" Fanless Multi-Touch Computer, Intel® Core™ i7-6600U Processor (Skylake-U), 2 PD LAN, 2 SSD Tray, 5 USB 3.0, 3 USB 2.0, 32 GPIO
MTC-6017-2R600U MTC-6017 17" Fanless Multi-Touch Computer, Intel® Core™ i7-6600U Processor (Skylake-U), 2 GigE LAN, 2 SSD Tray, 5 USB 3.0, 3 USB 2.0, 32 GPIO
MTC-6017-POER300U MTC-6017 17" Fanless Multi-Touch Computer, Intel® Core™ i5-6300U Processor (Skylake-U), 6 GigE LAN with 4 PoE+, 2 SSD Tray, 5 USB 3.0, 3 USB 2.0, Isolated DIO
MTC-6017-PDR300U MTC-6017 17" Fanless Multi-Touch Computer, Intel® Core™ i5-6300U Processor (Skylake-U), 2 PD LAN, 2 SSD Tray, 5 USB 3.0, 3 USB 2.0, 32 GPIO
MTC-6017-2R300U MTC-6017 17" Fanless Multi-Touch Computer, Intel® Core™ i5-6300U Processor (Skylake-U), 2 GigE LAN, 2 SSD Tray, 5 USB 3.0, 3 USB 2.0, 32 GPIO
MTC-6017-POER955U MTC-6017 17" Fanless Multi-Touch Computer, Intel® Celeron® 3955U Processor (Skylake-U), 6 GigE LAN with 4 PoE+, 2 SSD Tray, 5 USB 3.0, 3 USB 2.0, Isolated DIO
MTC-6017-PDR955U MTC-6017 17" Fanless Multi-Touch Computer, Intel® Celeron® 3955U Processor (Skylake-U), 2 PD LAN, 2 SSD Tray, 5 USB 3.0, 3 USB 2.0, 32 GPIO
MTC-6017-2R955U MTC-6017 17" Fanless Multi-Touch Computer, Intel® Celeron® 3955U Processor (Skylake-U), 2 GigE LAN, 2 SSD Tray, 5 USB 3.0, 3 USB 2.0, 32 GPIO
DDR4 16G Certified DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certified DDR4 8GB 2666/2400/2133 MHz RAM
DDR4 4G Certified DDR4 4GB 2666/2400/2133 MHz RAM
PWA-120W 120W, 24V, 90V AC to 264V AC Power Adapter with 3-pin Terminal Block
PWA-120WM4P 120W, 24V, 90V AC to 264VAC Power Adapter with 4-pin Mini-DIN Connector
PWA-160W-WT 160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C
Panel-Mount Panel Mount Kit
VESA Stand VESA Table Stand
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting
3G Module Mini PCIe 3G/GPS Module with Antenna
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth Module WiFi & Bluetooth Module with Antenna
