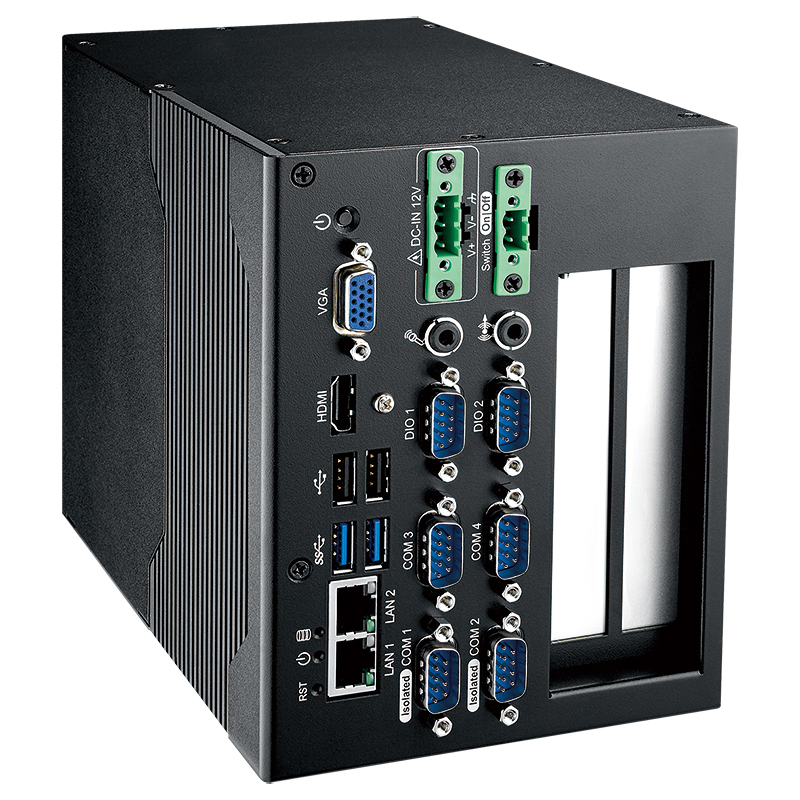

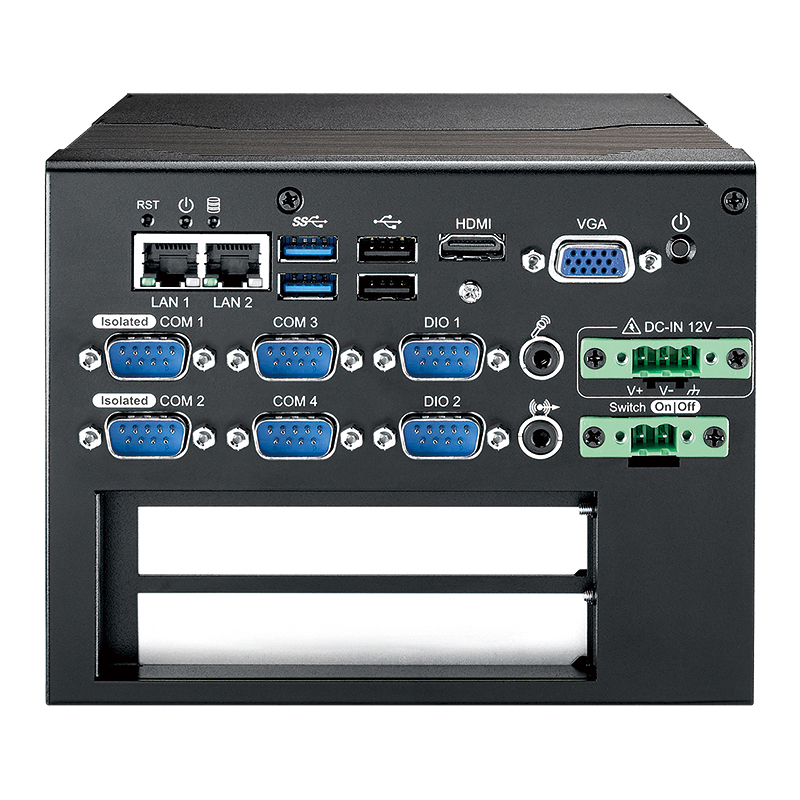

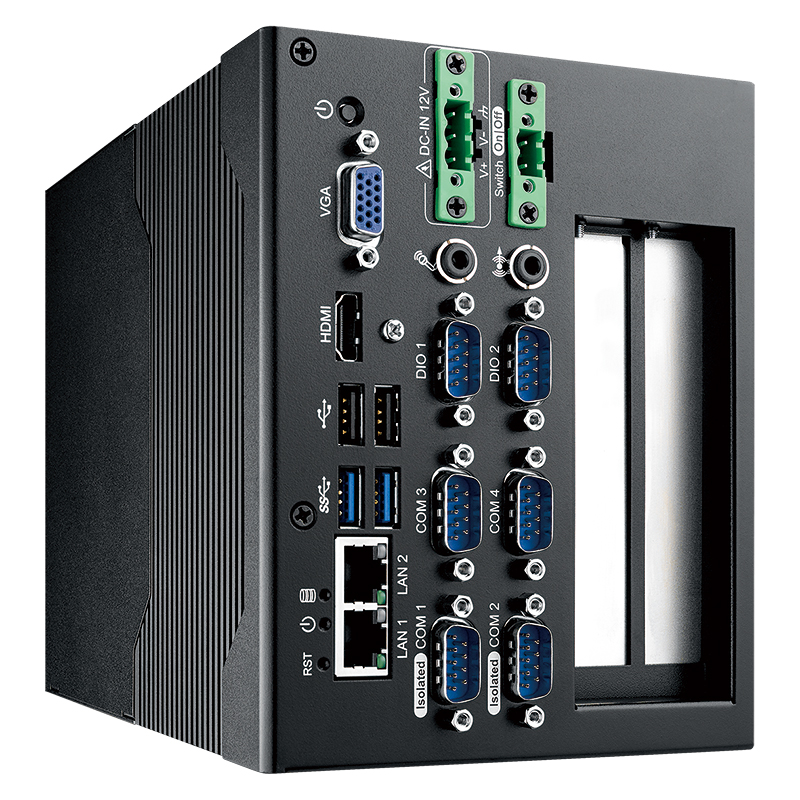

SEC-2220

Features

    • Quad Core Intel Atom® x7-E3950 SoC (Apollo Lake-I) delivering lower power consumption
    • Compact & Fanless design, -40°C to 75°C operating temperature
    • Supports HDMI & VGA dual display, up to 4K resolution
    • DDR3L 1866MHz memory supports up to 8GB
    • 2 GigE LAN support IEEE 1588 (PTP)
    • 4 COM RS-232/422/485 with 2 Isolated
    • 4 USB, 16 GPIO, 1 SIM socket
    • 2 PCIe x16 slots, 2 Mini PCIe, 1 SATA III
    • SIM socket for WiFi/4G/3G/LTE/GPRS/UMTS
    • 12V DC Power Input
    • TPM 2.0 supported



Overview

    Harnessing quad core Intel Atom® x7-E3950 SoC (Apollo Lake-I) processor, equipped with power-efficient capability, high-performance, low power consumption, HMDI and VGA dual display support up to 4K resolutions, compact design, 2 GigE LANs supporting IEEE 1588 (PTP), 4 COM RS-232/422/485 with 2 isolated, 16 GPIO, 4 USB, 1 SIM socket, 2 Mini PCIe sockets, 2 PCIe/PCI slots, 12V DC power input, Fanless -40°C to 75°C operating temperature, Vecow SEC-2000 Series Intel Atom® E3950 Expandable Fanless Embedded System is designed for applications in Robotic Control, Intelligent Surveillance, Factory Automation, Smart Manufacturing, Machine Vision and any high-performance-driven Industry 4.0 and internet of Things (IoT)-related sectors.





Specifications

System
Processor Intel Atom® x7-E3950 processor (Apollo Lake-I)
BIOS AMI
SIO IT8786E
Memory 1 DDR3L 1866MHz SO-DIMM, up to 8GB
OS Windows 10, Linux
I/O Interface
Serial  4 COM RS-232/422/485 with 2 Isolated
USB
- 2 USB 3.0 (External)
- 4 USB 2.0 (2 External, 2 Internal)
DIO 16 GPIO
LED Power, HDD, wireless
SIM card 1 Internal SIM socket
Expansion
Mini PCIe
2 Mini PCIe sockets:
- 1 Mini PCIe for PCIe/USB/SIM card
- 1 Mini PCIe for PCIe/USB/Optional mSATA
PCI/PCIe 2 PCIe x16 slots (PCIe x1 signal supported)
Graphics
Processor Intel® HD graphics 505
Interface
- HDMI : Up to 3840 x 2160 @30Hz
- VGA : Up to 1920 x 1440 @60Hz
Storage
SATA 1 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe type, 6Gbps)
Storage Device 1 2.5" SSD/HDD bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I210 GigE LAN supports IEEE 1588
LAN 2 Intel® I210 GigE LAN supports IEEE 1588
Power
Power Input Single 12V DC power input
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Remote Switch 2-pin Terminal Block
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension  125.0mm x 210.0mm x 160.0mm (4.92" x 8.27" x 6.30")
Weight 3.5 kg (7.7 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 85°C
EMC CE, FCC, EN50155, EN50121-3-2
