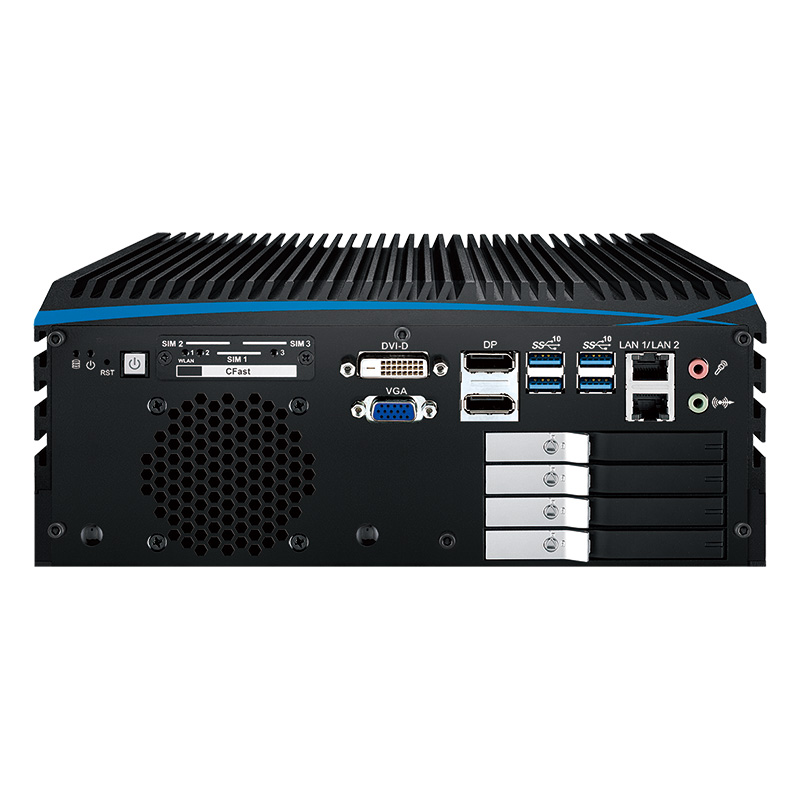

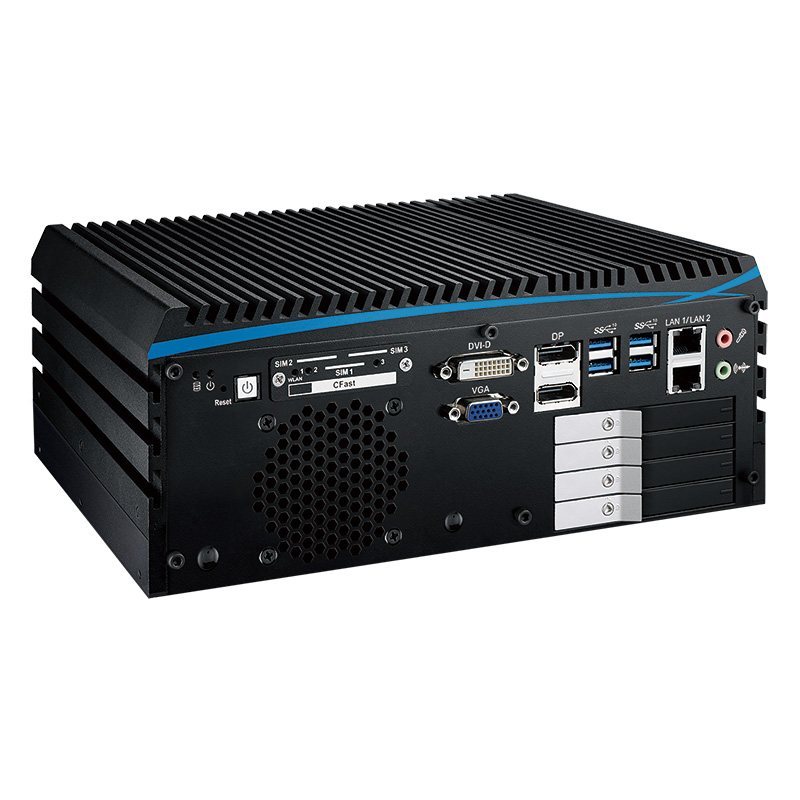

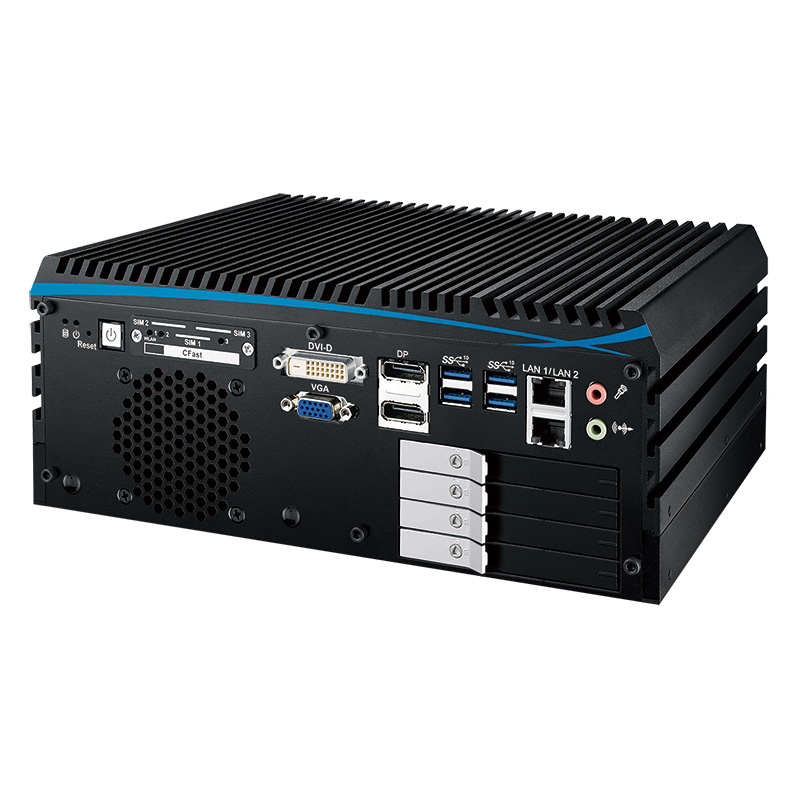

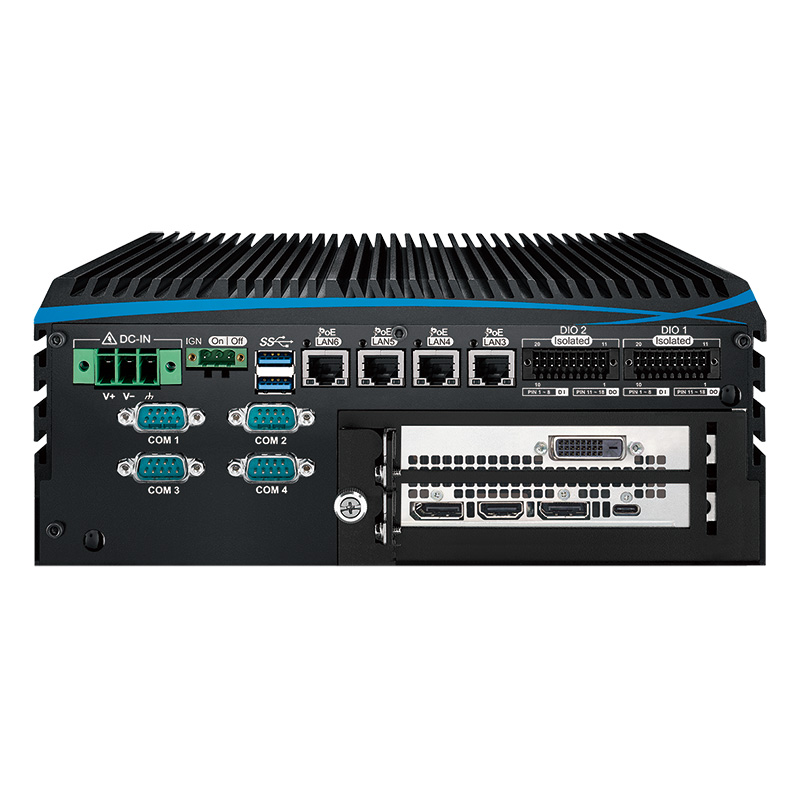

ECX-1400 RTX2070

Features

    • 8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset
    • 2 DDR4 2666MHz memory, up to 64GB (ECC/Non-ECC)
    • Powered by advanced NVIDIA® Turning™ GPU architecture and all-new RTX platform, NVIDIA® GeForce RTX™ 2070 series graphics engine, supports up to 6X the performance of previous generation graphics cards for real-time AI computing
    • Display：1 VGA, 1 HDMI, 2 DVI and 4 DisplayPort interfaces, up to 7 independent HD displays
    • Multiple external USB 3.1 Gen 2, up to 10Gbps data transfer
    • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
    • 32 Isolated DIO, 6 USB 3.1, 4 COM RS-232/422/485
    • Storage : 4 2.5" SSD trays, 1 CFast, 1 M.2, 4 SATA III
    • Expansion : 2 Mini PCIe/mSATA, 1 M.2
    • 3 External SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
    • 24V to 36V DC Power Input with 80V Surge Protection
    • Configurable Ignition Control







Overview

    Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel® C246 chipset, powerful NVIDIA® GeForce® RTX 2070 graphics engine, supporting NVIDIA® Turing™ GPU architecture, max 7 independent HD display supporting up to 8K resolution, multiple USB 3.1 Gen 2 interfaces offering 10Gbps data transfer rate, 4 2.5” SSD trays delivering up to 32TB capacity, smart manageability, industrial-grade reliability. Vecow ECX-1400 RTX2070 GPU Computing System is your great fit in Automatic LPR, Autonomous Vehicles, Robotic Control, and Public Surveillance sectors, bringing your real-time AIoT oriented embedded solutions to reality.






Specifications

System
Processor 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)
Chipset Intel® C246
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.1 (External)
- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, PoE, Wireless
SIM Card  3 External SIM sockets
Expansion
Mini PCIe 2 Full-size for PCIe/USB/external SIM/mSATA
M.2 1 M.2 Key E socket
Graphics
Graphics Processor
- Intel® UHD Graphics 630
- NVIDIA® GeForce® RTX 2070
Interface
- 1 VGA : Up to 1920 x 1200 @60Hz
- 1 HDMI : Up to 4096 x 2304 @60Hz
- 2 DVI : Up to 1920 x 1200 @60Hz
- 3 DisplayPort : Up to 7680 x 3840 @60H
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe type, 6Gbps)
M.2 1 M.2 Key B socket
Storage Device
- 1 CFast socket, Push-in/Push-out ejector
- 4 Front-access 2.5" SSD/HDD trays
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
PoE
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
Power
Power Input 24V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension  260mm x 215mm x 104.1mm (10.24" x 8.46" x 4.10")
Weight 6.1 kg (13.43 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail mount (optional)
Environment
Operating Temperature -20°C to 45°C (-4°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 45°C
Shock/Vibration
- IEC 61373：2010
- Railway Applications：Rolling Stock Equipments, Shock and Vibration Tests
EMC CE, FCC, EN50155, EN50121-3-2
