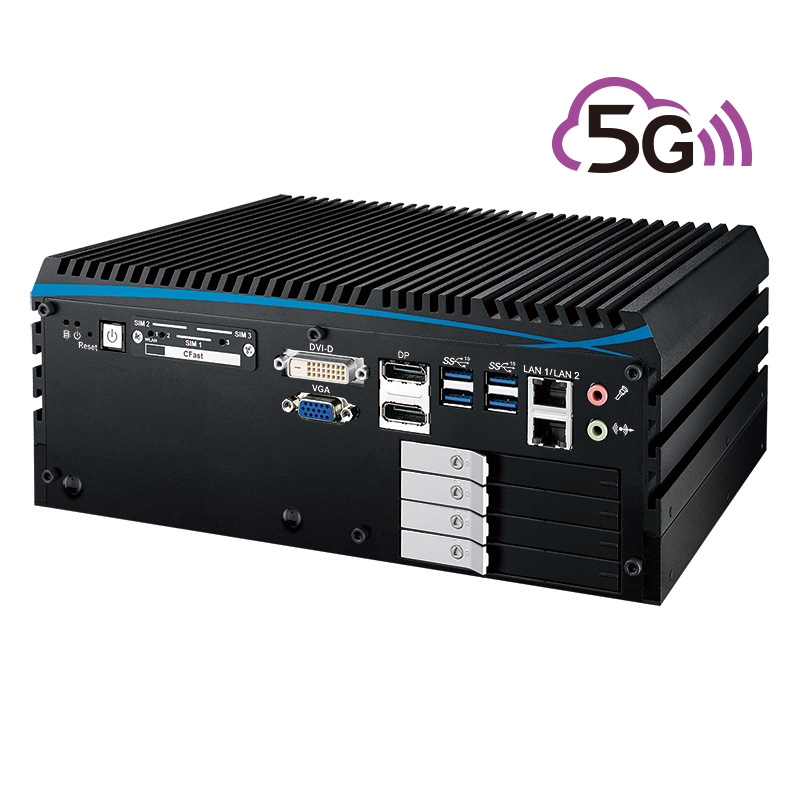

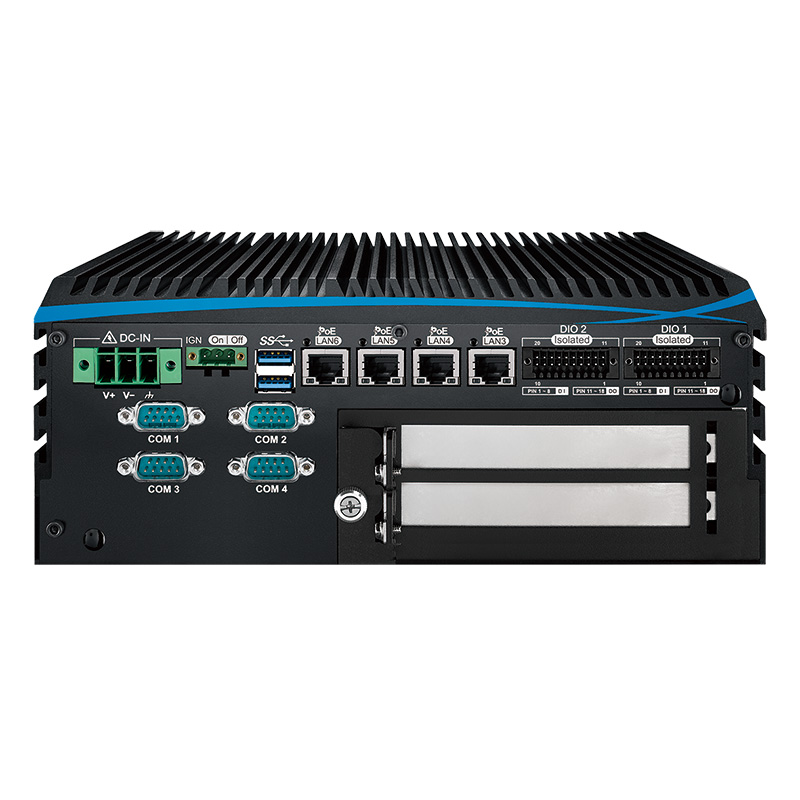

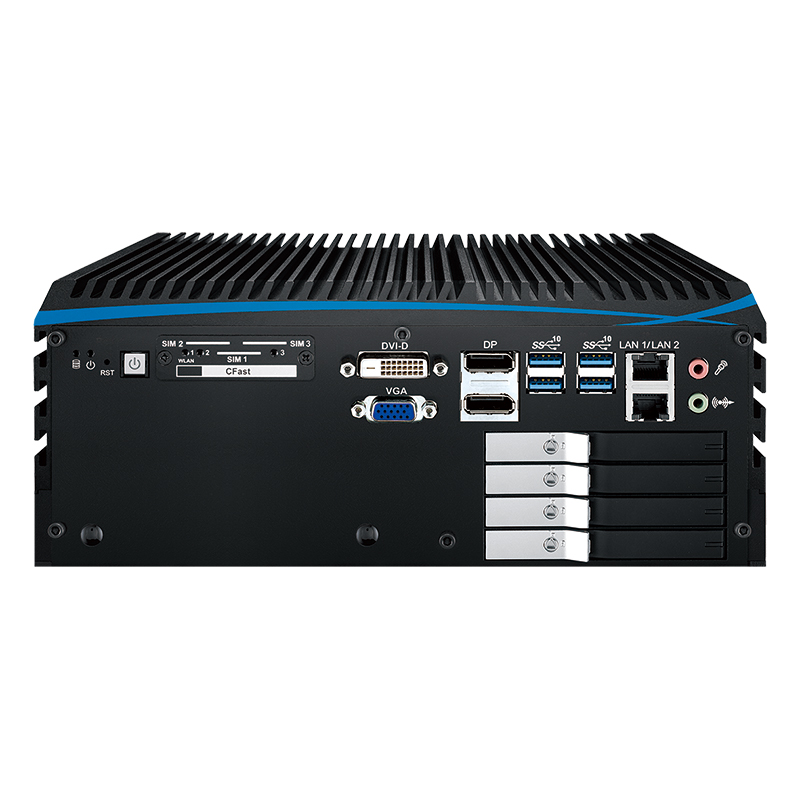

ECX-1420

Features

    • 8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset
    • Fanless, -40°C to 75°C operating temperature
    • Multiple USB 3.1 Gen 2, up to 10Gbps SuperSpeed data transfer
    • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
    • 32 Isolated DIO, 6 USB 3.1, 4 COM RS-232/422/485
    • Storage : 4 2.5" SSD trays, 1 CFast, 1 M.2, 4 SATA III
    • Expansion : 2 PCIe, 2 Mini PCIe/mSATA, 1 M.2
    • PCIe x16 expansion supports up to 200W Power Budget
    • 3 external SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
    • 6V to 36V DC Power Input with 80V Surge Protection
    • Configurable Ignition Power Control





    Feature Highlights

    System-oriented Integration

    • Wide range power input with Surge Protection
    • Programmable Ignition Power Control
    • Smart Circuit Protection
    • RAID Data Protection
    • Max 200W power budget for PCIe x16 expansion
    • Smart Manageability : iAMT 12.0, TPM 2.0, PXE, Wake on LAN, Remote Power Switch



    Workstation-grade Performance

    • 8th Generation Intel® Coffee Lake workstation platform
    • 6 cores Intel® Xeon®/Core i7/i5/i3 processor running with Intel® C246 chipset
    • 10% system performance enhanced
    • Integrated USB 3.1 supports up to 10Gbps data transfer





    Versatile Configuration

    • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
    • 3 SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
    • Integrated USB 3.1 supports up to 10Gbps data transfer
    • Storage : 4 2.5” SSD trays, 1 CFast Socket, 2 M.2 sockets
    • Expansion : 2 PCI/PCIe slots, 2 Mini PCIe/mSATA, 1 M.2, optional SUMIT A, B





    Trusted Reliability

    • RAID 0, 1, 5, 10 Data Protection
    • Fanless -40°C to 75°C Operation
    • 6V to 36V DC-in with 80V Surge Protection
    • Ignition Power Control
    • EN50155 & EN50121 compliant
    • Anti-shock, Anti-vibration



Overview

    Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel® C246 chipset, Fanless, -40°C to 75°C operating temperature, 6 GigE LAN with 4 PoE+, max 6 USB 3.1 connections supporting up to 10Gbps data rate, SIM sockets supporting WiFi/4G/3G/LTE/GPRS/UMTS mobile availability, M.2, Mini PCIe and PCI/PCIe expansions for versatile configurations, smart manageability, 6V to 36V power input with 80V surge protection, ignition power control, smart circuit protection and trusted reliability, Vecow ECX-1400/1300 Series Expandable Fanless Embedded System is your ideal choice for Machine Vision, Deep Learning, Smart Manufacturing, Intelligent Surveillance, Vehicle Computing, Robotic Control, and any AIoT-oriented real-time embedded applications.





Specifications

System
Processor 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)
Chipset Intel® C246 chipset
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.1 (External)
- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, PoE, Wireless
SIM Card  3 external SIM sockets
Expansion
Mini PCIe 2 Full-size Mini PCIe sockets for PCIe/USB/external SIM/mSATA
PCI/PCIe - 1 PCIe x16 slot
- 1 PCIe x4 slot
M.2 1 M.2 Key E socket
SUMIT A, B 2 SUMIT slots (Optional)
Graphics
Graphics Processor Intel® UHD graphics 630
Interface
- VGA : Up to 1920 x 1200 @60Hz
- DVI-D : Up to 1920 x 1080 @60Hz
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe type, 6Gbps)
M.2 1 M.2 Key B socket
Storage Device
- 1 CFast socket, Push-in/Push-out ejector
- 4 front-access 2.5" SSD/HDD trays
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
PoE
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
Power
Power Input 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x L x H) 260mm x 215mm x 104.1mm (10.24" x 8.46" x 4.10")
Weight 5.5 kg (12.13 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail mount (Optional)
Environment
Operating Temperature
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
