Applications

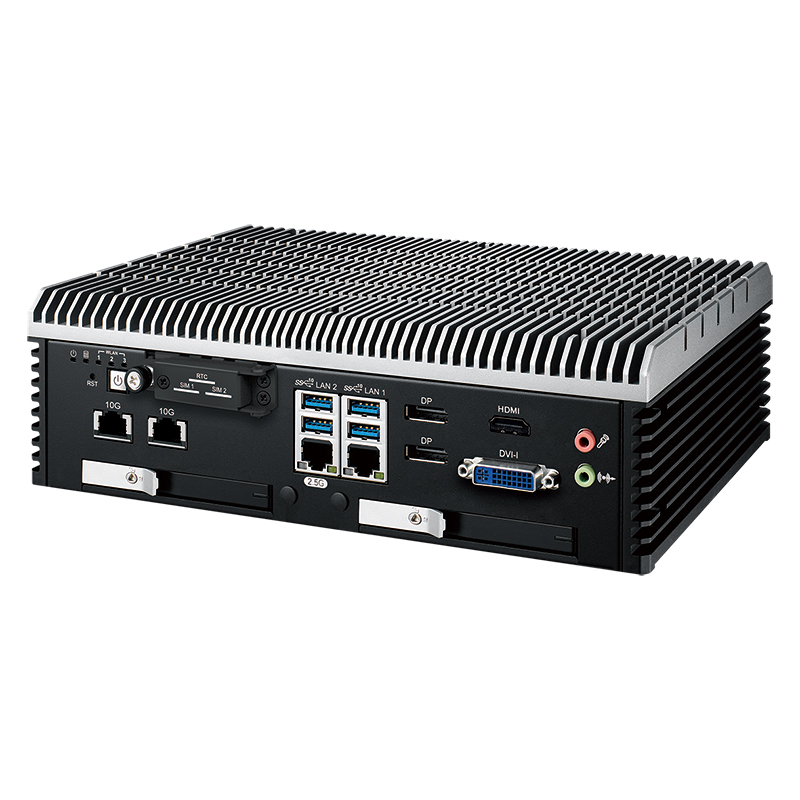

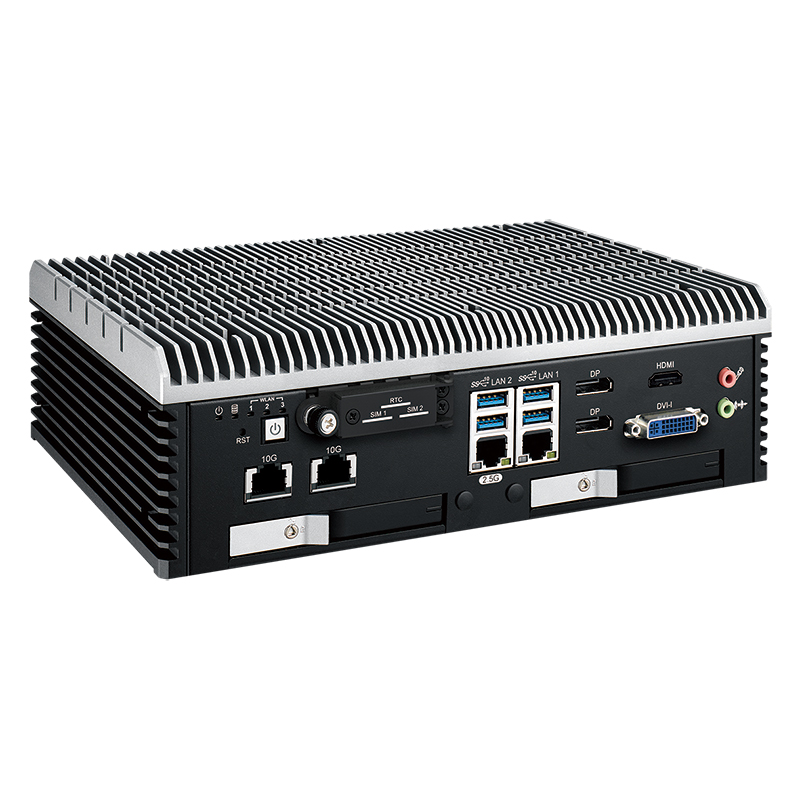

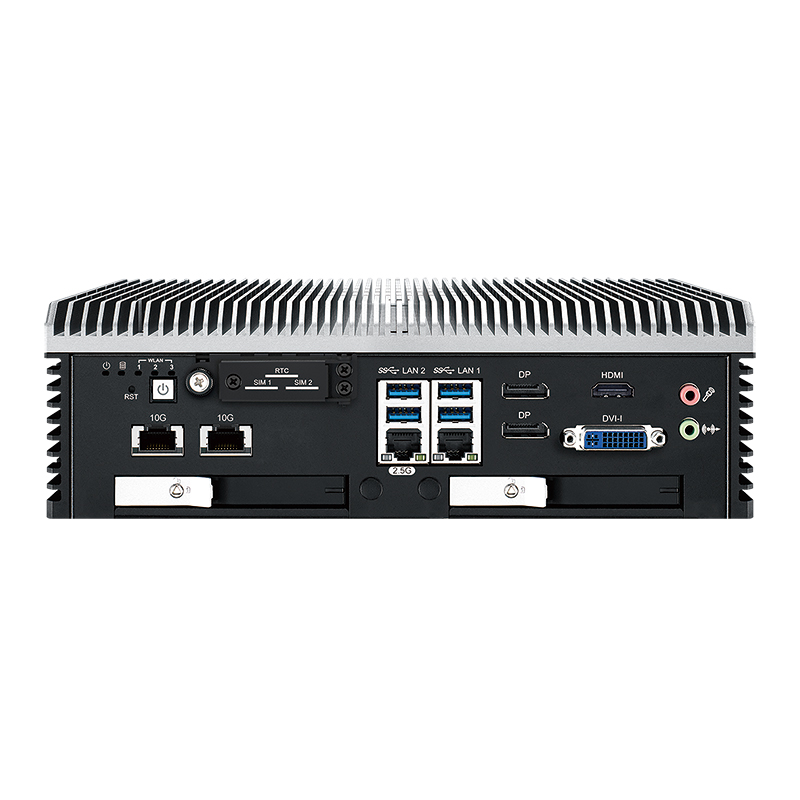

ECX-3071X (2-port 10GigE LAN)

Features

    • Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
    • Intel® UHD Graphics 770/730 driven by Intel® Xe architecture with up to 32 graphics execution units (EUs) delivers immersive interactions with integrated graphics and accelerated AI performance
    • 2 10GigE LAN, 5 2.5GigE LAN with 4 IEEE 802.3at PoE+
    • 2 Front-access 2.5" SSD Tray, 6 USB 3.2 Gen 2
    • DC 9V to 50V Power Input, Software Ignition Control
    • Supports Intel® vPro, TPM 2.0 and Time-Sensitive Networking (TSN)
    • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications


    產品亮點

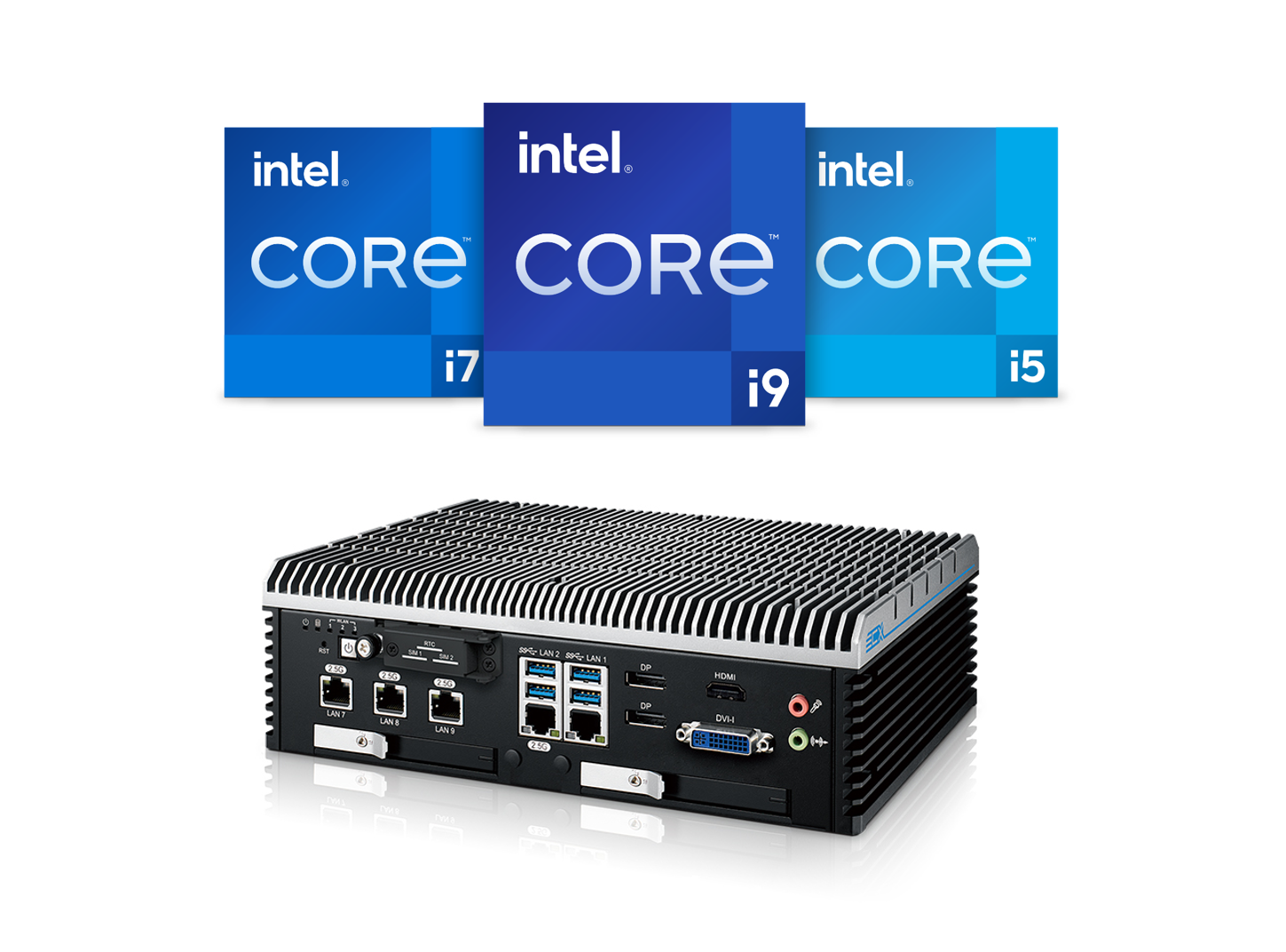

    The Latest Edge AI Accelerator

    • Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S), up to 65W TDP CPU supported
    • Breakthrough core technology features performance hybrid architecture supporting up to 16 cores and 24 threads outstanding Multi Threaded performance with Intel Thread Director
    • Intel UHD Graphics 770 driven by Intel® Xe Architecture with up to 32 graphics execution units (EUs) to support AI workload parallelization
    • High-speed data transfer : PCIe 4.0 (16GT/s), USB 3.2 Gen 2 (10G), 10GigE LAN (10G), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G)

    Leading Integration

    • Max 9 GigE LAN with 4 IEEE 802.3at 2.5G PoE+ (25.5W/48V)
    • 6 10G USB 3.2 Gen 2, up to 4 COM RS-232/422/485, 2 SIM Socket, 16 Isolated DIO, SUMIT A, B
    • Dual external 2.5” SSD trays, optional supports 4 front-access M.2 SSD trays
    • Compact Configurations : M.2 Key B, M.2 Key E, M.2 Key M
    • Wireless Connections : 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS
    • Multiple displays : Dual DisplayPort, DVI-I and HDMI four independent 4K displays or one 8K display
    • Versatile Ethernet Offerings : 10G LAN/2.5G PoE+/2.5G LAN/GigE LAN
    • Intel Deep Learning Boost (Intel DL Boost) and Intel Distribution of OpenVINO toolkit for AI Computing

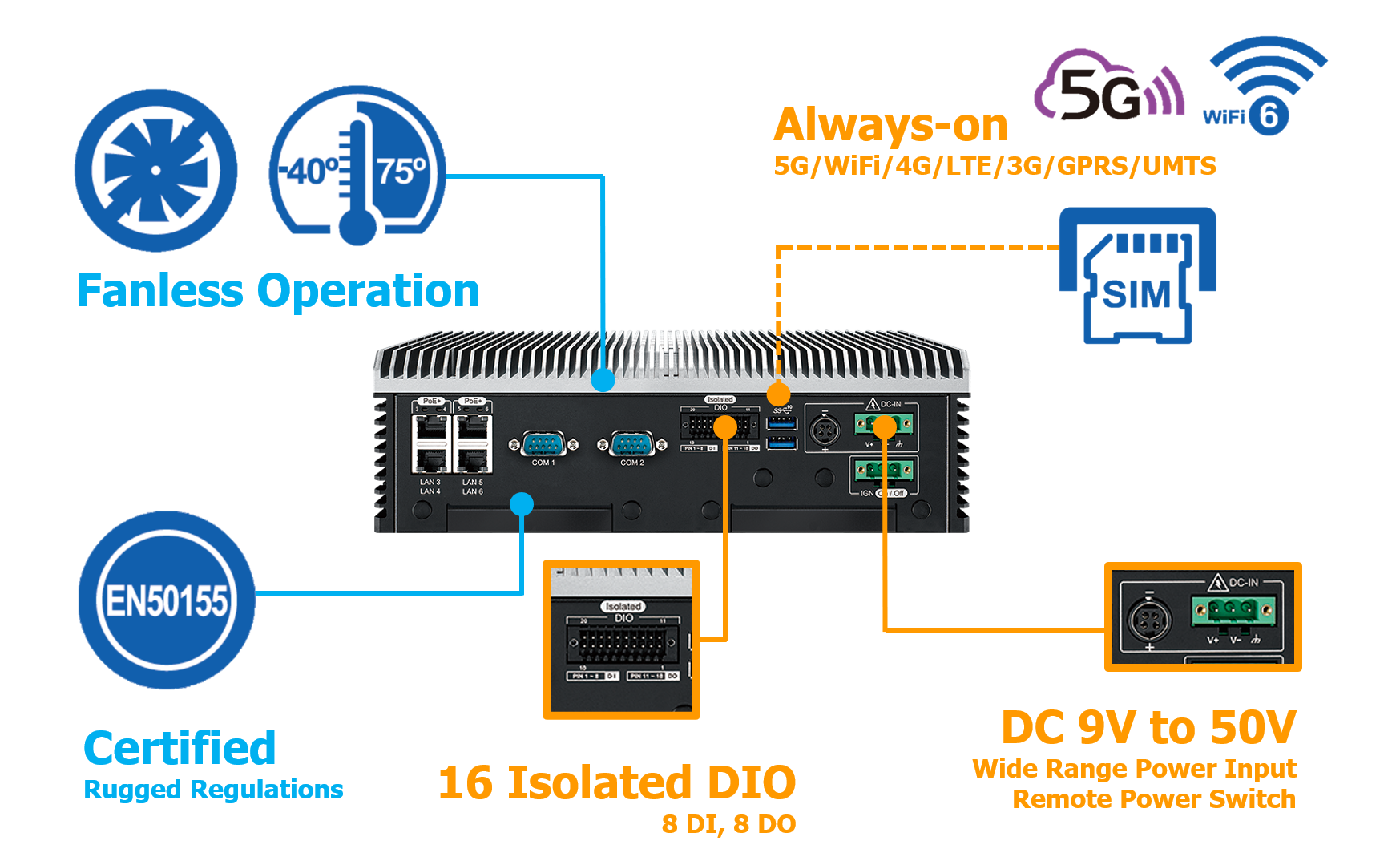

    Rugged Reliability

    • Fanless -40°C to 75°C operation
    • ECC Memory supported
    • Always-on wireless communication supports seamless data delivery
    • Optional SUMIT A and SUMIT B support versatile scalability
    • DC 9V to 50V Wide Range Power Input
    • Ignition Power Control for in-vehicle applications
    • EN50155 & EN50121-3-2
    • Anti-shock, Anti-vibration

    Optimized Manageability

    • User-friendly chassis design supports easier system maintenance
    • Considerate Toolless SIM Card sockets and RTC Battery Socket Cover
    • Front-access & lockable SSD trays, RAID 0, 1 data protection
    • Software Ignition Power Control, Remote Power Switch
    • Real-time capable with Intel Time Coordinated Computing (Intel TCC) and support for Time-Sensitive Networking (TSN)
    • Smart System Manageability : iAMT, TPM 2.0, PXE, Wake on LAN, Watchdog Timer



Overview

    Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) with Intel® R680E Chipset, fanless -40°C to 75°C operating temperature, multiple 10G LAN/2.5G LAN/GigE LAN/SIM socket configuration, max 6 USB 3.2 Gen 2 connections supporting up to 10Gbps data rate, outstanding system performance, 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS mobile availability, DC 9V to 50V power input. Software ignition power control and rugged reliability in harsh environments, all-in-one integrated features, Vecow ECX-3000 Series Fanless Embedded System is your new generation choices for Machine Vision, In-vehicle Computing, Public Security, Factory Automation, Intelligent Transportation System (ITS), Robotic Control, AMR/AGV, Deep Learning, and any Edge AI applications.





Specifications

System
Processor
- 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh)
- 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
- 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel® R680E Chipset
BIOS AMI
SIO IT8786E
Memory 2 DDR4 3200MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
OS Windows 11, Windows 10, Linux

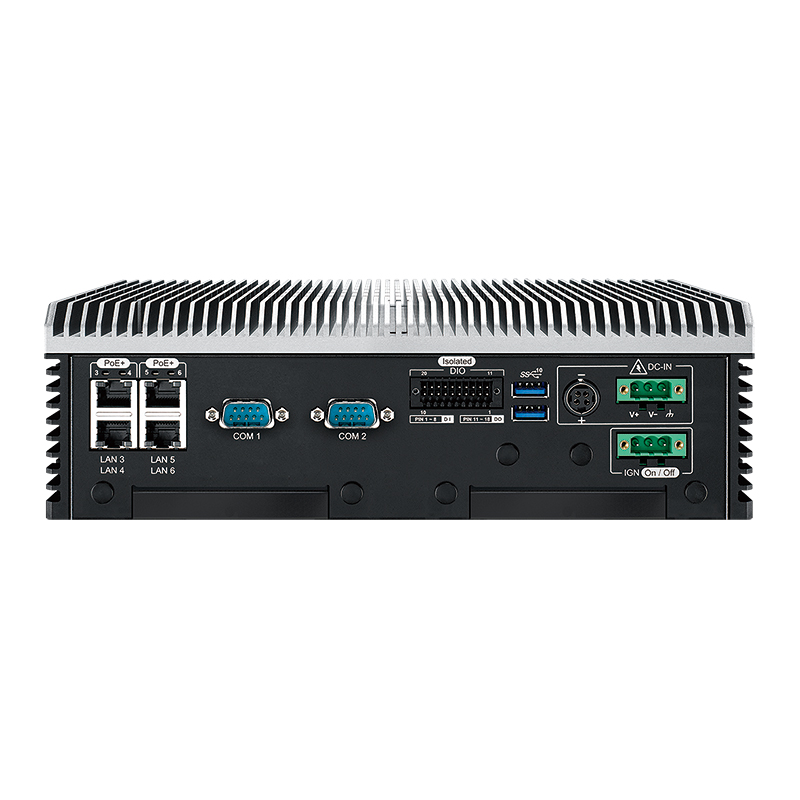

I/O Interface
Serial  Up to 4 COM RS-232/422/485
USB 6 USB 3.2 Gen 2
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO (Optional)
LED Power, HDD, PoE, Wireless
SIM Card  2 External SIM Card Sockets
RTC Battery Front-access RTC Battery
Expansion
Mini PCIe 1 Mini PCIe Socket for PCIe/USB/SIM Card/Optional mSATA
M.2
- 1 M.2 Key B Socket (3042/3052, SATA/USB3, USB 2)
- 1 M.2 Key E Socket (2230, PCIe x2/USB)
SUMIT A, B 2 SUMIT Slot (Optional)
Graphics
Graphics Processor Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture
Interface
4 independent displays :
- 2 DisplayPort : Up to 7680 x 4320 @60Hz/5120 x 2880 @60Hz
- 1 DVI-I : Up to 1920 x 1080 @60Hz
- 1 HDMI : Up to 1920×1080 @ 60Hz
Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
M.2 1 M.2 Key M Socket (2280, PCIe x4)
Storage Device 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT
LAN 2 Intel® I226 2.5GigE LAN supports TSN
2.5G PoE
LAN 3  2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226
LAN 4 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226
LAN 5 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226
LAN 6 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226
10G Ethernet
LAN 7  Intel® X710-AT2 10GigE LAN
LAN 8 Intel® X710-AT2 10GigE LAN
Power
Power Input DC 9V to 50V
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- 4-pin Mini-DIN
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block
Others
TPM Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11")
Weight 3.8 kg (8.38 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
- 2U Rackmount (Optional)
Environment
Operating Temperature -25°C to 50°C (-13°F to 122°F), with Internal Fan
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @75°C
Shock
- IEC 60068-2-27
- SSD : 50G @wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
