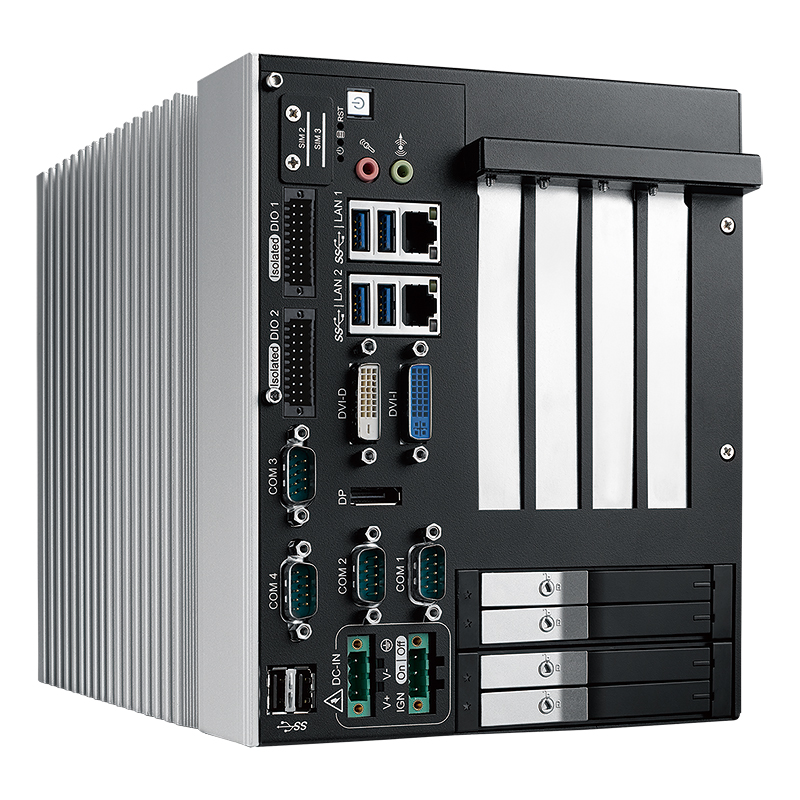

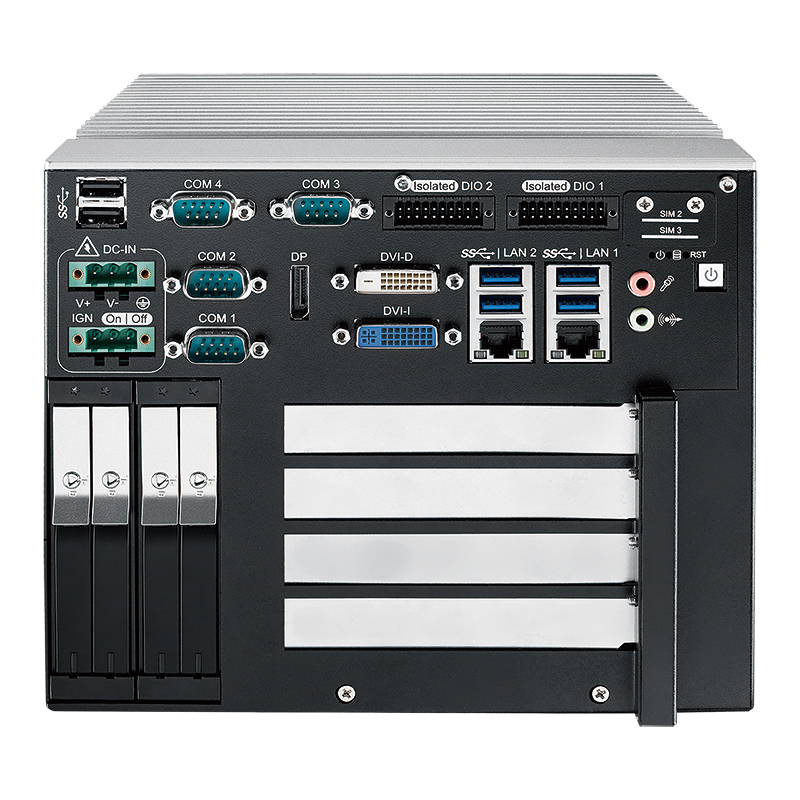

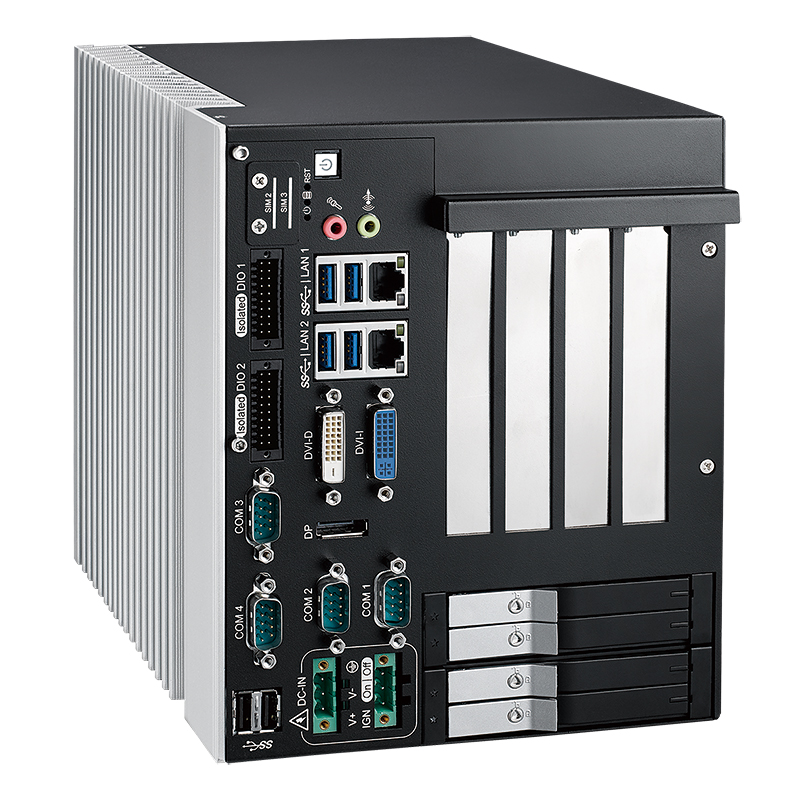

RCS-9422R

Features

    • LGA 1151 Socket supports workstation-grade 7th generation Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake) with C236
    • Max 250W Power Budget for PCI/PCIe expansions
    • Onboard DVI-I, DVI-D and DisplayPort display interface, up to 3 independent HD displays
    • 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)
    • Fanless, -40°C to 75°C Operating Temperature
    • 6V to 36V DC-in with 80V Surge Protection
    • Configurable Ignition Power Control
    • 2 Independnet Gigabit LAN supports iAMT 11.0
    • 3 SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
    • 4 2.5" SSD/HDD support software RAID 0, 1, 5, 10
    • Front-access : 2 SIM, 4 SSD Tray, 1 CFast, 6 USB 3.0, 4 COM
    • 1 PCIe x16, 1 PCIe x4, 2 PCI
    • 7 USB 3.0, 4 COM, 3 Mini PCIe
    • 32 Isolated DIO



Overview

    Workstation-grade 7th Generation Intel® Xeon®/Core™ i7/i5/i3, fanless -40°C to 75°C operating temperature, all-in-one integrated features, multiple I/O connection, 4/2 SSD Tray, 3 SIM sockets for outstanding mobile availability, 4/2 multiple PCI/PCIe expansion, smart manageability, 6V to 36V power input with 80V surge protection, ignition power control, intelligent circus protection and trusted reliability, Vecow RCS-9000 Series Fanless Robust Computing System makes versatile expansions possible in Machine Vision, Factory Automation, Robot Control, Automated Optical Inspection (AOI), Machine Automation, Industry 4.0 and any high-performance IoT applications.



Specifications

System
Processor Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485
USB
- 7 USB 3.0 (6 External, 1 Internal)
- 2 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD
SIM Card  3 SIM Card Socket (2 External, 1 Internal)
Expansion
Mini PCIe
3 Mini PCIe Socket :
- 2 Full-size Mini PCIe for PCIe/USB/External SIM Card
- 1 Full-size Mini PCIe for PCIe/USB/Internal SIM Card/mSATA
PCIe - 1 PCIe x16 Slot
- 1 PCIe x4 Slot
PCI 2 PCI Slot
Graphics
Graphics Processor Intel® HD Graphics 530
Interface
- DVI-I : Up to 1920 x 1200 @ 60Hz
- DVI-D : Up to 1920 x 1200 @ 60Hz
- DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
- 1 CFast Socket (Internal)
- 4 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2 Intel® I210 Gigabit LAN
Power
Power Input 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H) 172mm x 250mm x 210mm (6.8" x 9.8" x 8.3")
Weight
RCS-9000H : 5 kg (11 lb)
RCS-9000 : 3.8 kg (8.4 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature
35W TDP CPU :
- Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F)
- Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F)
65W TDP CPU :
Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU :
Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to
45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
