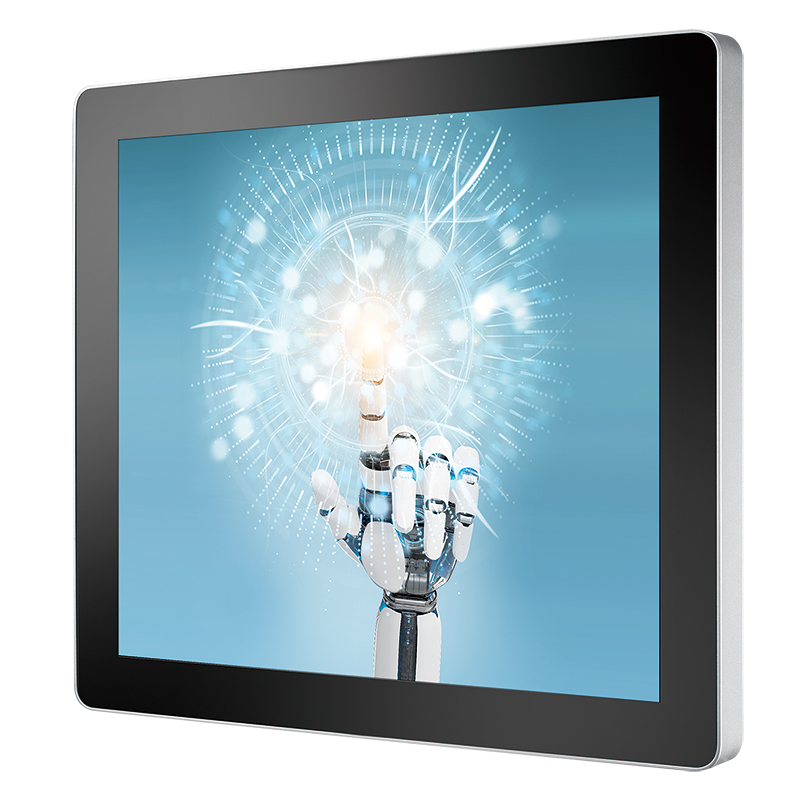

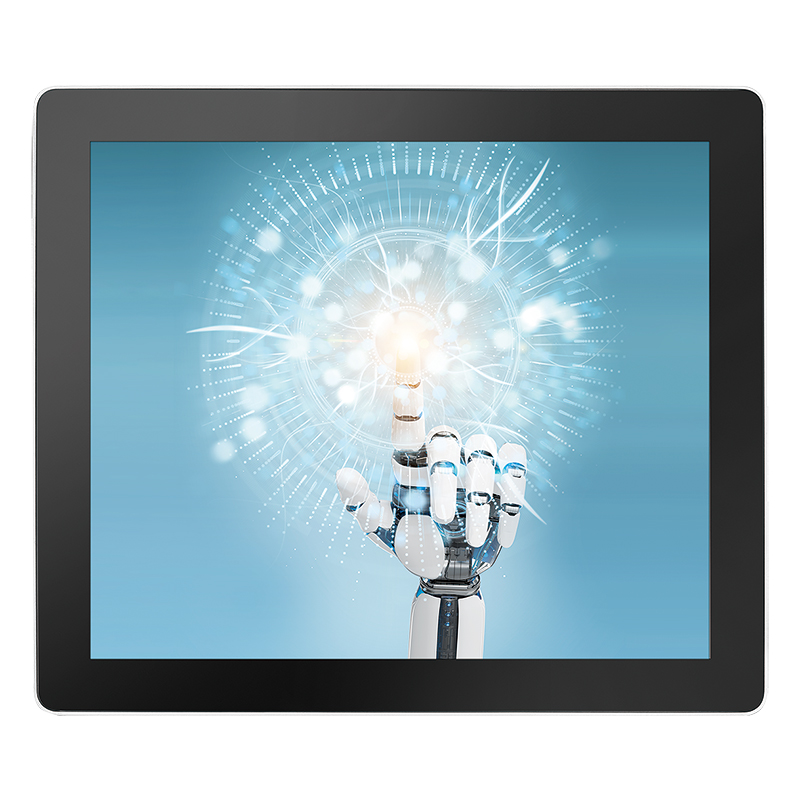

Panel |
|
Panel type |
XGA TFT LED Type LCD |
|
Size |
15" |
|
Max. Resolution |
1024 x 768 |
|
Display Color |
16.7M |
|
Brightness (cd/m2) |
250 |
|
Viewing Angles (H/V) |
160/140 |
|
Contrast Ratio |
700:1 |
|
Touch Screen |
|
Touch Screen Type |
10-point Projected Capacitive |
|
Transparency |
≧ 91% |
|
Surface Hardness |
7H Surface Hardness |
|
Control Interface |
USB Type |
|
System |
|
Processor |
Intel Atom® x7-E3950 Processor |
|
Chipset |
Intel® Apollo Lake PCH-LP |
|
Memory |
1 DDR3L 1866MHz SO-DIMM, up to 8GB |
|
Graphics Processor |
Intel® HD Graphics 505 |
|

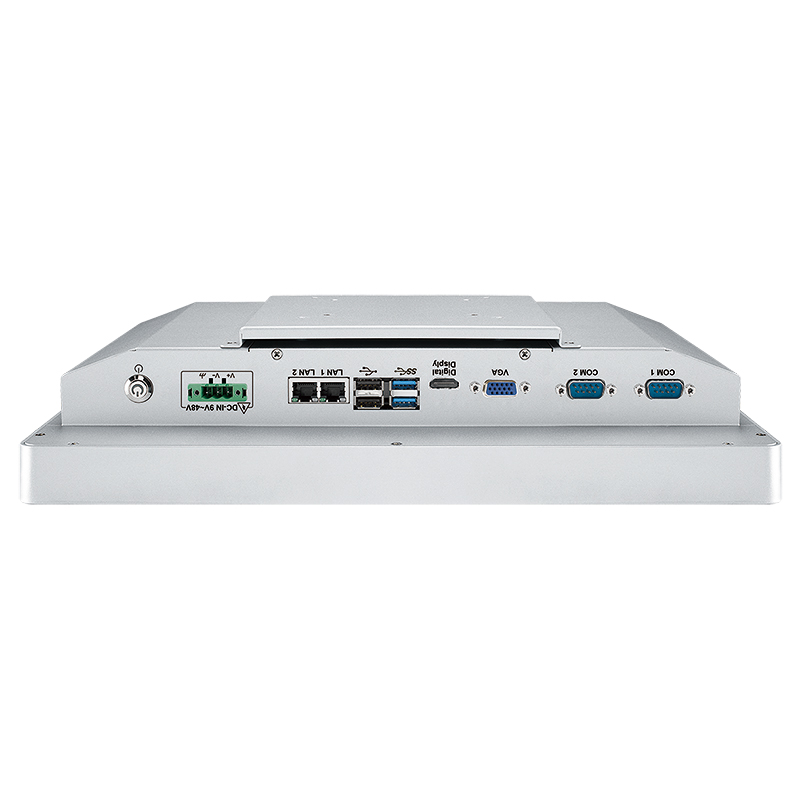

I/O Interface |
|
Serial |
2 RS-232/422/482 (DB9 Type) |
|
USB |
- 2 USB 3.0 Type A
- 2 USB 2.0 Type A
|
|
LED |
Power |
|
Display |
- VGA：Up to 1920 x 1440 @60Hz
- Digital Display：Up to 3840 x 2160 @60Hz |
|
Expansion |
|
Mini PCIe |
2 Mini PCIe Socket：
- 1 Full-size for PCIe/USB/SIM Socket
- 1 Full-size for PCIe/USB/SATA
|
|
Storage |
|
SATA |
1 SATA III (6Gbps) |
|
mSATA |
1 SATA III (Full Size Mini PCIe, 6Gbps) |
|
Storage Device |
1 2.5" SSD/HDD Kit |
|
Ethernet |
|
LAN 1 |
Intel® I210 GigE LAN, RJ45 Type |
|
LAN 2 |
Intel® I210 GigE LAN, RJ45 Type |
|
Power |
|
Power Input |
9V to 36V DC-in |
|
Power Interface |
3-pin Terminal Block (V+/V-/GND) |
|
Others |
|
TPM |
Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
|
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
|
Smart Management |
Wake on LAN, PXE supported |
|
Software Support |
|
OS |
Windows 10, Linux |
|
Mechanical |
|
Dimensions |
360.9mm x 277.8mm x 77.1mm (14.21" x 10.21" x 3.04") |
|
Weight |
4.1kg (9.04 lb) |
|
Mounting |
- Panel mount
- VESA mount (75 x 75, 100 x 100)
|
|
Environment |
|
Operating Temperature |
-10°C to 60°C (-14°F to 140°F) |
|
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
|
Humidity |
5% to 95% Humidity, non-condensing |
|
Relative Humidity |
95% @55°C |
|
Shock |
- IEC 60068-2-27
- 20G, Half-sine, 11ms
|
|
Shock |
- IEC 60068-2-64
- Non-operation : 10Hz to 200Hz, 1Grms, X, Y, Z, 30 mins each Axis
|
|
EMC |
CE, FCC |
