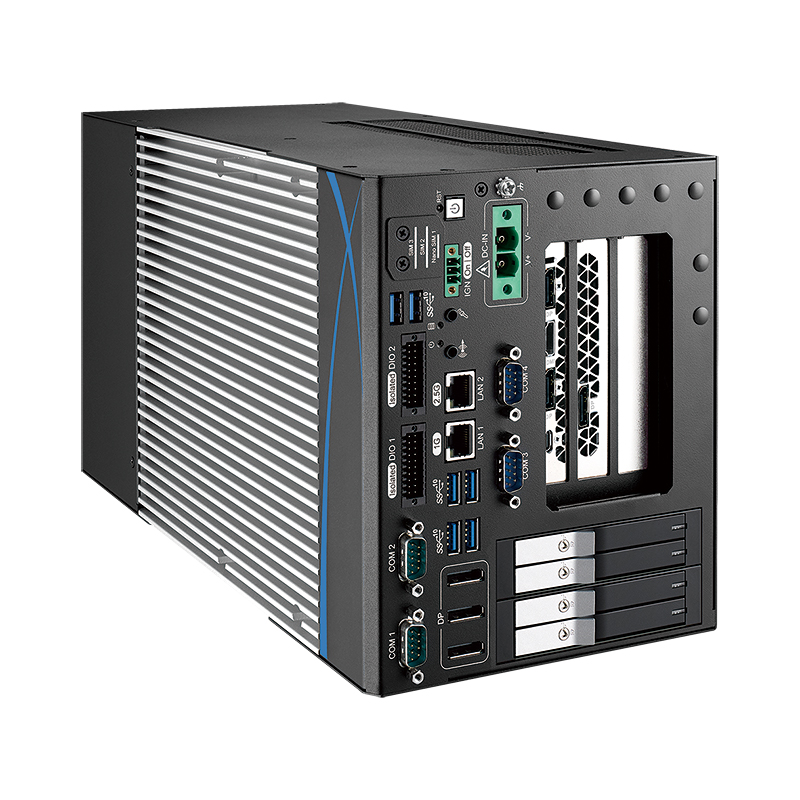

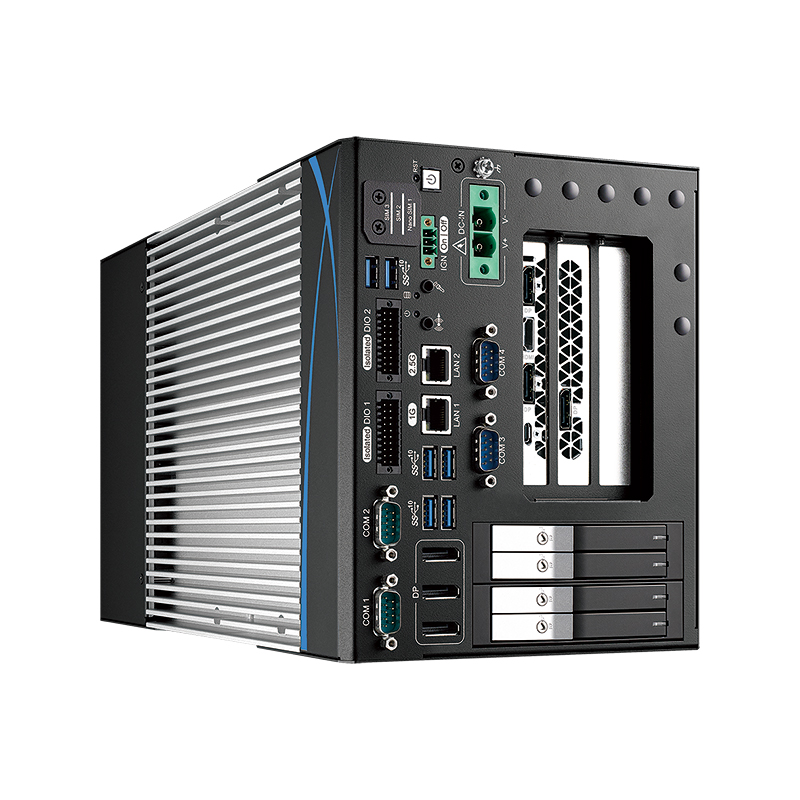

RCX-2330R PEG

Features

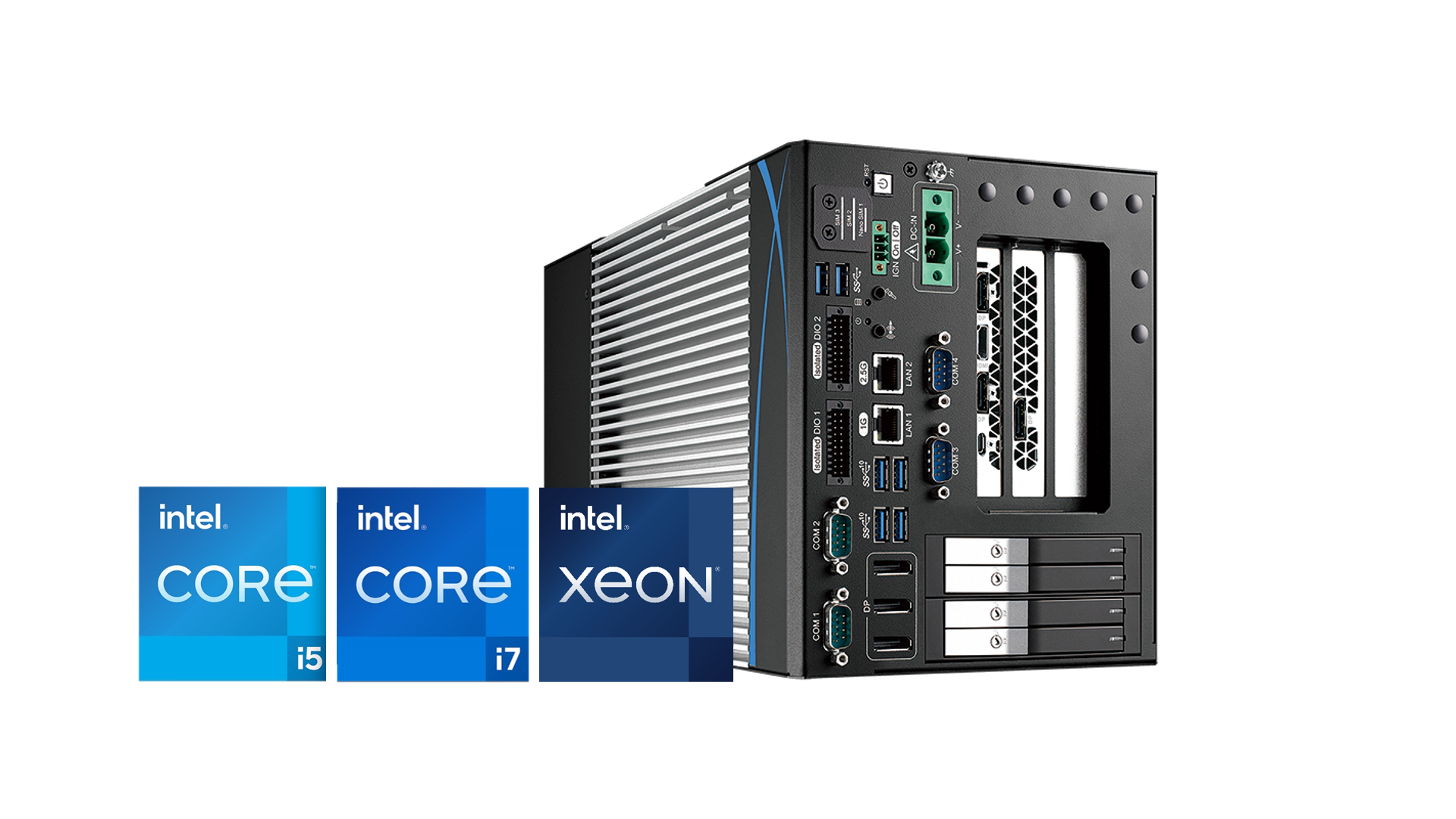

    • Workstation-grade Platform : 8-core 11th Gen Intel® Xeon®/Core™ i7/i5 Processor (Rocket Lake-S) running with Intel® W580 chipset, up to 19% CPU productivity improved
    • PCIe x16 Gen 4 Slot supports max 750W power for NVIDIA® or AMD 3-slot graphics card
    • DDR4 Memory supports up to 3200MHz, optional with ECC
    • Expansion : 3 PCIe, 2 Mini PCIe, 1 M.2 Key E, 1 M.2 Key B
    • Multiple 5G/WiFi 6/4G/LTE/GPRS/UMTS, TPM 2.0, vPRO
    • DC 9V to 55V Power Input, Software Ignition Control
    • Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications


    Feature Highlights

    New Generation Intelligent Platform

    • Workstation-grade Platform : 8-core 11th Gen Intel Xeon/Core i7/i5 processor running with Intel W580 (Rocket Lake), max 80W CPU supported
    • New generation CPU architecture supports max 19% IPC (Instructions Per Cycle/Clock) improved than former generation solution
    • Enhanced Intel UHD Graphics P750/750 featuring Intel Iris Xe Graphics architecture offer powerful media and graphics capabilities : DirectX 12.1, OpenGL 4.5, OpenCL 3.0
    • High-speed data transfer : PCIe 4.0 (16GT/s), USB 3.2 (10G), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G)
    Performance-driven Optimization
    • Intel Deep Learning Boost for accelerated AI performance
    • Intel Turbo Boost Max Technology 3.0 directs critical workloads to top-performing cores
    • Intel Turbo Boost Technology 2.0 accelerates processor performance on peak loads

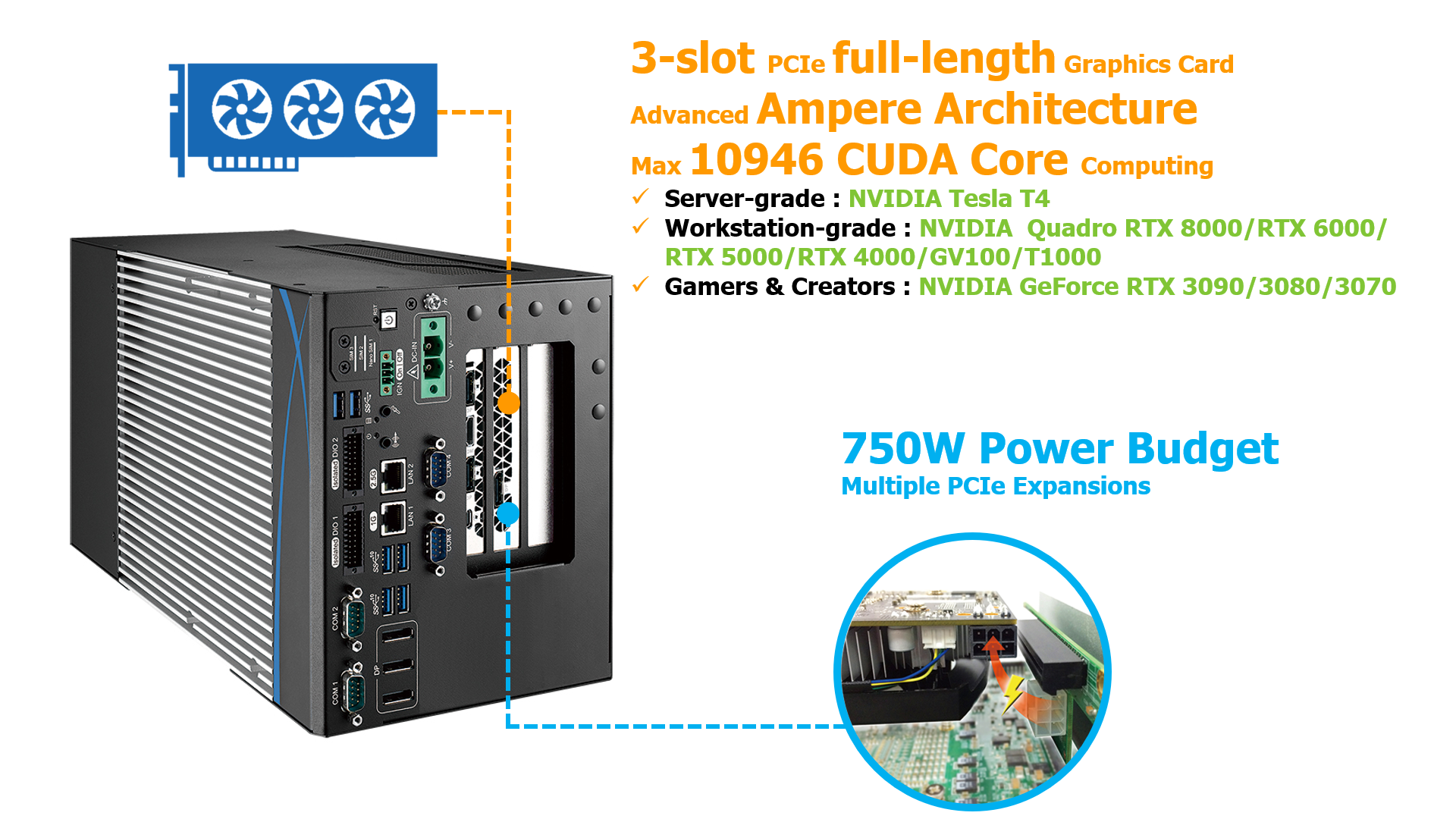

    • Fully supports 3-slot & full-length NVIDIA/AMD graphics card
    • Supports up to 10496 CUDA Cores for AI Computing, max 8K resolution
    • OpenVINO for AI Computing
    Flexible Configurations

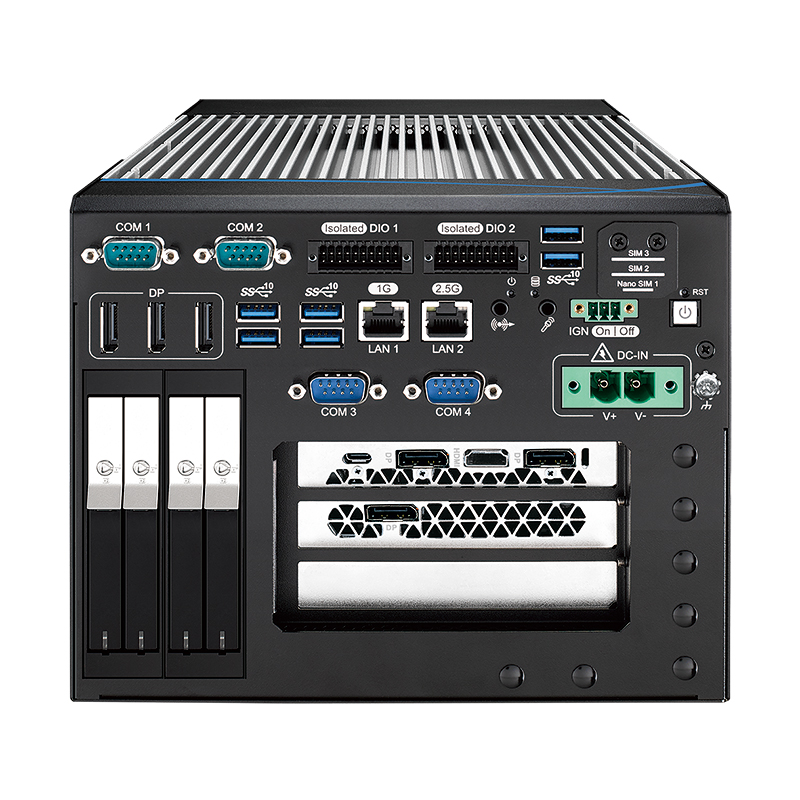

    • 3 DisplayPort, 2.5GigE LAN, GigE LAN, 4 COM RS-232/422/485, 4 USB, 3 SIM Socket, 32 Isolated DIO
    • Storage : 4 2.5" SSD/HDD trays, M.2 Key B, M.2 Key M

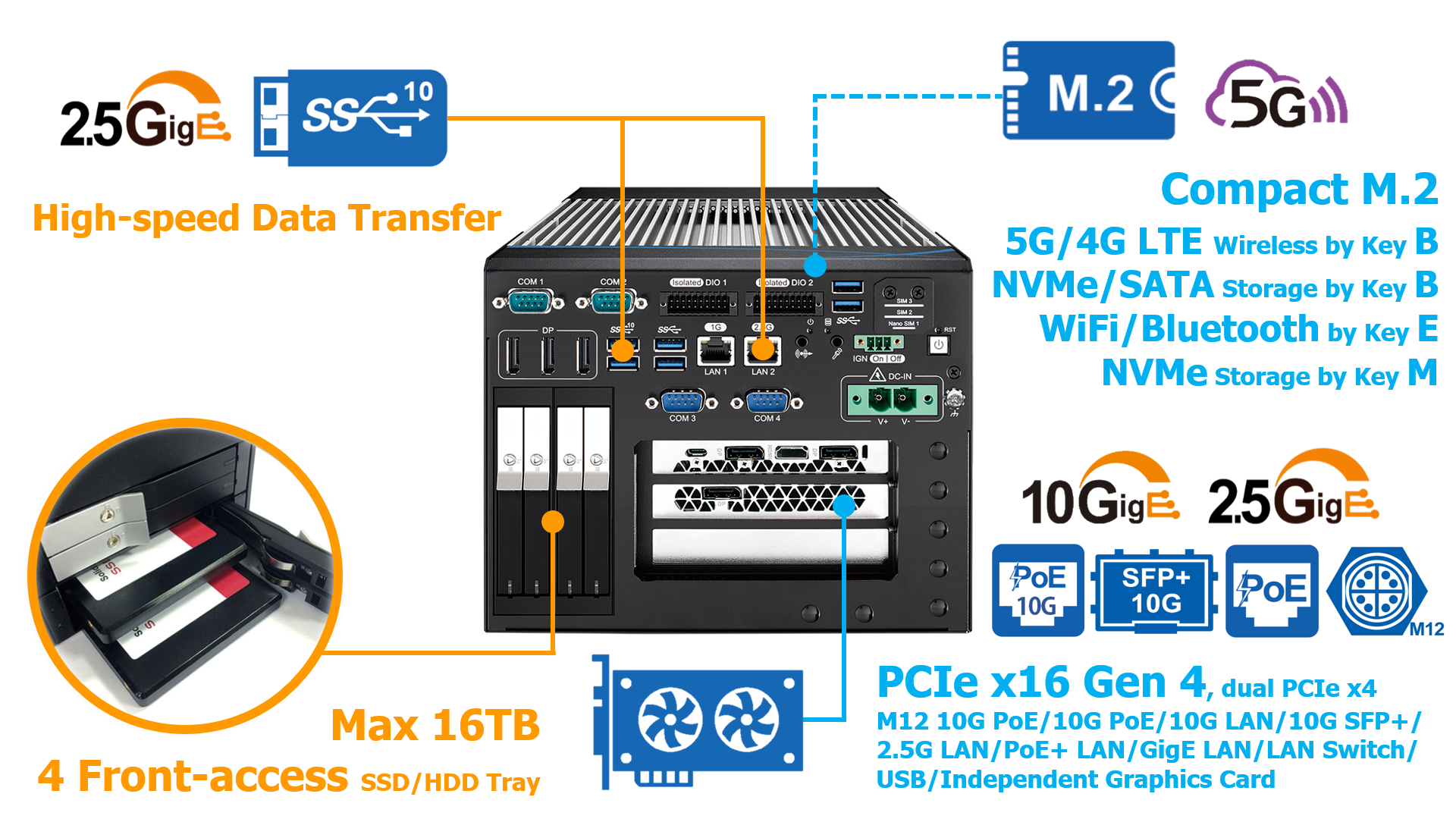

    • Expansion : 3 PCIe, M.2 Key B, M.2 Key E, 2 Mini PCIe
    • 3 PCIe slots : 1 PCIe x16 Gen 4, 2 PCIe x4
    • Levels of Independent PEG : NVIDIA Tesla T4/Quadro RTX 8000/6000/5000/4000/GV100/T1000 GeForce RTX 3090/3080/3070
    • Multiple SIM sockets for 5G/WiFi/4G/3G/LTE/GPRS/UMTS wireless connection
    • Versatile product configuration for project requirements

    Trusted Operation
    • Optimized max 750W power budget for independent graphics card
    • Multiple SIM sockets for non-stop wireless data transfer
    • Lockable SSD/HDD trays, RAID 0, 1, 5, 10 Data Protection

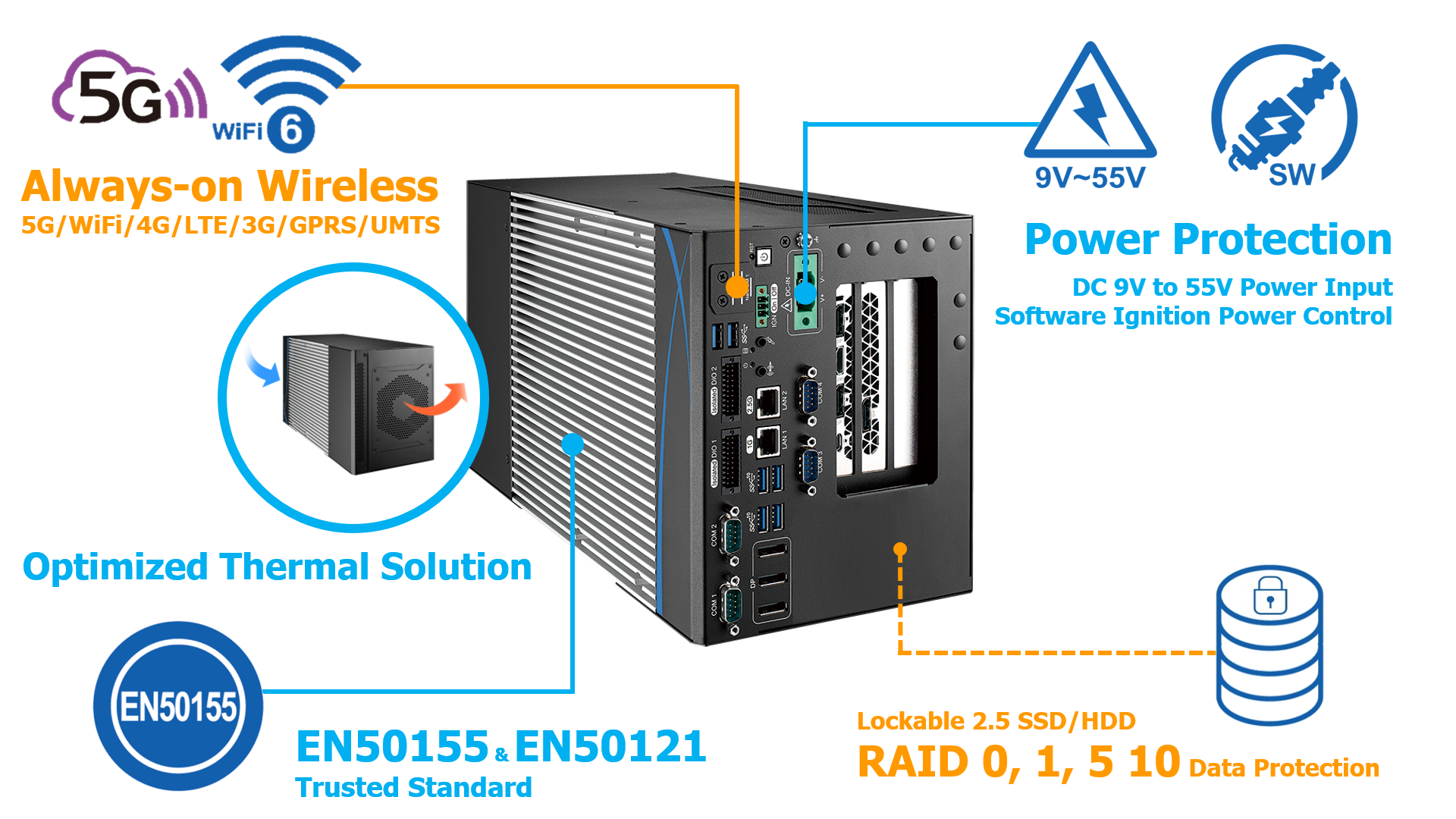

    • DC 9V to 55V wide range power input for versatile industrial and in-vehicle operating environments
    • Software Ignition Control for in-vehicle computing
    • Smart Manageability : vPro, TPM 2.0, PXE, Wake on LAN, Remote Power Switch
    • Anti-shock, Anti-vibration
    • EN50155 and EN50121-3-2 compliant



Overview

    Featuring workstation-grade platform: powered by 11th Generation Intel® Xeon®/Core™ i7/i5 processor (Rocket Lake-S) and running with W580 chipset, Vecow RCX-2000 PEG delivers high-performance computing capability with up to 19% CPU productivity improved. The system is equipped with PCIe x16 slot that supports max 750W power for NVIDIA® or AMD graphics engine and allows for scalability of expansion with 3 PCIe, 2 Mini PCIe, 4 M.2. Vecow RCX-2000 supports 4 DDR4 memory up to 128GB and features max. 7 independent displays with 8K resolution. The brand new RCX-2000 PEG offers a variety of connectivity and supports 9V to 55V DC-in to meet industrial requirements and is ideally suited for High-Speed AOI, 3D Mapping, Rolling Stock and any AIoT/Industry 4.0 applications.

Specifications

System
Processor 11th Gen Intel® Xeon®/Core™ i7/i5 Processor (Rocket Lake-S)
Chipset Intel® W580
BIOS AMI
SIO IT8786E
Memory 4 DDR4 SO-DIMM, up to 128GB (ECC/Non-ECC)
OS Windows 10, Linux
I/O Interface
Serial  4 COM RS-232/422/485
USB
- 6 USB 3.2 Gen2 (External)
- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED HDD, Power
SIM Card  3 External SIM Card Socket
Expansion
Mini PCIe 2 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA
PCIe
3 PCIe x16 Slot :
- 1 PCIe x16 slot with PCIe Gen 4 signal
- 2 PCIe x16 slot with PCIe Gen 3 x4 signal
M.2
- 1 M.2 Key B Socket (2280/3042/3052, PCIe x2/USB3(Default)/USB2)
- 1 M.2 Key E Socket (2230, PCIe x2/USB)
Graphics
Graphics Processor Intel® UHD Graphics P750/750 supports Intel® Iris® Xe Graphics architecture
Interface
Up to 7 independent displays :
- 3 DisplayPort : Up to 4096 x 2304 @60Hz
- By requested Graphics Card
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
M.2
- 1 M.2 Key M Socket (2280, PCIe x4)
- 1 M.2 Key B Socket (2280, PCIe x2, share with expansion)
Storage Device
- 4 Front-access 2.5"SSD/HDD Tray
- 1 M.2 Key M Socket
Audio
Audio Codec Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT
LAN 2 Intel® I225IT 2.5G LAN
Power
Power Input 9V to 55V, DC-in
Power Interface 2-pin Terminal Block : V+, V-
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block
Others
TPM Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension  166.4mm x 208.5mm x 375.0mm (6.55" x 8.21" x 14.76")
Weight 8.1 kg (17.85 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temp. -25°C to 60°C (-13°F to 147°F)
Storage Temp. -25°C to 85°C (-13°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative humidity 95% @60°C
Shock/Vibration
- IEC 61373 : 2010
- Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests
EMC CE, FCC, EN50155, EN50121-3-2
