Applications

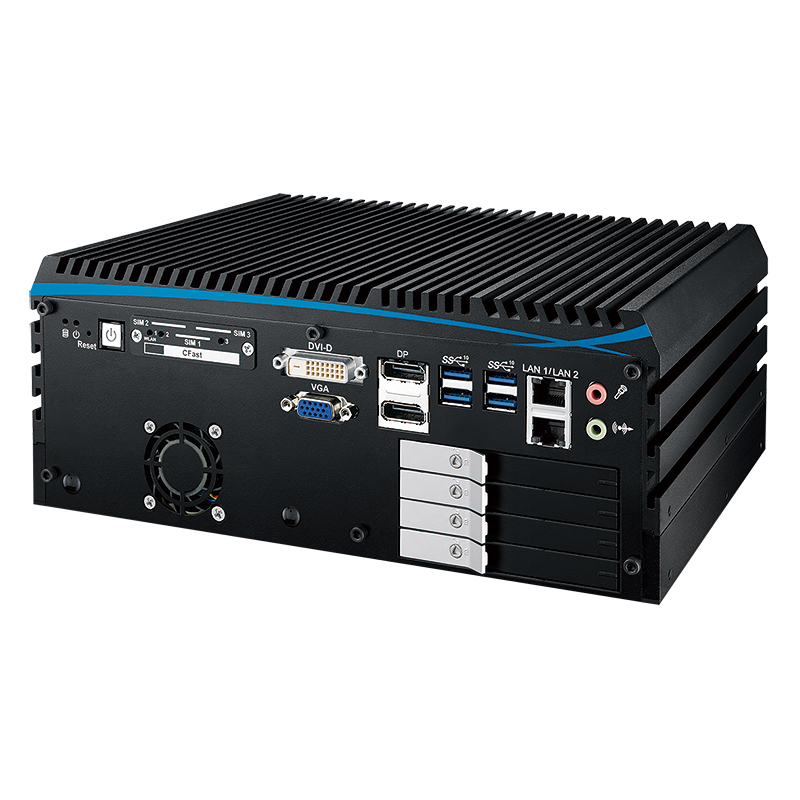

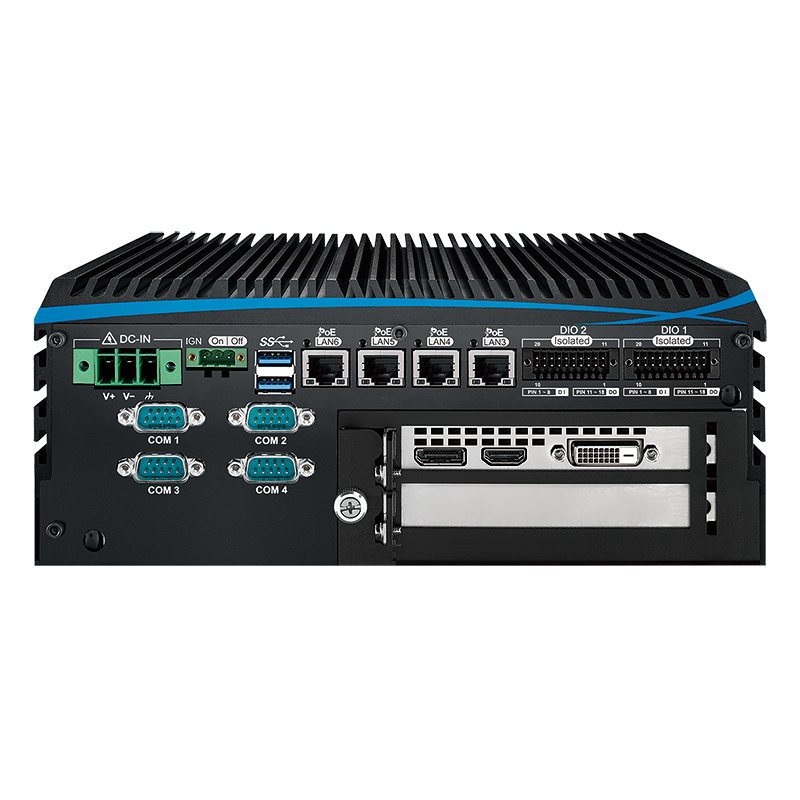

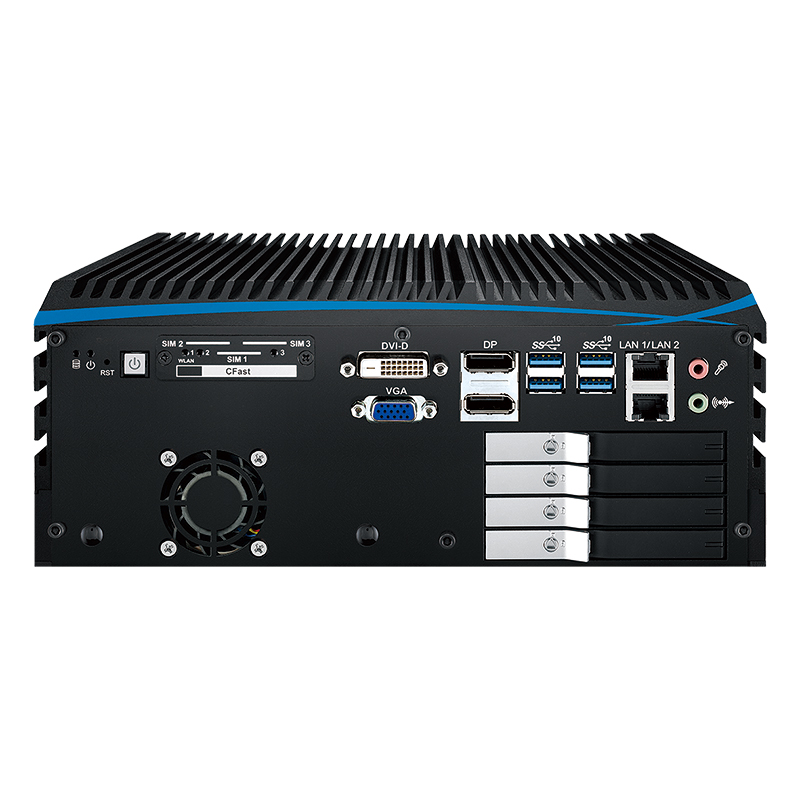

ECX-1410 GTX1050

Features

    • 8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with workstation-grade Intel® C246 Chipset
    • 2 DDR4 2666MHz memory, up to 64GB (ECC/Non-ECC)
    • NVIDIA® GeForce® GTX 1050 graphics engine, NVIDIA Pascal™ GPU architecture, up to 8K resolution
    • 1 VGA, 1 HDMI, 2 DVI and 3 DisplayPort display interfaces, up to 6 independent HD displays
    • Multiple external USB 3.1 Gen 2, up to 10Gbps data transfer
    • 6 independent GigE LAN with 4 IEEE 802.3at PoE+
    • 32 Isolated DIO, 6 USB 3.1, 4 COM RS-232/422/485
    • Storage : 4 2.5" SSD trays, 1 CFast, 1 M.2, 4 SATA III
    • Expansion : 1 PCIe, 2 Mini PCIe/mSATA, 1 M.2
    • 3 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS connectivity
    • 12V to 36V DC Power Input with 80V Surge Protection
    • Configurable Ignition Control




Overview

    Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel® C246 chipset, NVIDIA® GeForce® GTX 1050 graphics engine, supporting NVIDIA® Pascal™ GPU architecture, max 6 independent HD display supporting up to 8K resolution, multiple USB 3.1 Gen 2 interfaces offering 10Gbps data transfer rate, 4 2.5” SSD trays delivering up to 32TB capacity, PCI/PCIe expansion for versatile configurations, smart manageability, industrial-grade reliability. Vecow ECX-1400/1300 GTX1050 Expandable GPU Computing System makes it a great solution for Computer Vision, Facial Recognition, Robotic Control, and Public Surveillance and any real-time AIoT oriented embedded spheres.





Specifications

System
Processor 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)
Chipset Intel® C246
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.1 (External)
- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, PoE, Wireless
SIM Card  3 external SIM sockets
Expansion
Mini PCIe 2 Full-size for PCIe/USB/external SIM/mSATA
PCI/PCIe 1 PCIe slot
M.2 1 M.2 Key E socket
Graphics
Graphics Processor
- Intel® UHD Graphics 630
- NVIDIA® GeForce® GTX 1050
Interface
- 1 VGA : Up to 1920 x 1200 @60Hz
- 1 HDMI : Up to 4096 x 2304 @60Hz
- 2 DVI : Up to 1920 x 1200 @60Hz
- 1 DisplayPort : Up to 7680 x 3840 @60H
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe type, 6Gbps)
M.2 1 M.2 Key B socket
Storage Device
- 1 CFast socket, Push-in/Push-out ejector
- 4 front-access 2.5" SSD/HDD trays
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
PoE
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
Power
Power Input 12V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mmanagement Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension  260mm x 215mm x 104.1mm (10.24" x 8.46" x 4.10")
Weight 5.8 kg (12.79 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail mount (optional)
Environment
Operating Temperature
35W TDP CPU : -20°C to 60°C (-4°F to 140°F)
65W TDP CPU : -20°C to 55°C (-4°F to 131°F)
80W TDP CPU : -20°C to 45°C (-4°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2



Resources

Item File Name Format File Update Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 DM (English) .PDF 2021/5/20 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050カタログ (日本語) .PDF 2021/5/20 Download
ECX-1410 GTX1050 ECX-1400 GTX1050 Datasheet .PDF 2021/3/23 Download
ECX-1410 GTX1050 ECX-1400/1300 User Manual .PDF 2023/6/5 Download
ECX-1410 GTX1050 ECX-1200/1400 Series Monitor UI Quick Guide .PDF 2019/7/9 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 CE Certification .PDF 2019/4/17 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 CE Report .PDF 2019/4/17 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 FCC Report .PDF 2019/4/17 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 FCC Certification .PDF 2019/4/17 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 EN50155 & EN50121-3-2 Certification .PDF 2019/4/17 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 EN50155 & EN50121-3-2 Test Report .PDF 2019/4/17 Download
ECX-1410 GTX1050 ECX-1400/1300 PEG Vibration and Shock Test Report .PDF 2019/7/1 Download
ECX-1410 GTX1050 ECX-1400/1300 PEG High and Low Temperature Test Report .PDF 2019/7/1 Download
ECX-1410 GTX1050 ECX-1400/1300 PEG IEC 61373 Test Report .PDF 2019/7/1 Download
ECX-1410 GTX1050 ECX-1400/1300 Series chipset Driver .ZIP 2019/3/7 Download
ECX-1410 GTX1050 ECX-1400/1300 Series Graphics Driver_001 .ZIP 2019/3/7 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 Driver_001 .ZIP 2019/3/7 Download
ECX-1410 GTX1050 ECX-1400/1300 Series Graphics Driver_002 .ZIP 2019/3/7 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 Driver_002 .ZIP 2019/3/7 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 Driver_003 .ZIP 2019/3/7 Download
ECX-1410 GTX1050 ECX-1400/1300 GTX1050 Driver_004 .ZIP 2019/3/7 Download
ECX-1410 GTX1050 ECX-1400/1300 Series LAN Driver .ZIP 2019/3/7 Download
ECX-1410 GTX1050 ECX-1400/1300 PEG Hardware Monitor UI UM .PDF 2019/12/13 Download
ECX-1410 GTX1050 ECX-1400/1300 PEG Hardware Monitor UI Beta .ZIP 2019/7/9 Download

Inquiry

Product Description Qty
ECX-1410-GTX1050T ECX-1400, NVIDIA® GeForce® GTX 1050 Ti, 6 GigE LAN w/4 PoE+, 4 SSD Tray, 1 PCIe x4 slot, 6 USB 3.1, 4 COM, 3 SIM, 32 Isolated DIO
ECX-1410-GTX1050 ECX-1400, NVIDIA® GeForce® GTX 1050, 6 GigE LAN w/4 PoE+, 4 SSD Tray, 1 PCIe x4 slot, 6 USB 3.1, 4 COM, 3 SIM, 32 Isolated DIO
E-2278GE Intel® Xeon® E-2278GE Processor (16M Cache, up to 4.70 GHz)
E-2278GEL Intel® Xeon® E-2278GEL Processor (16M Cache, up to 3.90 GHz)
E-2226GE Intel® Xeon® E-2226GE Processor (12M Cache, up to 4.60 GHz)
E-2176G Intel® Xeon® E-2176G Processor (12M Cache, up to 4.70 GHz)
E-2124G Intel® Xeon® E-2124G Processor (8M Cache, up to 4.50 GHz)
i7-9700E 9th Gen Intel® Core™ i7-9700E Processor (12M Cache, up to 4.40 GHz)
i7-9700TE 9th Gen Intel® Core™ i7-9700TE Processor (12M Cache, up to 3.80 GHz)
i5-9500E 9th Gen Intel® Core™ i5-9500E Processor (9M Cache, up to 4.20 GHz)
i5-9500TE 9th Gen Intel® Core™ i5-9500TE Processor (9M Cache, up to 3.60 GHz)
i3-9100E 9th Gen Intel® Core™ i3-9100E Processor (6M Cache, up to 3.70 GHz)
i3-9100TE 9th Gen Intel® Core™ i3-9100TE Processor (6M Cache, up to 3.20 GHz)
i7-8700 8th Gen Intel® Core™ i7-8700 Processor (12M Cache, up to 4.60 GHz)
i7-8700T 8th Gen Intel® Core™ i7-8700T Processor (12M Cache, up to 4.00 GHz)
i5-8500 8th Gen Intel® Core™ i5-8500 Processor (9M Cache, up to 4.10 GHz)
i5-8500T 8th Gen Intel® Core™ i5-8500T Processor (9M Cache, up to 3.50 GHz)
i3-8100 8th Gen Intel® Core™ i3-8100 Processor (6M Cache, 3.60 GHz)
i3-8100T 8th Gen Intel® Core™ i3-8100T Processor (6M Cache, 3.10 GHz)
DDR4 32G Certified DDR4 32GB 2666MHz RAM
DDR4 16G Certified DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certified DDR4 8GB 2666/2400/2133 MHz RAM
DDR4 4G Certified DDR4 4GB 2666/2400/2133 MHz RAM
PWA-160WB-WT 160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block (7.62mm pitch), Wide Temperature -30°C to +70°C
PWA-280WB-WT 280W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block (7.62mm pitch), Wide Temperature -30°C to +70°C
PWS-480W-WT 480W, 24V, 90V AC to 305V AC Power Supply, Wide-Temp, IP65
VESA Mount VESA Mounting Kit
DIN-RAIL Kit DIN Rail and VESA Mounting Kit
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
