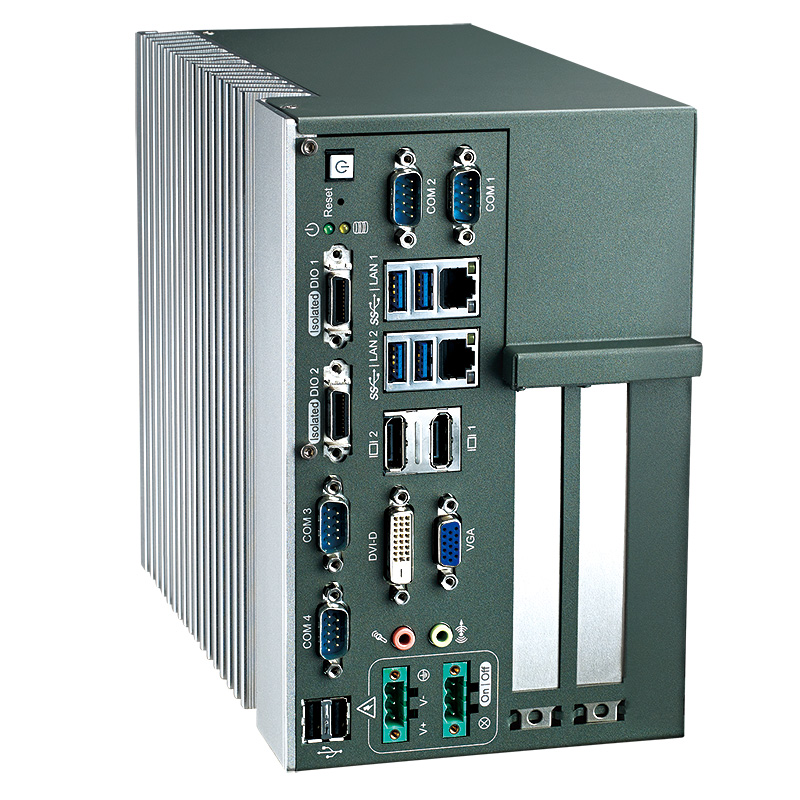

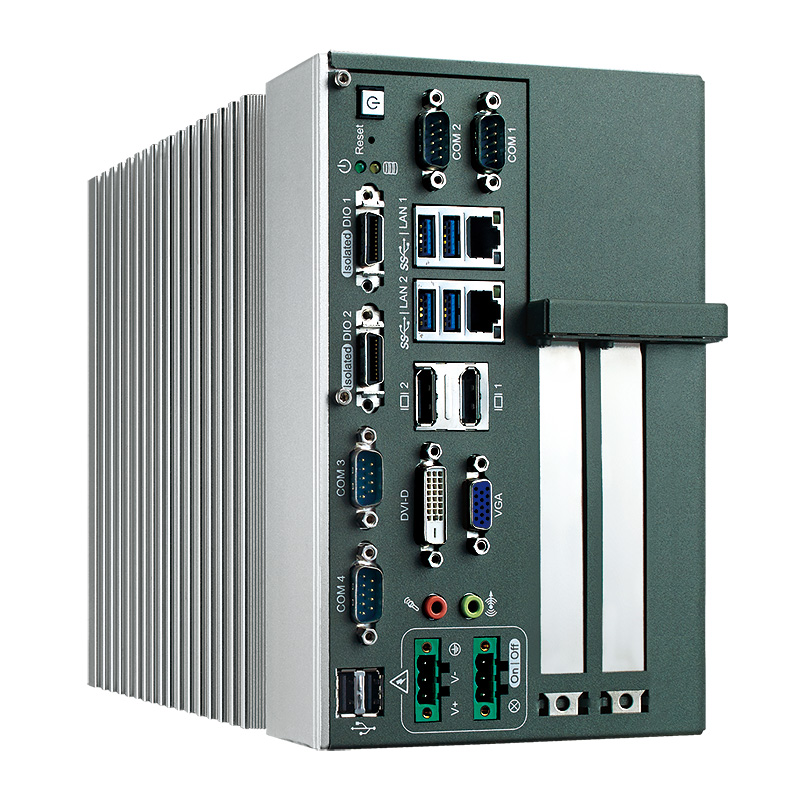

System |
|
Processor |
3rd Generation Intel® Quad Core™ i7/ i5/ i3
Ivy Bridge Processors (6M Cache, up to 3.30 GHz) |
|
Chipset |
Intel® QM77 |
|
BIOS |
AMI |
|
SIO |
IT8783F |
|
Memory |
2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB |
|

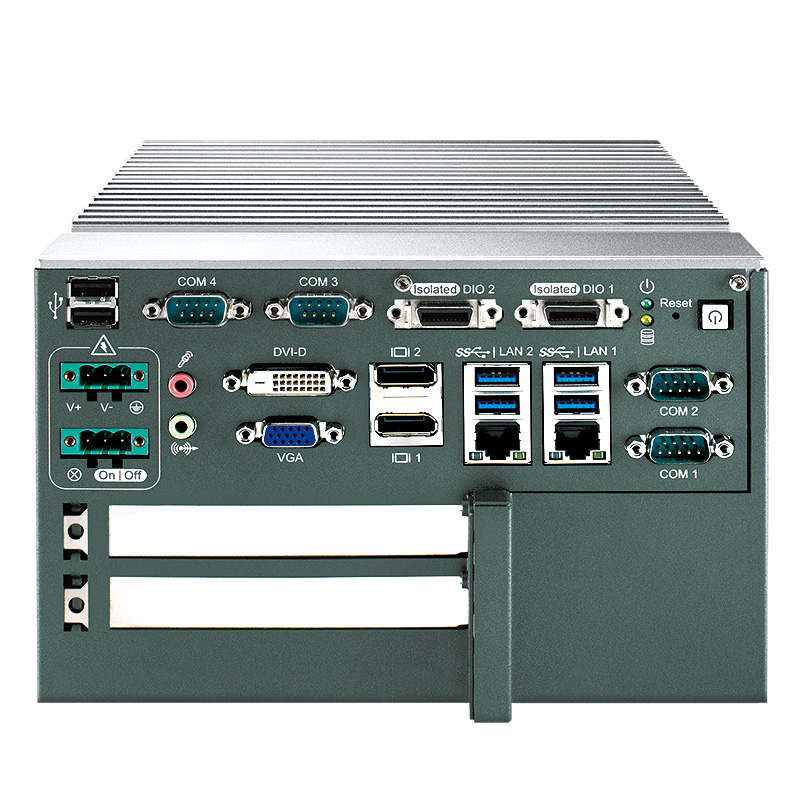

I/O Interface |
|
Serial |
3 COM RS-232, 1 COM RS-232/ 422/ 485 |
|
USB |
4 USB 3.0, 2 USB 2.0, 2 Internal USB 2.0 |
|
Isolated DIO |
32 Isolated DIO : 16 DI, 16 DO |
|
LED |
Power, HDD |
|
GPIO |
16 GPIO (Internal) |
|
Expansion |
|
PCI |
2 PCIe x8 Slot
|
|
Mini PCIe |
2 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card
- 1 Mini PCIe for PCIe/ USB/ mSATA
|
|
Graphics |
|
Chipset |
Intel® HD 4000 |
|
Display Memory |
Shared Memory, up to 1.7GB |
|
Interface |
VGA : DB-15, up to 1920 x 1200
DVI-D : Up to 1920 x 1200
DisplayPort 1 : Up to 2560 x 1600
DisplayPort 2 : Up to 1920 x 1200
LVDS : Dual Channel 24-bit, up to 1920 x 1200 |
|
Storage |
|
SATA |
- 2 SATA III (6Gbps)
- 2 SATA II (3Gbps)
|
|
mSATA |
1 mSATA (Mini PCIe Type, SATA II 3Gbps) |
|
Storage Device |
- 1 CFast Socket, Push-in/ Push-out Ejector (Internal)
- 2 2.5" SSD/ HDD Bracket (Internal)
|
|
Audio |
|
Audio Codec |
Realtek ALC892, 5.1 Channel HD Audio |
|
Audio Interface |
1 Mic-in, 1 Line-out |
|
Ethernet |
|
LAN 1 |
Intel® 82579LM Gigabit LAN supports iAMT 8.0 |
|
LAN 2 |
Intel® 82574L Gigabit LAN |
|
Power |
|
Power Input |
6V to 36V, DC-in |
|
Power Interface |
3-pin Terminal Block : V+, V-, Frame Ground |
|
Remote Switch |
3-pin Terminal Block |
|
Surge Protection |
Up to 80V/1ms Transient Power |
|
Others |
|
Trusted Platform Module (TPM) |
Optional Infineon SLB9635 supports TPM 1.2, LPC Interface |
|
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
|
Smart Management |
Wake on LAN, PXE supported |
|
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
|
Mechanical |
|
Dimensions (W x L x H) |
137mm x 252mm x 210mm (5.4” x 9.9” x 8.3”) |
|
Weight |
3.5 kg (7.7 lb) |
|
Mounting |
Wallmount by Mounting Bracket |
|
Environment |
|
Operating Temperature |
-25°C to 70°C (-13°F to 158°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Humidity |
10% to 95% Humidity, non-condensing |
|
Relative Humidity |
95% at 70°C |
|
Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
|
Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
|
EMC |
CE, FCC |
