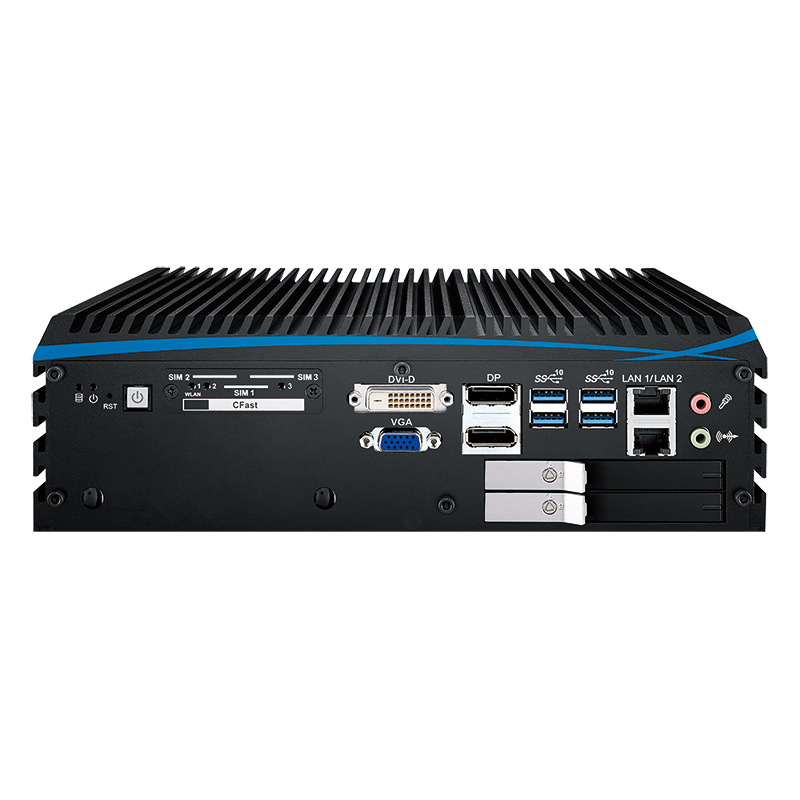

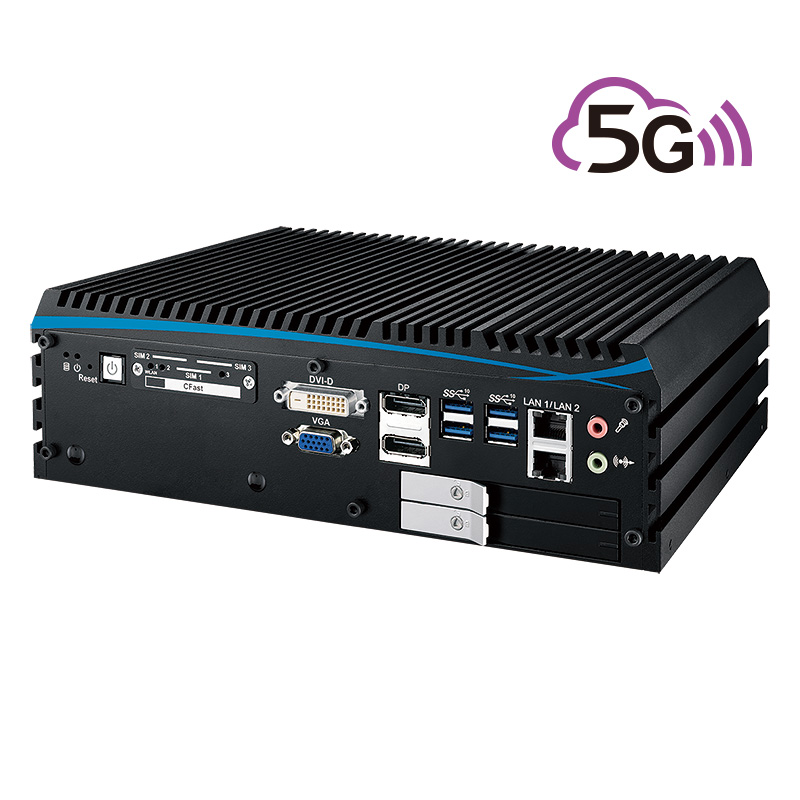

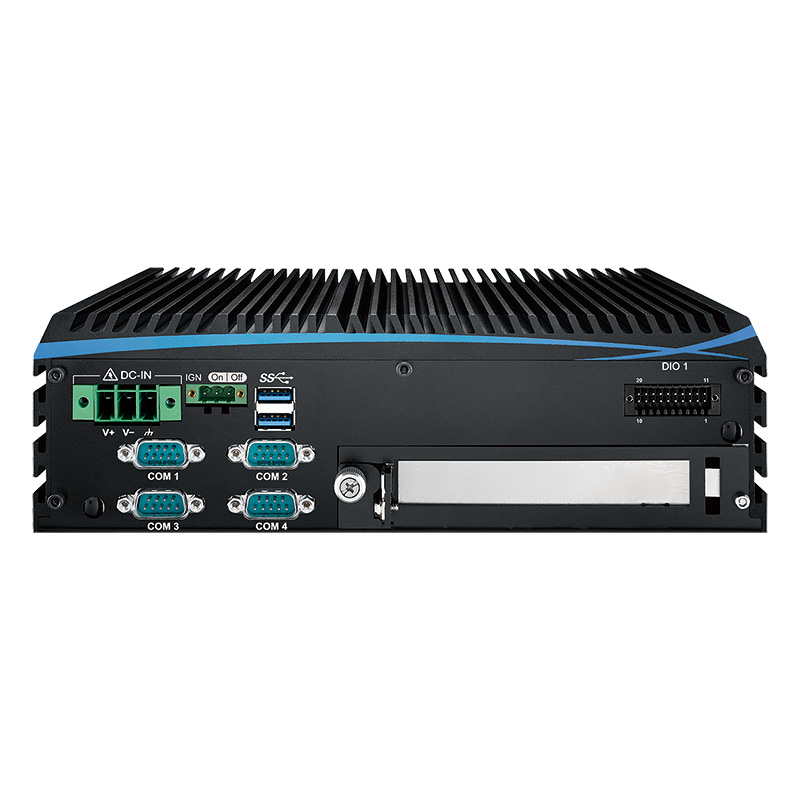

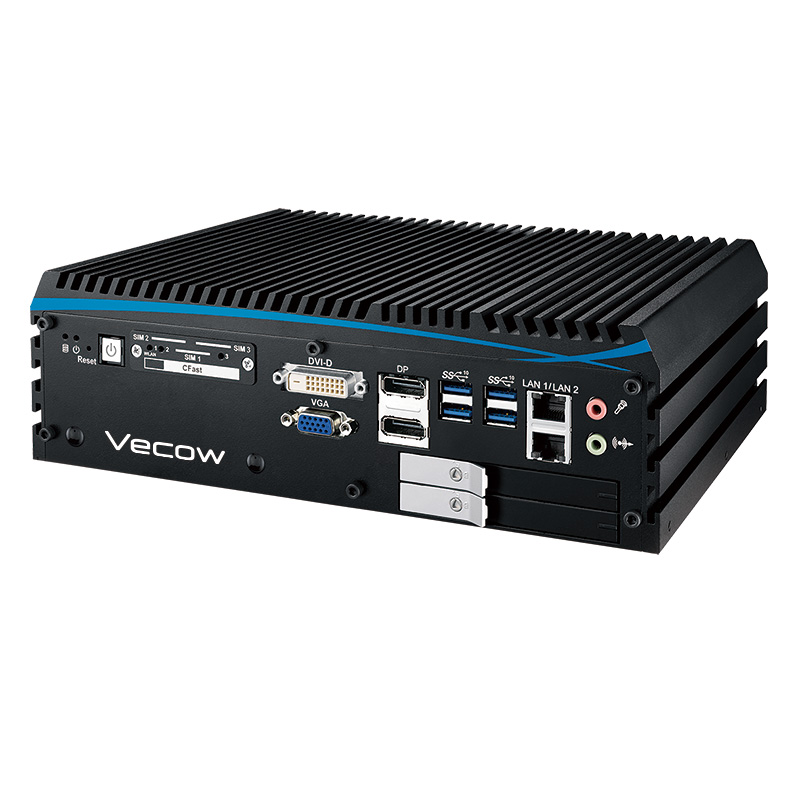

ECX-1110 (I350)

產品特色

    • 8核心第9代/第8代Intel® Xeon®/Core™ i7/i5/i3 處理器與工作站等級Intel® C246 晶片组 (Coffee Lake)
    • 無風扇設計，支援-40°C至75°C作業溫度
    • 第二代USB 3.1介面，支援超高速10Gbps資料傳輸
    • 2個獨立乙太網路介面，支援iAMT 12.0
    • 3個SIM插槽，可支援WiFi、4G、3G、LTE、GPRS、UMTS
    • 6個USB 3.1、4個COM RS-232/422/485、16個GPIO
    • 儲存介面 : 2個2.5吋硬碟抽取槽、2個M.2、1個CFast卡插槽與2個SATA III
    • 擴充介面 : 1個PCIe、2個Mini PCIe/mSATA與1個M.2
    • 最高支援200W供電予PCI/PCIe插槽
    • 6V至36V寬電壓輸入，80V突波保護
    • 延遲開關機控制 (Configurable Ignition Power Control)









    產品亮點

    Worksation-grade Performance

    • 8th Generation Intel® Coffee Lake workstation platform
    • 6 cores Intel® Xeon®/Core i7/i5/i3 processor running with Intel® C246 chipsetl
    • More than 10% system performance enhanced
    • Integrated USB 3.1 supports up to 10Gbps data transfer





    System-oriented Integration

    • Wide range power input with Surge Protection
    • Programmable Ignition Power Control
    • Smart Circuit Protection
    • RAID Data Protection
    • Max 200W power budget for PCIe x16 expansion
    • Smart Manageability : iAMT 12.0, TPM 2.0, PXE, Wake on LAN, Remote Power Switch





    Flexible Configuration

    • 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
    • 3 SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
    • 6 external USB 3.1 supports up to 4 ports 10Gbps USB data transfer
    • Storage : 2 2.5” SSD trays, 1 CFast Socket, 2 M.2 sockets
    • Expansion : 1 PCI/PCIe slots, 2 Mini PCIe/mSATA, 1 M.2, optional SUMIT A, B





    Trusted Reliability

    • Multiple rugged M12 PoE+ connections
    • Fanless -40°C to 75°C Operation
    • 6V to 36V DC-in with 80V Surge Protection
    • Ignition Power Control
    • Anti-shock, Anti-vibration
    • EN50155 & EN50121 compliant



產品簡介

    8核心第9代/第8代Intel® Xeon®/Core™ i7/i5/i3工作站等級Intel® C246 晶片组 (Coffee Lake Refresh/Coffee Lake)，無風扇，-40°C至75°C作業溫度，多重乙太網路介面搭載強固型M12接頭並支援PoE+，多達6個USB 3.1插槽 (10Gbps)，PCI/PCIe擴充介面支援額外獨立顯卡及PoE卡，外部SIM插槽支援WiFi、4G、3G、LTE、GPRS、UMTS等網路環境，6V 至36V寬電壓輸入並具80V突波保護，支援遠端電源切換功能和特殊開關機電源模式切換功能 (Ignition Power Control)，確保嚴峻環境中的作業穩定度。超恩ECX-1200/1100系列可擴充強固型無風扇嵌入式系統，是您規劃機器視覺、軌道交通、工廠自動化、智慧交通、智慧自動化和任何工業級AI相關嵌入式應用時的優先選擇。





產品規格

System
Processor 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)
Chipset Intel® C246 chipset
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.1 (External)
- 1 USB 2.0 (Internal)
GPIO  16 GPIO
LED Power, HDD, Wireless
SIM Card  3 external SIM sockets
Expansion
Mini PCIe 2 full-size Mini PCIe sockets for PCIe/USB/external SIM/mSATA
PCI/PCIe 1 PCIe x16 slot
M.2 1 M.2 Key E Socket (2230, PCIe/USB)
SUMIT A, B 2 SUMIT slots (Optional)
Graphics
Graphics Processor Intel® UHD Graphics 630
Interface
- VGA : Up to 1920 x 1200 @60Hz
- DVI-D : Up to 1920 x 1080 @60Hz
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 2 SATA III (Mini PCIe type, 6Gbps)
M.2
- 1 M.2 Key M Socket (2280, PCIe x4/SATA)
- 1 M.2 Key B Socket (2280, PCIe/SATA/USB2)
Storage Device
- 1 CFast socket, Push-in/Push-out ejector
- 2 front-access 2.5" SSD/HDD trays
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
Power
Power Input 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x L x H) 260mm x 215mm x 79mm (10.24" x 8.46" x 3.11")
Weight 4.5 kg (9.92 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail mount (Optional)
Environment
Operating Temperature
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
