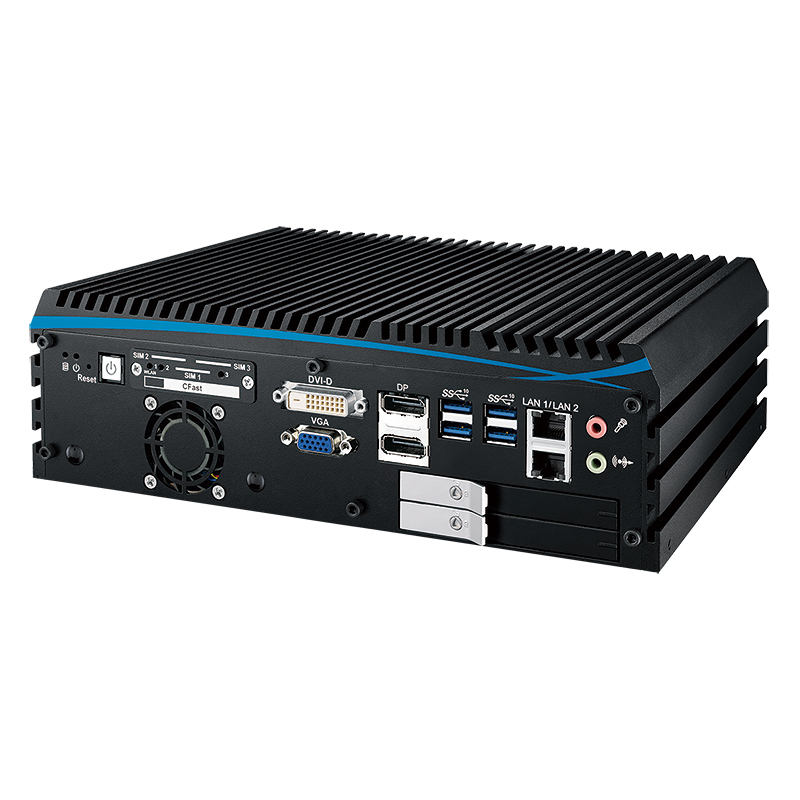

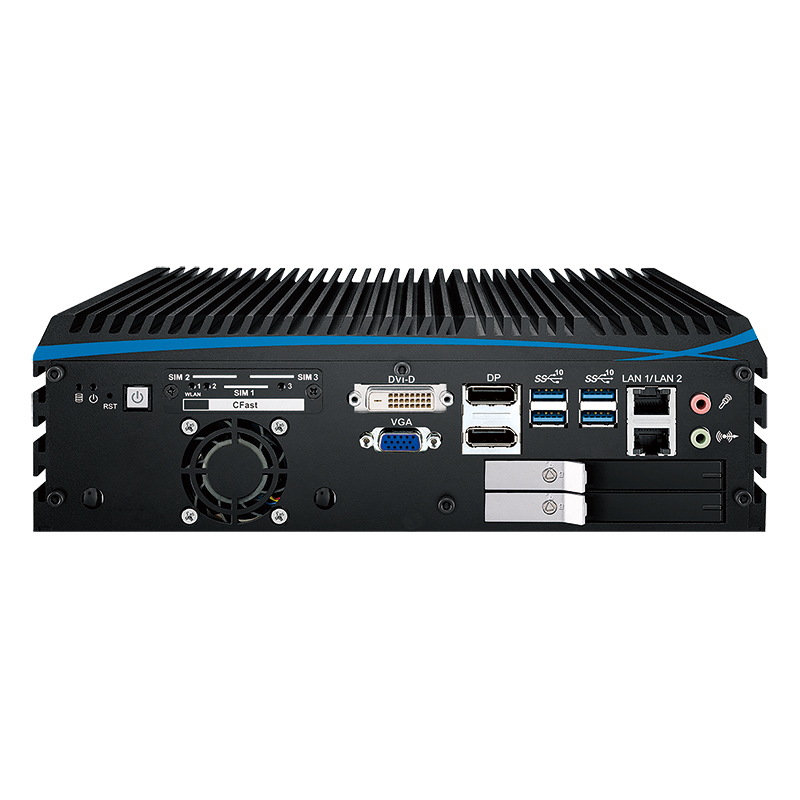

ECX-1100 GTX1050

Features

    • 8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset
    • 2 DDR4 2666MHz memory, up to 64GB (ECC/Non-ECC)
    • NVIDIA® GeForce® GTX 1050 graphics engine, NVIDIA Pascal™ GPU architecture, up to 8K resolution
    • 1 VGA, 1 HDMI, 2 DVI and 3 DisplayPort interfaces, up to 6 independent HD displays
    • Multiple external USB 3.1 Gen 2, up to 10Gbps data transfer
    • 6 USB 3.1, 2 independent GigE LAN, 4 COM RS-232/422/485
    • Storage : 2 2.5" SSD trays, 1 CFast, 2 M.2, 2 SATA III
    • Expansion : 2 Mini PCIe/mSATA, 1 M.2
    • 3 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
    • 12V to 36V DC Power Input with 80V Surge Protection
    • Configurable Ignition Control






    Feature Highlights

    Excellent Performance

    • Workstation-grade Platform : 6-core Intel Xeon/Core i7/i5/i3 + Intel C246 chipset (Coffee Lake)
    • Advanced GPU Computing : NVIDIA GeForce GTX 1070/1050 graphics engine, NVIDIA Pascal GPU Architecture, max 1920 CUDA Cores Computing, up to 8K Resolution
    • High-speed System Operation : USB 3.1 (10G), PCIe 3.0 (8GT/s), SATA III (6G), USB 3.0 (5G), PoE+ (1G), GigE LAN (1G)
    • Integrated USB 3.1 Gen 2 supports up to 10Gbps data transfer



    Leading Integration

    • Intel Coffee Lake + NVIDIA GTX 10 Series GPU, max 7 independent displays
    • 6 independent GigE LAN with 4 IEEE 802.3at PoE+
    • Supports multiple WiFi/4G/3G/LTE/GPRS/UMTS
    • Storage: 4 2.5” SSD trays, CFast socket, M.2
    • 6 external USB 3.1 support up to 4-port 10Gbps USB data delivery
    • Expansion: Mini PCIe/mSATA, M.2, optional PCI/PCIe Slot



    Secured Operation

    • RAID 0, 1, 5, 10 Data Protection
    • 12V to 36 V DC-in with 80V Surge Protection
    • 32 Isolated DIO
    • 16-mode Ignition Power Control
    • Remote Power Switch
    • Smart Manageability : iAMT 12.0, TPM 2.0, PXE, Wake on LAN



    Trusted Reliability

    • -20°C to 60°C wide-range operating temperature
    • Smart Circuit Protection
    • Smart Power Protection
    • Smart Data Protection
    • Always-on non-stop wireless data transfer
    • Anti-shock, Anti-vibration
    • EN50155, EN50121-3-2 compliant

Overview

    Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), workstation-grade Intel® C246 chipset, compact NVIDIA® GeForce® GTX 1050 graphics engine supporting NVIDIA Pascal™ GPU architecture, max 6 independent HD displays supporting up to 8K resolution, multiple USB 3.1 Gen 2 interfaces offering 10Gbps data transfer rate, M.2 storage sockets delivering fast data transfer speed, smart manageability, industrial-grade reliability. Vecow ECX-1200 GTX1050 GPU Computing System plays a major role in Autonomous Machines, Computer Visions, Robotic Control, Facial Recognition, and any modern real-time AIoT oriented embedded sectors.




Specifications

System
Processor 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)
Chipset Intel® C246
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.1 (External)
- 1 USB 2.0 (Internal)
GPIO 16 GPIO
LED Power, HDD, Wireless
SIM Card  3 external SIM sockets
Expansion
Mini PCIe 2 Full-size for PCIe/USB/external SIM/mSATA
M.2 1 M.2 Key E socket
Graphics
Graphics Processor
- Intel® UHD Graphics 630
- NVIDIA® GeForce® GTX 1050 Ti/GTX 1050
Interface
- 1 VGA :  Up to 1920 x 1200 @60Hz
- 1 HDMI : Up to 4096 x 2304 @60Hz
- 2 DVI : Up to 1920 x 1200 @60Hz
- 1 DisplayPort : Up to 7680 x 3840 @60H
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 2 SATA III (Mini PCIe type, 6Gbps)
M.2
- 1 M.2 Key M socket
- 1 M.2 Key B socket
Storage Device
- 1 CFast socket, Push-in/Push-out ejector
- 2 front-access 2.5" SSD/HDD trays
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN

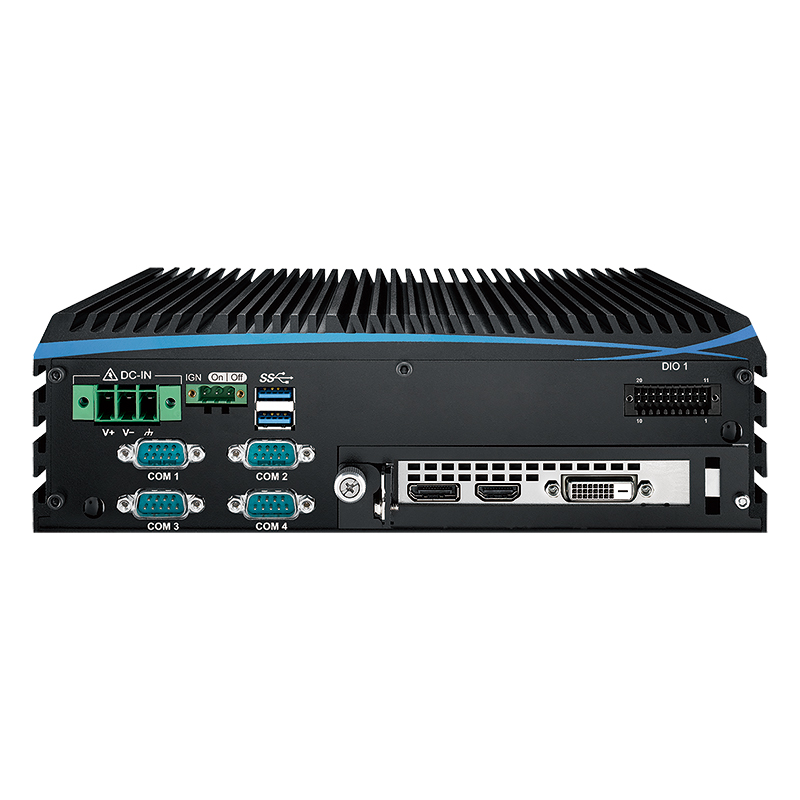

Power
Power Input 12V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension  260mm x 215mm x 79mm (10.24" x 8.46" x 3.11")
Weight 4.8 kg (10.58 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail mount (optional)
- 2U Rackmount (optional)
Environment
Operating Temperature
35W TDP CPU : -20°C to 60°C (-4°F to 140°F)
65W TDP CPU : -20°C to 55°C (-4°F to 131°F)
80W TDP CPU : -20°C to 45°C (-4°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
