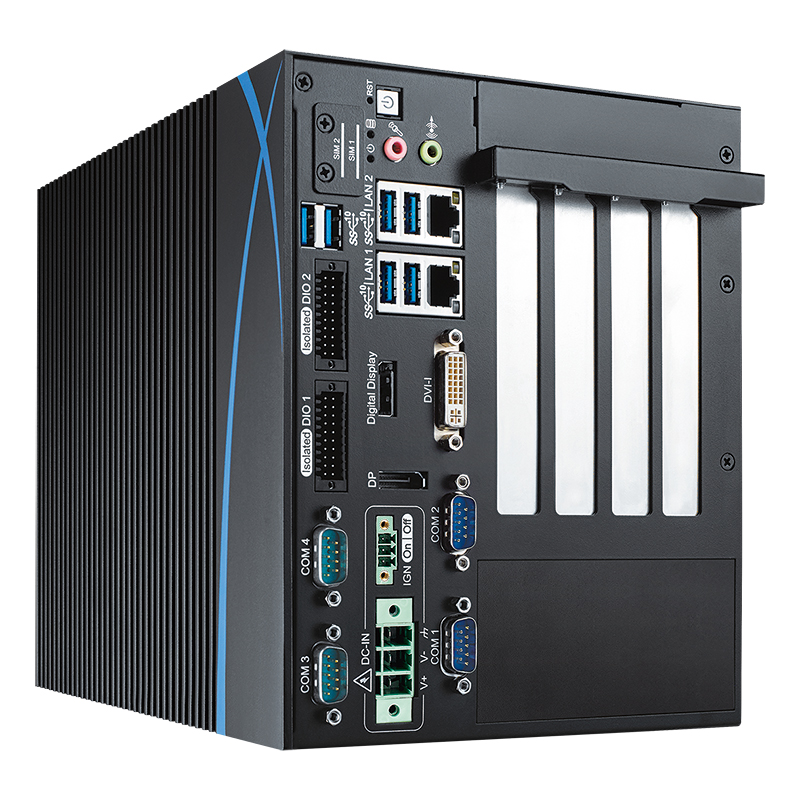

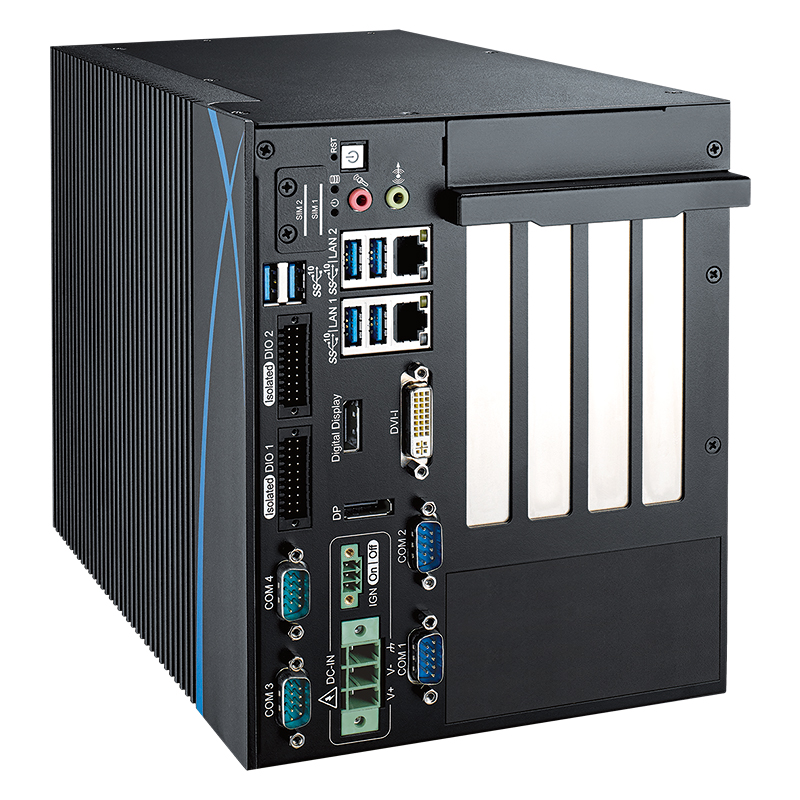

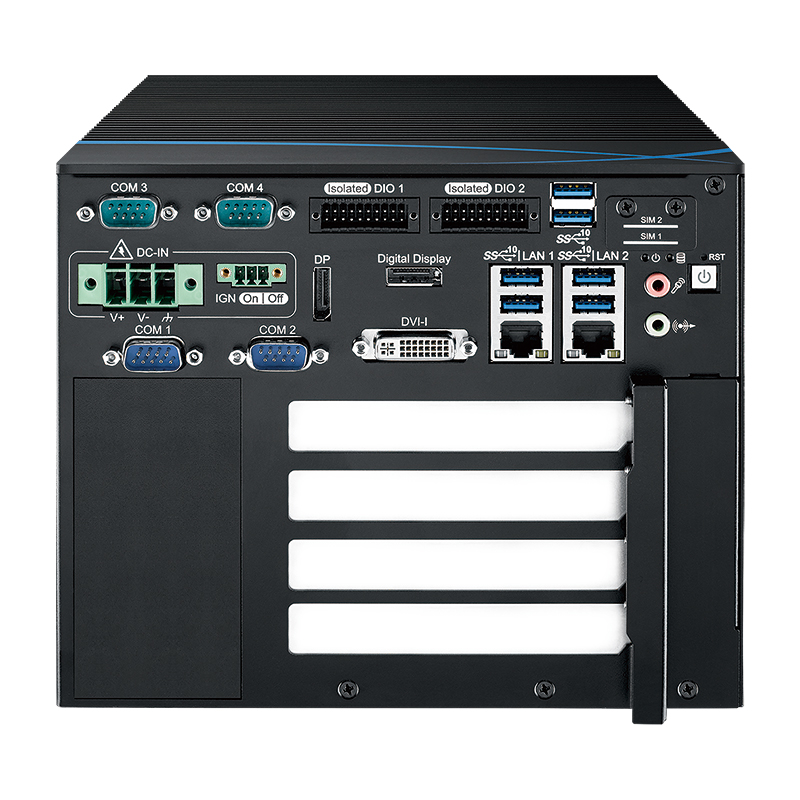

RCX-1400

Features

    • 8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset
    • 4 DDR4 2666MHz memory, up to 128GB (ECC/Non-ECC)
    • 6 ports external USB 3.1 Gen 2 support up to 10Gbps data transfer
    • Rugged & Fanless design, -40°C to 75°C operating temperature
    • Multiple DVI-I and DisplayPort display interface, up to 3 independent HD displays
    • 2 independent GigE LAN, iAMT 12.0 supported
    • 2 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
    • 4 PCI/PCIe slots, max 300W Power Budget for independent graphics operation
    • 32 Isolated DIO, 4 COM RS-232/422/485
    • 2 M.2 sockets : 1 M.2 Key M, 1 M.2 Key E
    • 6V to 36V DC Power Input with 80V Surge Protection
    • Configurable Ignition Power Control





    Feature Highlights

    Leading Performance

    • Workstation-grade Platform : 6-core Intel® Xeon®/Core i7/i5/i3 processor running with Intel® C246 chipset (Coffee Lake)
    • 4 SO-DIMM sockets, up to 128 GB DDR4 memory (ECC/Non-ECC), 4 times system productivity
    • High-speed System Peration : USB 3.1 Gen 2 (10G), PCIe 3.0 (8GT/s), SATA III (6G), GigE LAN (1G)
    • Integrated USB 3.1 Gen 2 supports up to 10Gbps data transfer



    Versatile Configurations

    • Triple independent displays : DVI, HDMI & DisplayPort, max 4K resolution
    • Dual independent GigE LAN, 6 external 10G USB 3.1 Gen 2
    • 2 SIM sockets for multiple WiFi/4G/3G/LTE/GPRS/UMTS
    • 32 Isolated DIO, 4 COM RS-232/422/485
    • Stoage : 4 front-access 2.5" SSD trays, 1 M.2
    • Expansion : 4 PCI/PCIe slots, 2 Mini PCIe/mSATA, 1 M.2



    Optimized Integration

    • Max 300W power budget for PCIe x16 expansion
    • Wide range power input with Surge Protection
    • Programmable Ignition Power Control
    • Smart Circuit Protection
    • Smart Manageability : iAMT 12.0, TPM 2.0, PXE, Wake on LAN, Remote Power Switch
    • User-friendly Installation & Maintenance



    Trusted Reliability

    • RAID 0, 1, 5, 10 Data Protection
    • Fanless -40°C to 75°C operation
    • 6V to 36V DC-in with 80V Surge Protection
    • 16-mode Ignition Power Control
    • Always-on non-stop wireless data transfer
    • Anti-shock, Anti-vibration
    • EN50155 & EN50121-3-2 compliant



Overview

    Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel® C246 chipset, 2 GigE LAN support iAMT 12.0, multiple PCI/PCIe expansion slots, 4 front-access SSD trays, 2 SIM sockets, 6 USB 3.1 Gen 2 sockets, 2 M.2 slots, 4 COM RS-232/422/485, 32 Isolated DIO, rugged, high-performance, flexible, expandable, max 300W power budget for independent graphics operation, Fanless -40°C to 75°C operating temperature, Vecow RCX-1000 Fanless Robust Computing System is your rugged solution for Machine Vision, Deep Learning, Robotic Control, Intelligent Surveillance, Factory Automation and any performace-driven embedded applications in harsh environments.



Specifications

System
Processor 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)
Chipset Intel® C246 chipset
BIOS AMI
SIO IT8786E
Memory 4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.1 Gen 2 (External)
- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, wireless
SIM card  2 external SIM sockets
Expansion
Mini PCIe 2 Full-size Mini PCIe sockets for PCIe/USB/external SIM/mSATA
PCI/PCIe 4 PCI/PCIe expansion slots
M.2 1 M.2 Key E Socket (2230, PCIe x2/USB)
Graphics
Graphics Processor Intel® UHD graphics 630
Interface
- 1 DVI-I : Up to 1920 x 1080 @60Hz
- 1 DisplayPort : Up to 4096 x 2304 @60Hz
- 1 Digital Display (HDMI) : Up to 1920 ×1080 @60Hz
Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe type, 6Gbps)
Storage Device
- 1 M.2 Key M Socket (2280, PCIe x4/SATA)
- 4 2.5" SSD/HDD brackets
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
Power
Power Input 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension  250.4mm x 210.0mm x 172.0mm (9.86" x 8.27" x 6.77")
Weight
4.6 kg (10.1 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature
35W TDP CPU : -40°C to 75°C (-40°F to 167°F)
65W TDP CPU : -40°C to 55°C (-40°F to 131°F)
80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 75°C
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
