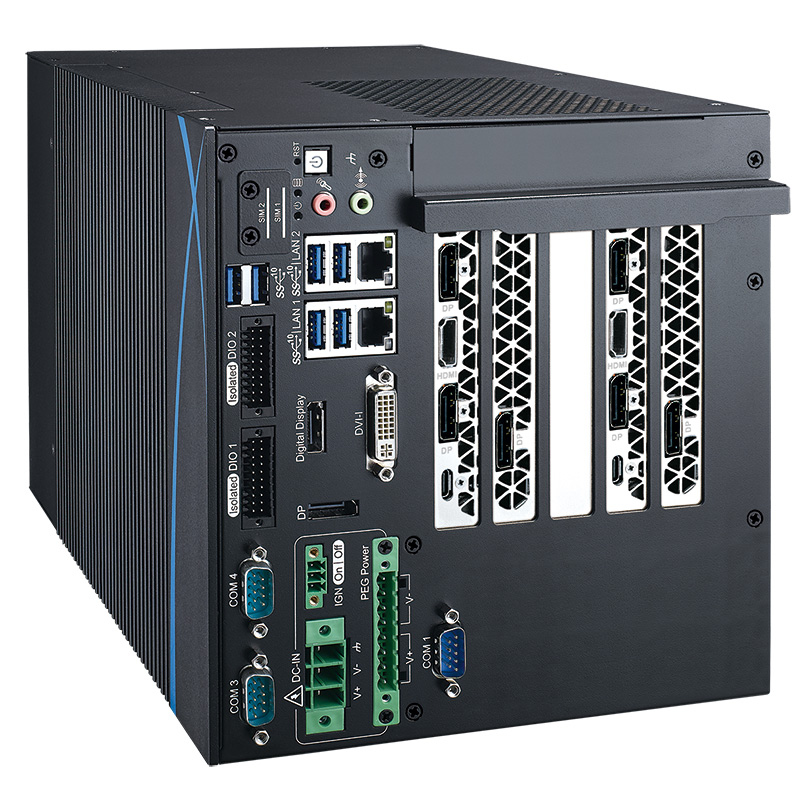

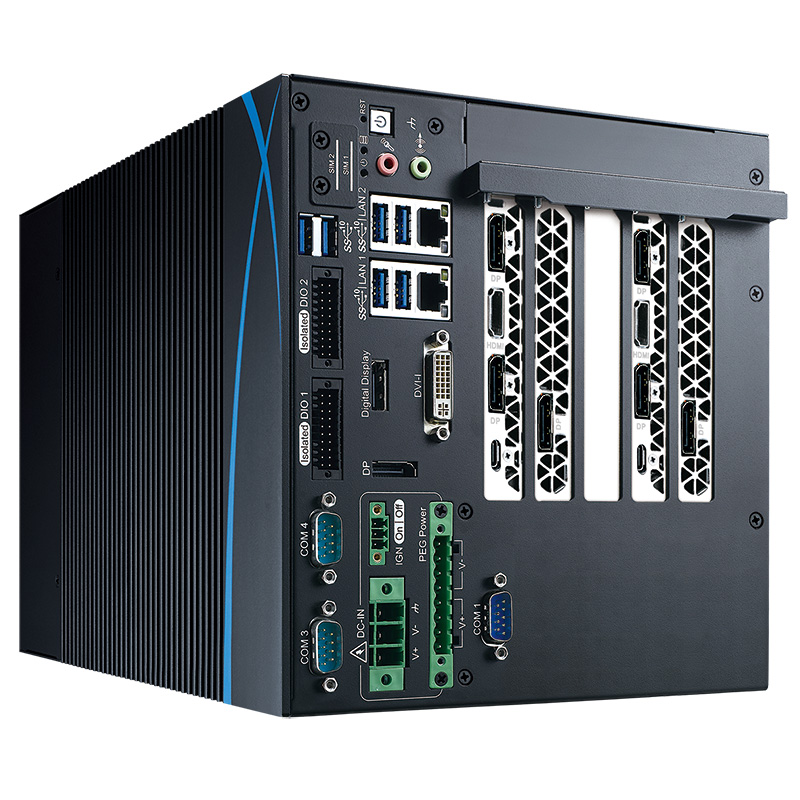

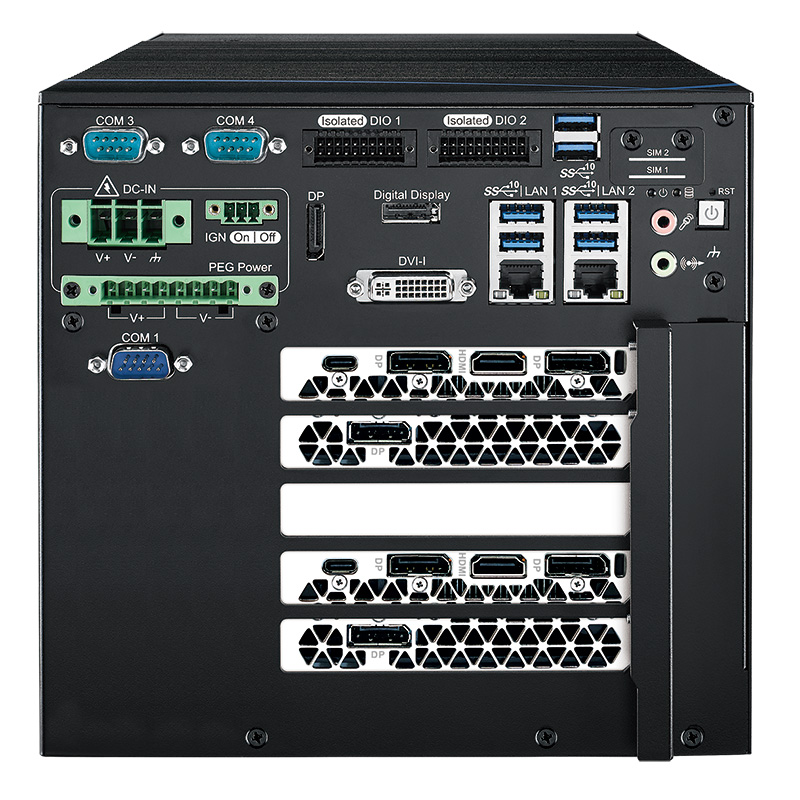

RCX-1500 RTX2080D

Features

    • 8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset
    • 4 DDR4 2666MHz memory, up tp 128GB (ECC/Non-ECC)
    • 6 External 10G USB 3.1 Gen 2, up to 10Gbps SuperSpeed data transfer
    • Powered by advanced NVIDIA Turing™ GPU architecture and all-new RTX platform, dual NVIDIA® GeForce RTX™ series graphics engine supports up to 6X the performance of previous generation graphics cards for real-time AI computing
    • 11 Independent displays: 1 DVI, 2 HDMI, and 8 DisplayPort, up to 8K resolution
    • 2 Independent GigE LAN support iAMT 12.0
    • 2 External SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
    • 32 Isolated DIO,3 COM RS-232/422/485
    • 2 M.2 Socket: 1 M.2 Key M, 1 M.2 Key E
    • Support wide range power input with 80V Surge Protection
    • Configurable Ignition Power Control






Overview

    Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel® C246 chipset, max 4352 CUDA® cores dual NVIDIA® GeForce RTX™ series graphics engine supports new generation NVIDIA Turing™ GPU architecture, up to 8K resolution and 600% graphics performance enhanced than the former generation graphics engine. Featuring leading performance, system-oriented integration, multiple 10G USB 3.1 Gen 2 connections, 2 SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS, 2 M.2 expansion, Isolated DIO, smart manageability, 6V to 36V power input with 80V surge protection, ignition power control. Vecow RCX-1500 RTX Series GPU Computing System is your new generation solution for AI Computing applications.



Specifications

System
Processor 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)
Chipset Intel® C246 Chipset
BIOS AMI
SIO IT8786E
Memory 4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC)
I/O Interface
Serial  3 COM RS-232/422/485 (ESD 8KV)
USB
- 6 USB 3.1 Gen 2 (External)
- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card  2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Key E Socket
Graphics
Graphics Processor - Intel® UHD graphics 630
- Independent Graphics 1：NVIDIA® GeForce RTX™ 2080 Graphics
- Independent Graphics 2：NVIDIA® GeForce RTX™ 2080 Graphics
Interface
11 independent displays :
- 1 DVI : Up to 1920 x 1200 @60Hz
- 6 DisplayPort : Up to 7680 x 3840 @60Hz
- 1 DisplayPort : Up to 4096 x 2304 @60Hz
- 1 Digital Display : Up to 4096 x 2304 @60Hz
- 2 HDMI : Up to 4096 x 2160 @60Hz
Storage
SATA 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe type, 6Gbps)
Storage Device
- 4 Front-access 2.5" SSD/HDD Tray
- 1 M.2 Key M Socket
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
Power
Power Input
- 6V to 36V DC-in
- 12V PEG Power
Power Interface
DC-in: 3-pin Terminal Block: V+, V-, Frame Ground
PEG Power: 8-pin Terminal Block: 4V+, 4V-
Ignition Control 16 mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x L x H) 350.0mm x 210.0mm x 198.2mm (13.78" x 8.27" x 7.80")
Weight 9.3 kg (20.50 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 45°C
Shock/Vibration
- IEC 61373 : 2010
- Railway Applications : Rolling Stock Equipment, Shock and Vibration Test
EMC CE, FCC, EN50155, EN50121-3-2



Resources

Item File Name Format File Update Download
RCX-1500 RTX2080D RCX-1500 PEG User Manual .PDF 2024/8/1 Download
RCX-1500 RTX2080D RCX-1000 Series CE Report .PDF 2019/6/26 Download
RCX-1500 RTX2080D RCX-1000 Series FCC Certification .PDF 2019/6/26 Download
RCX-1500 RTX2080D RCX-1000 Series FCC Report .PDF 2019/6/26 Download
RCX-1500 RTX2080D RCX-1000 Series CE and EN50155 & EN50121-3-2 Certification .PDF 2019/6/26 Download
RCX-1500 RTX2080D RCX-1000 Series EN50155 & EN50121-3-2 Test Report .PDF 2019/6/26 Download
RCX-1500 RTX2080D RCX-1500 PEG Vibration and Shock Test Report .PDF 2019/7/22 Download
RCX-1500 RTX2080D RCX-1500 PEG High and Low Temperature Test Report .PDF 2019/7/22 Download

Inquiry

Product Description Qty
RCX-1500 RTX2080D RCX-1500, Dual NVIDIA® GeForce RTX™ 2080, 2 GigE LAN, 6 10G USB 3.1 Gen 2, 3 COM, 2 SIM, 2 M.2, 32 Isolated DIO
E-2278GE Intel® Xeon® E-2278GE Processor (16M Cache, up to 4.70 GHz)
E-2278GEL Intel® Xeon® E-2278GEL Processor (16M Cache, up to 3.90 GHz)
E-2226GE Intel® Xeon® E-2226GE Processor (12M Cache, up to 4.60 GHz)
E-2176G Intel® Xeon® E-2176G Processor (12M Cache, up to 4.70 GHz)
E-2124G Intel® Xeon® E-2124G Processor (8M Cache, up to 4.50 GHz)
i7-9700E 9th Gen Intel® Core™ i7-9700E Processor (12M Cache, up to 4.40 GHz)
i7-9700TE 9th Gen Intel® Core™ i7-9700TE Processor (12M Cache, up to 3.80 GHz)
i5-9500E 9th Gen Intel® Core™ i5-9500E Processor (9M Cache, up to 4.20 GHz)
i5-9500TE 9th Gen Intel® Core™ i5-9500TE Processor (9M Cache, up to 3.60 GHz)
i3-9100E 9th Gen Intel® Core™ i3-9100E Processor (6M Cache, up to 3.70 GHz)
i3-9100TE 9th Gen Intel® Core™ i3-9100TE Processor (6M Cache, up to 3.20 GHz)
i7-8700 8th Gen Intel® Core™ i7-8700 Processor (12M Cache, up to 4.60 GHz)
i7-8700T 8th Gen Intel® Core™ i7-8700T Processor (12M Cache, up to 4.00 GHz)
i5-8500 8th Gen Intel® Core™ i5-8500 Processor (9M Cache, up to 4.10 GHz)
i5-8500T 8th Gen Intel® Core™ i5-8500T Processor (9M Cache, up to 3.50 GHz)
i3-8100 8th Gen Intel® Core™ i3-8100 Processor (6M Cache, 3.60 GHz)
i3-8100T 8th Gen Intel® Core™ i3-8100T Processor (6M Cache, 3.10 GHz)
DDR4 32G Certified DDR4 32GB 2666MHz RAM
DDR4 16G Certified DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certified DDR4 8GB 2666/2400/2133 MHz RAM
DDR4 4G Certified DDR4 4GB 2666/2400/2133 MHz RAM
PWA-160WB-WT 160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block (7.62mm pitch), Wide Temperature -30°C to +70°C
PWS-700W-12V 700W, 12V, 90V AC to 264V AC Power Supply
PWS-1500W-12V 1500W, 12V, 90V AC to 264V AC Power Supply
FAN Sink Fan Sink for RCX-1000 Series
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
