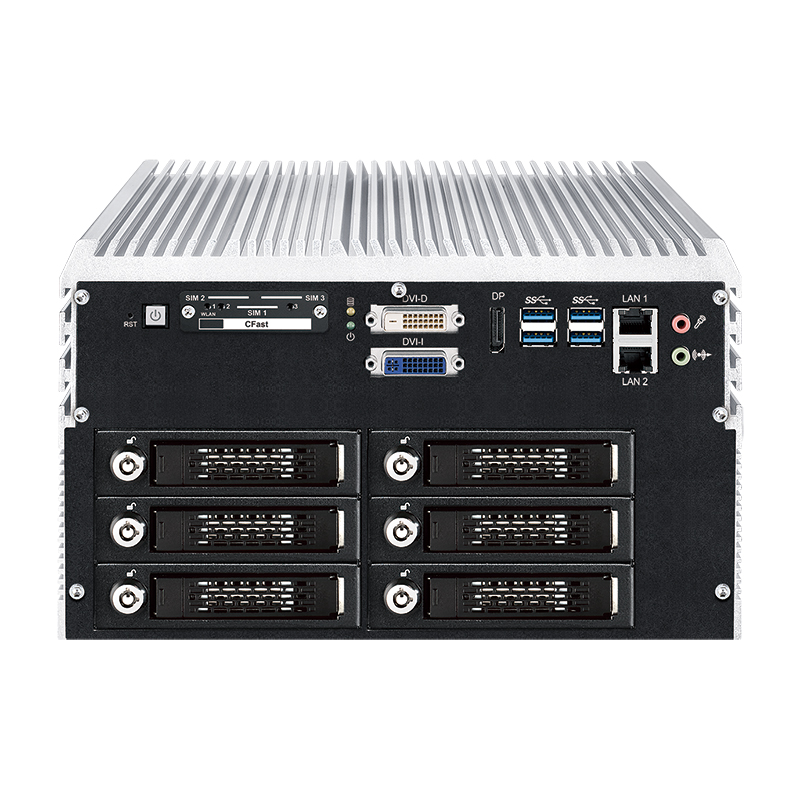

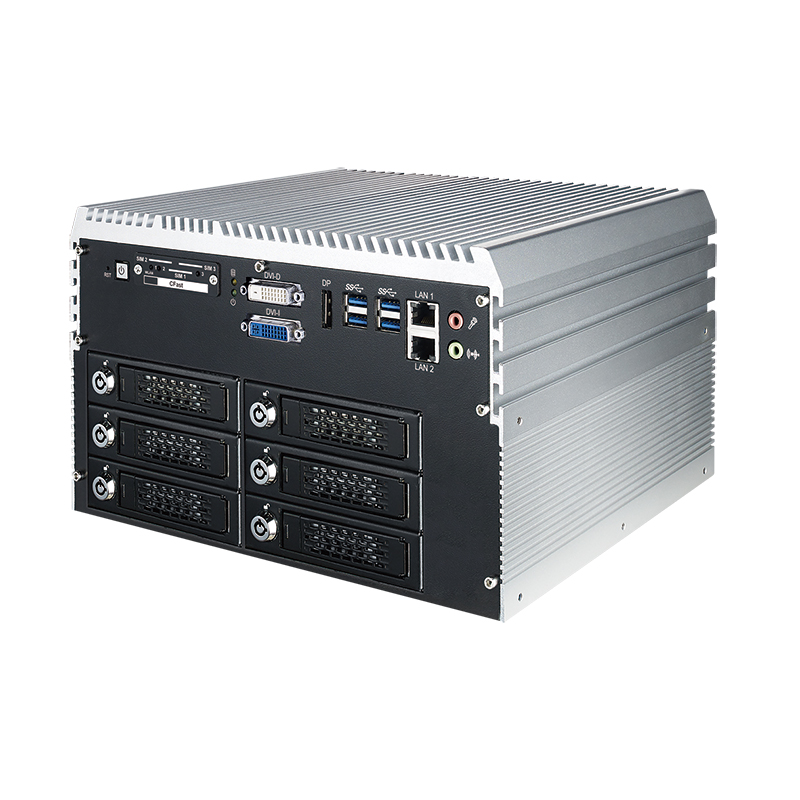

IVH-9204MX ICY

Features

    • LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake/Skylake) with Intel® C236 Chipset
    • 6 Independent GigE LAN with 4 X-coded M12 IEEE 802.3at PoE+
    • 16V to 160V DC Power Input with 4kV DC Isolation, up to 500V Surge Protection
    • 6 front-access 7mm to 15mm height SSD/HDD Tray, up to 24TB
    • 2 DDR4 2400MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
    • Fanless design for railway in-vehicle applications, fully compliant with EN50155
    • -40°C to 55°C Extended Operating Temperature

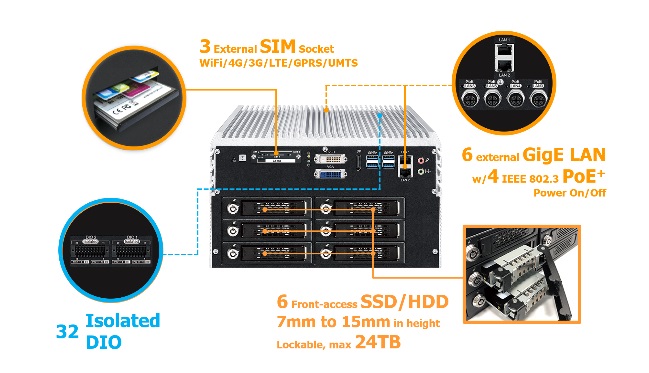

    • 32 Isolated DIO, 8 USB 3.0, 4 COM, 2 Mini PCIe, 6 SATA
    • Triple independent displays : DVI-I, DVI-D and DisplayPort, up to 4K resolution
    • Configurable Ignition Power Control, UPS supported
    • 3 External SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
    • EN50155, EN50121-3-2 and EN45545-2 compliant







    Feature Highlights

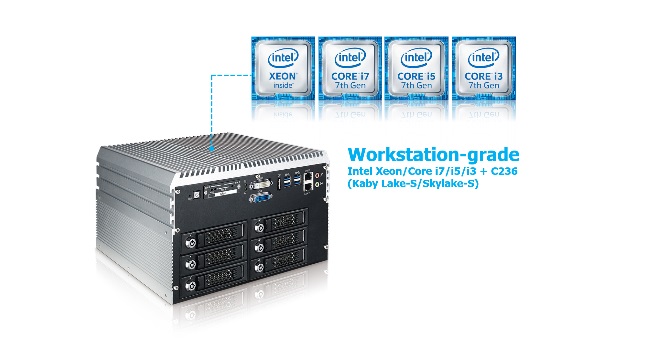

       Workstation-grade Performance
    • Workstation-grade Platform : Quad-core Intel Xeon/Core i7/i5/i3 processor (Kaby Lake/Skylake) + Intel C236 chipset
    • 2 SO-DIMM sockets, up to 64GB DDR4 memory (ECC/Non-ECC)
    • Intel HD Graphics 630/530, max 4K resolution
    • High-speed data transfer : PCIe 3.0 (8GT/s), SATA III (6G), USB 3.0 (5G), GigE LAN (1G)



       Integrated Operation
    • Flexible Socket Type CPU
    • Triple independent displays : DVI-I, DVI-D & DisplayPort, up to 4K Resolution
    • 6 independent GigE LAN with 4 IEEE 802.3at (25.5W/48V) PoE+, Power On/Off Control
    • 6 Front-access 7mm to 15mm in height SSD/HDD trays, up to 24TB capacity
    • 8 external USB 3.0, 4 external COM RS-232/422/485
    • 3 external SIM sockets, 1 external CFast socket
    • Smart System Management : iAMT 11.0, TPM 2.0, PXE, Wake on LAN, Remote Power Switch

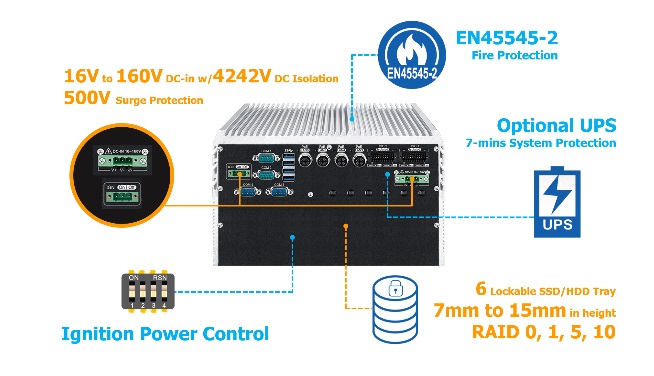

       Leading Protection
    • EN45545-2 Fire Protection
    • 16V to 160V Wide Range DC Power Input with 4kV DC Isolation
    • 500V DC 8/20us Surge Protection
    • Rugged & Lockable 15mm SSD/HDD trays, RAID 0, 1, 5, 10 Data Protection
    • Ignition Power Control
    • Smart Power, Data and Circuit Protection
    • Optional UPS, 7 minutes system protection

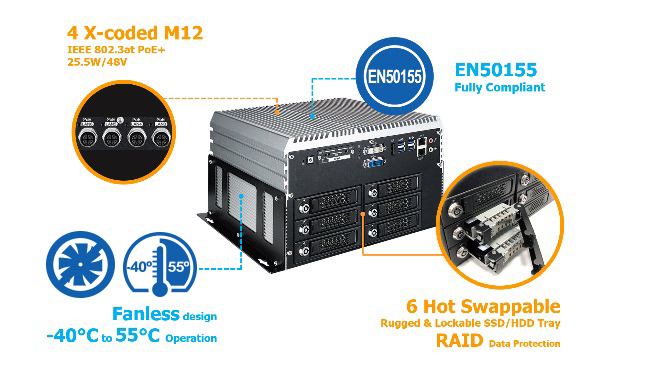

       Rugged Reliability
    • Fanless design, -40°C to 55°C Operation
    • Fully EN50155 Compliant
    • Always-on Mobile Wireless : WiFi/4G/3G/LTE/GPRS/UMTS
    • X-coded M12 connections
    • Hot swappable SSD/HDD trays
    • Anti-shock, Anti-vibration
    • EN50121-3-2 compliant

Overview

    Powered by workstation-grade 6th/7th Generation Your Reliable Partner on All-in-One In-Vehicle Solutions – VecowIntel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake-S/Skylake-S) engine, fanless -40°C to 55°C operating temperature, all-in-one integrated features, excellent system performance, 6 front-access 2.5" SSD trays support up to 24TB and RAID 0, 1, 5, 10 data protection, 6 independent GigE LAN with 4 X-coded M12 IEEE 802.3at PoE+, 3 external SIM sockets for outstanding mobile availability, variety of expansion features, smart manageability, 16V to 160V power input with 500V surge protection, ignition power control, intelligent circuit protection and rugged reliability, Vecow IVH-9204MX ICY Series In-Vehicle Fanless System is your performance-driven solution for Advanced Driver Assistance System (ADAS), In-vehicle Surveillance, Mobile In-vehicle Communication, Passenger Information System (PIS), Pantograph Inspection and any AIoT/Industry 4.0 applications.





Specifications

System
Processor Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Kake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2400/2133 MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB
- 8 USB 3.0 (External)
- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless, PoE
SIM Card  3 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size Mini PCIe sockets for PCIe/USB/External SIM Card/mSATA
Graphics
Graphics Processor Intel® HD Graphics 630/530
Interface
Triple Independent displays：
- DVI-I : Up to 1920 x1200 @ 60 Hz
- DVI-D : Up to 1920 x1200 @ 60Hz
- DisplayPort : Up to 4096 x 2304 @ 60Hz
Storage
SATA 6 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
- 1 CFast Socket, Push-in/Push-out Ejector
- 6 Front-access 2.5" SSD/HDD Tray (15mm in height)
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
PoE (X-coded M12)
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ (X-coded M12) by Intel® I210 with Power On/Off Control
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ (X-coded M12) by Intel® I210 with Power On/Off Control
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ (X-coded M12) by Intel® I210 with Power On/Off Control
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ (X-coded M12) by Intel® I210 with Power On/Off Control
Power
Power Input 16V to 160V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block：On, Off, IGN
Isolation 4kV DC
Surge Protection 0.5kV DC 8/20us Surge
UPS(UPM-100) Optional supports 3 stackable 18650 LFO Batteries (1.1mA/h)
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H) 260mm x 215mm x 155mm (10.24”x 8.46”x 6.10”)
Weight 6.0 kg (13.23 lb)

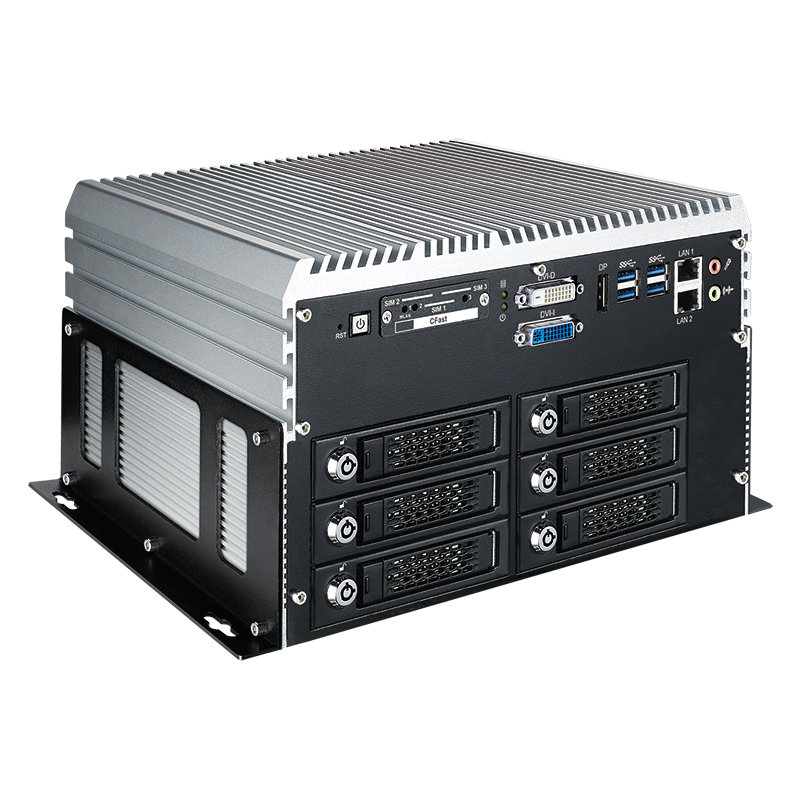

Mounting Wallmount by mounting bracket
Environment
Operating Temperature
IVH-9204MX ICYU/IVH-9204MX ICY4U：
0°C to 40°C (32°F to 104°F)
IVH-9204MX ICY/IVY-9204MX ICY４：
35W TDP CPU：-40°C to 55°C (-40°F to 131°F)
65W/80W TDP CPU : -40°C to 45°C (-40°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 55°C
Shock
- IEC 60068-2-27, IEC 61373
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64, IEC 61373
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Certification CE, FCC, EN50155, EN50121-3-2, EN45545-2
