ECX-4000

Features

    • Intel® Core™ Ultra 200S Series processor (Arrow Lake) running with Intel® W880 PCH features accelerated hybrid computing performance, supporting up to 24 cores
    • Intel® Integrated NPU and Xᵉ LPG Graphics Architecture optimize system workload and AI Acceleration, delivering up to 36 TOPS and 2X graphics performance
    • 2 DDR5 6400MHz Memory supports up to 96GB, optional with ECC

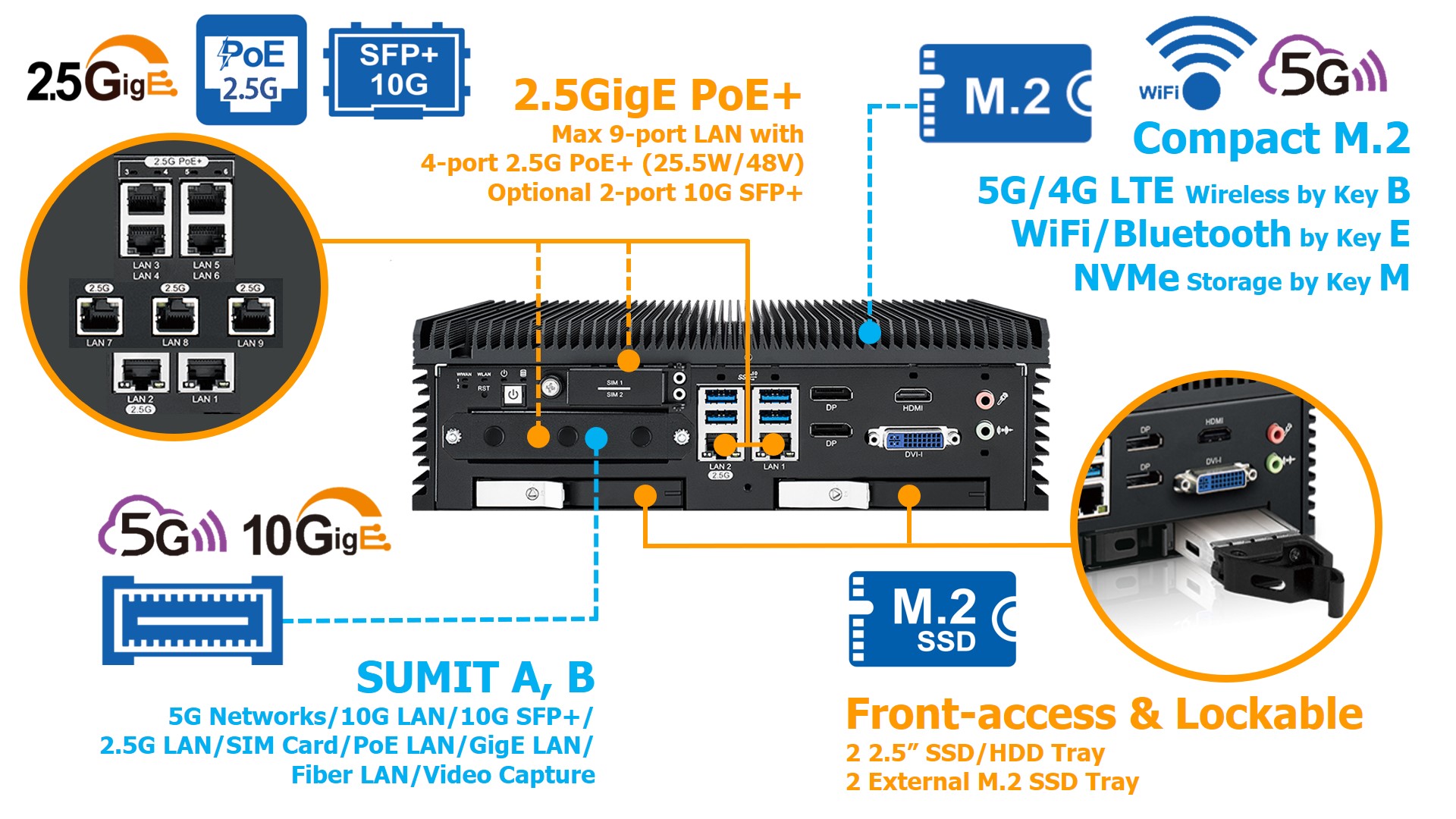

    • 2 10G SFP+, 5 2.5GigE LAN with 4 PoE+, 1 GigE LAN
    • 6 USB 3.2 Gen 2, 16 Isolated DIO, 4 COM RS-232/422/485
    • 2 front-access 2.5" SSD Tray, optional M.2 SSD Tray
    • Expansion: 2 M.2 Key B, 1 Key E, SUMIT A, B
    • Wireless connection: 5G/WiFi 7/BT/4G/LTE/GPRS/UMTS
    • DC 9V to 50V Redundant Power Input, Software Ignition Control
    • Supports Intel® vPro, TSN, TCC, and TPM 2.0
    • Optional VHub AIoT Solution Service supports OpenVINO™ Toolkit for Edge AI applications

Overview

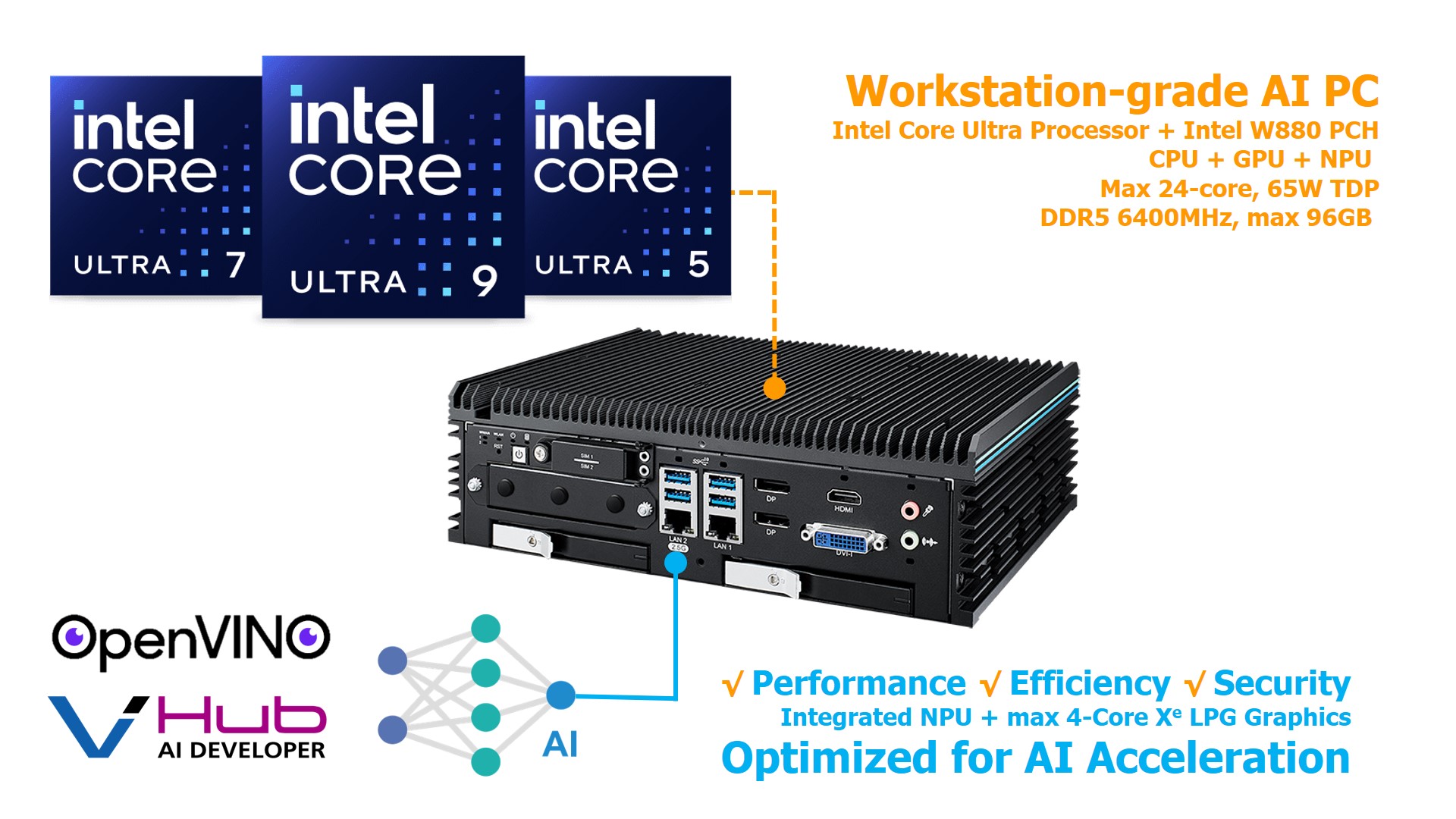

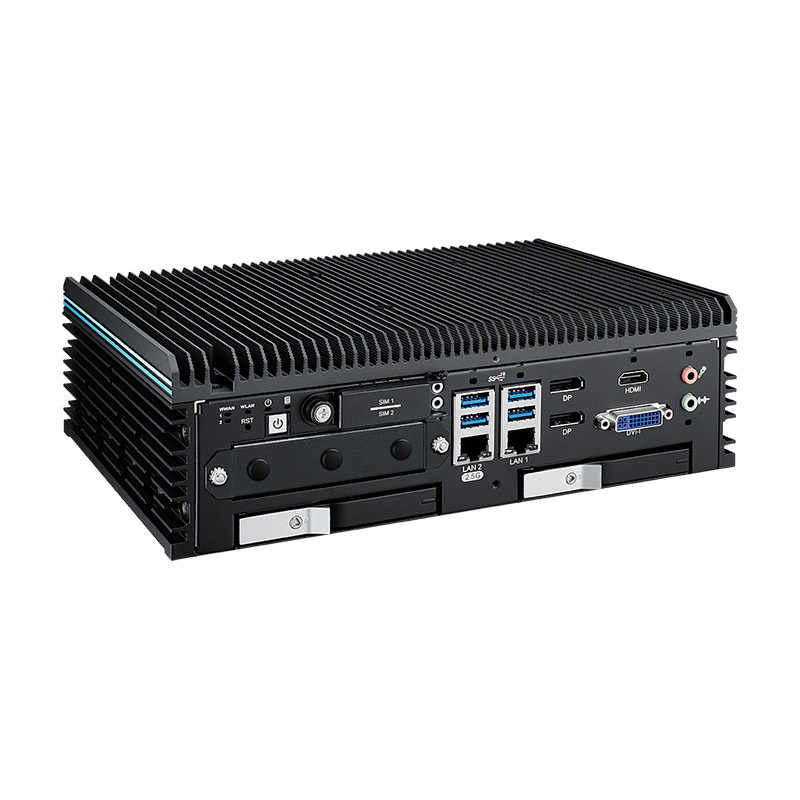

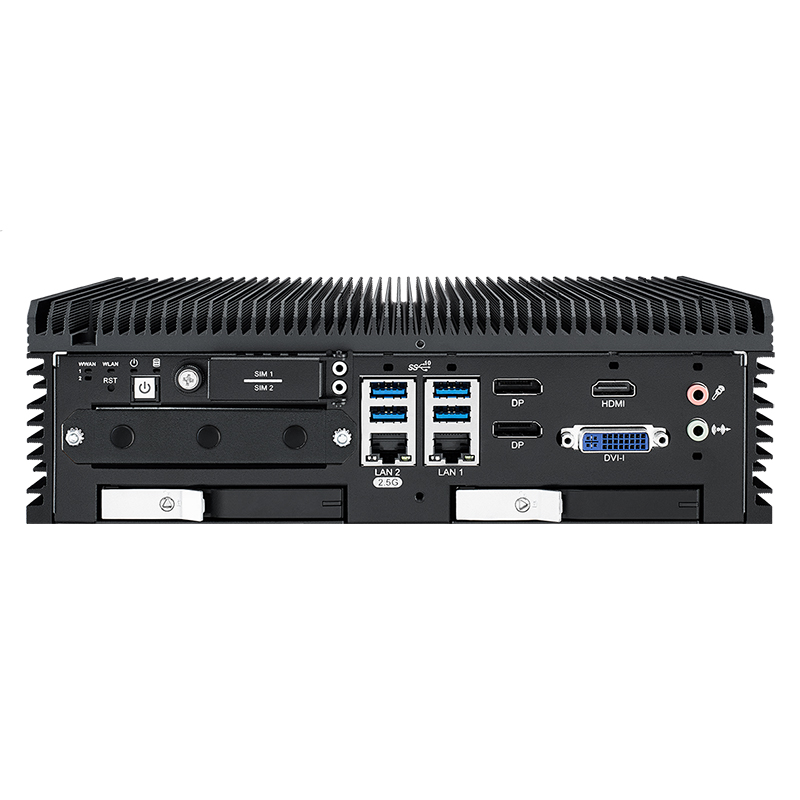

    The Vecow ECX-4000 is a high-performance fanless AI computing system designed to meet the demands of modern edge AI applications. Powered by the Intel® Core™ Ultra 200S Series processor (Arrow Lake) and Intel® W880 PCH, the system leverages Intel’s advanced hybrid architecture, which combines P-cores and E-cores for up to 24 cores, an integrated NPU for AI acceleration and Intel® Xᵉ LPG Graphics. These capabilities make the ECX-4000 ideal for use cases such as in-vehicle computing, intelligent logistics, public security, and industrial AI deployments.

    The ECX-4000 supports dual DDR5 memory with a capacity of up to 96 GB and offers an extensive array of I/O interfaces, including 4 COM ports, 6 USB 3.2 Gen2 ports, 2 external SIM card sockets, and versatile Ethernet options such as 10G SFP+, 2.5G, 2.5G PoE+, and 1G LAN, ensuring robust connectivity for diverse deployment scenarios.

    In addition, the ECX-4000 supports a wide-range 9V to 50V redundant power input and advanced software-controlled ignition power management. These enhancements ensure reliable performance across a variety of demanding industrial applications.



Specifications

System
Processor Intel® Core™ Ultra 200S Series processors, 65W/35W, max 24-core (Arrow Lake-S)
Chipset Intel® W880 Chipset
BIOS AMI
SIO IT8786E
Memory 2 DDR5 6400MHz CSODIMM, up to 96GB (ECC/Non-ECC)
OS Windows 11, Windows 10, Linux
I/O Interface

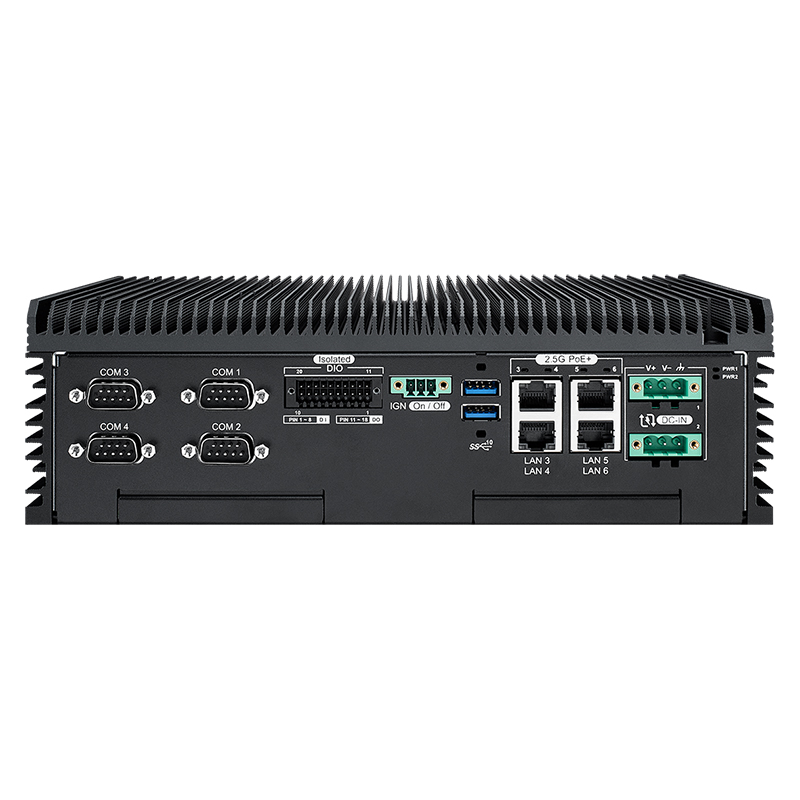

Serial  4 COM RS-232/422/485
USB 6 USB 3.2 Gen 2

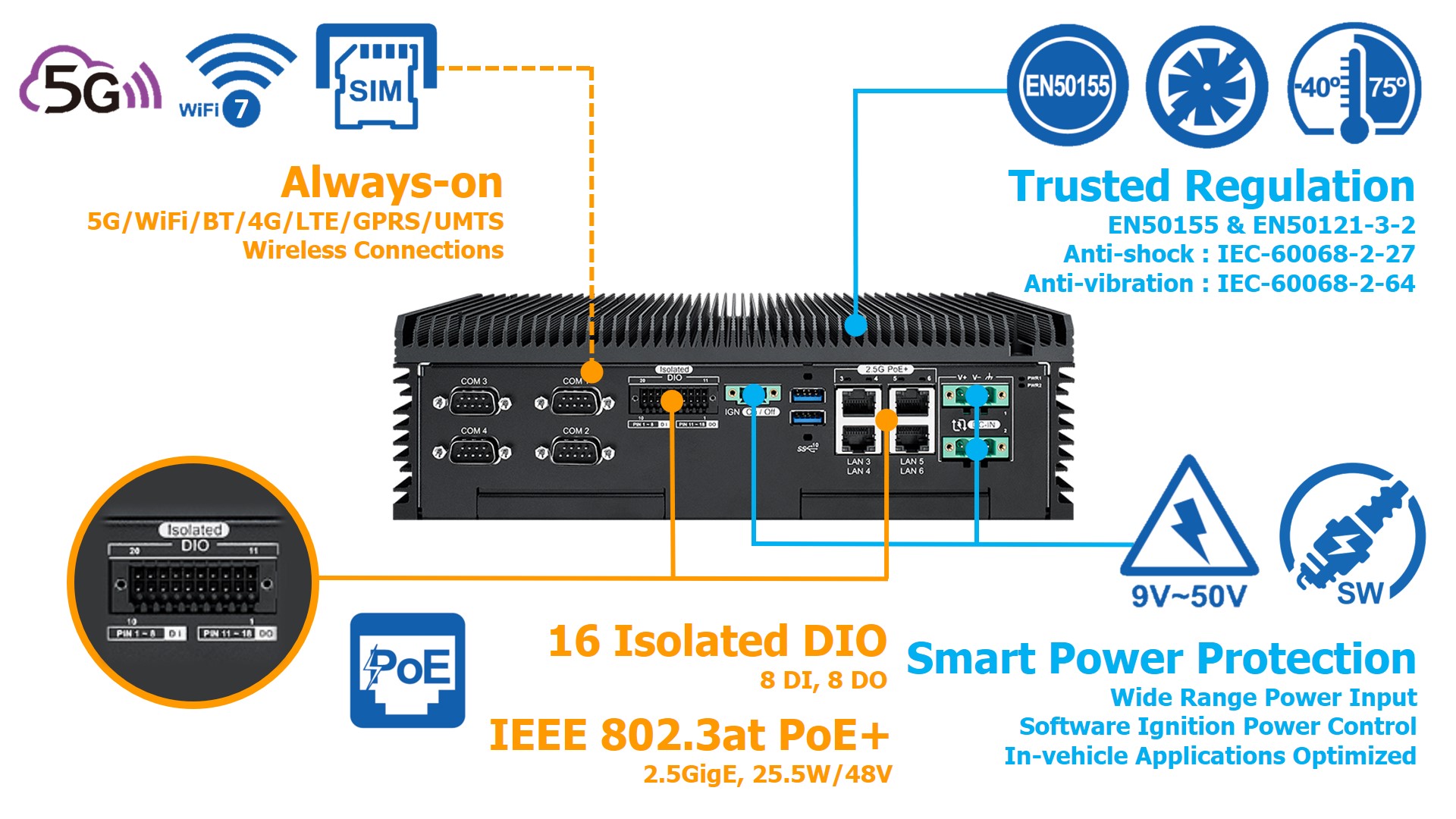

Isolated DIO 16 Isolated DIO : 8 DI, 8 DO (Optional)
LED Power, HDD, PoE, Wireless
SIM Card  2 External SIM Card Sockets
Integrated AI Processor
NPU Intel® AI Boost dedicated Low Power AI Engine
GPU Intel® Xᵉ LPG Graphics architecture, up to 4Xᵉ Graphics Engines
Interface
- 2 DisplayPort : Up to 7680 x 4320@60Hz
- 1 HDMI 2.0 : Up to 3840 x 2160 @60Hz
- 1 DVI-I : Up to 1920 x 1080 @60Hz
Expansion
M.2
- 2 M.2 Key B Socket (3042/3052/2280, PCIe x2/USB 3, default/SATA)
- 1 M.2 Key E Socket (2230, PCIe x2/USB2)
SUMIT 2 SUMIT Slot (Optional)
Storage
SATA
2 SATA III (6Gbps) support software RAID 0, 1
(Storage devices please refer to Order Information)
M.2
- 1 M.2 Key M Socket (2280, PCIe x4)
- 2 Front-access M.2 Socket (2280, PCIe x4, Optional)
Audio
Audio Codec Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT
LAN 2 Intel® I226IT 2.5GigE LAN supports TSN
PoE
LAN 3 Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+
LAN 4 Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+
LAN 5 Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+
LAN 6 Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+
2.5G Ethernet (ECX-4025R/4025)
LAN 7  Intel® I225 2.5GigE LAN
LAN 8 Intel® I225 2.5GigE LAN
LAN 9 Intel® I225 2.5GigE LAN
10G SFP+ (ECX-4071R/4071)
LAN 7  Intel® X710-BM2 supports IEEE 802.3 10GBASE-T
LAN 8 Intel® X710-BM2 supports IEEE 802.3 10GBASE-T
Power

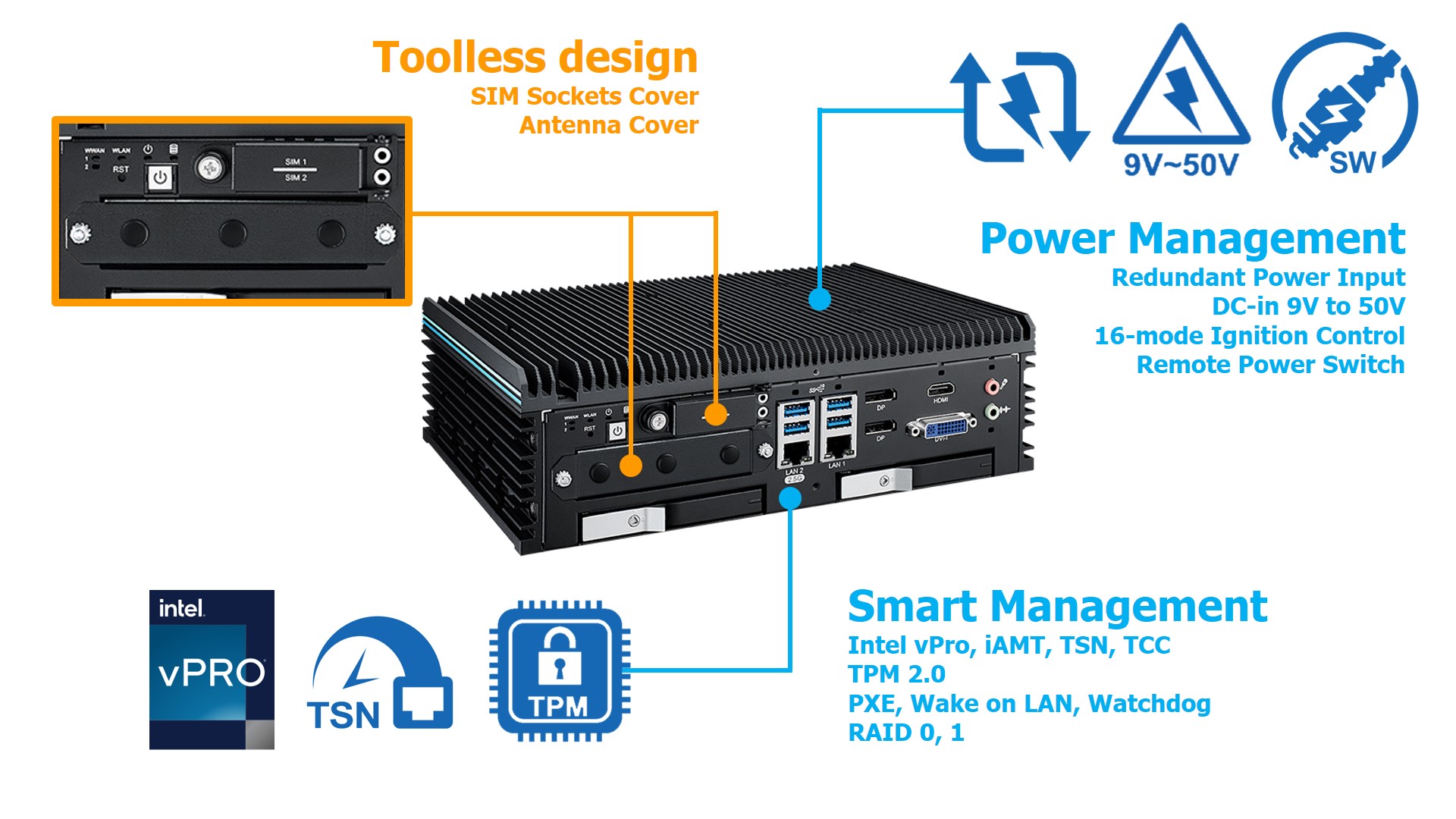

Power Input 1 DC 9V to 50V, Redundant Power Input
Power Input 2 DC 9V to 50V, Redundant Power Input
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block
Others
TPM Infineon SLB9672 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Mgmt. Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11")
Weight 3.8 kg (8.38 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
- 2U Rackmount (Optional)
Environment
Operating Temperature
35W TDP CPU :
-40°C to 75°C (-40°F to 167°F), Fanless
65W TDP CPU :
-40°C to 55°C (-40°F to 131°F), Fanless
ECX-4025R/ECX-4025 :
-40°C to 70°C (-40°F to 158°F), Fanless
ECX-4071R/ECX-4071 :
-25°C to 55°C (-13°F to 131°F), Fanless
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @75°C
Shock
- IEC 60068-2-27
- SSD : 50G @wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, ICES, EN50155, EN50121-3-2



Resources

Item File Name Format File Update Download
ECX-4000 ECX-4000 Datasheet .PDF 2025/1/6 Download

Inquiry

Product Description Qty
ECX-4025R ECX-4000, 8 2.5G LAN w/4 PoE+, 1 1G LAN, 2 SSD/HDD Tray, 6 USB 3.2 Gen2, 16 Isolated DIO
ECX-4025 ECX-4000, 8 2.5G LAN w/4 PoE+, 1 1G LAN, 6 USB 3.2 Gen2, 16 Isolated DIO
ECX-4000-PoER ECX-4000, 5 2.5G LAN w/4 PoE+, 1 1G LAN, 2 SSD/HDD Tray, 6 USB 3.2 Gen2, 16 Isolated DIO
ECX-4000-PoE ECX-4000, 5 2.5G LAN w/4 PoE+, 1 1G LAN, 6 USB 3.2 Gen2, 16 Isolated DIO
ECX-4000-6R ECX-4000, 5 2.5G LAN, 1 1G LAN, 2 SSD/HDD Tray, 6 USB 3.2 Gen2, 16 GPIO
ECX-4000-6G ECX-4000, 5 2.5G LAN, 1 1G LAN, 6 USB 3.2 Gen2, 16 GPIO
ECX-4000-2R ECX-4000, 1 2.5G LAN, 1 1G LAN, 2 SSD/HDD Tray, 6 USB 3.2 Gen2, 16 GPIO
ECX-4000-2G ECX-4000, 1 2.5G LAN, 1 1G LAN, 6 USB 3.2 Gen2, 16 GPIO
ECX-4071R ECX-4000, 2 10G SFP+, 5 2.5G LAN w/4 PoE+, 1 1G LAN, 2 SSD/HDD Tray, 6 USB 3.2 Gen2, 16 Isolated DIO
ECX-4071 ECX-4000, 2 10G SFP+, 5 2.5G LAN w/4 PoE+, 1 1G LAN, 6 USB 3.2 Gen2, 16 Isolated DIO
CPU (Ultra 9 285) Intel® Core™ Ultra 9 285 (36M Chace, up to 2.5 GHz)
CPU (Ultra 9 285T) Intel® Core™ Ultra 9 285T (36M Chace, up to 1.4 GHz)
CPU (Ultra 7 265) Intel® Core™ Ultra 7 265 (30M Chace, up to 2.4 GHz)
CPU (Ultra 7 265T) Intel® Core™ Ultra 7 265T (30M Chace, up to 1.5 GHz)
CPU (Ultra 5 245) Intel® Core™ Ultra 5 245 (24M Chace, up to 3.5 GHz)
CPU (Ultra 5 245T) Intel® Core™ Ultra 5 245T (24M Chace, up to 2.2 GHz)
VHub AI Developer AI Development Kit
VHub ROS AMR Development Kit
VHub EtherCAT I/O Control Platform
DDR5 48G Certified DDR5 48GB 5600MHz RAM
DDR5 32G Certified DDR5 32GB 5600MHz/4800MHz RAM
DDR5 16G Certified DDR5 16GB 5600MHz/4800MHz RAM
DDR5 8G Certified DDR5 8GB 5600MHz/4800MHz RAM
PWA-120W1 120W, 24V, 90V AC to 264V AC Power Adapter with 3-pin Terminal Block
PWA-160W-WT 160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C
PWA-180W 180W, 24V, 90V AC to 264V AC Power Adapter with 3-pin Terminal Block
PWA-280W-WT 280W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C
PWA-330W 330W, 24V, 90V AC to 264V AC Power Adapter with 3-pin Terminal Block
VESA Mount VESA Mounting Kit
DIN-RAIL DIN Rail Kit
Rack Mount 2U Rackmount Kit
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting
M.2 Storage Module M.2 Key M/Key B PCIe Storage Module
5G Module 5G Module with Antenna
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
