PBC-2000

特長

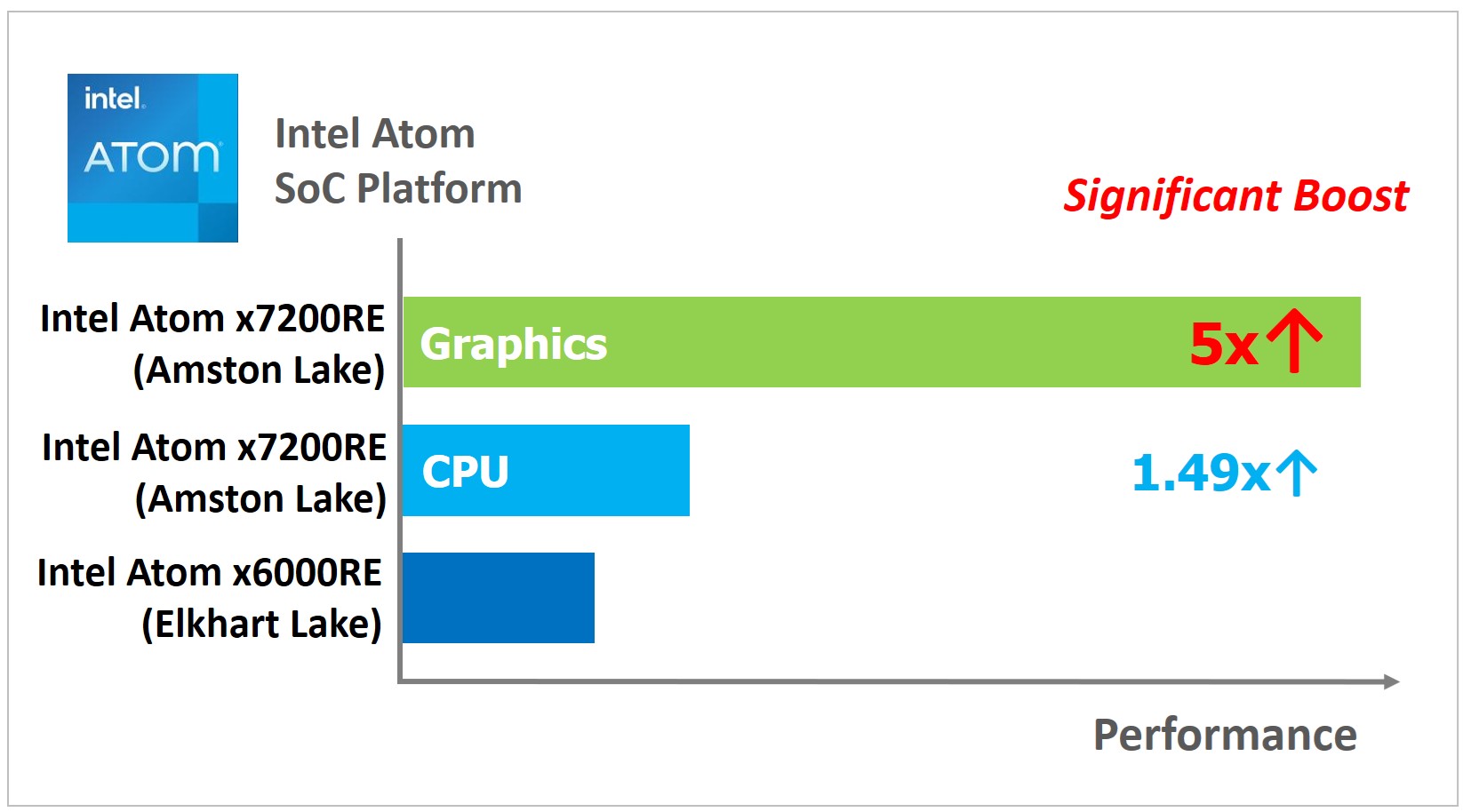

    • Dual-Core Intel Atom® x7211RE Processor delivers notable improvements in CPU and GPU performance
    • Small form factor, ultra-compact design
    • Fanless, -40°C to 70°C Operating Temperature

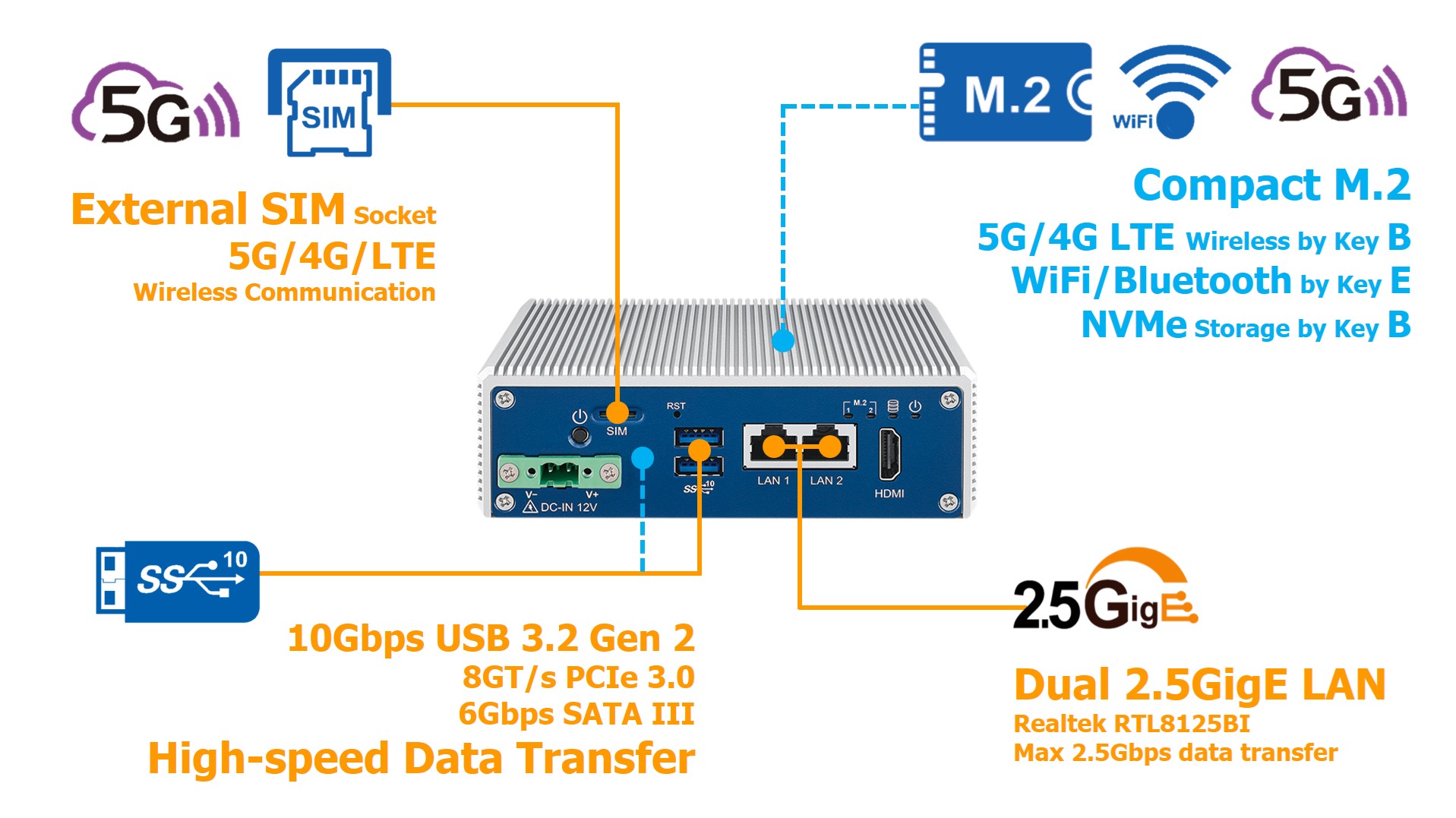

    • 2 2.5 GigE LAN, 2 USB 3.2, 2 COM, M.2 Key B
    • HDMI 2.0 support up to 4K @60Hz resolution
    • SIM Socket for 5G/4G/WiFi/LTE/GPRS/UMTS

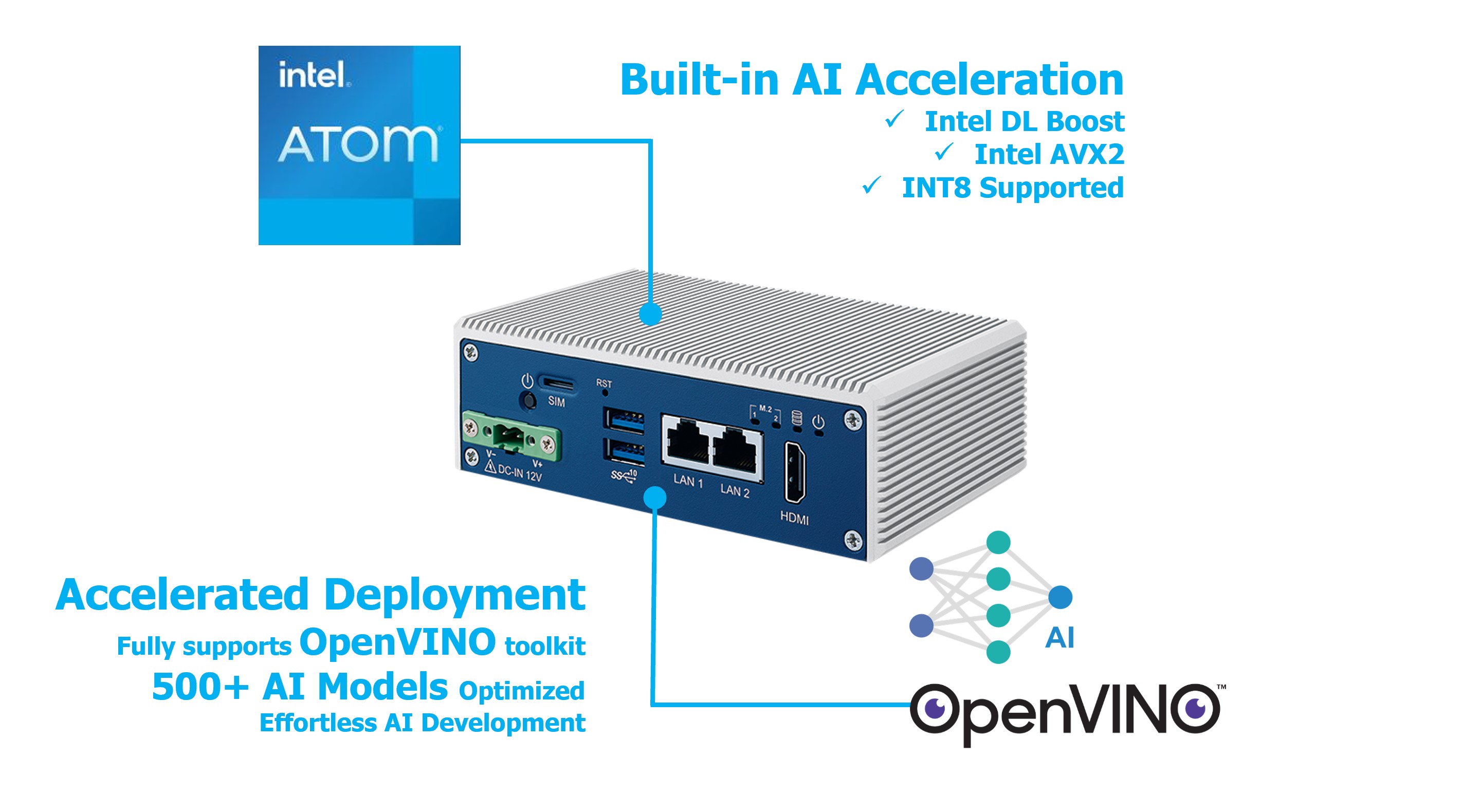

    • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

概要

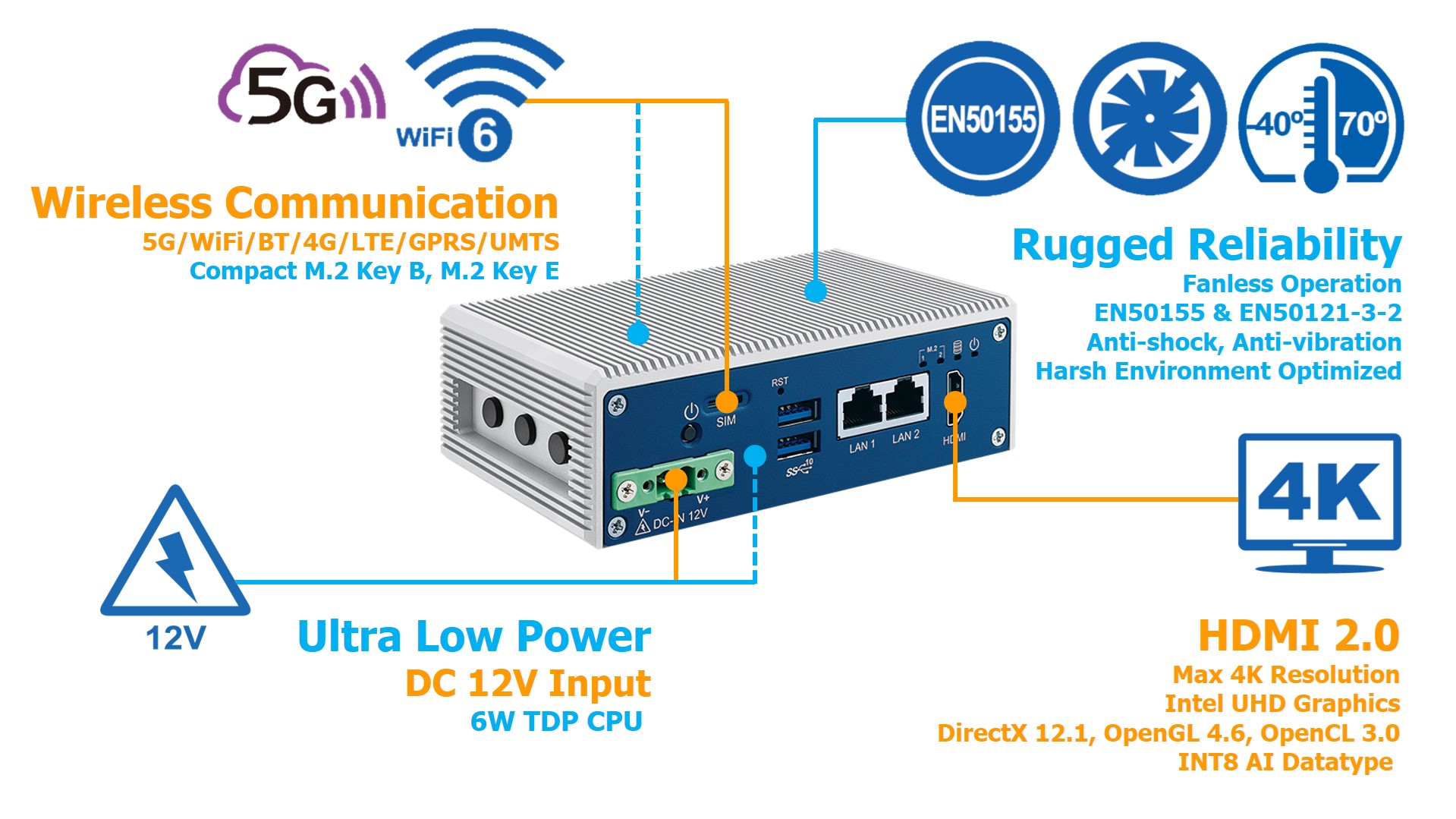

    The Vecow PBC-2000 is an ultra-slim, fanless embedded system powered by the Intel® Atom® x7211RE processor. It supports up to 16GB of DDR5 4800MHz SO-DIMM memory with in-band ECC, ensuring reliable performance. Designed with a compact, fanless architecture, the system operates efficiently in extreme temperatures ranging from -40°C to 70°C and features a 12V DC power input. These capabilities make it an ideal solution for applications such as intelligent control, energy management, smart home automation, machine-to-machine (M2M) communication, Industry 4.0/AIoT deployments.



スペック

System
Processor Intel Atom® x7211RE
Chipset Intel® SoC
BIOS AMI
SIO IT8659E
Memory 1 DDR5 4800MHz SO-DIMM, up to 16GB, In-band ECC
OS Windows 11, Windows 10, Linux
I/O Interface
Serial  2 COM RS-232/422/485
USB 2 USB 3.2 Gen 2
LED Power, HDD, WLAN, WWAN
SIM Card 1 External SIM Card Socket for 5G/4G/LTE/GPRS/UMTS wireless network
Expansion
M.2  - 1 M.2 Key B (2280, PCIex2/USB2)
- 1 M.2 Key E (2230, PCIex1/USB2)
Graphics
Graphics Processor Intel® UHD Graphics
Interface 1 HDMI 2.0: Up to 4096 x 2160 @60Hz
Storage
SATA 1 SATA III (6Gbps)
M.2 1 M.2 Key B (2280, PCIex2/USB2)
Ethernet
LAN 1 Realtek® RTL8125BI-CG 2.5G LAN
LAN 2 Realtek® RTL8125BI-CG 2.5G LAN
Power
Power Input 12V DC-in
Power Interface 2-pin Terminal Block：V+,V-
Others
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension  136.0mm x 44.5mm x 78.5mm (5.35" x 1.75" x 3.09")
Weight 0.6kg (1.3lbs)
Mounting
-Wallmount by mounting bracket
-DIN Rail Mount (Optional)
Environment
Operating Temperature -40°C to 70°C with air flow
Storage Temperature -40°C to 85°C
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @75°C
Shock
-IEC 60068-2-27
-SSD：50G @ wallmount, Half-sine, 11ms
Vibration
-IEC 60068-2-64
-SSD：5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, ICES, EN50155, EN50121-3-2



ダウンロード

型番 ファイル名 ファイルタイプ 更新日 ダウンロード

お見積り

型番 詳細内容 数量
PBC-2000 Intel Atom® x7211RE Processor (Amston Lake) Ultra-compact Fanless Embedded Box PC, 2 2.5 GigE LAN, 2 USB 3.2, 2 COM, 1 HDMI 2.0, 1 SIM Socket, 12V DC-in, -40°C to 70°C Extended Temperature
VHub AI Developer AI Development Kit
VHub ROS AMR Development Kit
VHub EtherCAT I/O Control Platform
DDR5 16G Certified DDR5 16GB 5600MHz/4800MHz RAM
DDR5 8G Certified DDR5 8GB 5600MHz/4800MHz RAM
PWA-60W-12V 60W, 12V, 90V AC to 264V AC Power Adapter with 2-pin Terminal Block
DIN-RAIL DIN Rail Kit
VESA Mount VESA Mounting Kit
M.2 Storage Module M.2 Key M/Key B PCIe Storage Module
5G Module 5G Module with Antenna
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
