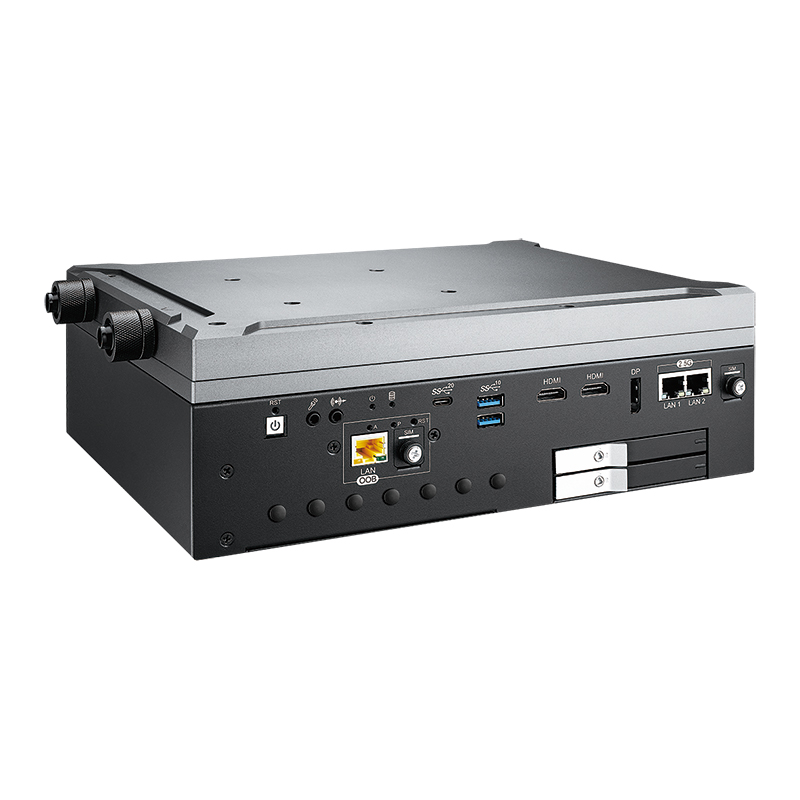

EVS-3000 LIQ

Features

    • Workstation-grade Platform: Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
    • Supports up to a 115W MXM GPU with 1 PCIe card expansion
    • USB 3.2 Gen 2x2 offers a max speed of 20Gbps data transfer
    • DC 9V to 55V wide range power input, Software Ignition Control
    • Support remote devices Out-Of-Band management functions powered by Allxon

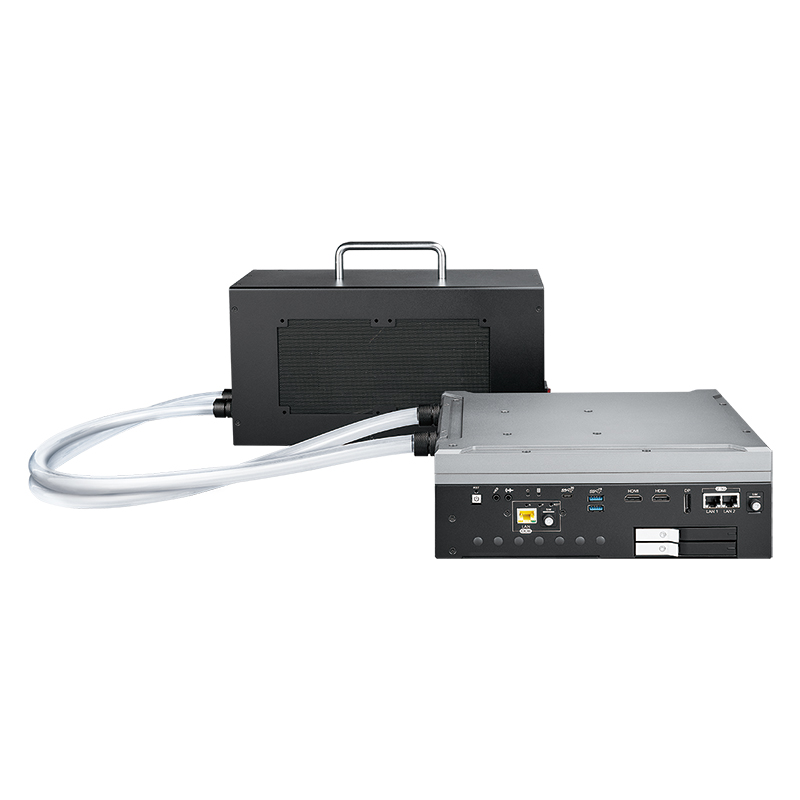

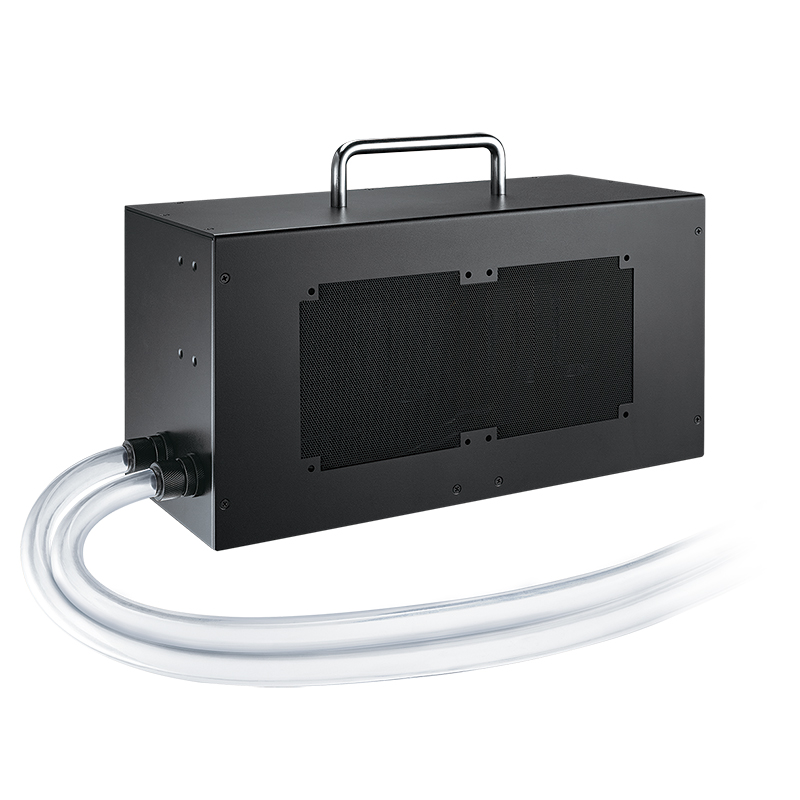

    • Innovative Liquid Cooling Solution serves 5°C to 55°C fanless

Overview

    The Vecow EVS-3000 LIQ is a high-performance AI computing system designed for demanding edge AI applications. It is powered by Intel® Core™ i9/i7/i5/i3 processors, paired with the Intel® R680E PCH, and supports CPUs with a maximum TDP of 65W, delivering exceptional computing performance.

    Equipped with a PCIe x16 slot, the system enables seamless integration of MXM graphics, enhancing AI computing efficiency. Designed for reliability in harsh environments, it features an extended operating temperature range of 5°C to 55°C and supports a wide range DC power input of 9V to 55V. These capabilities make it ideal for mission-critical applications such as V2X, traffic vision, rolling stock, and in-vehicle computing.


Specifications

System
Processor
- 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh)
- 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
- 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel® R680E
BIOS AMI
SIO IT8786E
Memory 2 DDR5 5600MHz SO-DIMM, up to 96GB (ECC/Non-ECC)
OS Windows 11, Windows 10, Linux

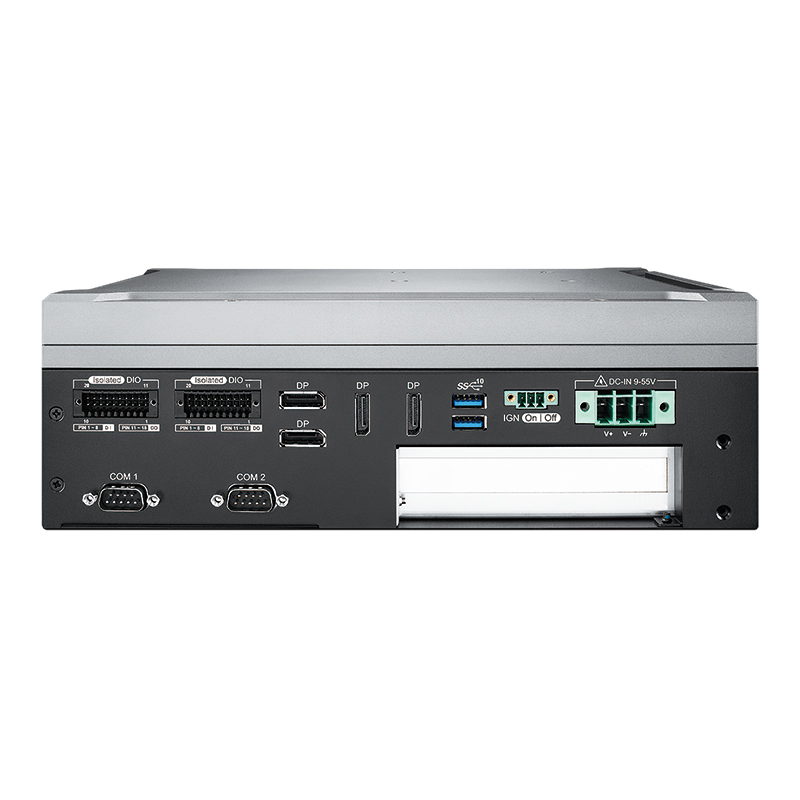

I/O Interface
Serial  2 COM RS-232/422/485 (ESD 8kV)
USB
- 4 USB 3.2 Gen 2 Type A
- 1 USB 3.2 Gen 2x2, USB Type-C supports max 20Gbps data transfer (15W, 5V/3A)
Isolated DIO 32 Isolated DIO (16 DI, 16 DO)
LED Power, HDD, OOB
SIM Card  1 External SIM Card Socket for 5G/4G/LTE/GPRS/UMTS wireless network
Expansion
PCIe 1 PCIe x16 Slot with x8 Signal
M.2
- 1 M.2 Key B Socket (2280/3042/3052, PCIe/USB 3, default/SATA)
- 1 M.2 Key E Socket (2230, PCIe/USB)
Graphics
Graphics Processor Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture
Interface
Up to 7 independent displays:
- 2 HDMI 2.1: Up to 4096 x 2304 @60Hz
- 1 DP: Up to 3840 x 2160 @60Hz
- 4 DP: Up to 7680 x 4320 @60Hz (By requested MXM)
Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1, with 2 Front-access 2.5" SSD/HDD Tray
M.2 1 M.2 Key M Socket (2280, PCIe x4)
Audio
Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I226 2.5GigE LAN supports TSN
LAN 2 Intel® I226 2.5GigE LAN supports TSN
Power
Power Input DC 9V to 55V
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block
Out-of-Band Management
MCU Nuvoton NUC980
Interface OOB LAN, 10/100Mb Ethernet LAN, RJ45 Connector
Remote Management Support Remote Power ON/OFF, Reset and Power Cycling
Others
TPM Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension  302mm x 93.4mm x 215mm (11.89"x 3.68"x 8.46")
Weight 5.7 kg (12.56 lb)
Mounting
- Wallmount by mounting bracket
- VESA Mount (Optional)
- DIN Rail Mount (Optional)
- Rackmount (Optional)
Environment
Operating Temperature
- 35W TDP CPU: 5°C to 55°C (-41°F to 131°F)
- 65W TDP CPU: 5°C to 45°C (-41°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative humidity 95% at 55°C
Shock
- IEC 60068-2-27
- SSD: 50G @wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD: 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, ICES, EN50155, EN50121-3-2
