DMT-110

Features

    • 4KV Isolated Protection for each channel
    • 4 ports digital signal, each with 8-bit GPIO
    • Isolated DIO Control : Sink Mode/Source Mode
    • Supports Wide Range I/O Voltage

Overview

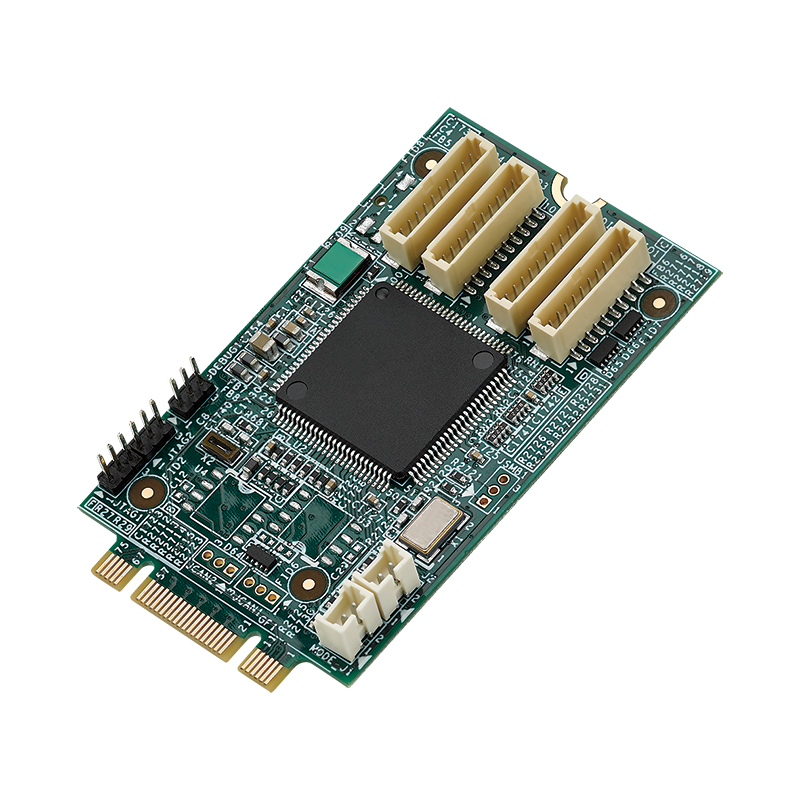

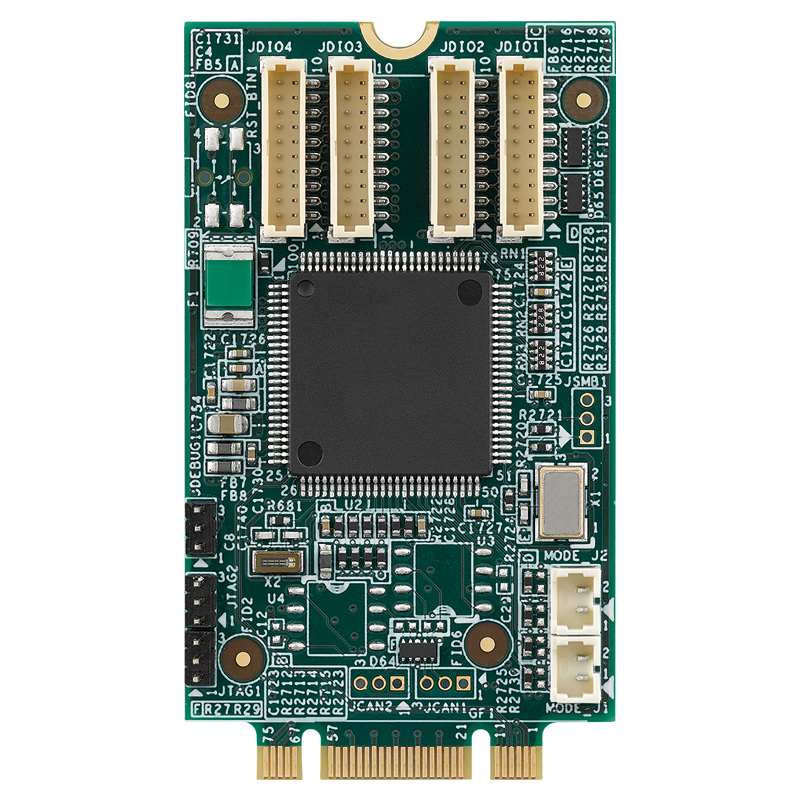

    DMT-100 series M.2 Key B+M expansion card with 32-bit GPIO and Isolated DIO, -40°C to 85°C extended operating temperature

Specifications

GPIO (DMX-100-M)
Interface USB 2.0
Number of port 4 (8-bit GPIO/each)
Power Input 3.3V DC-in
I/O Voltage 3.3V

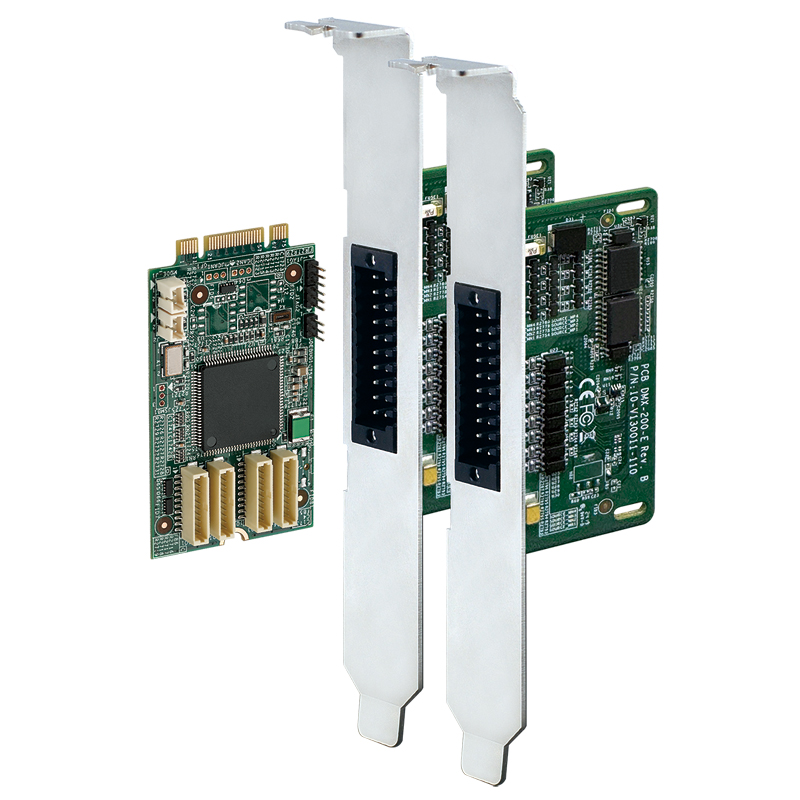

Isolation DIO Expansion Card (DMX-200-E)
Number of port
- Input: 2 (8-bit GPIO/each)
- Output: 1 with 16-bit Isolated DIO
I/O Voltage
- Sink Mode: 6V to 40V
- Source Mode: 6V to 48V
Mechanical
Dimensions
DMT-100-M: 30.0mm x 52.0mm
DMX-200-E: 45.0mm x 80.0mm
Cable Length : 250mm
Weight 160 g
Software Support
OS Windows 10, Windows 7, Linux
Environment
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 85°C
EMC CE, FCC
Packing List
- 1 DMT-100-M GPIO Card
- 2 DMX-200-E Isolated DIO Expansion Card
- 4 Isolated DIO Cable
- 2 Sink/Source Mode Control Cable
- 1 Screw Kit
- 2 Terminal block 20-pin (2.54mm)
- 2 Bracket
